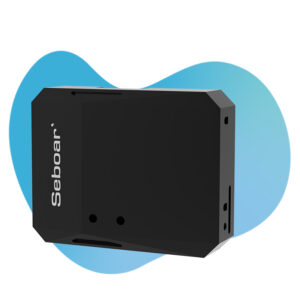

Sebosr A-W
Digital HD lmage
Transmission
Ultra-low latency,
virtually imperceptible to the human eye
33KM Long-Range Transmission
1080P Dual-Channel Digital Image Transmission
10ms Ultra-Low Latency
One-to-Many
Efficient Coordination
Image Transmission Relay, Extended Range

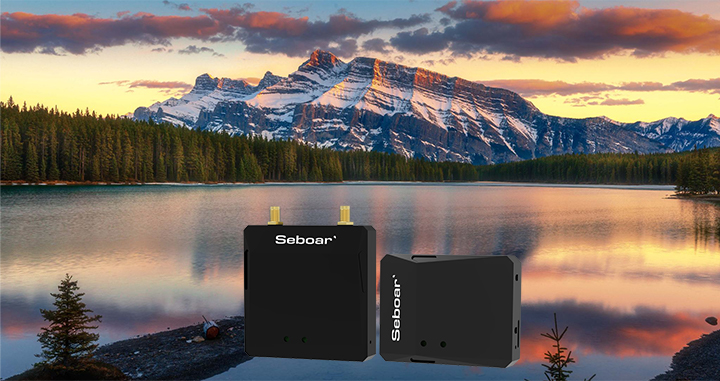

Seboar A-WI Digital HD lmage Transmission
Ultra-low latency,virtually imperceptible to the human eye
The A-Wl digital HD image transmission, low-latency design, so that the picture transmission closer to real-time, reduce waiting, improve efficiency, open a new experience of smooth vision.
Seboar A-WI Digital HD lmage Transmission
Dual-channel RealTime HD Video Display
Dual-channel RealTime HD Video Display
(With extended range antenna,real-time maptransmission and control distance of 33KM)
Seboar A-WI
Digital HD lmage Transmission

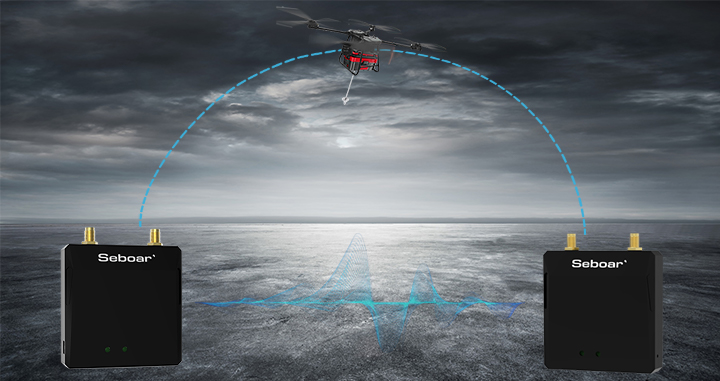

One-to-Many for Efficient Coordination
Designed for dual-operator scenarios, the system supports establishing a link between one aerial unit and up to two ground stations.In dual-control mode, the two ground stations can simultaneously receive video from the same camera source or display video from different camera sources.
(The “one-to-Many” and “lmage Transmission Relay” functions require an additional purchase and are not included in the standard package.)
Seboar A-WI Digital HD lmage Transmission

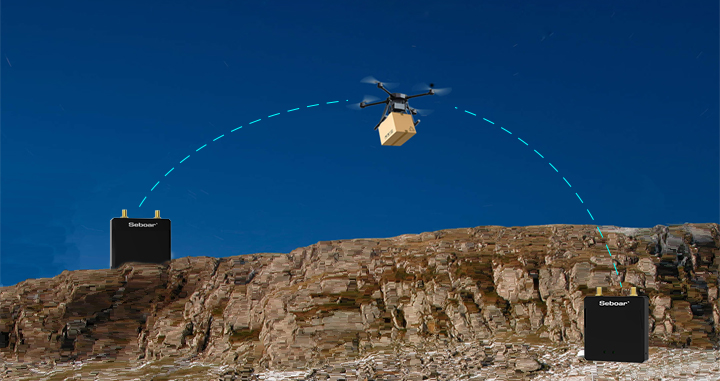

Image Relay for Remote Delivery
Developed for ultra-long-range flight missions,the system supports relay control by two ground stations for a single aerial unit.This approach achieves a maximum transmission distance twice that of a single standard transmission system.lt can be widely applied in patrol inspections,drone delivery,and unmanned logistics.
(The “One-to-Many” and “Image Transmission Reply”functions require an additional purchase and are not included in the standard package.)
Specifications
Parameter
Interface:LALAN port, 2.4G Wi-Fi, TTTTLpassthrough
Power Supply:DC power input 7-28V
Housing:Aluminum alloy
Dimensions:68*68*12 (mm)
Weight:100g
| Indicator | Parameter |
|---|---|
| Output Distance (Outdoor) | Standard 7km version/ up to 33km with high-gainantenna for ground use |
| Transmission Delay | <10ms |
| Frequency Band | 5.18GHz-5.95GHz |
| Modulation Method | OFDM |
| Interface | LALAN port, UART port *2 2.4G Wi-Fi(client) |
| LALAN Input | 192.168.1.XXX |
| Output Format | Standard Ethernet |
| Upstream/ Downstream Bandwidth | Max 6Mbps Min 2Mbps |
| Communication Channels | 27 channels |
| Supported Devices | Mobile phone, tablet, computer (Requires 2.4G Wi-Fiwith 802.11n support) |
| Supported Systems | Android IOS Windows |
| Extension Support | SBUS |
| Communication Encryption | AES256 |
| Operating Temperature | -10°C-70°C |
| Certification Standards | CE/FCC |
Parameter
Interface：LALAN port, 2.4G Wi-Fi, TTTTLpassthrough
Power Supply：DC power input 7-28V
Housing：Aluminum alloy
Dimensions：68*53*12.9 (mm)
Weight：71g
| Indicator | Parameter |
|---|---|
| Output Distance (Outdoor)r) | Standard 7km version / up to 33km with high-gain antenna for ground use |
| Transmission Delay | < 10ms |
| Frequency Band | 5.18GHz-5.95GHz |
| Modulation Method | OFDM |
| Interface | LALAN port, UART port * 2, 2.4G Wi-Fi (client) |
| LALAN Input | 192.168.1.XXX |
| Output Format | Standard Ethernet |
| Upstream/ Downstream Bandwidth | Max 6Mbps Min 2Mbps |
| Communication Channels | 27 channels |
| Supported Devices | Mobile phone, tablet, computer (Requires 2.4G Wi-Fi with 802.11n support) |
| Supported Systems | Android iOS Windows |
| Extension Support | SBUS |
| Communication Encryption | AES256 |
| Operating Temperature | -10°C-70°C |
| Certification Standards | CE/FCC |
