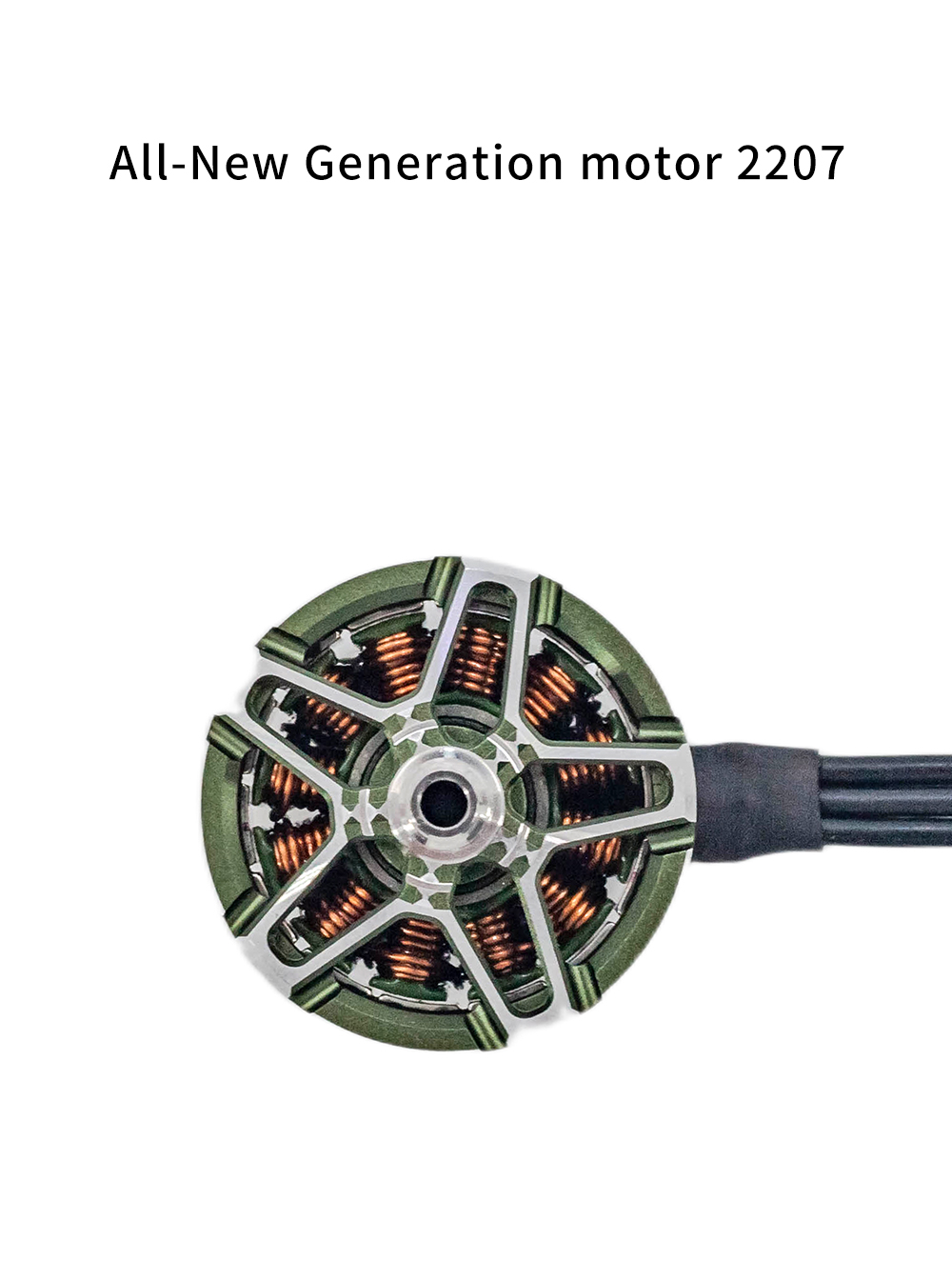

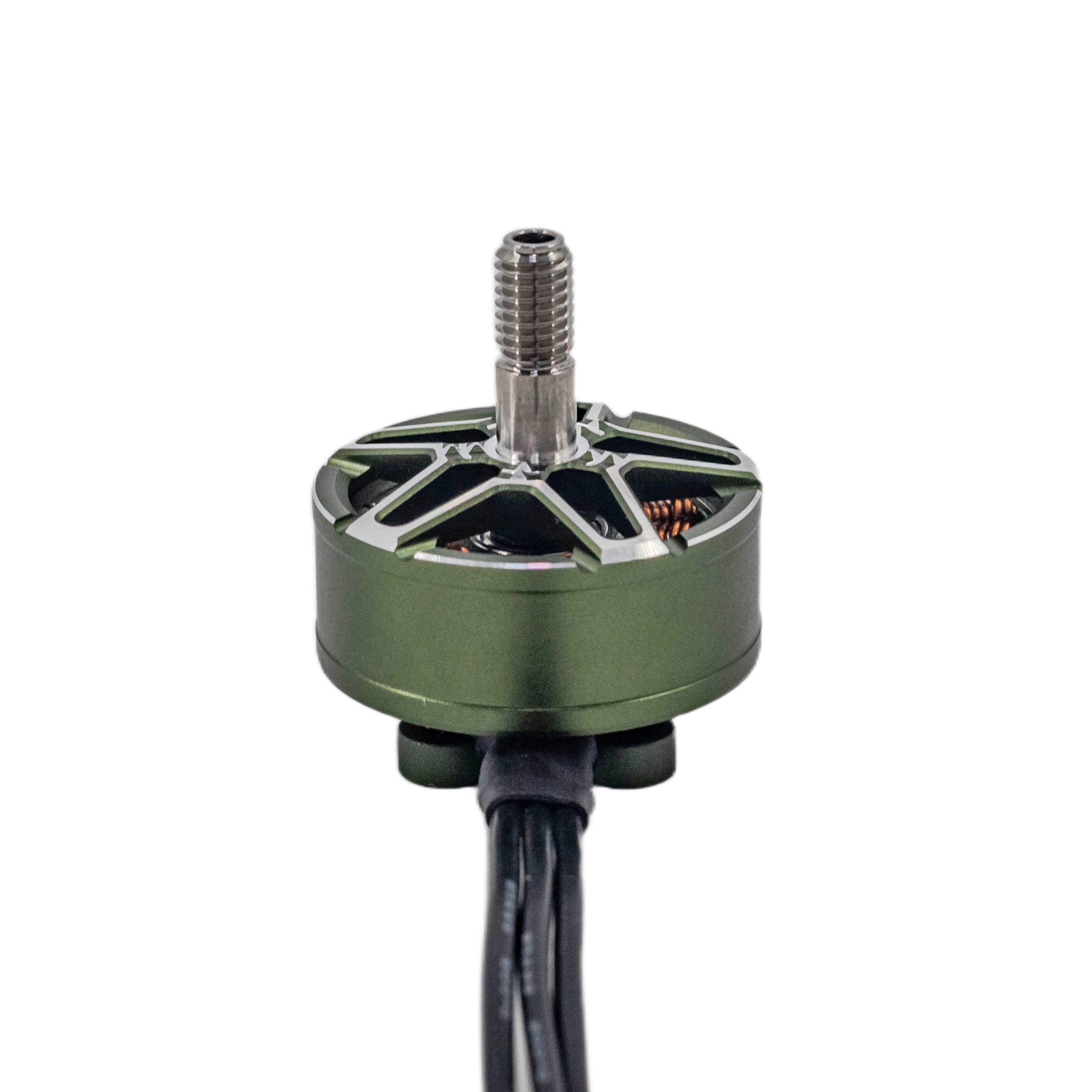

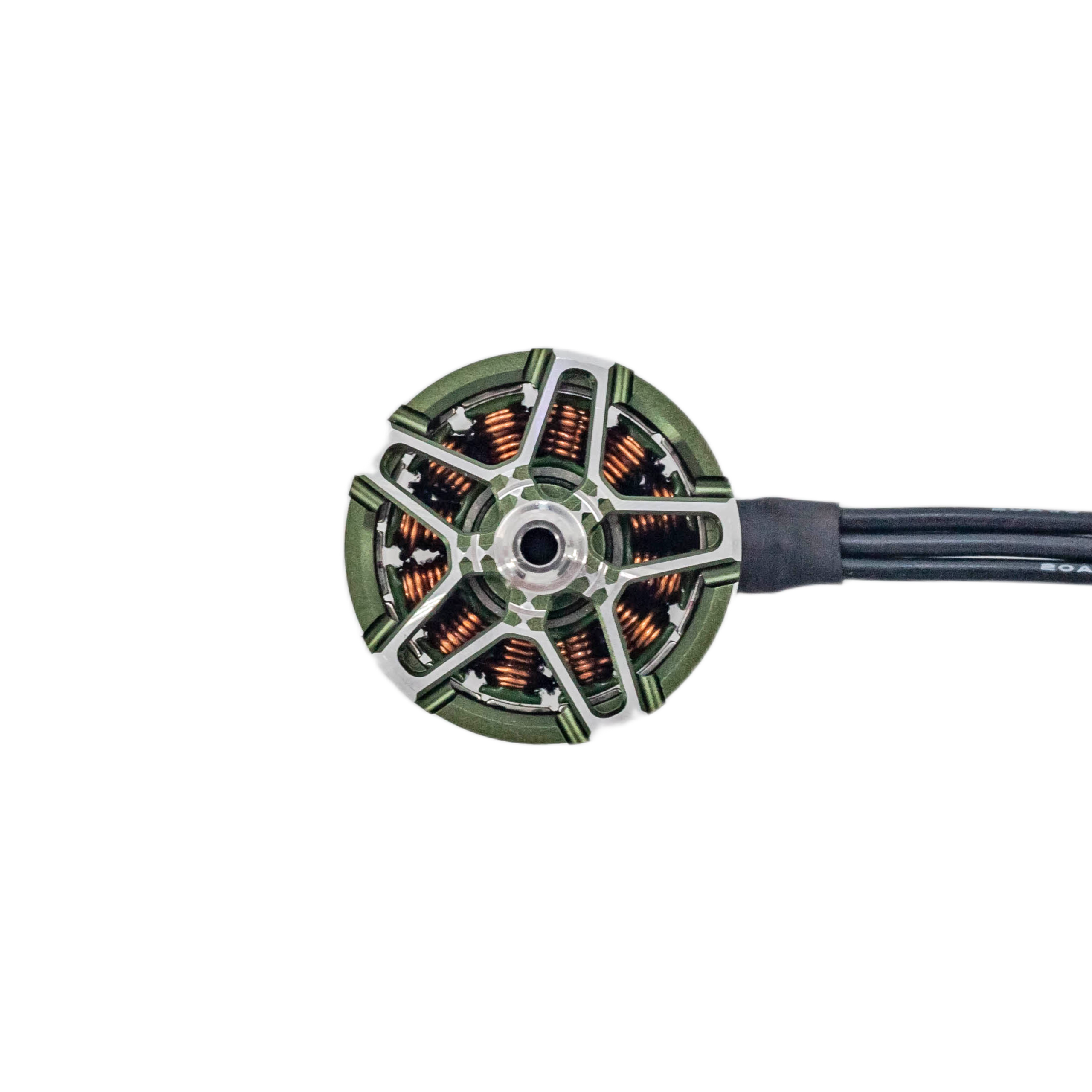

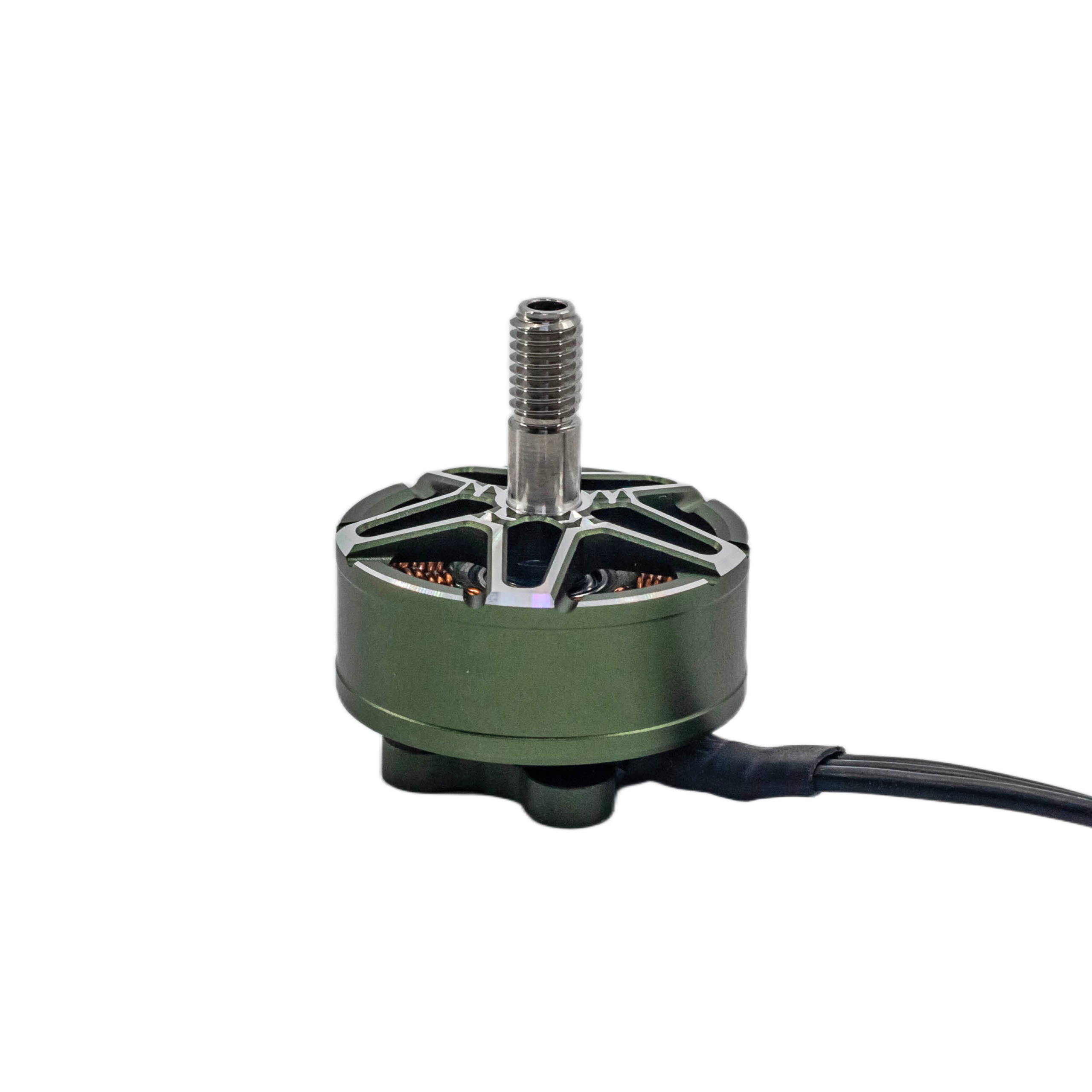

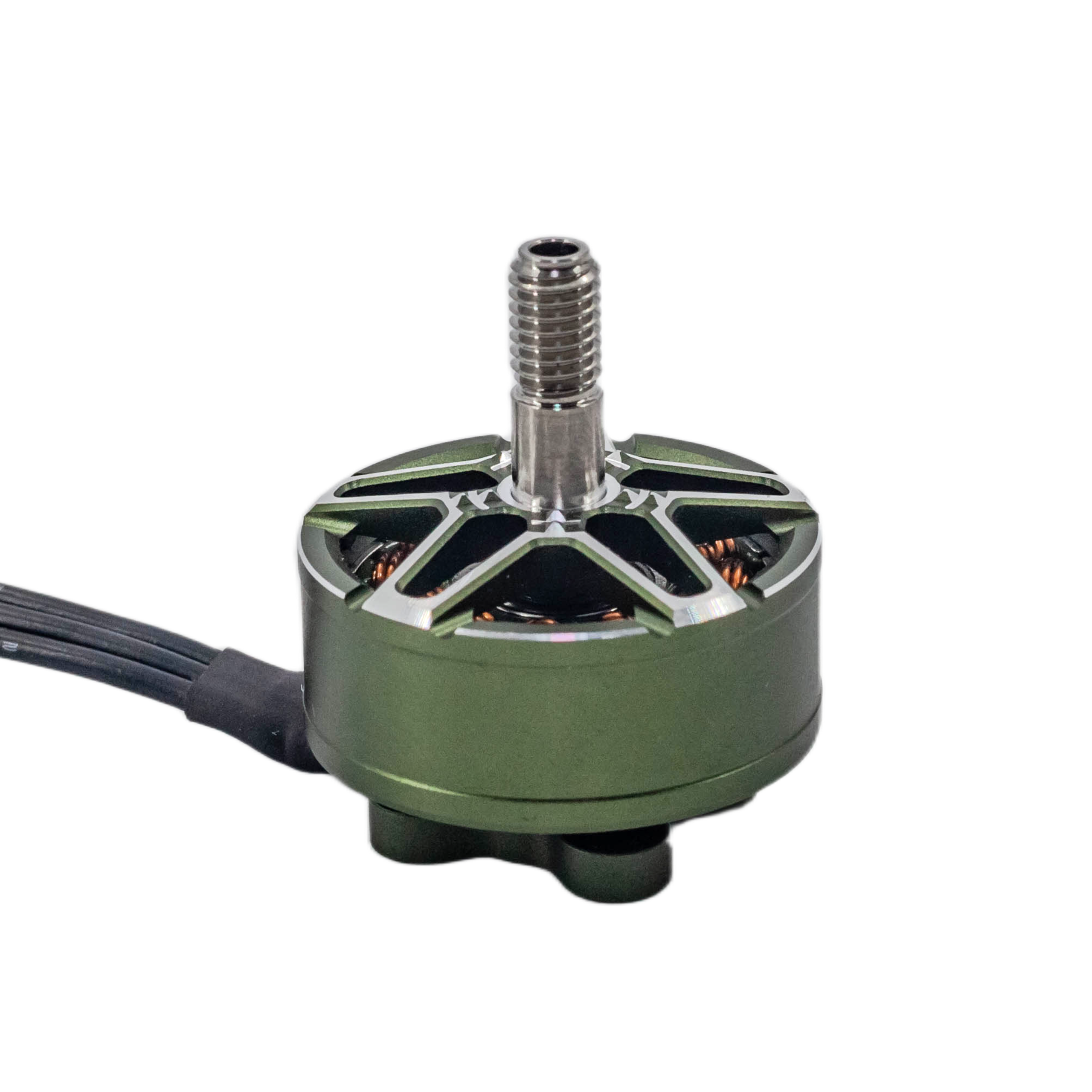

Drone Motor – 2207 1900KV Brushless Motor
The Drone Motor 2207 1900KV Brushless Motor is a high-performance propulsion solution designed for FPV drones, multirotors, and aerial platforms requiring fast response and efficient power delivery.
Built around a 2207 stator configuration, this motor provides an ideal balance between torque, speed, and weight, making it suitable for both freestyle flying and professional drone applications.
With high-quality materials and optimized internal structure, it ensures stable operation, efficient energy conversion, and long service life under demanding conditions.
Key Features
High KV Performance Output
The 1900KV rating enables high rotational speed per volt, delivering strong thrust and responsive acceleration for agile flight control.
Optimized 2207 Stator Design
The 22mm diameter and 7mm height stator provides a balanced combination of torque and efficiency, ideal for 5-inch propeller drone setups.

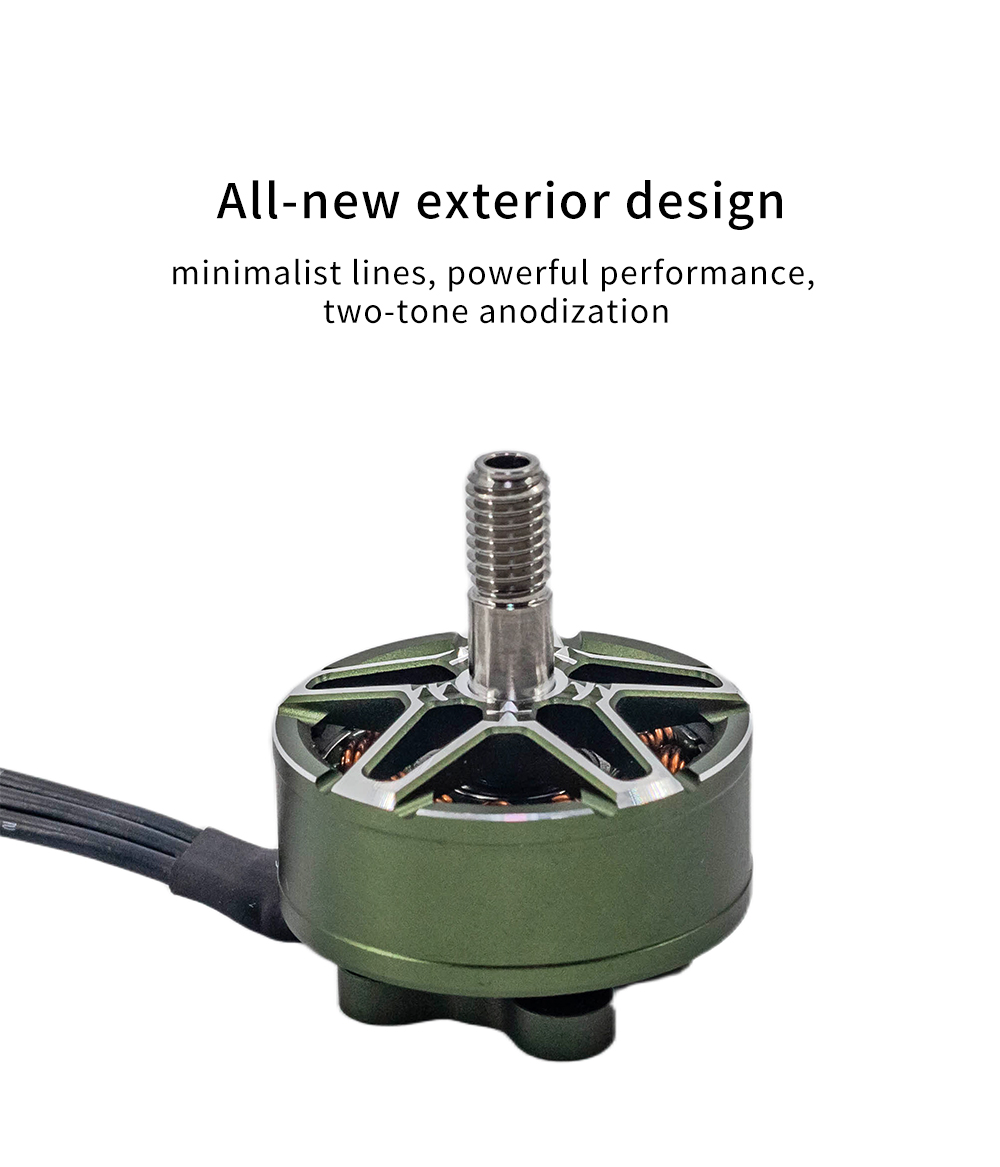

Durable Brushless Construction
Brushless motor design eliminates friction from brushes, improving efficiency, reducing heat, and extending lifespan compared to traditional motors.

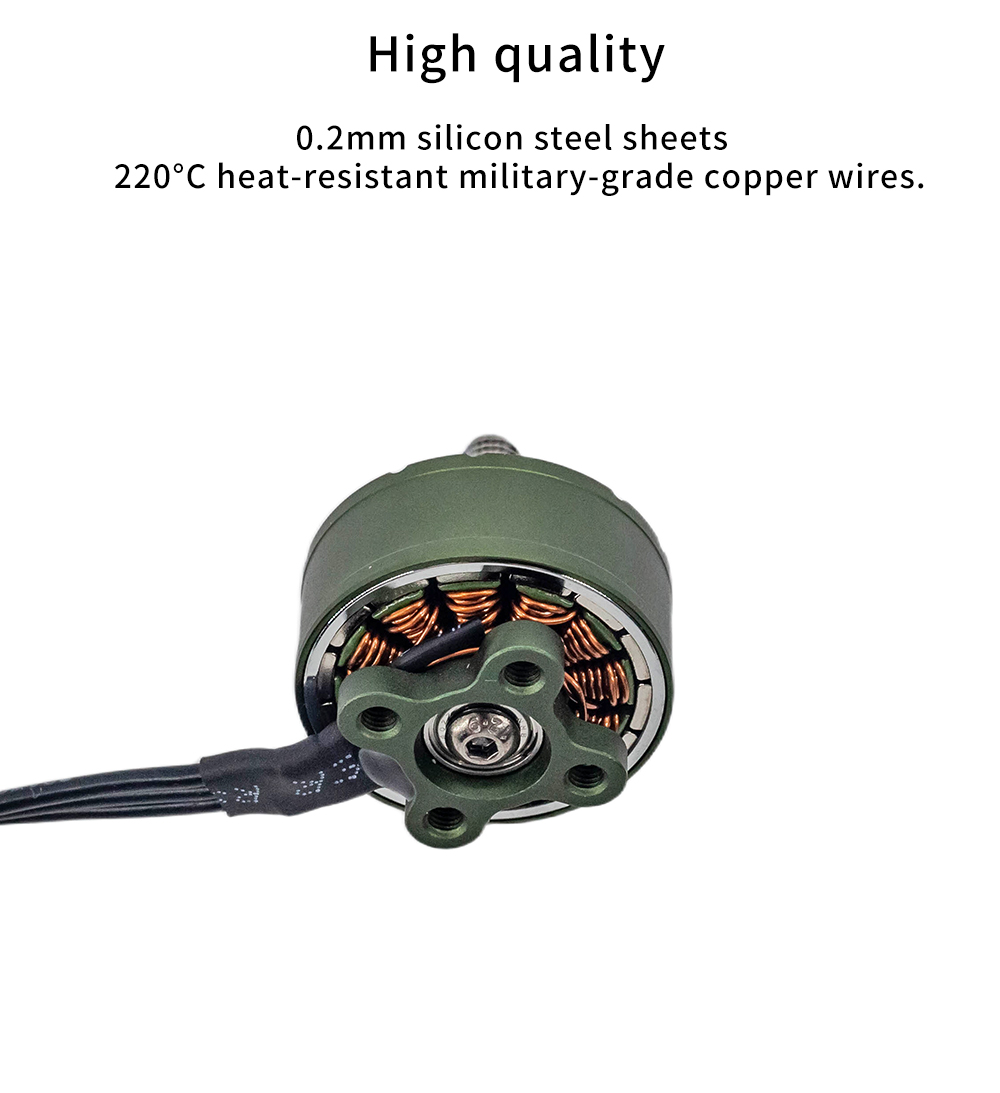

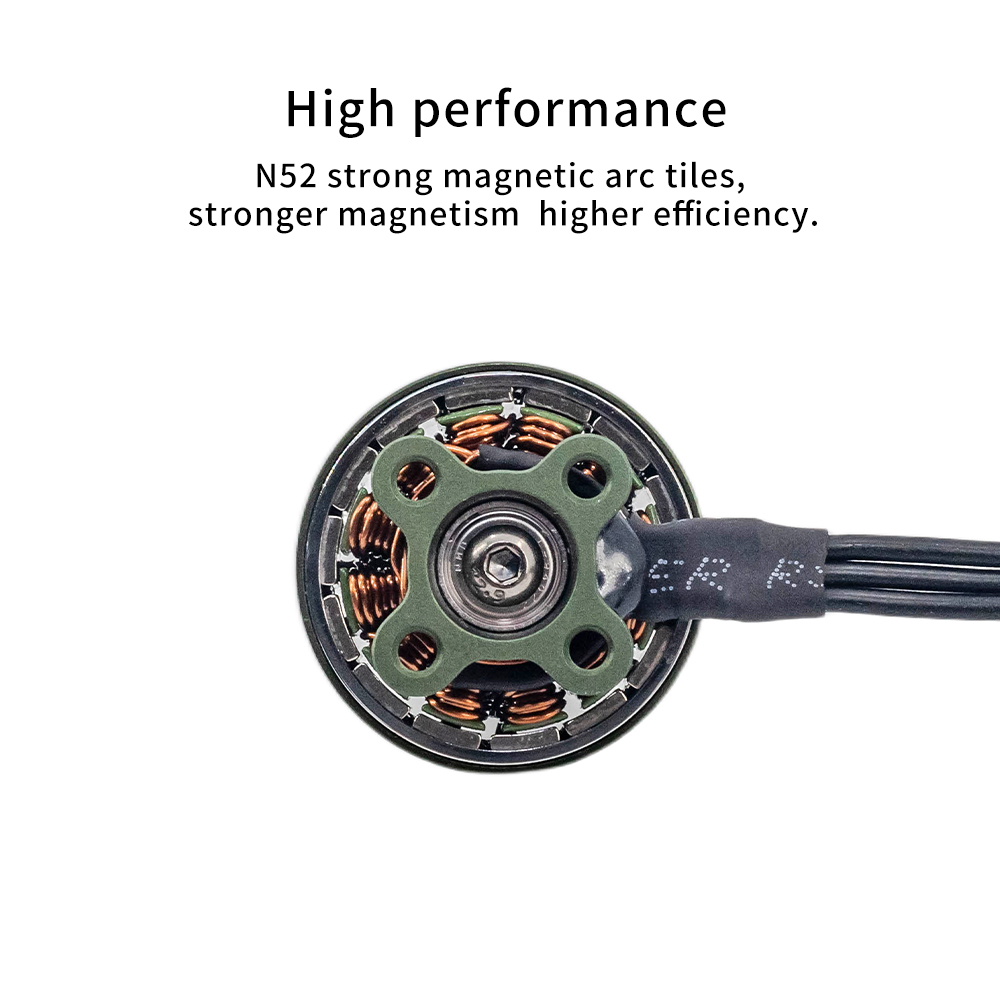

High-Quality Magnetic System
Equipped with high-grade arc magnets (such as N52 series), enhancing magnetic field strength for improved throttle response and power output.

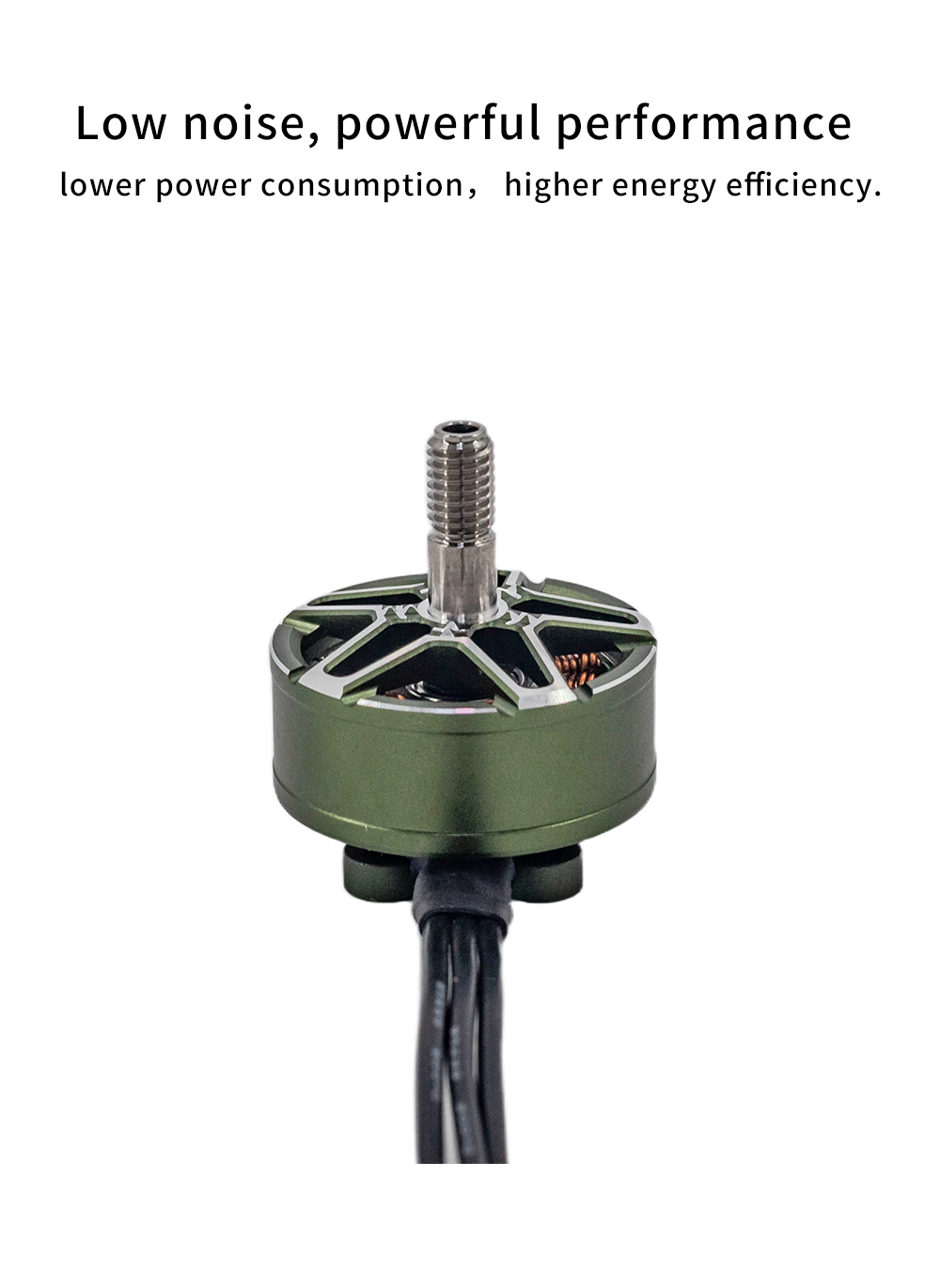

Smooth and Stable Operation
Precision bearings and balanced rotor design ensure reduced vibration and consistent performance during high-speed rotation.
Specifications (Parameter Table)
| Category | Specification |
| Product Name | 2207 1900KV Brushless Motor |
| Type | Drone Motor |
| Motor Type | Brushless DC (Outrunner) |
| KV Rating | 1900KV (RPM per Volt) |
| Stator Size | 22 mm × 7 mm |
| Recommended Battery | 4S – 6S LiPo |
| Recommended Propeller | 5-inch class |
| Efficiency | Approx. 80–90% (optimal load) |
| No-load Current | Approx. 0.6 – 1.0A @ 10V |
| Magnet Type | High-strength Neodymium (N52 class) |
| Bearing Type | Precision Ball Bearings |
| Shaft Material | Hardened Steel |
| Housing Material | Aluminum Alloy |

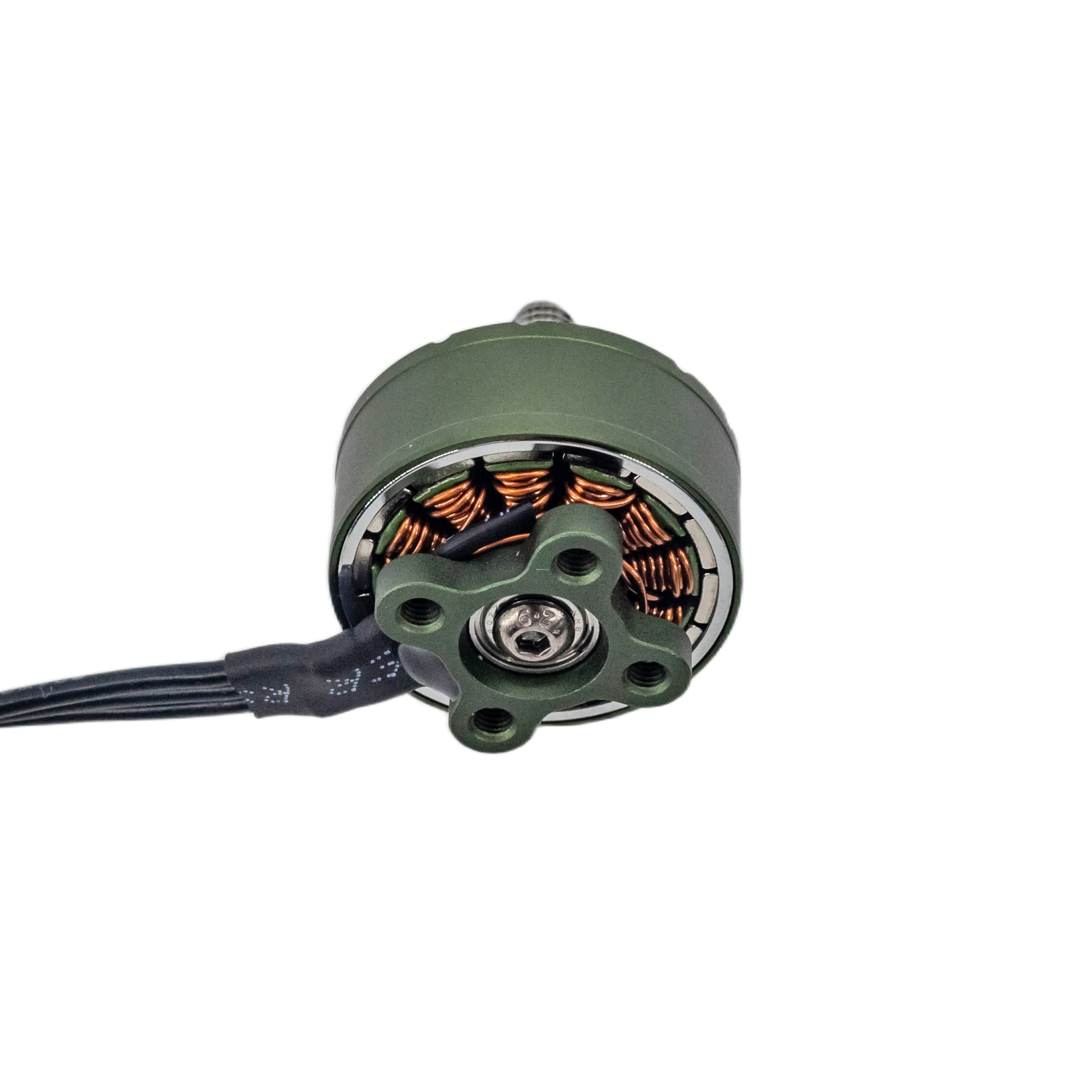

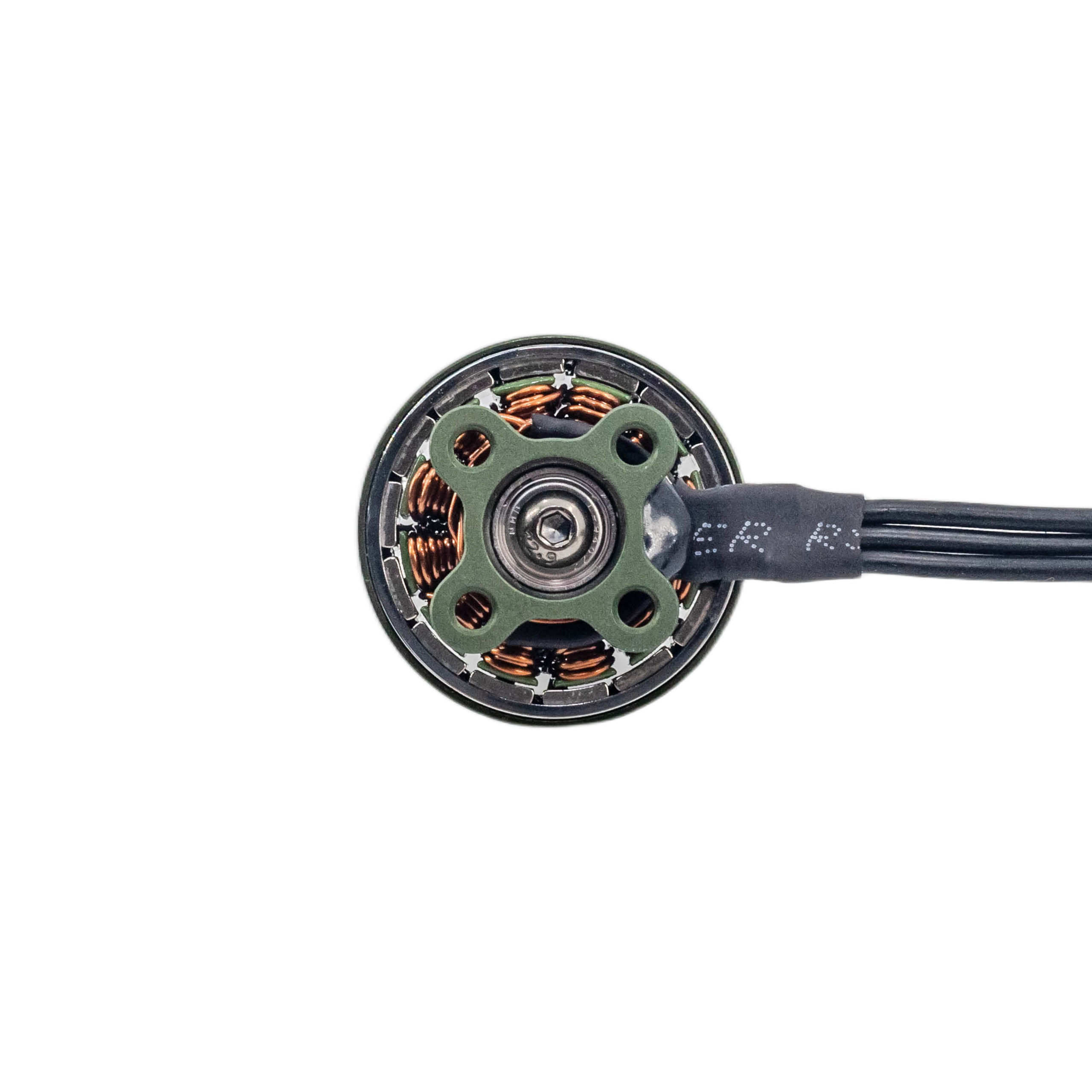

| Mounting Pattern | 16 × 16 mm |
| Application | FPV Drone / Racing / Freestyle / Multirotor |
Note: Specifications may vary depending on manufacturer configuration and operating conditions.
Application Scenarios
- FPV racing drones
- Freestyle and acrobatic flight
- Aerial photography platforms
- DIY drone builds and upgrades
- Lightweight multirotor systems
Why Choose This Drone Motor
The Drone Motor 2207 1900KV is widely recognized for delivering an optimal balance between speed, torque, and efficiency, making it a preferred choice for modern FPV and multirotor platforms.
Its compact size combined with high power density allows users to achieve strong thrust performance without adding unnecessary weight.
Compared to lower KV motors, it offers faster response and higher agility, making it suitable for dynamic flight conditions and demanding maneuvers.
Package and Customization
- Standard motor unit included
- Compatible with common ESC and flight controller systems
- Suitable for custom drone builds and OEM integration
- Bulk order and customization options available
