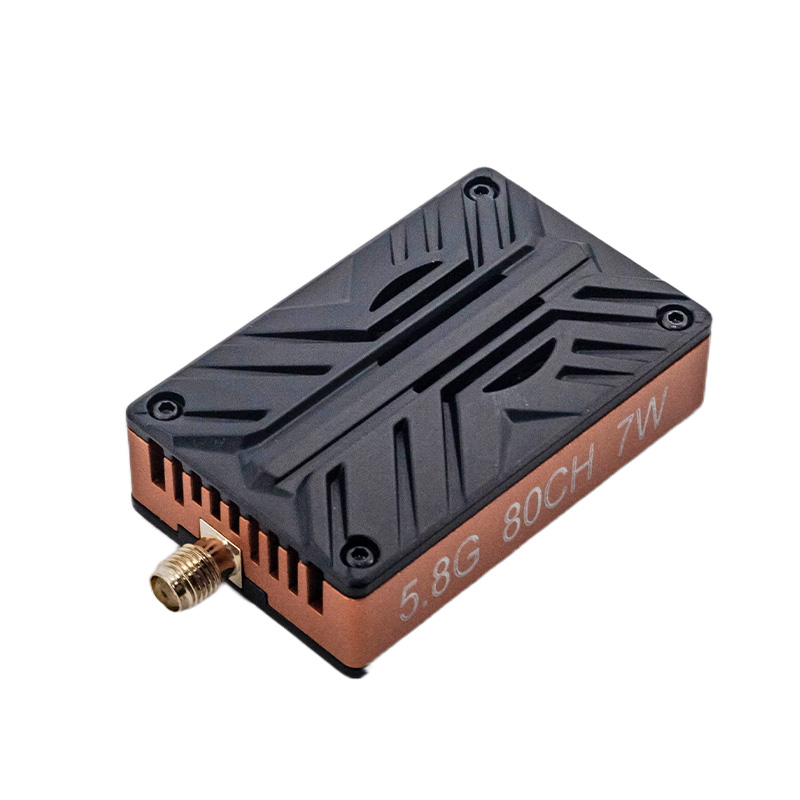

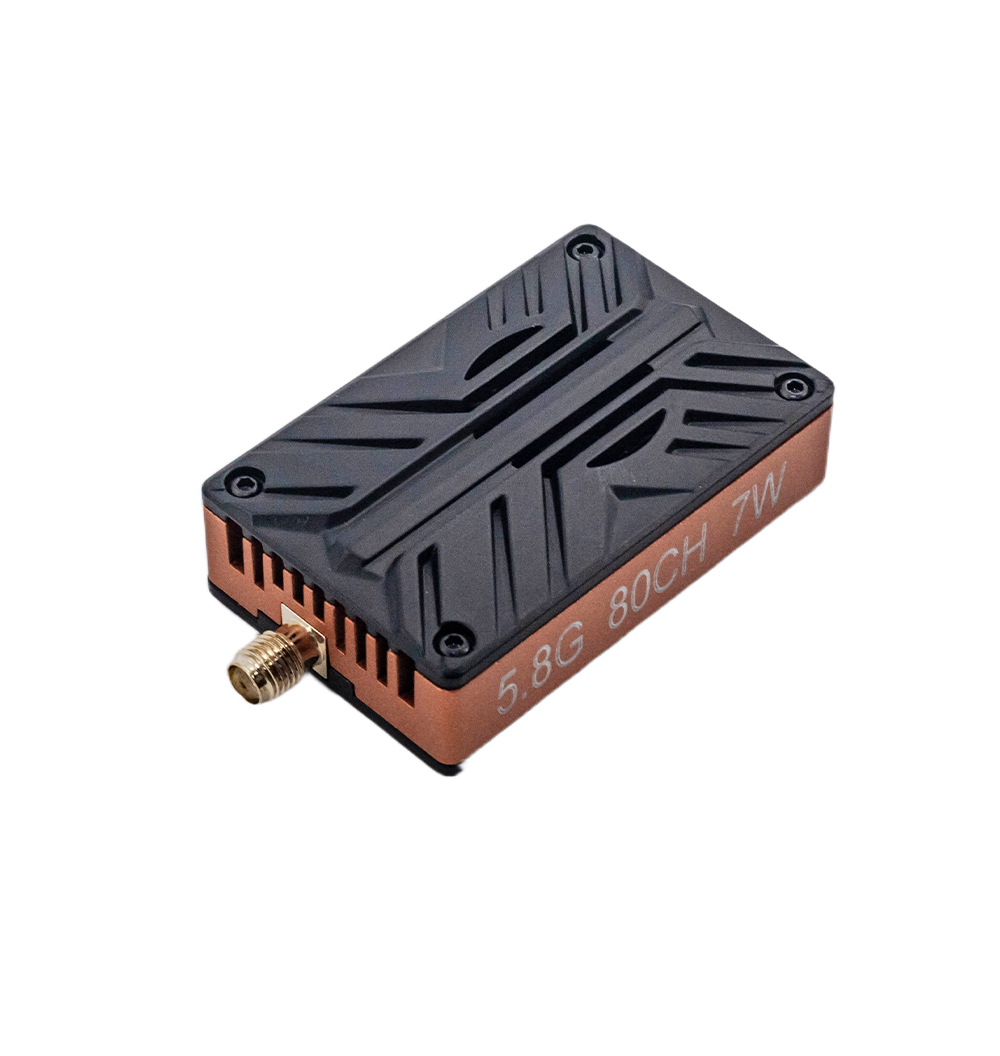

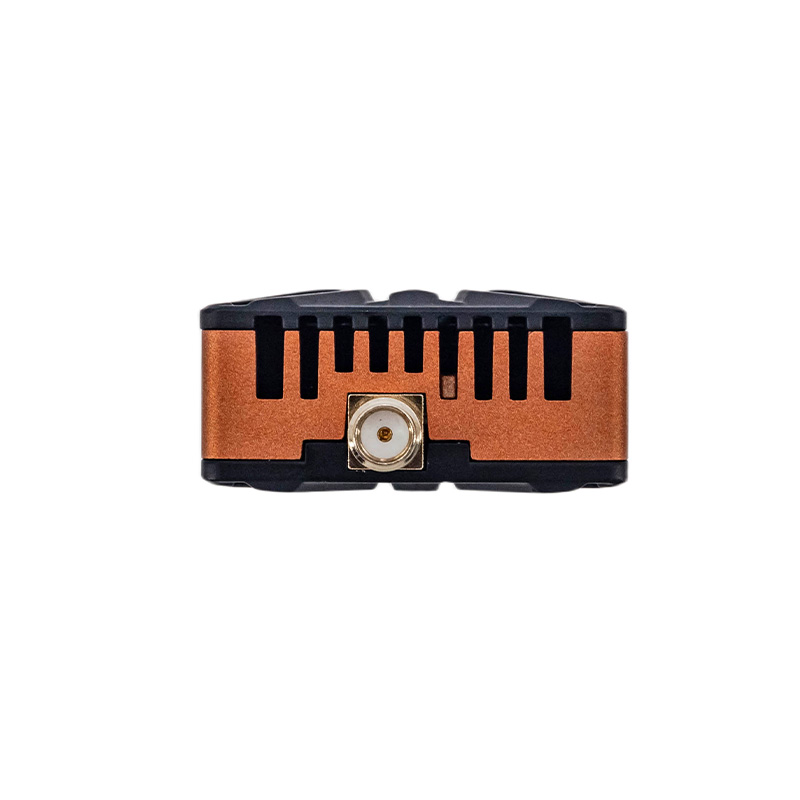

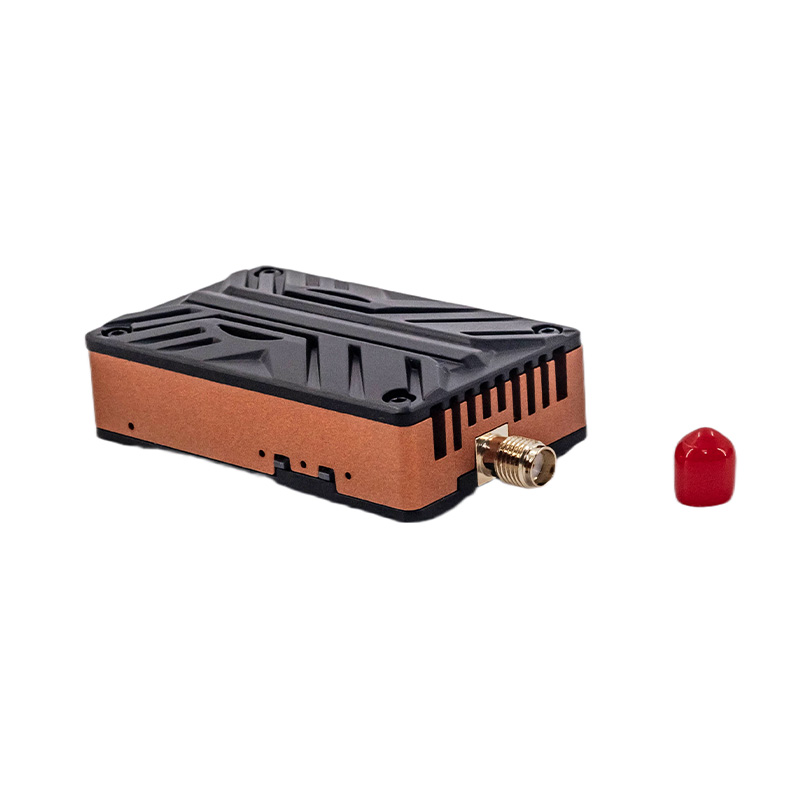

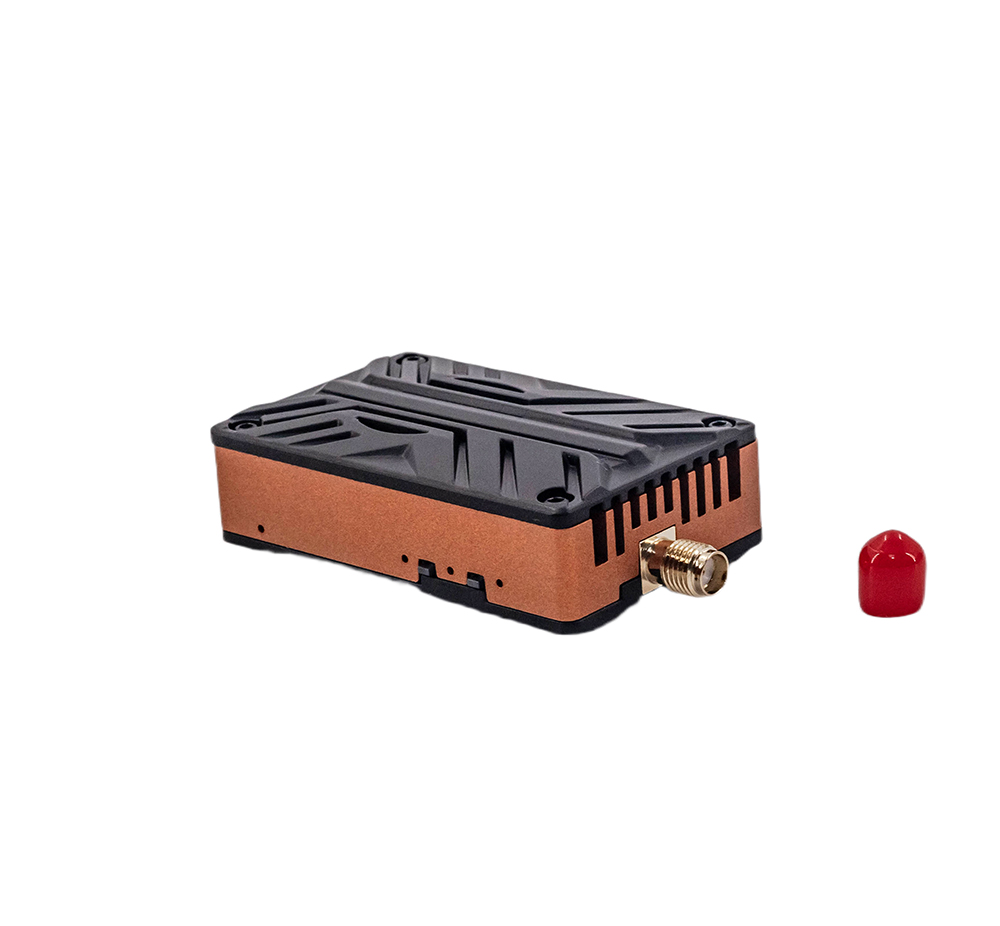

Seboar 5.8GHz 7W Video Transmission Transmitter
The Seboar 5.8GHz 7W Video Transmission Transmitter is a high-power analog video transmission module designed for long-range FPV drones and professional UAV platforms.
With powerful RF output and stable signal transmission, the transmitter enables real-time video monitoring during long-distance UAV operations.
Designed for professional drone systems, the transmitter supports multiple power levels and a wide voltage input range, allowing flexible integration with various drone power systems.
The compact industrial design and standard mounting pattern make the transmitter compatible with most FPV drone frames and flight controllers.
Typical applications include:
long-range FPV drones
industrial inspection UAVs
surveillance drones
rescue and monitoring drones
Key Features
Ultra-High Power Video Transmission
The transmitter supports up to 7 W RF output, providing strong signal penetration and reliable video transmission in complex environments.
Multi-Level Power Adjustment
Selectable power levels allow users to balance transmission distance and power consumption depending on flight conditions.
Typical selectable levels include:
low-power mode for racing environments
medium-power mode for standard FPV flight
high-power mode for long-range missions
Wide Voltage Compatibility
The transmitter supports 9–26 V DC input, enabling direct connection to multiple battery configurations such as 3S–6S UAV systems.
MMCX Antenna Interface
The VTX features a standard MMCX antenna connector, allowing compatibility with a wide range of FPV antennas and antenna extensions.
Standard FPV Mounting Pattern
With 30.5 × 30.5 mm mounting holes, the transmitter can be installed directly on standard FPV drone stacks.

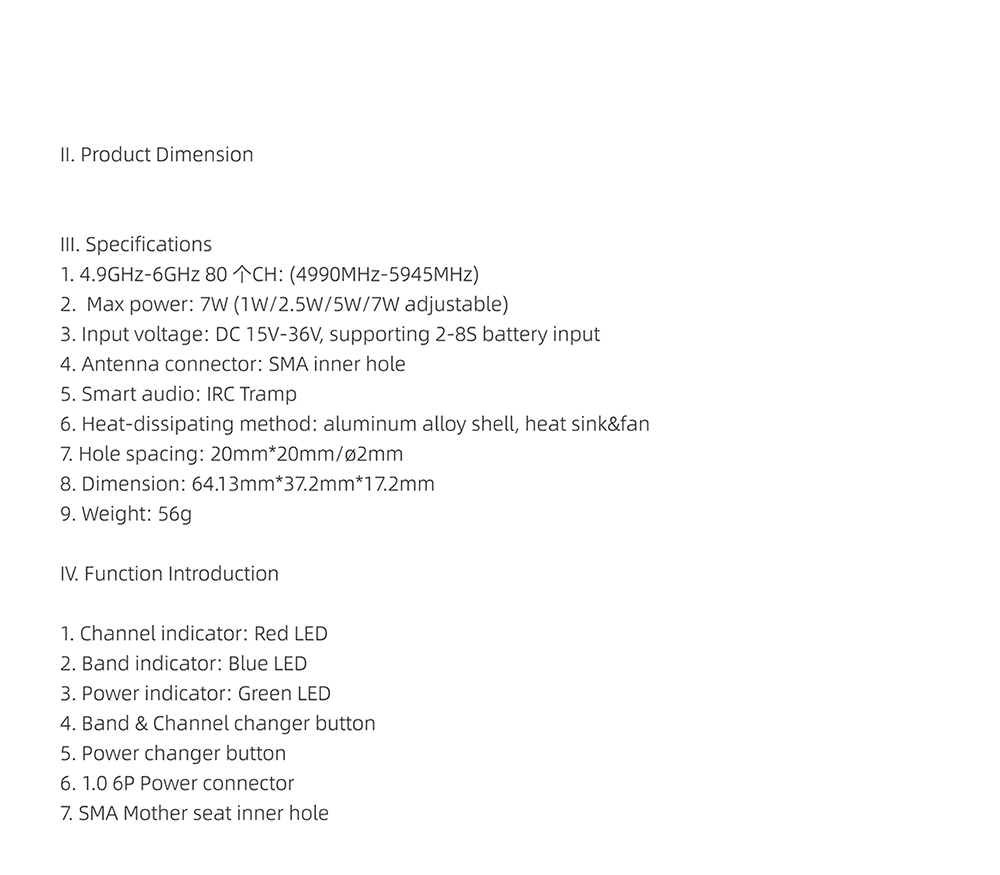

Product Specifications
General Specifications
| Parameter | Specification |
| Product Name | 5.8GHz 7W Video Transmission Transmitter |
| Product Type | FPV Video Transmission Transmitter |
| Frequency Band | 5.8 GHz |
| Channels | 40 Channels |
Transmission Performance
| Parameter | Specification |
| Maximum RF Output | 7 W |
| Transmission Type | Analog Video Transmission |
| Transmission Range | Long-range UAV video transmission |
Electrical Parameters
| Parameter | Specification |
| Input Voltage | 9 – 26 V |
| Power Input | External DC Power |
Physical Specifications
| Parameter | Specification |
| Mounting Pattern | 30.5 × 30.5 mm |
| Antenna Interface | MMCX |
| Installation Type | FPV Stack Mount |
Package Contents
| Item | Quantity |
| 5.8GHz 7W Video Transmission Transmitter | 1 |
| Video Transmission Cable | 1 |
| MMCX Antenna Pigtail | 1 |
| Mounting Screws | 1 set |
