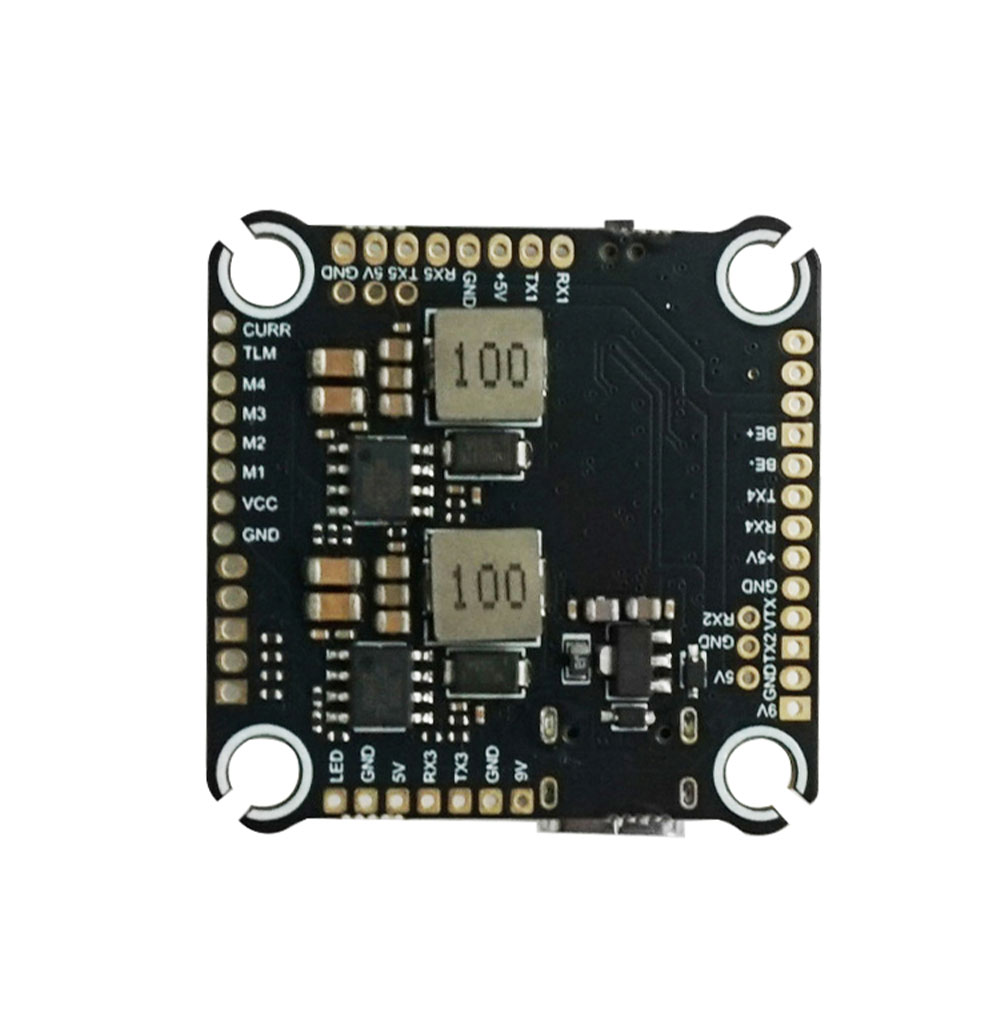

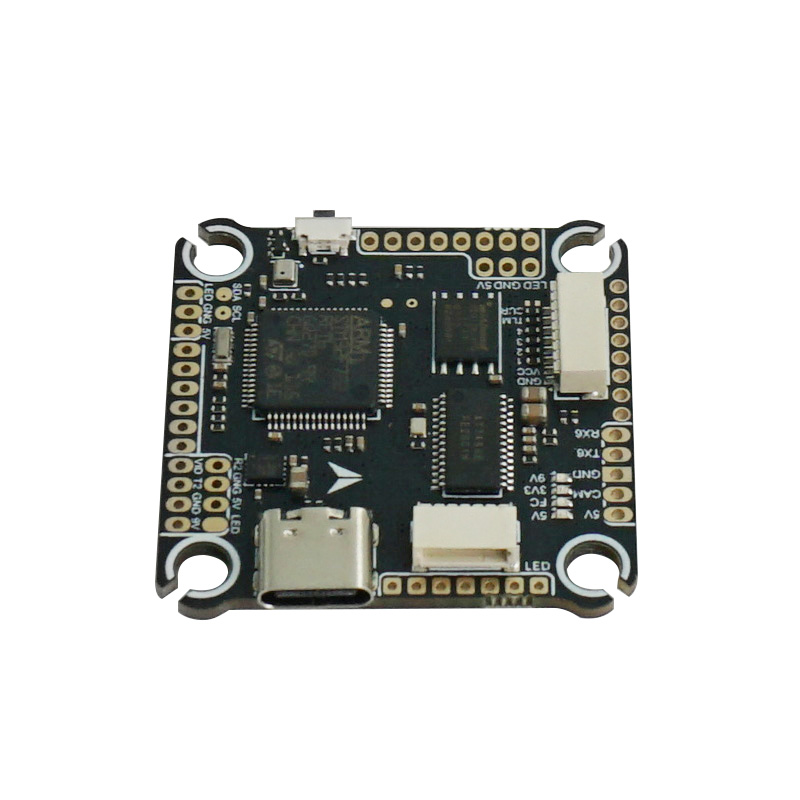

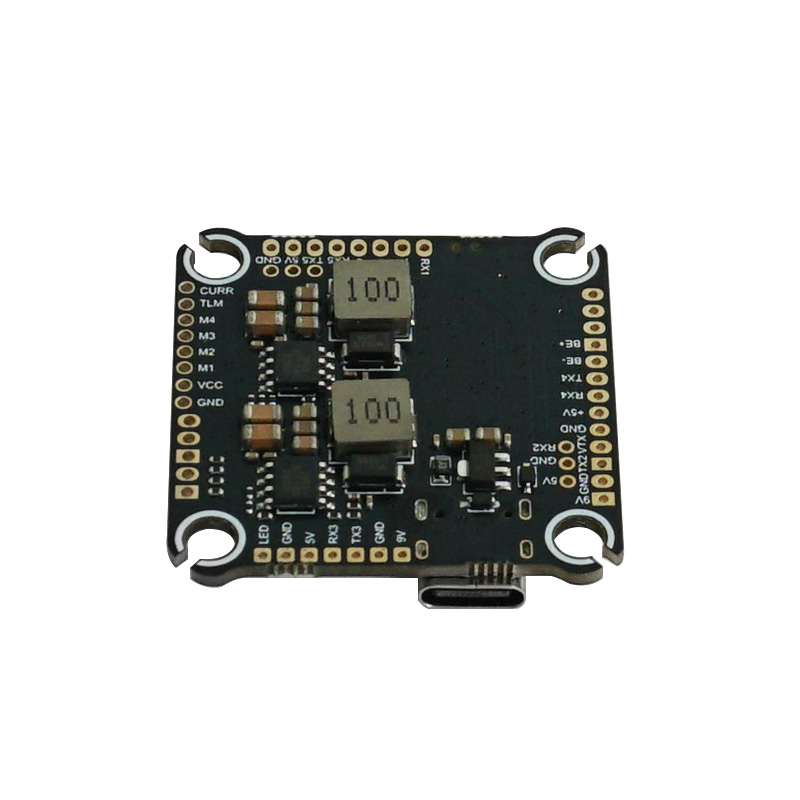

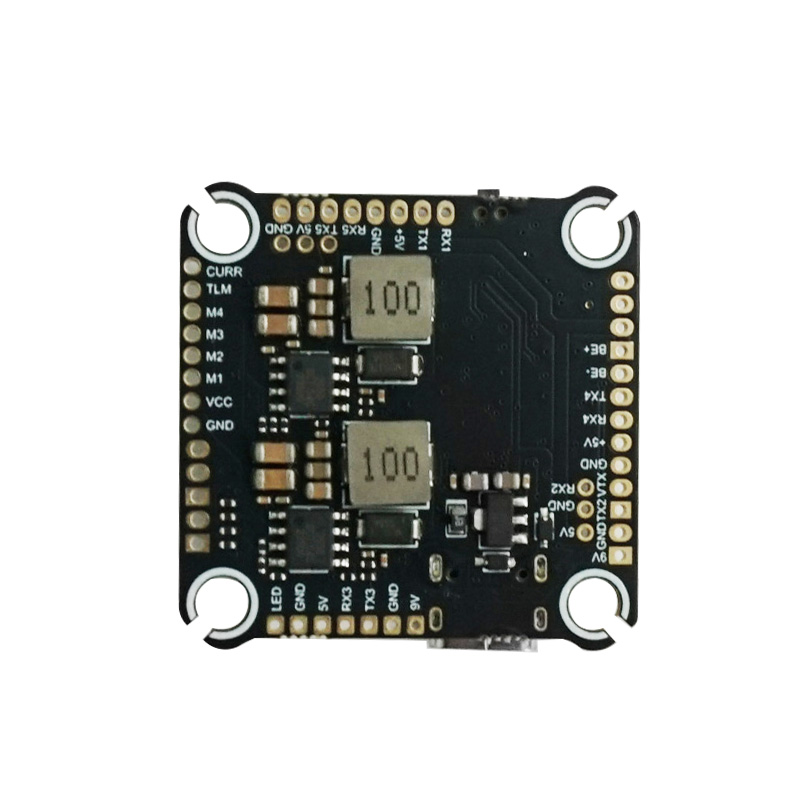

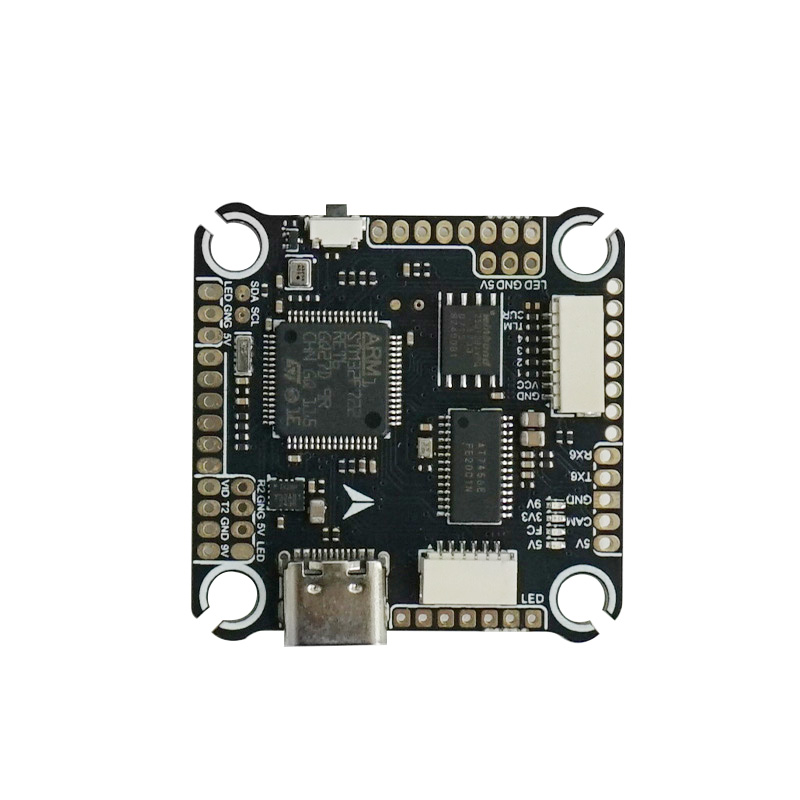

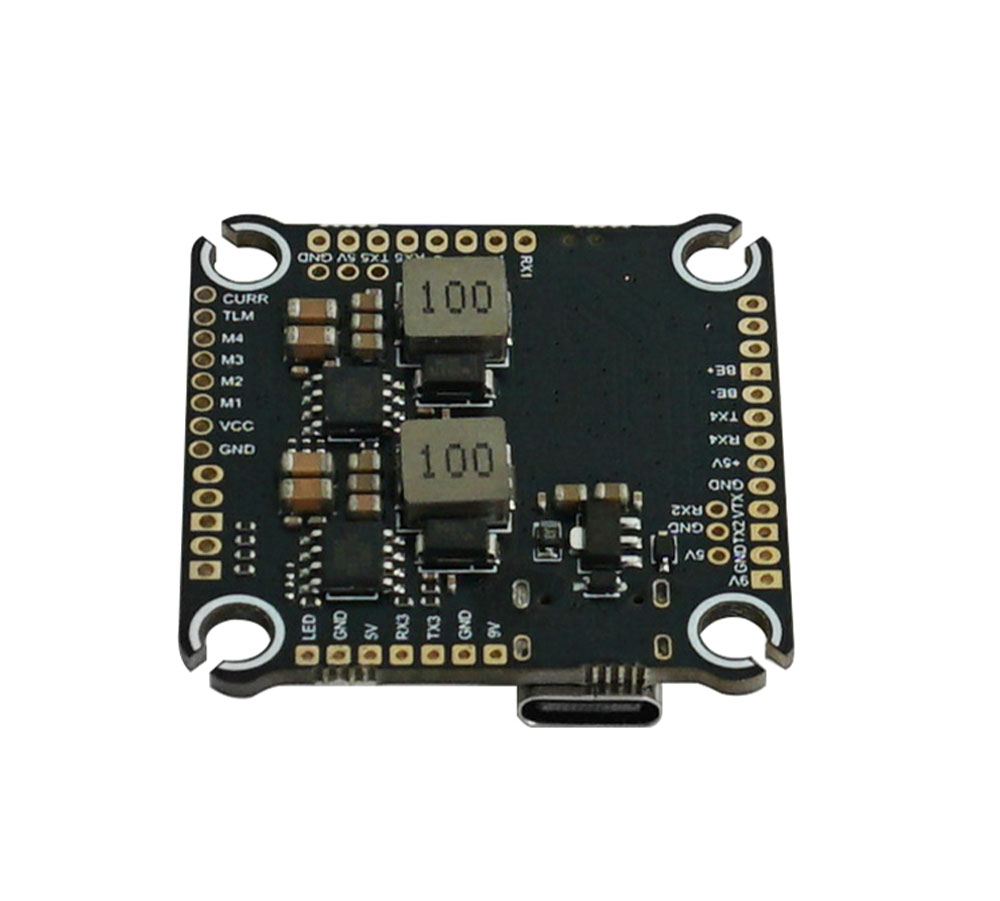

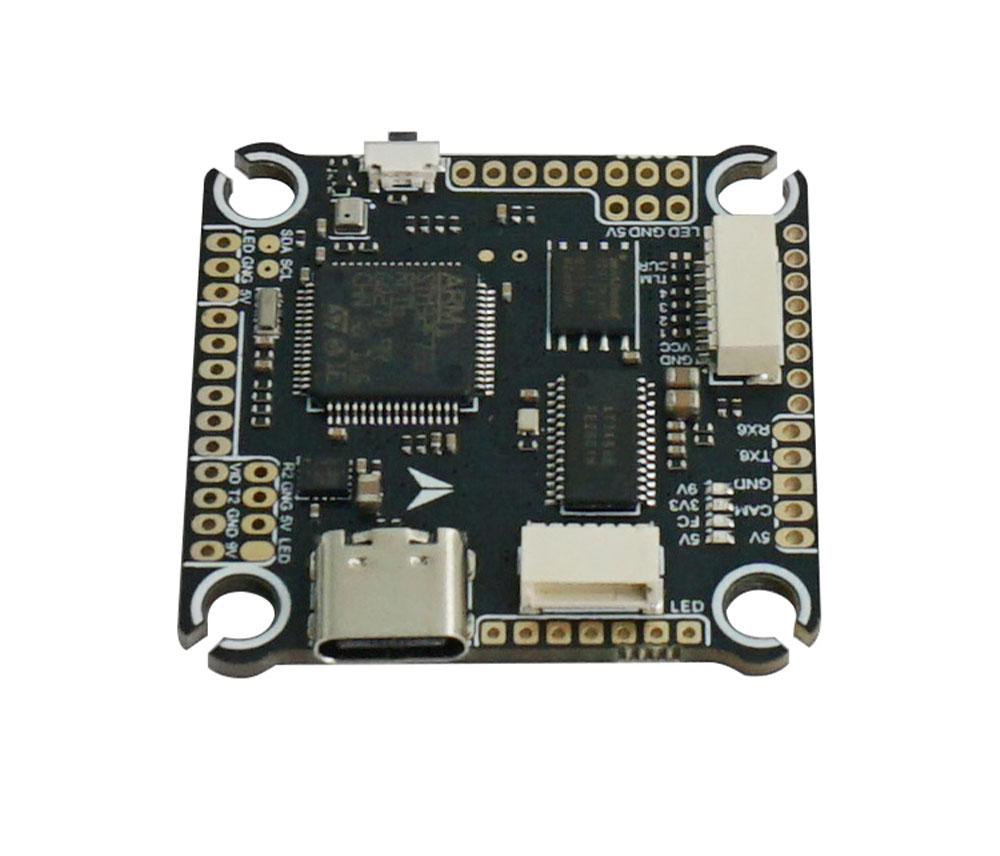

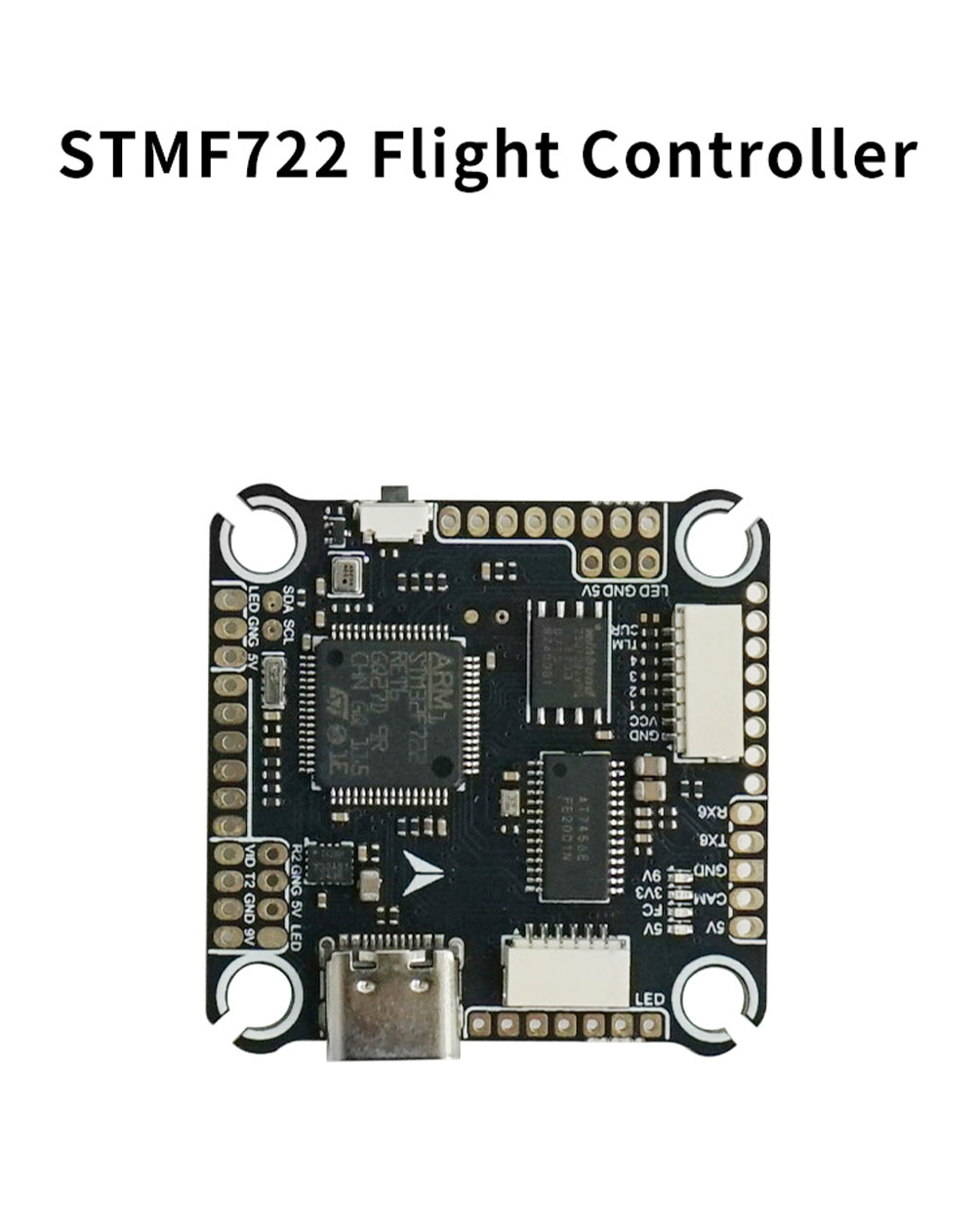

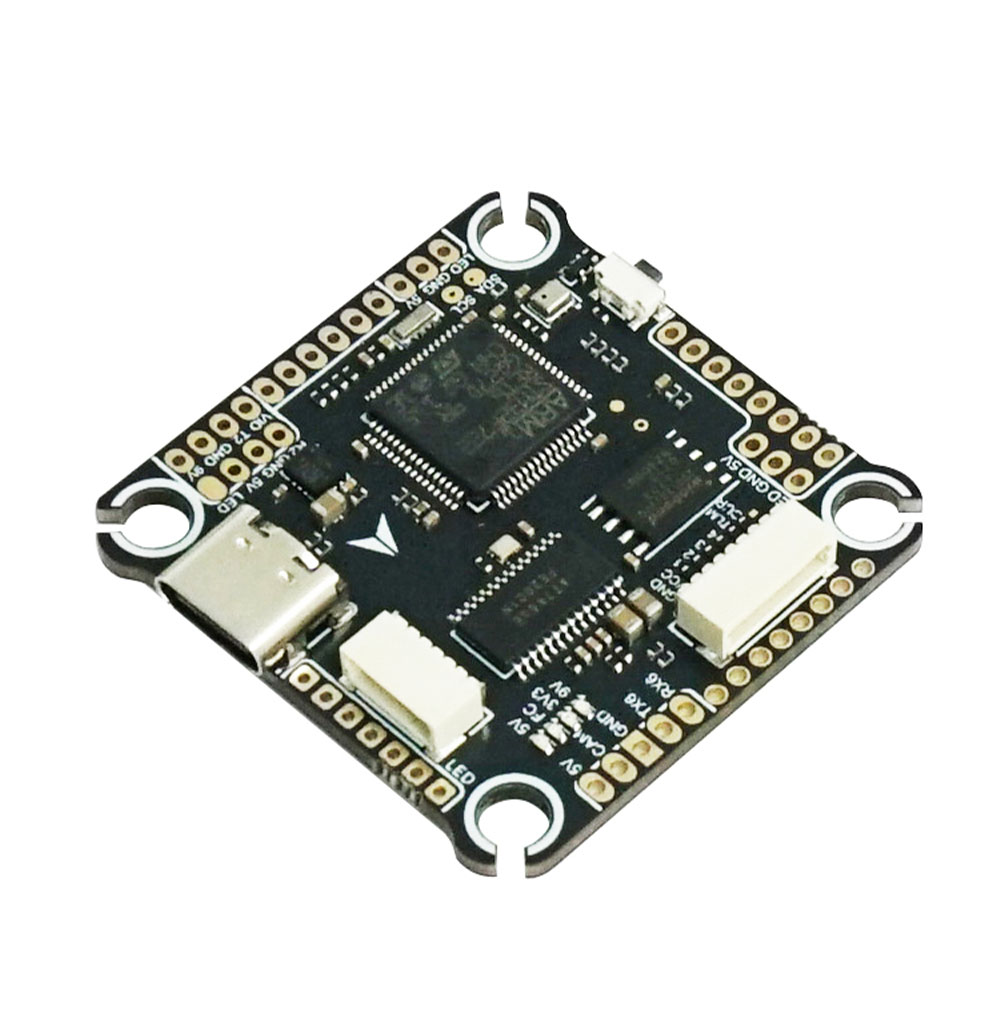

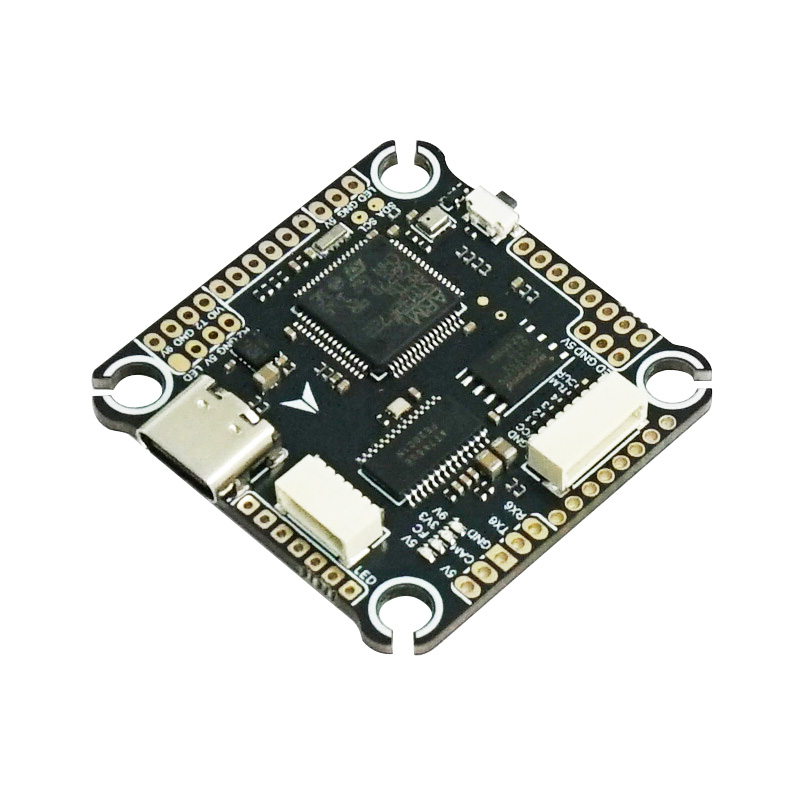

Seboar F722 12S Flight Controller BF
The Seboar F722 12S Flight Controller BF is a high-performance flight control board designed for FPV drones and professional UAV platforms.
Powered by the STM32F722 processor, the board delivers high-speed processing for modern drone firmware such as Betaflight and INAV.
Compared with traditional F4 flight controllers, the F7 architecture provides faster loop rates, improved sensor processing, and greater expansion capability.
The controller also supports a wide 3–12S LiPo input voltage, making it suitable for both freestyle FPV builds and industrial drone platforms.
With multiple UART ports and onboard Blackbox storage, the controller allows detailed flight data recording and flexible integration with external modules.
Typical applications include:
FPV racing drones
freestyle quadcopters
long-range FPV drones
industrial inspection UAV platforms
Key Features
High-Performance F722 Processor
The STM32F722 MCU running at 216 MHz delivers faster computation and improved flight control performance compared with earlier F4 controllers.
Precision IMU Sensor
The board integrates a high-precision IMU sensor, providing accurate gyroscope and accelerometer data for stable flight control.
Wide Voltage Compatibility
Supports 3–12S LiPo batteries, enabling compatibility with a wide range of drone power systems.
Dual BEC Outputs
Integrated BEC outputs provide stable power for drone electronics:
5V / 3A output
12V / 2.5A output
These outputs can power VTX modules, receivers, cameras, and other peripherals.
Flexible Expansion Ports
The controller includes 6 UART interfaces, allowing connection of external modules such as:
GPS units
telemetry radios
receivers
video transmitters

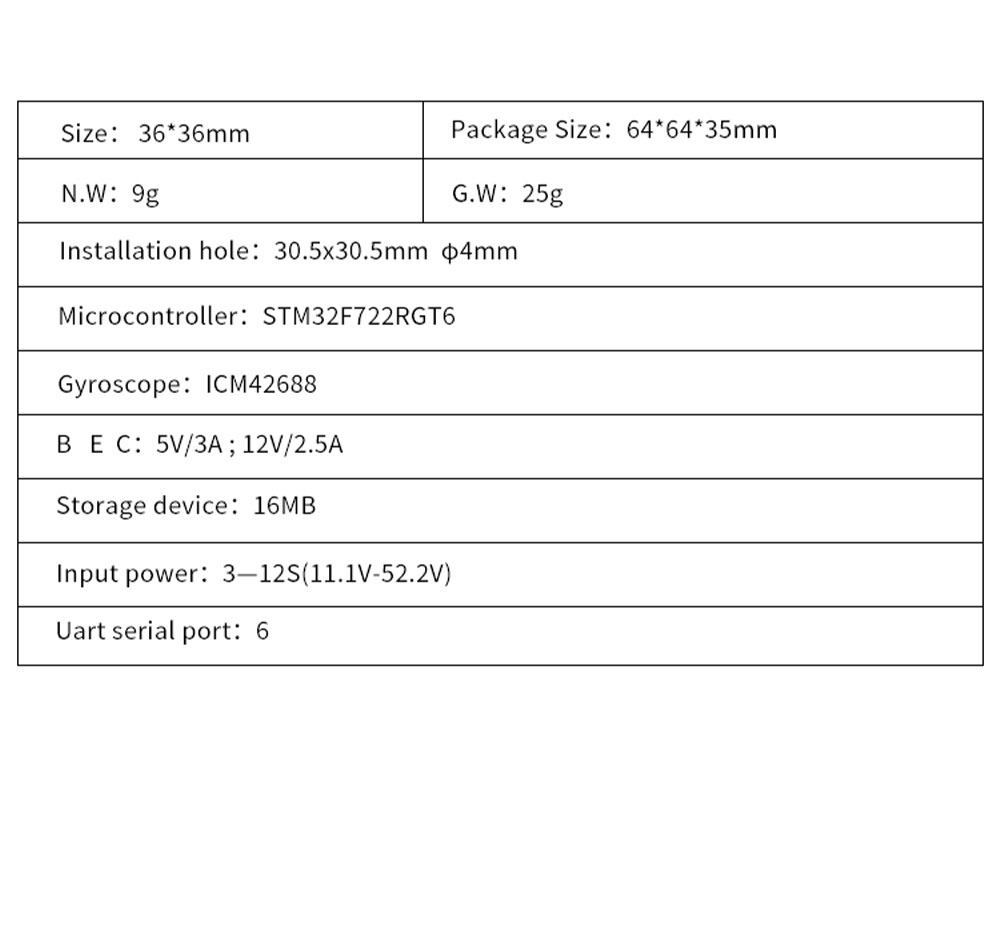

Product Specifications
General Specifications
| Parameter | Specification |
| Product Name | F722 12S Flight Controller BF |
| MCU | STM32F722 |
| IMU | High-precision gyro / accelerometer |
| Firmware Support | Betaflight / INAV |
| Onboard Storage | 16MB Blackbox |
Electrical Parameters
| Parameter | Specification |
| Input Voltage | 3–12S LiPo |
| BEC Output 1 | 5V / 3A |
| BEC Output 2 | 12V / 2.5A |
Communication & Interfaces
| Parameter | Specification |
| UART Ports | 6 |
| Peripheral Support | GPS / Receiver / VTX / Telemetry |
| Blackbox Logging | Supported |
Mechanical Specifications
| Parameter | Specification |
| Mounting Pattern | 30.5 × 30.5 mm |
| Board Type | FPV Flight Controller |
| Stack Compatibility | Standard 30×30 FPV stack |
Package Contents
| Item | Quantity |
| F722 12S Flight Controller BF | 1 |
