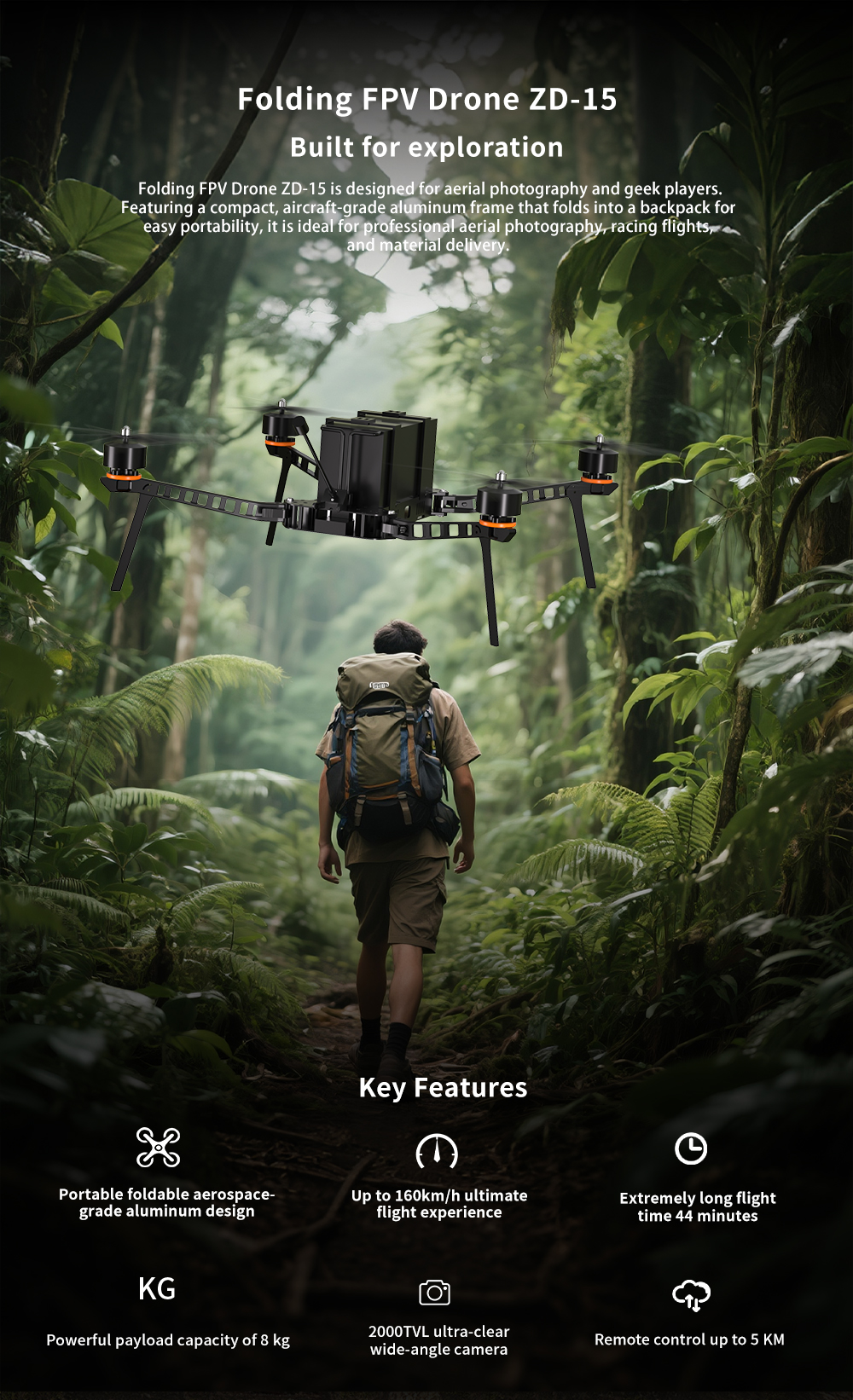

Folding FPV Drone – ZD-15
The Folding FPV Drone ZD-15 is a heavy-duty long-range aerial platform designed for professional FPV operations, payload transport, and industrial applications.
As the largest model in the ZD series, the ZD-15 features a reinforced foldable frame and high-thrust propulsion system, enabling it to carry heavier payloads while maintaining stable flight performance.
With extended flight time, strong lifting capability, and long-distance control, this drone is built for demanding missions in complex environments.
Key Features

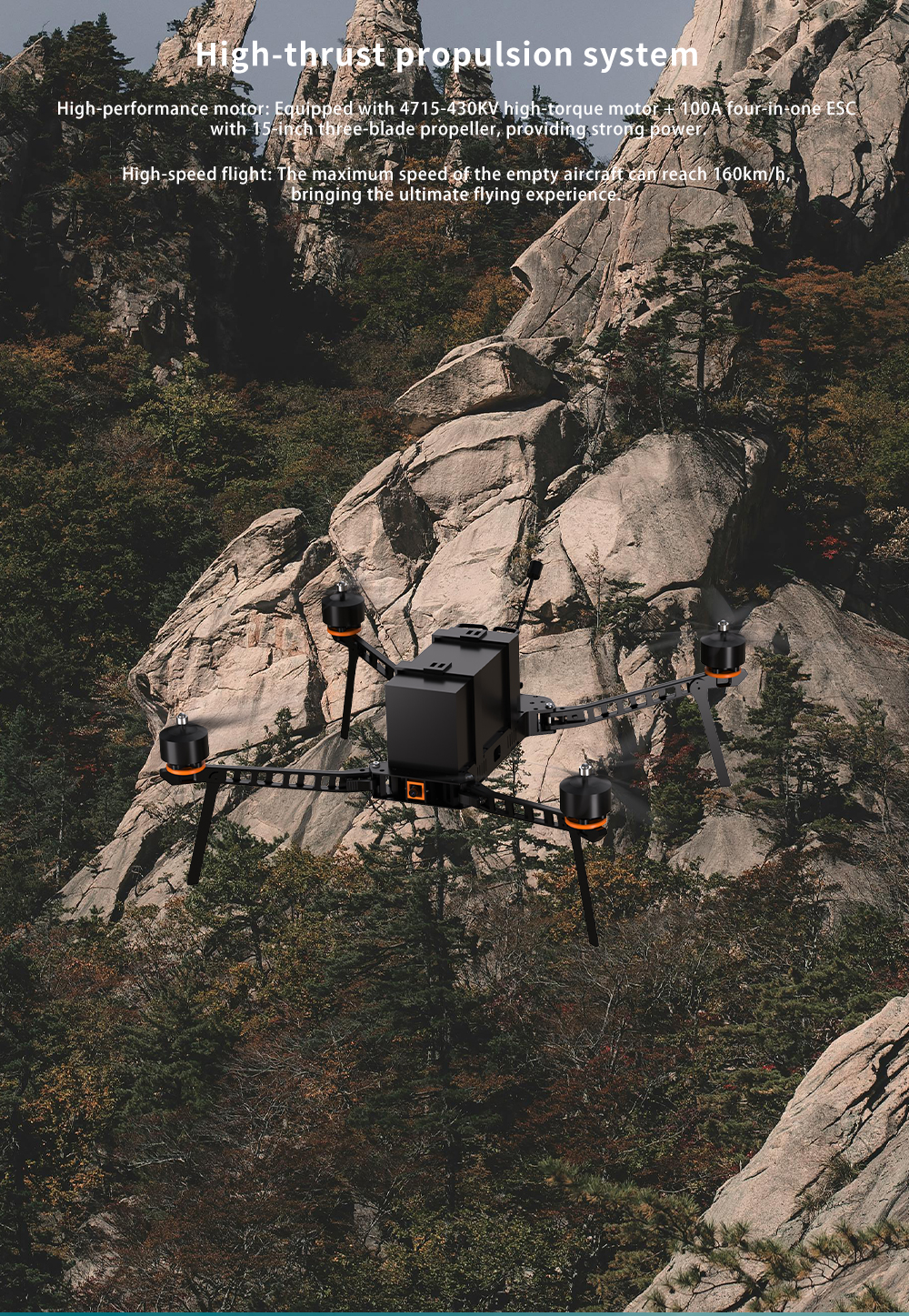

Large 15-Inch Propulsion System
Equipped with a 15-inch propeller setup, delivering increased thrust and improved efficiency for heavy payload and long-range operations.
Heavy Payload Capability
Supports up to 8 kg payload capacity, enabling integration of professional cameras, delivery systems, and industrial equipment.

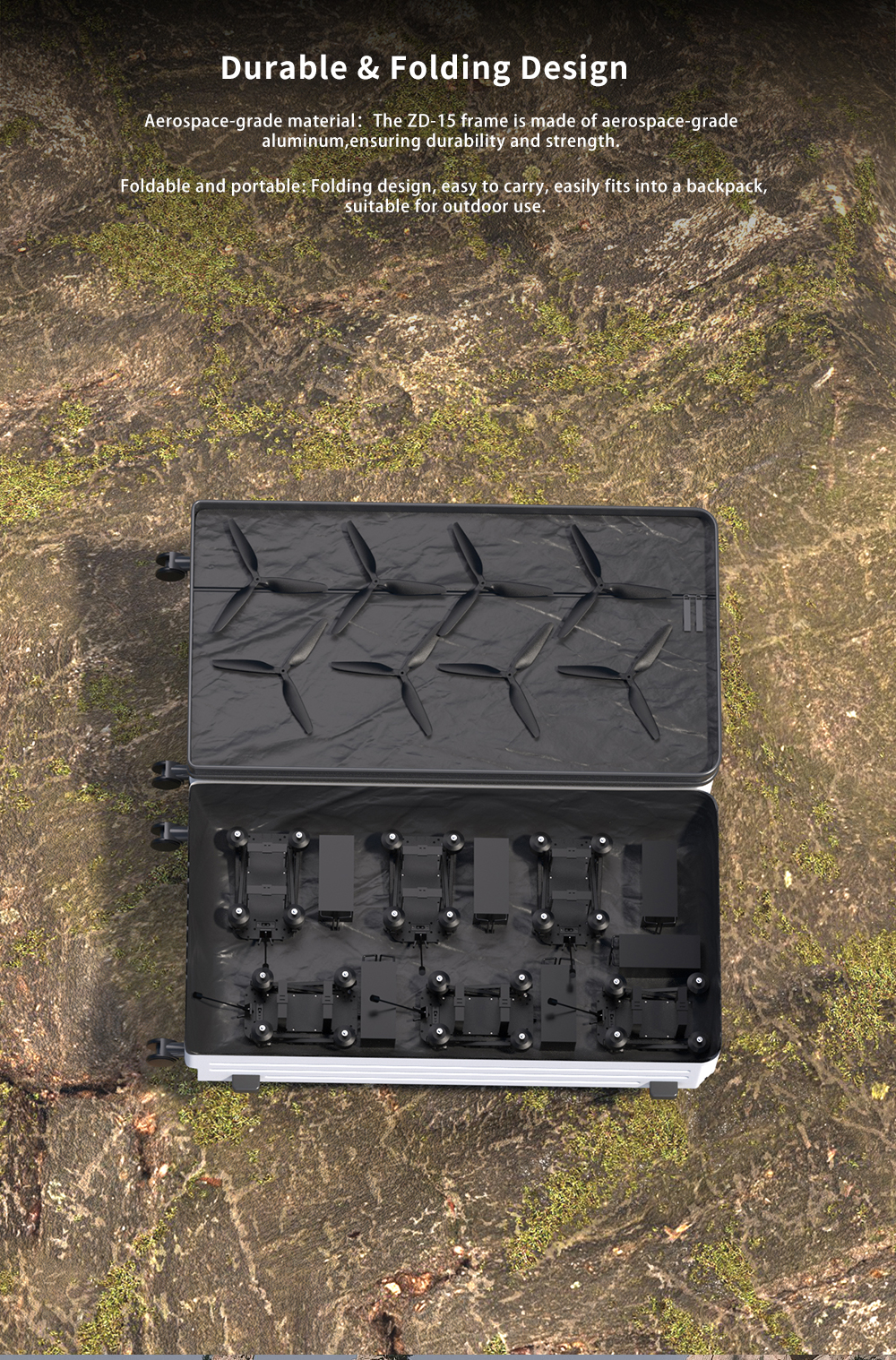

Foldable Industrial Frame
Constructed with aviation-grade aluminum, the foldable design ensures easy transportation and rapid deployment in field operations.

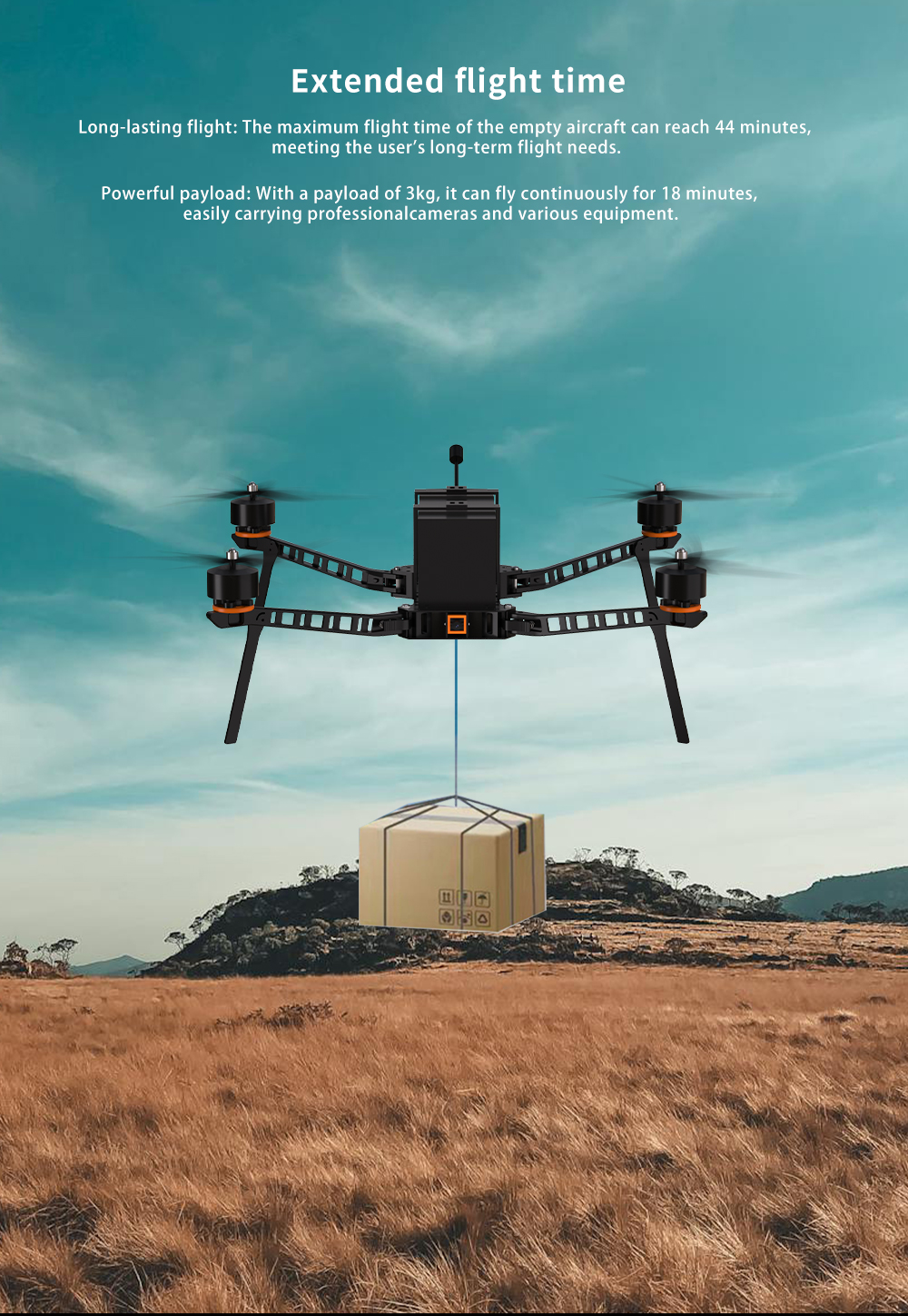

Long-Endurance Flight Performance
Provides up to approximately 44 minutes of flight time under ideal conditions, supporting extended mission coverage.
Long-Range Control and Transmission
Supports up to 15 km control range with stable communication and anti-interference performance for reliable long-distance operation.

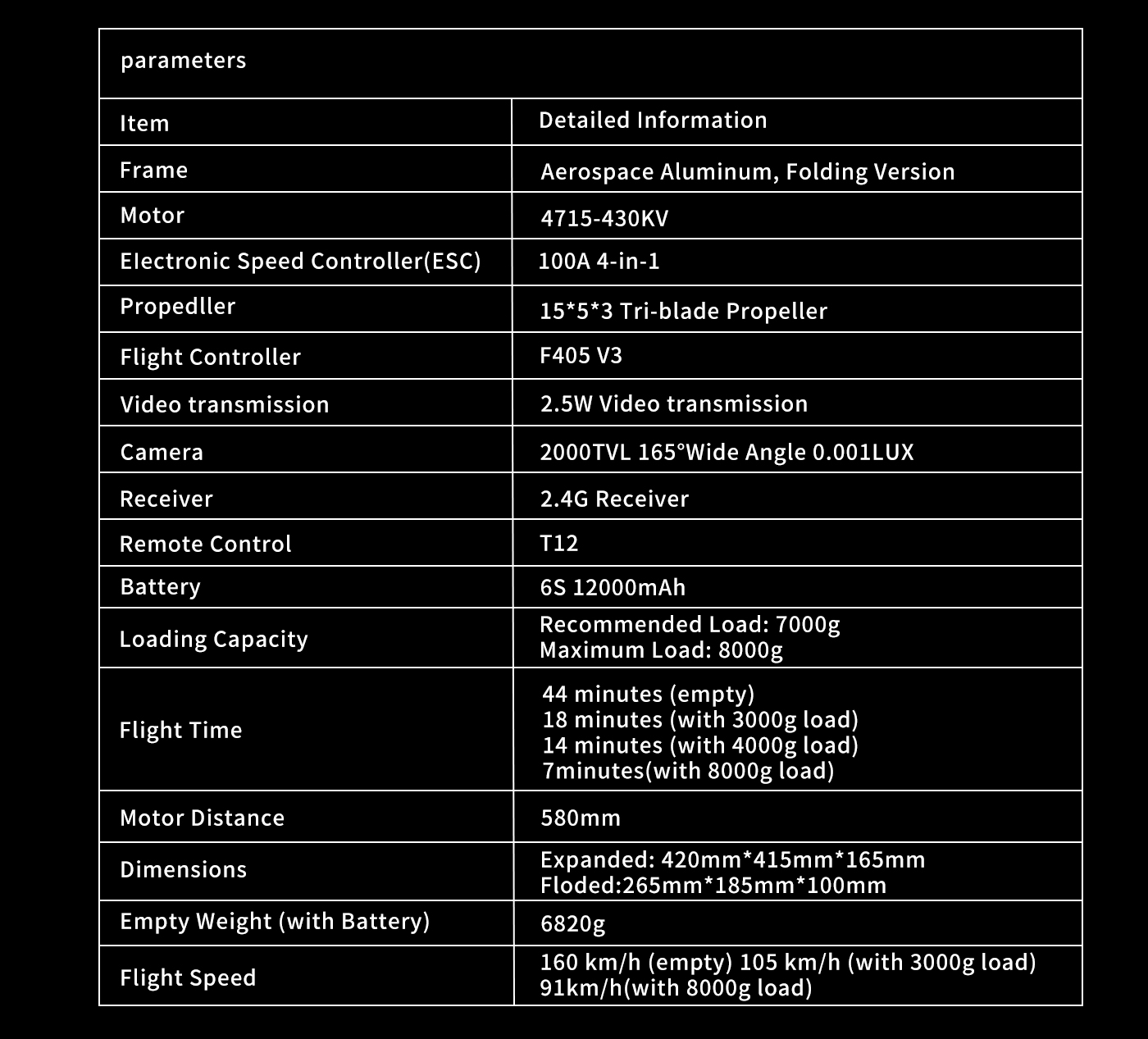

Specifications (Parameter Table)
Airframe & Flight Performance
| Category | Specification |
| Product Name | ZD-15 Folding FPV Drone |
| Type | Folding FPV Drone |
| Frame Material | Aviation-grade Aluminum Alloy |
| Structure | Foldable Design |
| Flight Speed | Up to 160 km/h |
| Control Range | Up to 15 km |
| Max Flight Time | Up to 44 minutes (no payload) |
Power System
| Category | Specification |
| Motor | 4715 Series Brushless Motor |
| ESC | 100A 4-in-1 ESC |
| Propeller | 15-inch 3-blade propeller |
| Battery | 6S 12000mAh |
Payload & Performance
| Category | Specification |
| Recommended Payload | Approx. 5–6 kg |
| Max Payload | Up to 8 kg |
| Flight Time (with payload) | Reduced depending on load |
| Application Payload | Camera / Delivery / Industrial Sensors |

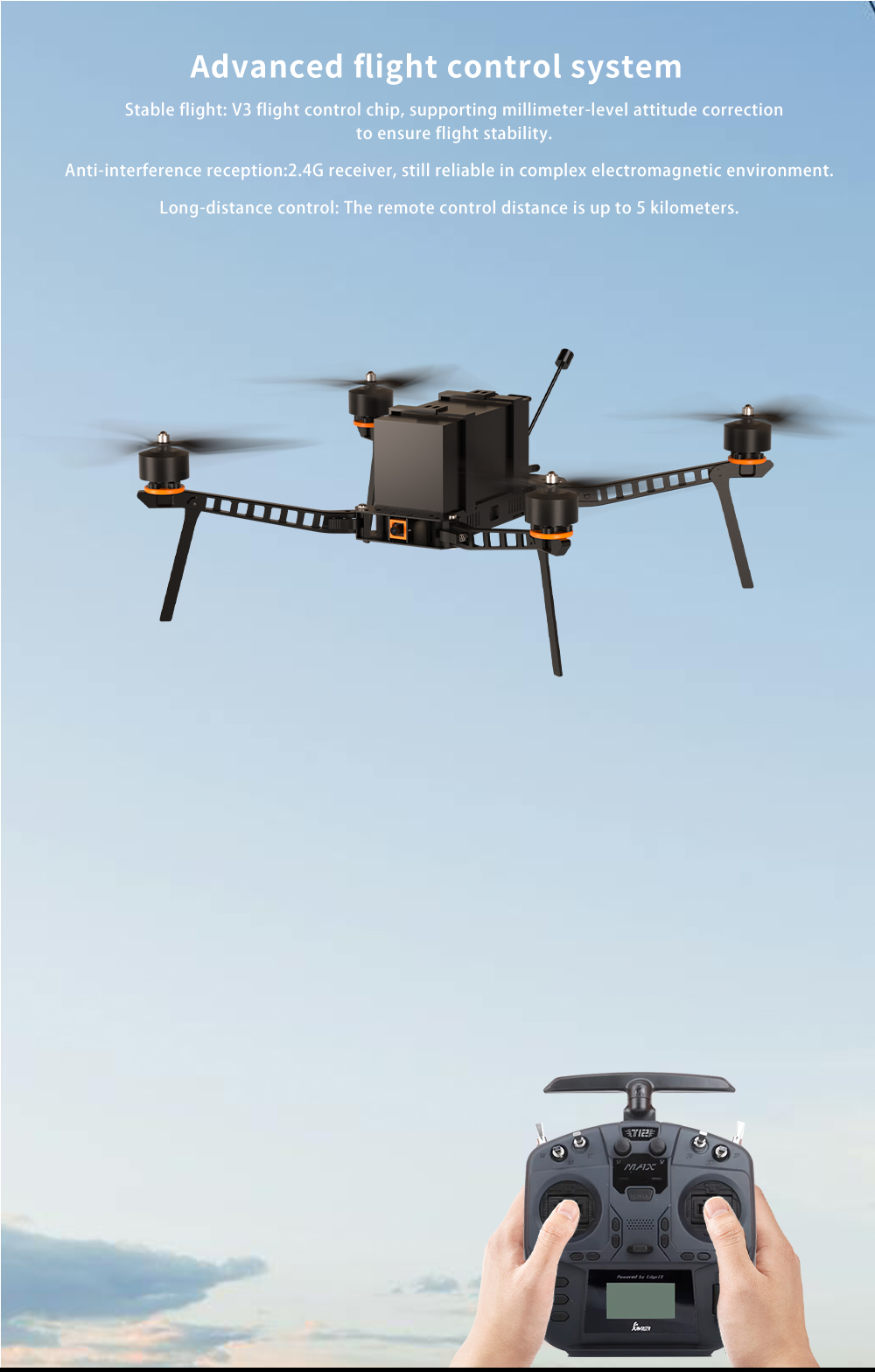

FPV & Control System
| Category | Specification |
| Camera | 2000TVL Wide-Angle FPV Camera |
| Video Transmission | 2.5W Video transmission |
| Receiver: | 2.4G Receiver |
| Flight Controller | F405 V3 |
| Night Vision | Low-light support (0.001 Lux) |
Application Scenarios
- Heavy payload aerial delivery
- Industrial inspection and monitoring
- Long-range FPV exploration
- Professional aerial photography and filming
- Emergency response and logistics support
Why Choose This Folding FPV Drone
The Folding FPV Drone ZD-15 is designed for users who require maximum payload capacity and strong flight performance within a portable platform.
Its large propeller system and powerful motor configuration provide excellent lifting capability and stability, even under heavy load conditions.
Compared to smaller FPV drones, it offers significantly improved payload capacity and mission flexibility, making it suitable for industrial-grade applications.
Package and Customization

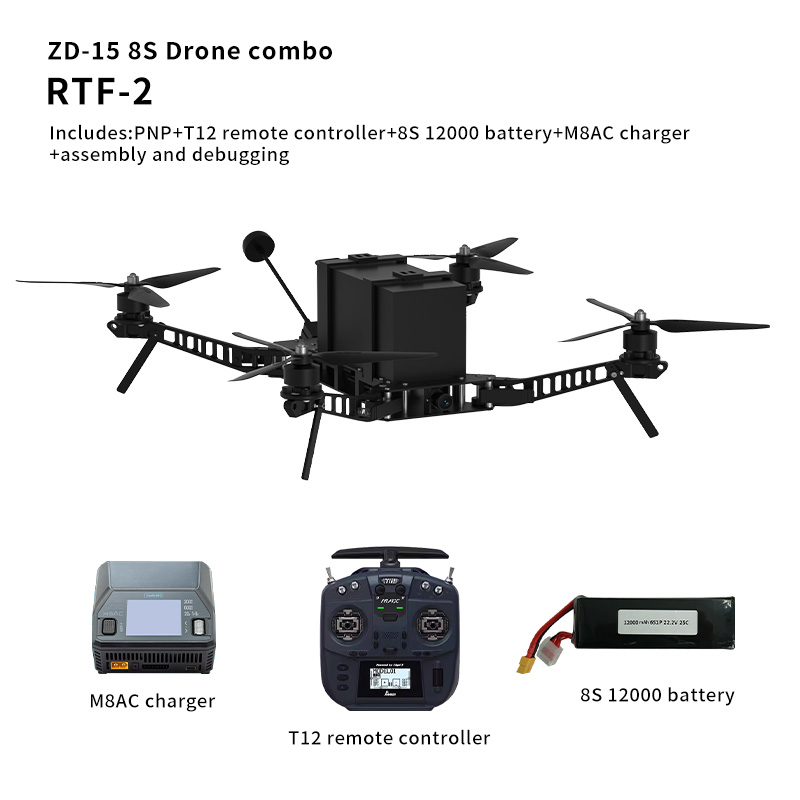

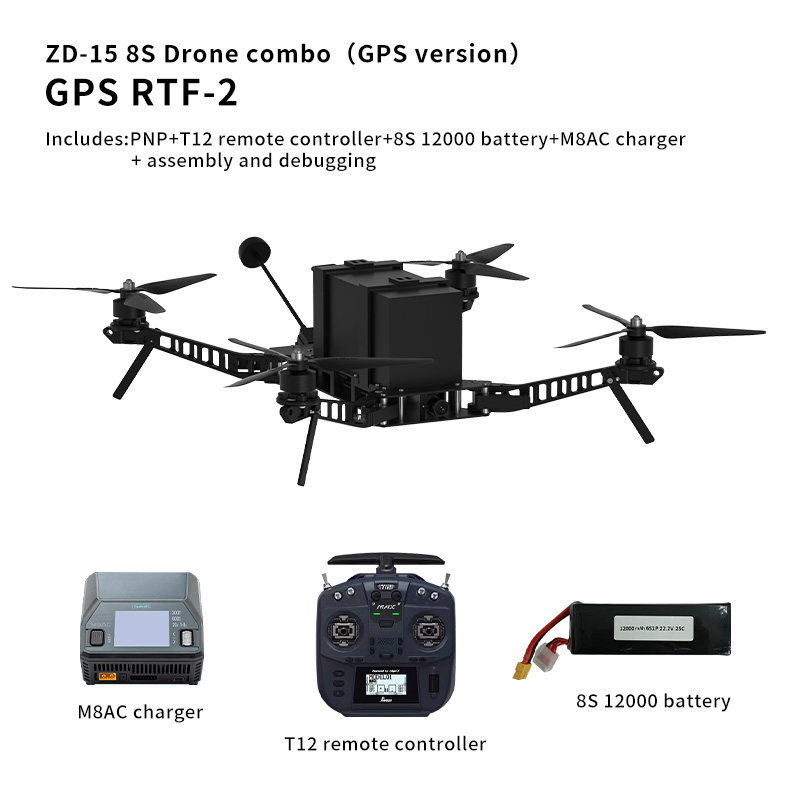

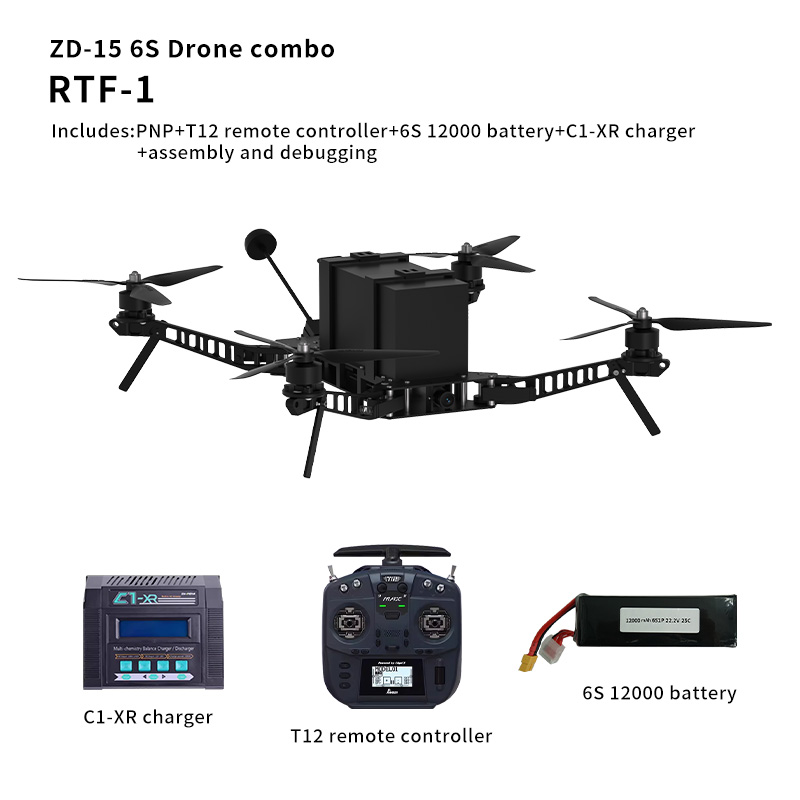

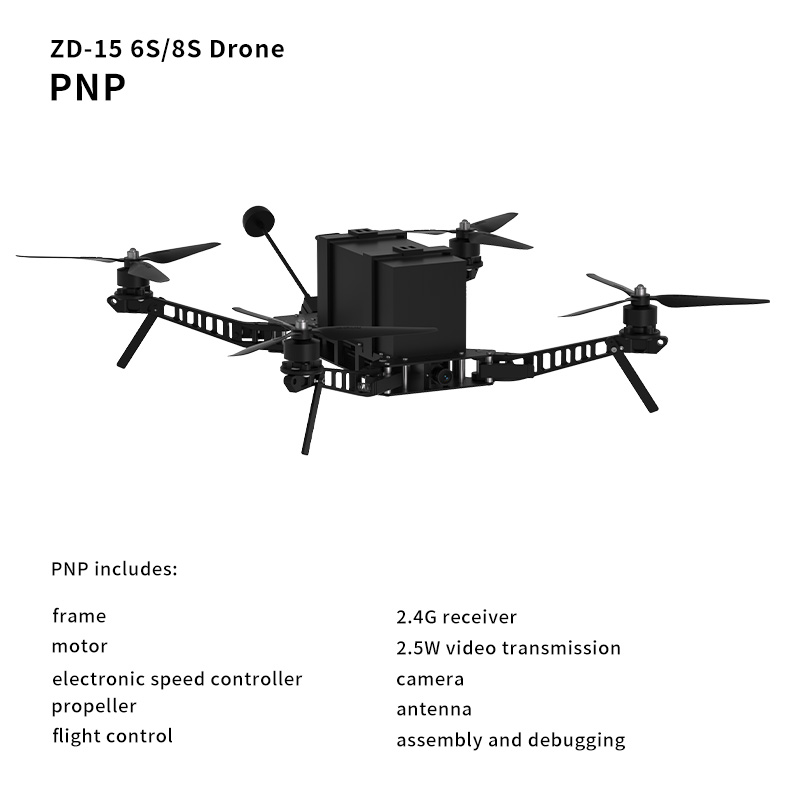

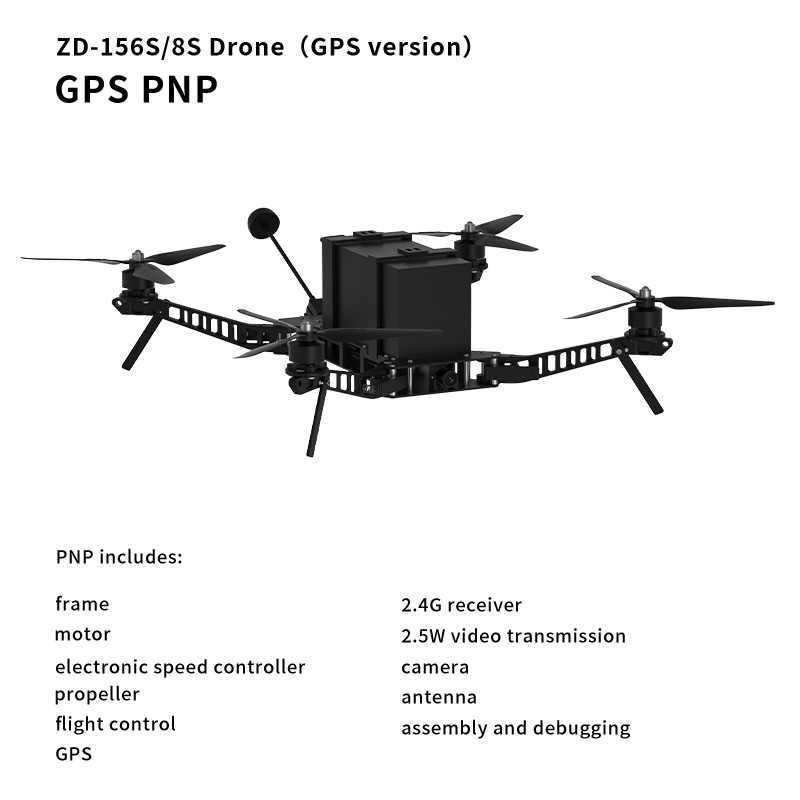

- Available as frame kit or complete drone system
- Compatible with multiple FPV transmission and payload systems
- Supports industrial customization and integration
- OEM and bulk order solutions available
