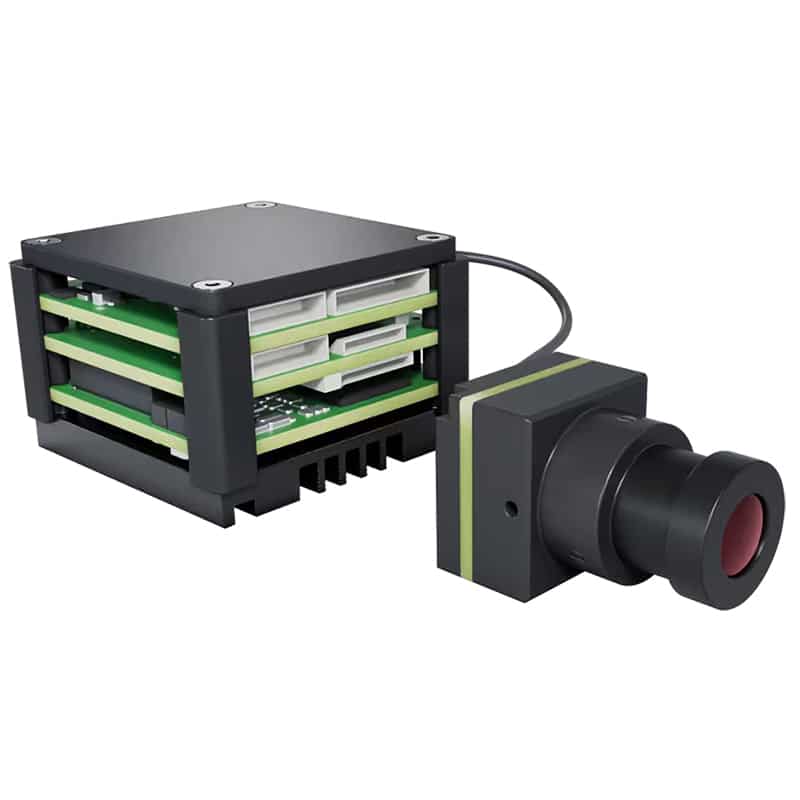

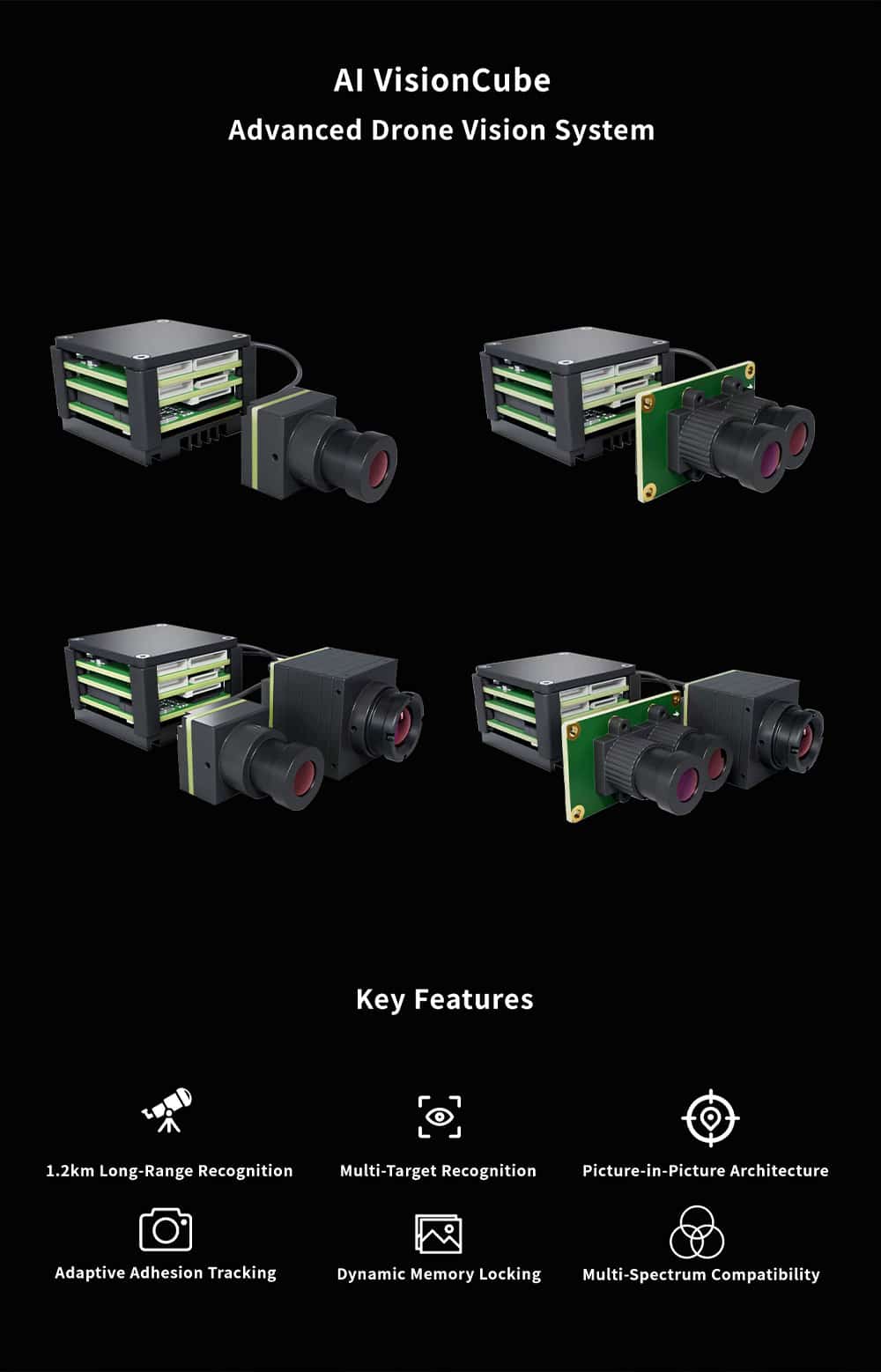

Seboar AI VisionCube
The Seboar AI VisionCube is an advanced AI visual tracking module designed for drones and intelligent aerial platforms.
By combining AI image processing, target recognition algorithms, and high-definition cameras, the system enables drones to automatically identify, track, and lock onto targets during flight.
The module significantly reduces pilot workload while improving mission efficiency and situational awareness.
Typical applications include:
intelligent FPV drone tracking
surveillance and reconnaissance
autonomous target monitoring
industrial drone inspection
AI Target Recognition System
The AI VisionCube integrates advanced deep-learning vision algorithms with a high-performance AI processing board.
Key capabilities include:
automatic human and vehicle detection
multi-target recognition
intelligent tracking and lock-on
trajectory prediction and target reacquisition
The system can automatically identify targets and maintain tracking even during rapid movement.

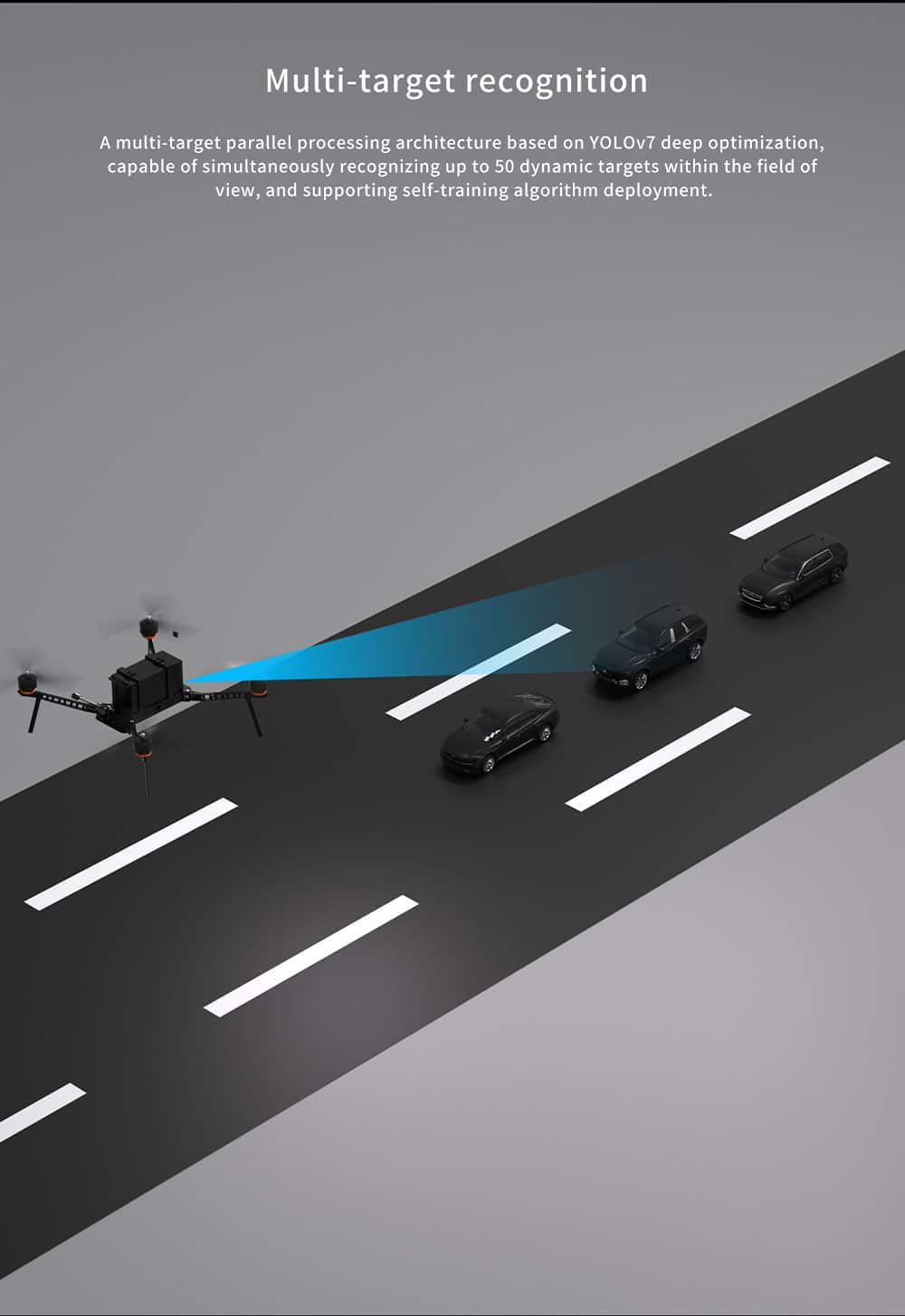

Multi-Target Tracking
The AI system uses YOLOv7-optimized architecture to detect and track multiple targets simultaneously.
Capabilities include:
tracking 50+ dynamic objects within the field of view
real-time AI image processing
stable tracking in complex environments
This allows drones to maintain situational awareness across wide operational areas.

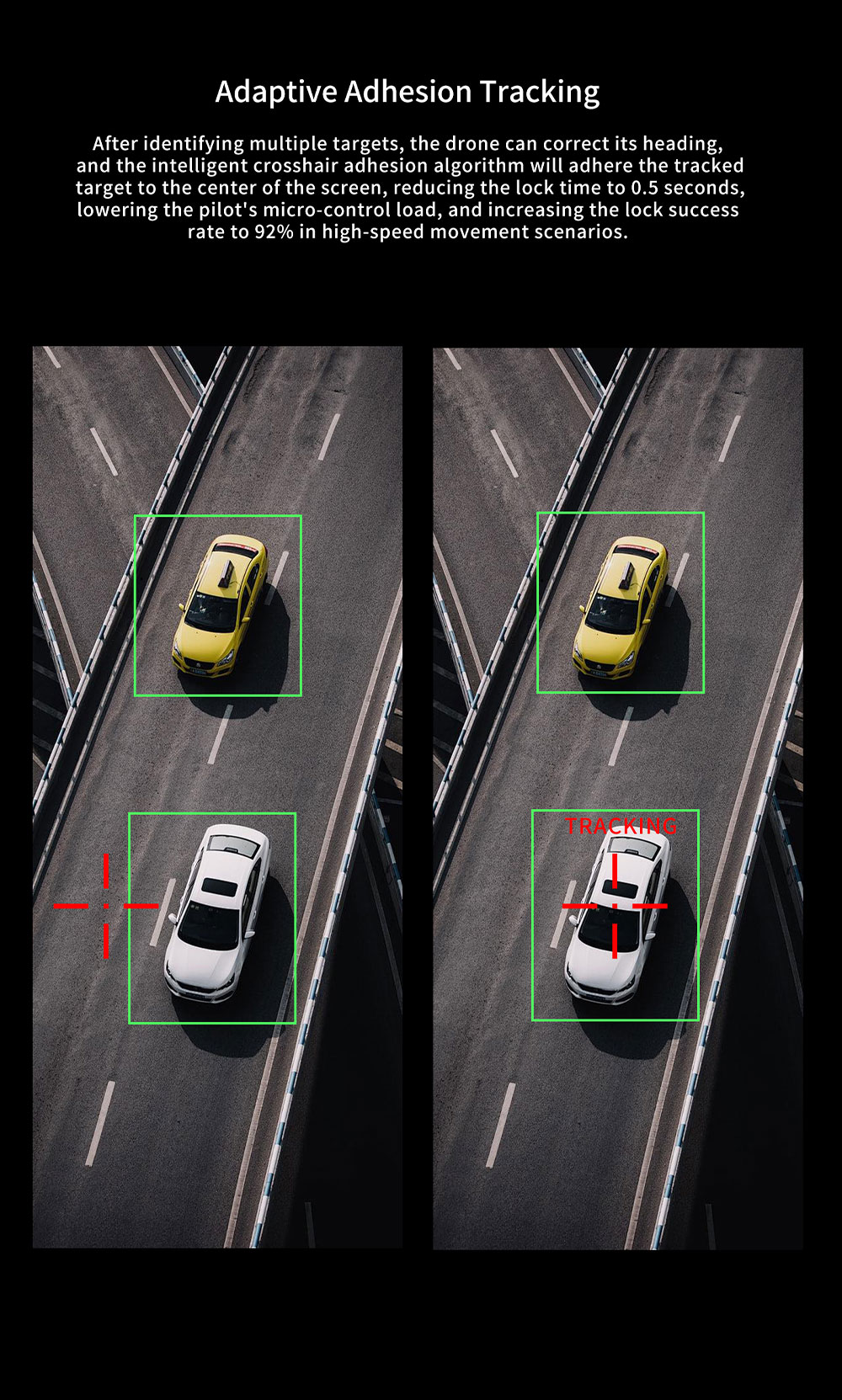

Adaptive Target Lock-On Tracking
The VisionCube system features an adaptive target locking algorithm.
Once a target is identified:
the drone automatically aligns the crosshair to the target center
target lock-on time is reduced to 0.5 seconds
tracking success rate increases significantly during high-speed motion
This reduces manual control complexity for pilots.
Dynamic Memory Tracking
The system integrates motion prediction algorithms and Kalman filtering.
Advantages include:
reacquiring targets within 3 seconds after temporary occlusion
improved tracking stability in dense environments such as forests or urban areas
better tracking continuity during complex movements
Tracking stability improves by approximately 40% compared with conventional systems.
Picture-in-Picture (PiP) Viewing System
The VisionCube system includes dual-stream PiP display architecture.
Features include:
main screen showing the full environment
secondary window providing 8× digital zoom
improved situational awareness during flight operations
This allows pilots to monitor both the environment and detailed target information simultaneously.

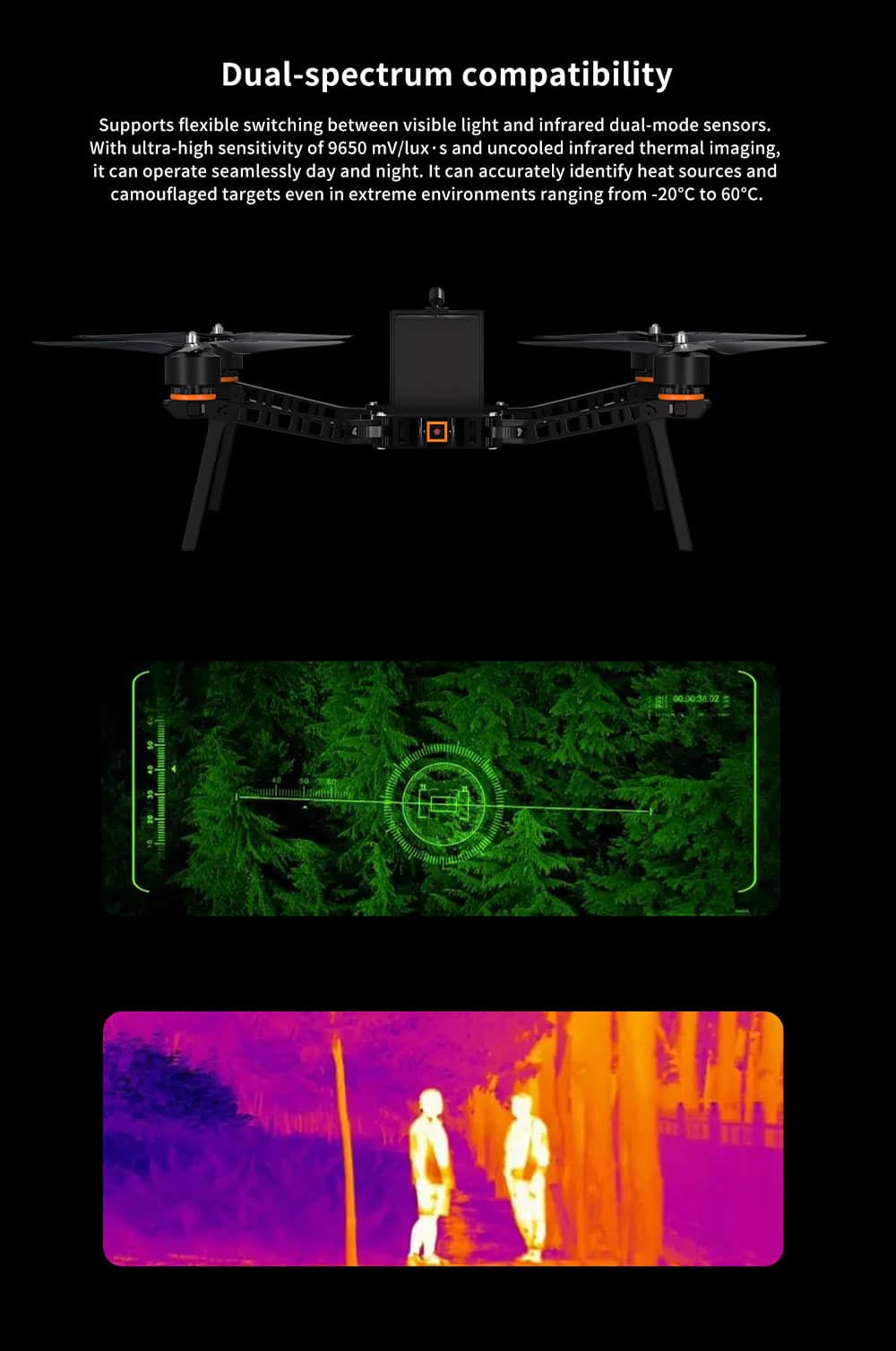

Multi-Sensor Compatibility
The module supports multiple camera types including:
visible light cameras
thermal imaging sensors
This enables 24/7 operation across a wide temperature range.
The system maintains reliable target identification even under camouflage or low-visibility conditions.

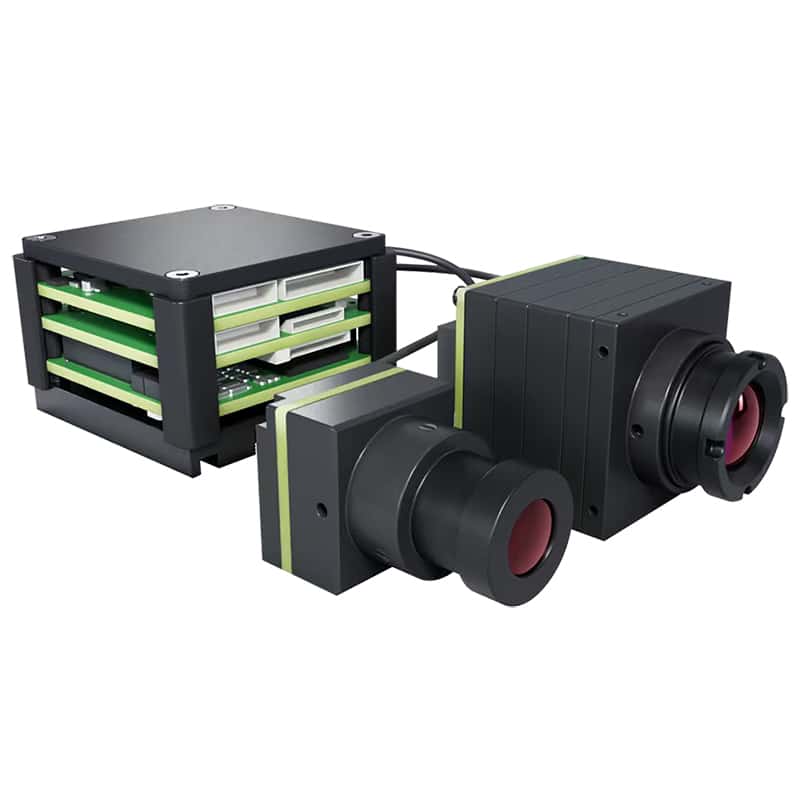

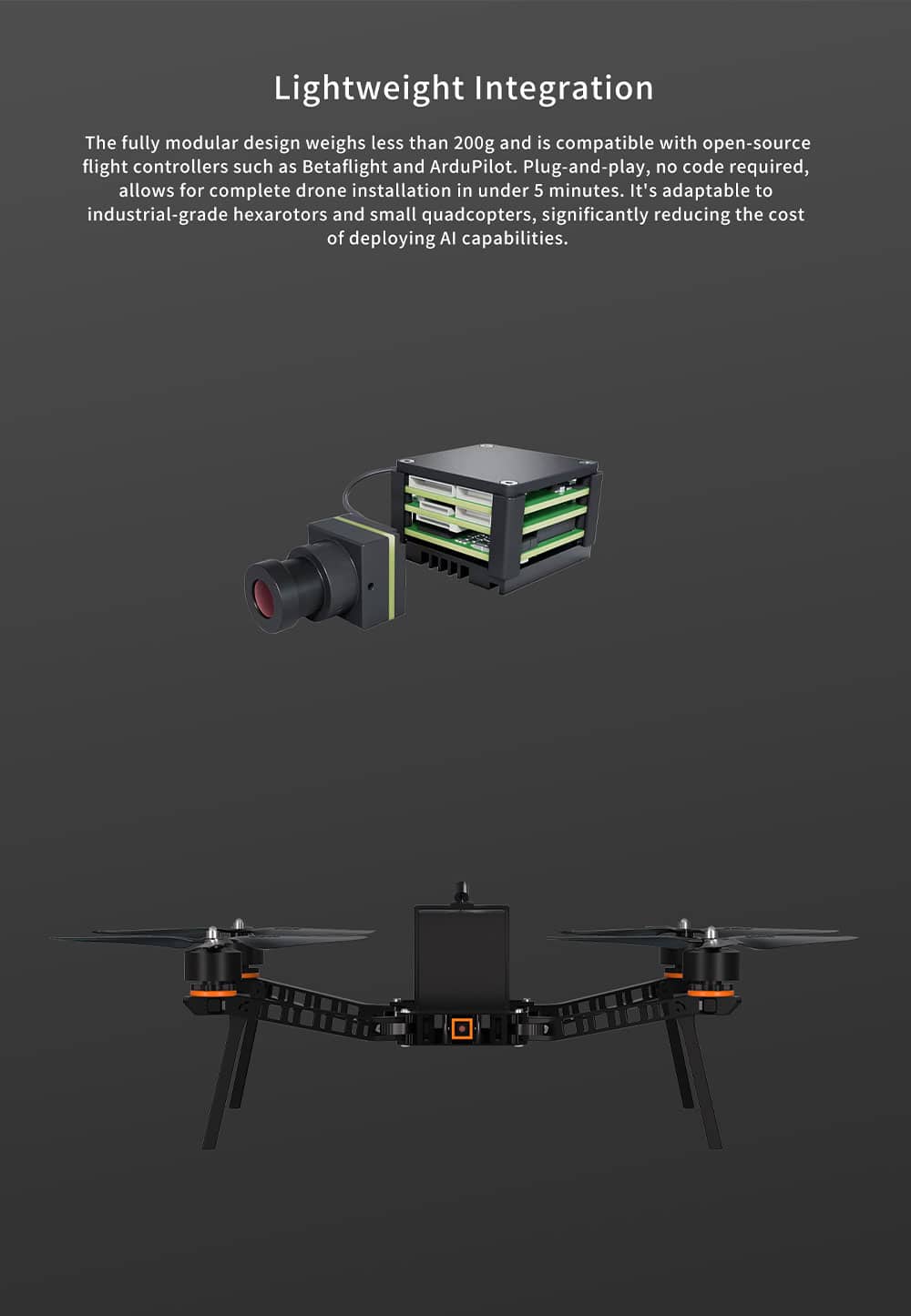

Lightweight Modular Design
The AI VisionCube is designed with a compact modular structure.
Advantages include:
total module weight under 200 g
plug-and-play installation
compatible with BetaFlight and ArduPilot flight controllers
AI capability can be deployed to a drone platform within approximately 5 minutes.

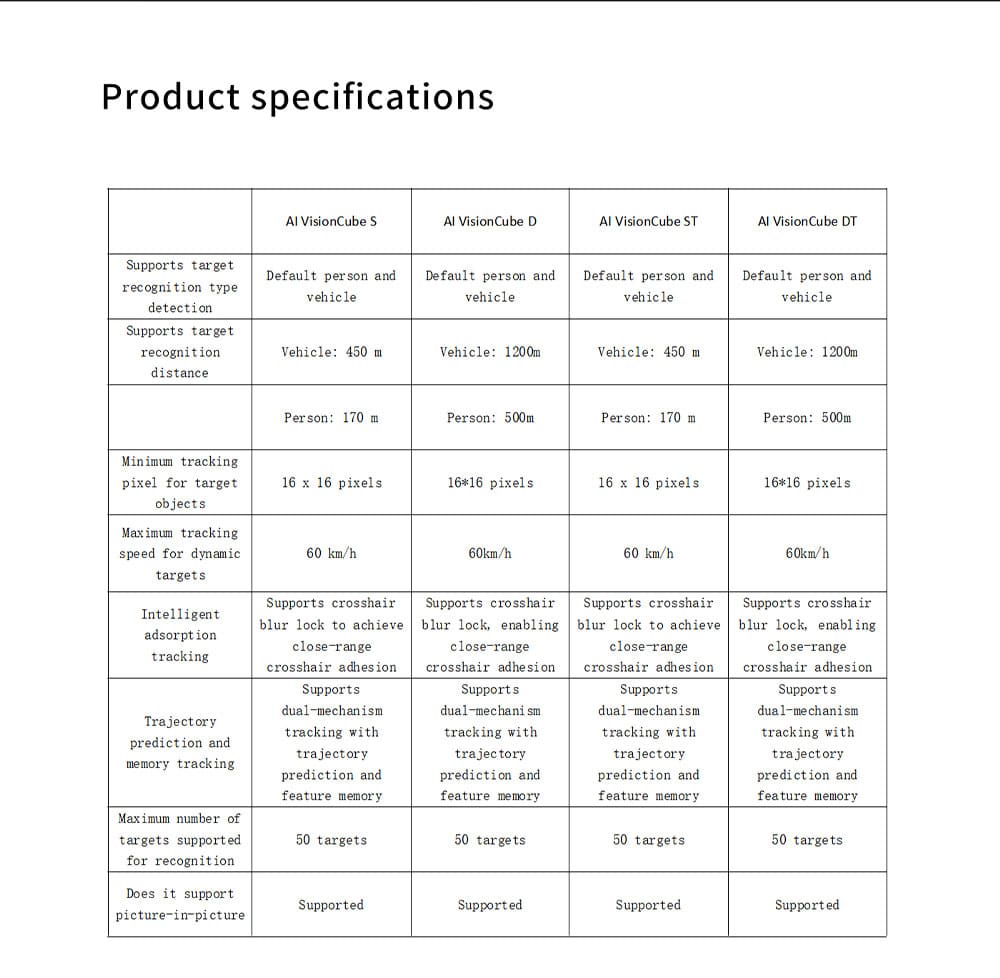

AI VisionCube Specifications
System Parameters
| Parameter | Specification |
| Product Name | AI VisionCube |
| Product Type | Drone AI Vision Tracking Module |
| Recognition Range | Up to 1.2 km |
| Maximum Targets Tracked | 50+ targets |
| Target Lock-On Time | ~0.5 s |
| Target Reacquisition Time | ≤3 s |
| Digital Zoom | 8× PiP zoom |
| System Architecture | YOLOv7 optimized |

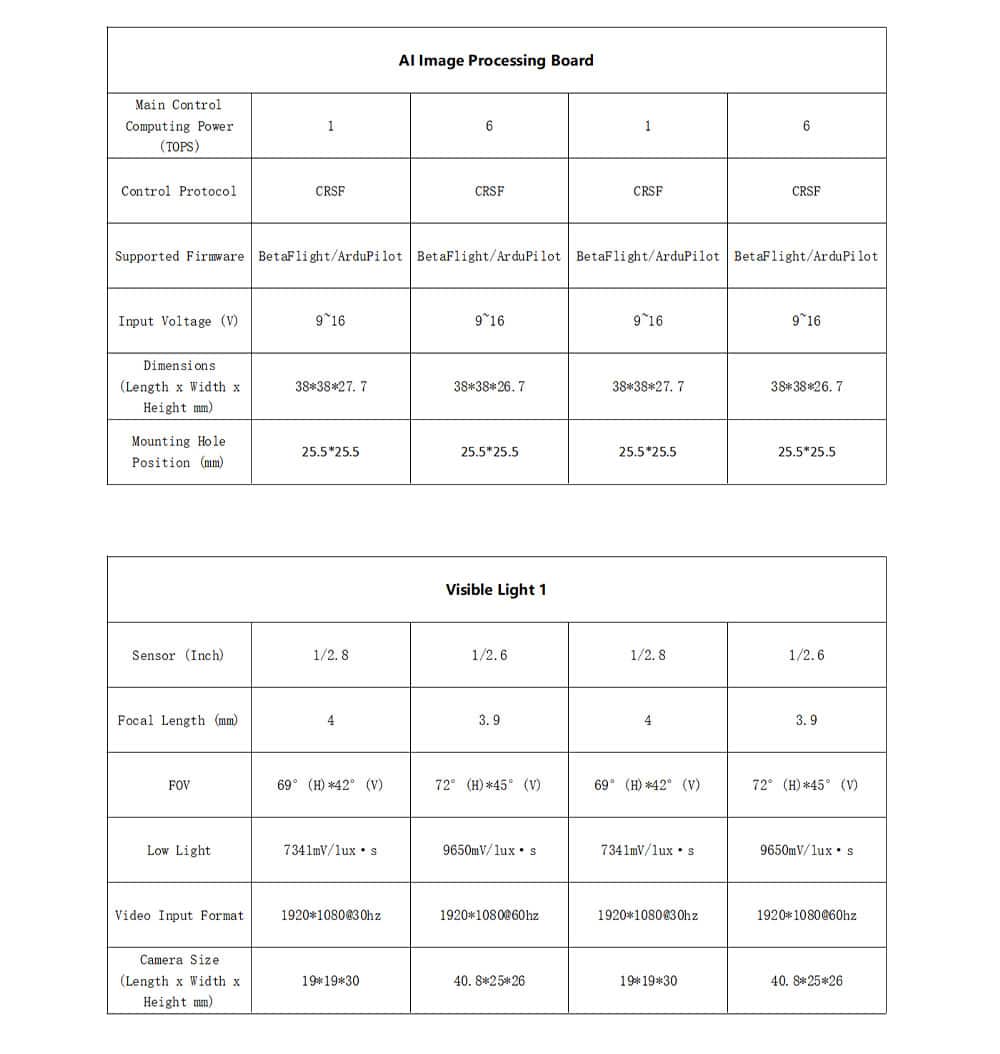

AI Processing Board
| Parameter | Specification |
| AI Processing Unit | Embedded AI Image Processing Board |
| Computing Power | Up to 1 TOPS |
| Protocol | CRSF |
| Flight Controller Compatibility | BetaFlight / ArduPilot |
| Module Weight | <200 g |

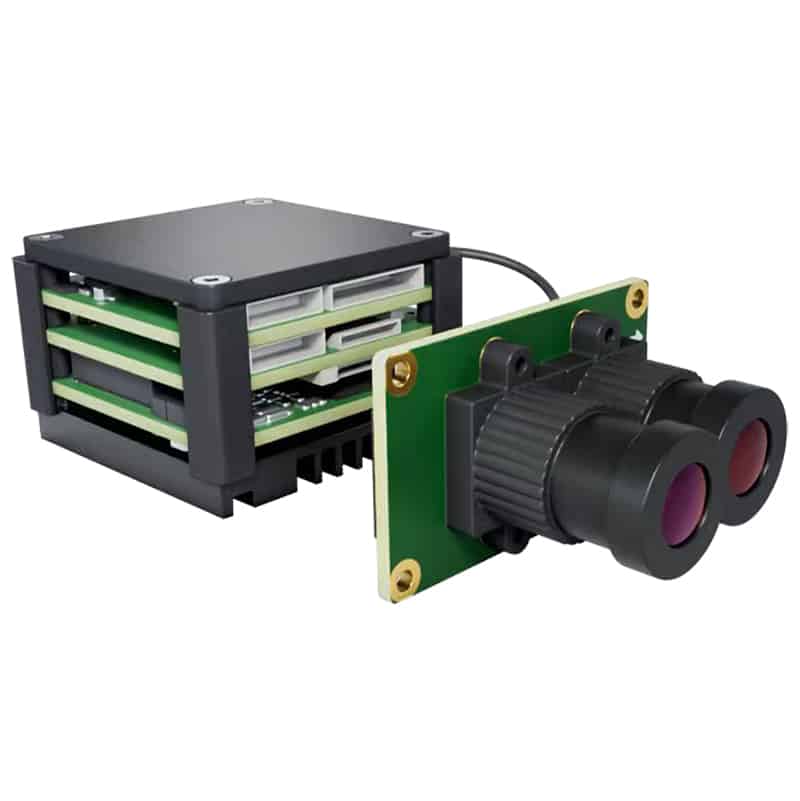

Visible Camera Module
| Parameter | Specification |
| Image Sensor | 1/2.8 inch |
| Resolution | 1920 × 1080 @30Hz |
| Focal Length | 4 mm |
| Field of View | 69° (H) × 42° (V) |
| Low-Light Sensitivity | 7341 mV/lux·s |
| Camera Dimensions | 19 × 19 × 30 mm |

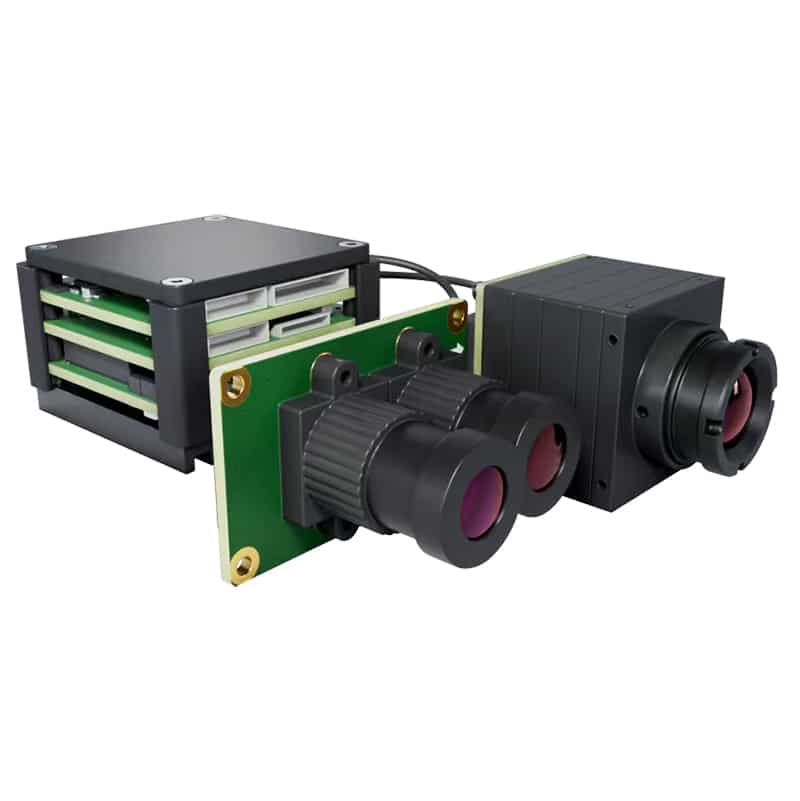

Thermal Camera (Optional)
| Parameter | Specification |
| Thermal Resolution | 384 × 288 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1 mm |
| Field of View | 20.3° × 15.2° |
| Spectral Range | 8–14 μm |
| Frame Rate | 25 Hz |
Package Contents
| Item | Quantity |
| AI VisionCube Kit | 1 |
| SH1.0-12PIN Cable (15 cm) | 1 |
| M2×4 Screws | 2 |
| M2×6 Hex Screws | 4 |
Typical Applications
FPV drone intelligent targeting
Security and surveillance missions
Autonomous aerial tracking
Industrial drone inspection
AI-assisted drone reconnaissance
