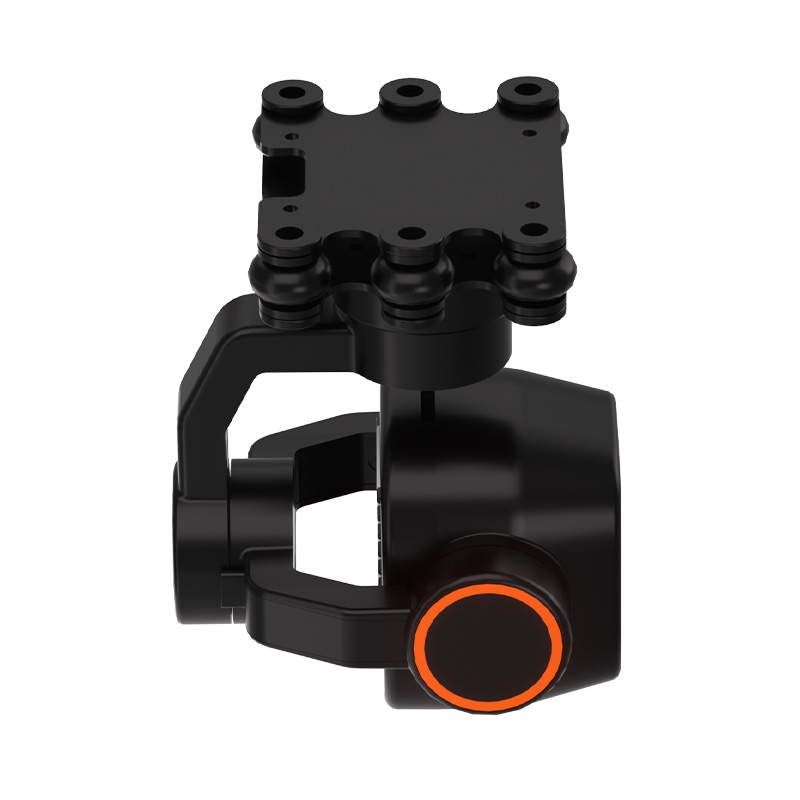

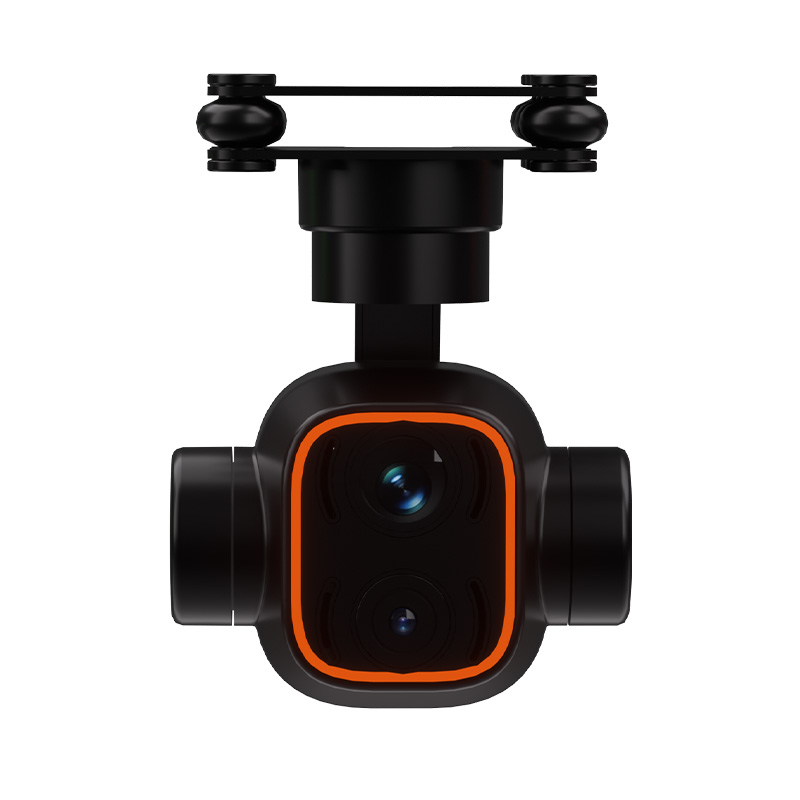

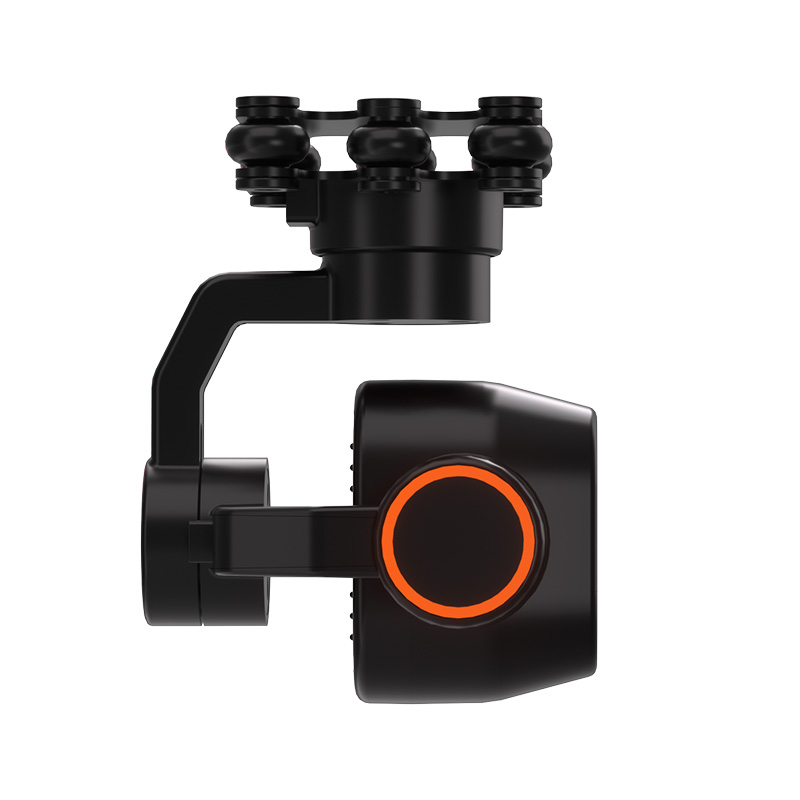

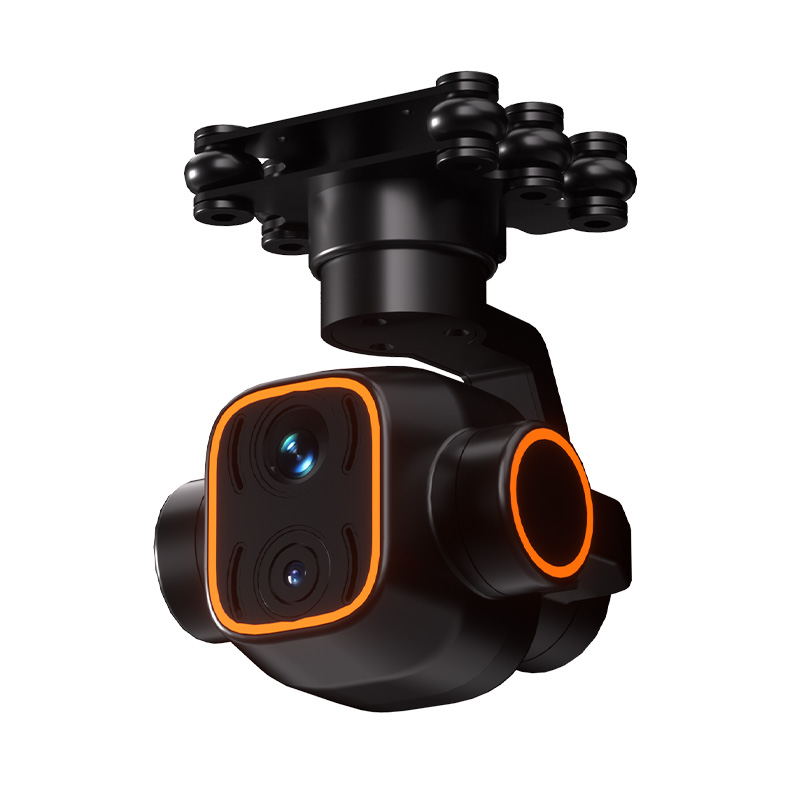

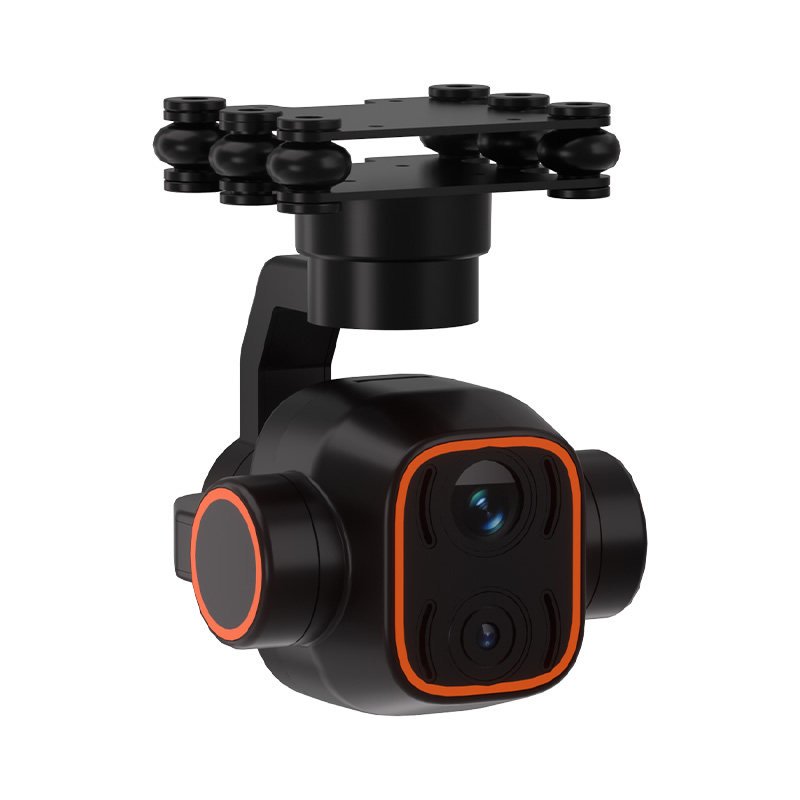

Thermal Camera for Drones – C12 Dual Lens Gimbal Camera
The Thermal Camera for Drones C12 Dual Lens Gimbal Camera is a compact, high-performance imaging system designed for aerial surveillance, inspection, and industrial applications.
Integrating both a high-definition visible light camera and a thermal imaging sensor, this dual-lens system provides comprehensive visual and thermal data in real time.
With a lightweight structure and industrial-grade stabilization, the C12 is ideal for drones requiring precise imaging and reliable performance in complex environments.
Key Features

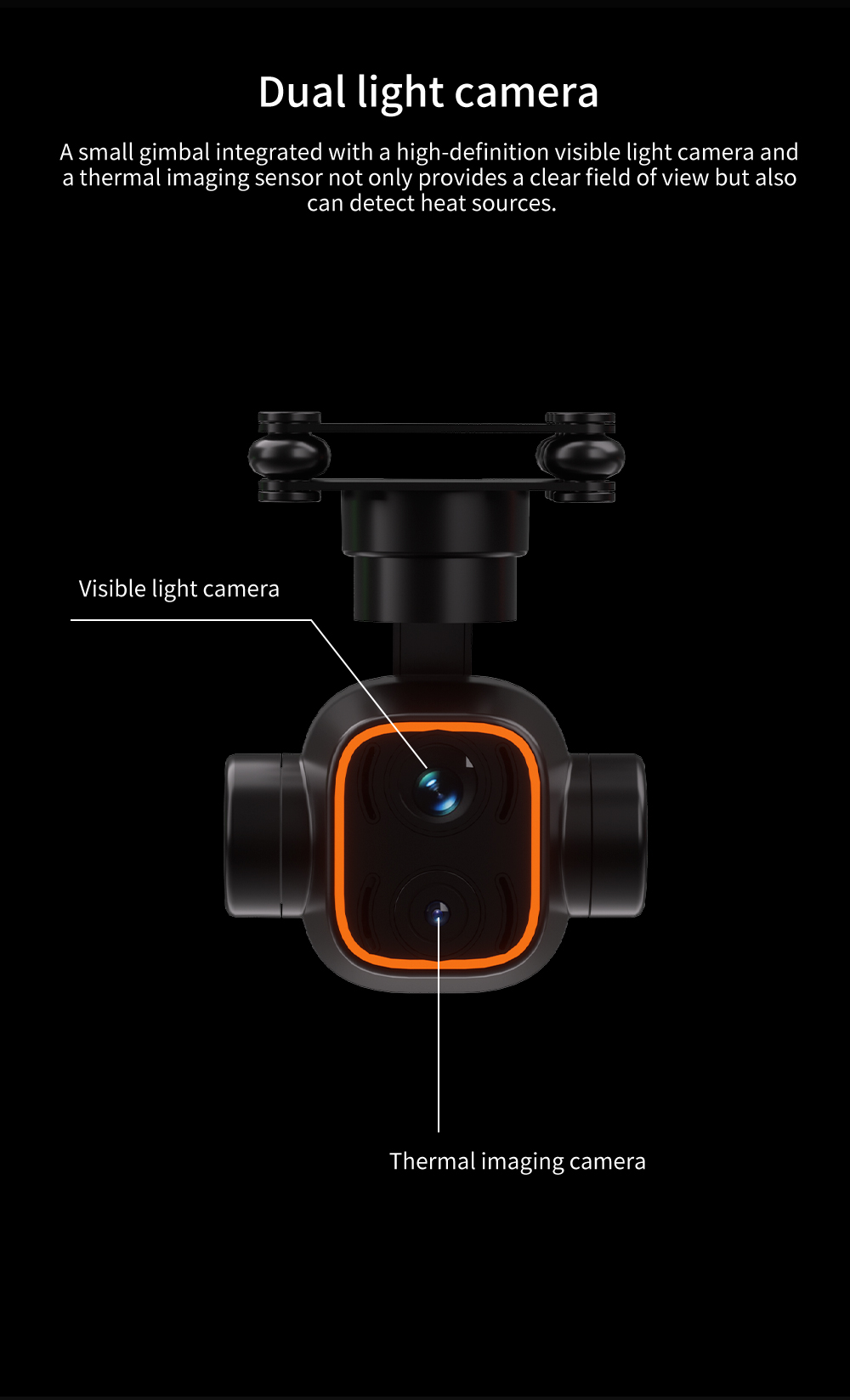

Dual Lens Imaging System
Combines a 2K visible light camera with a high-resolution thermal sensor, enabling simultaneous visual and thermal observation for enhanced situational awareness.

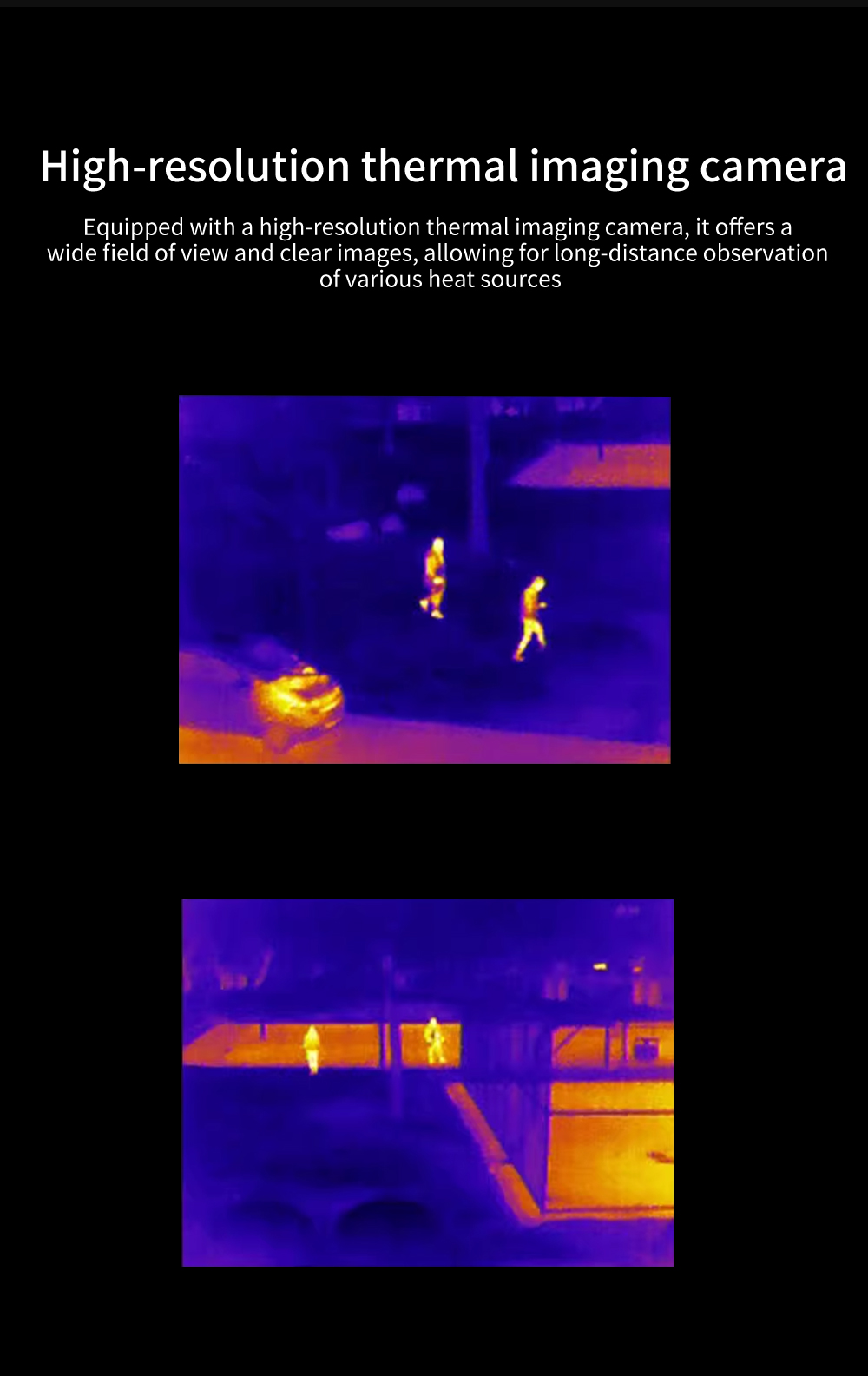

High-Resolution Thermal Detection
Equipped with a 384×288 thermal imaging sensor, capable of detecting heat sources at long distances with clear contrast and detail.

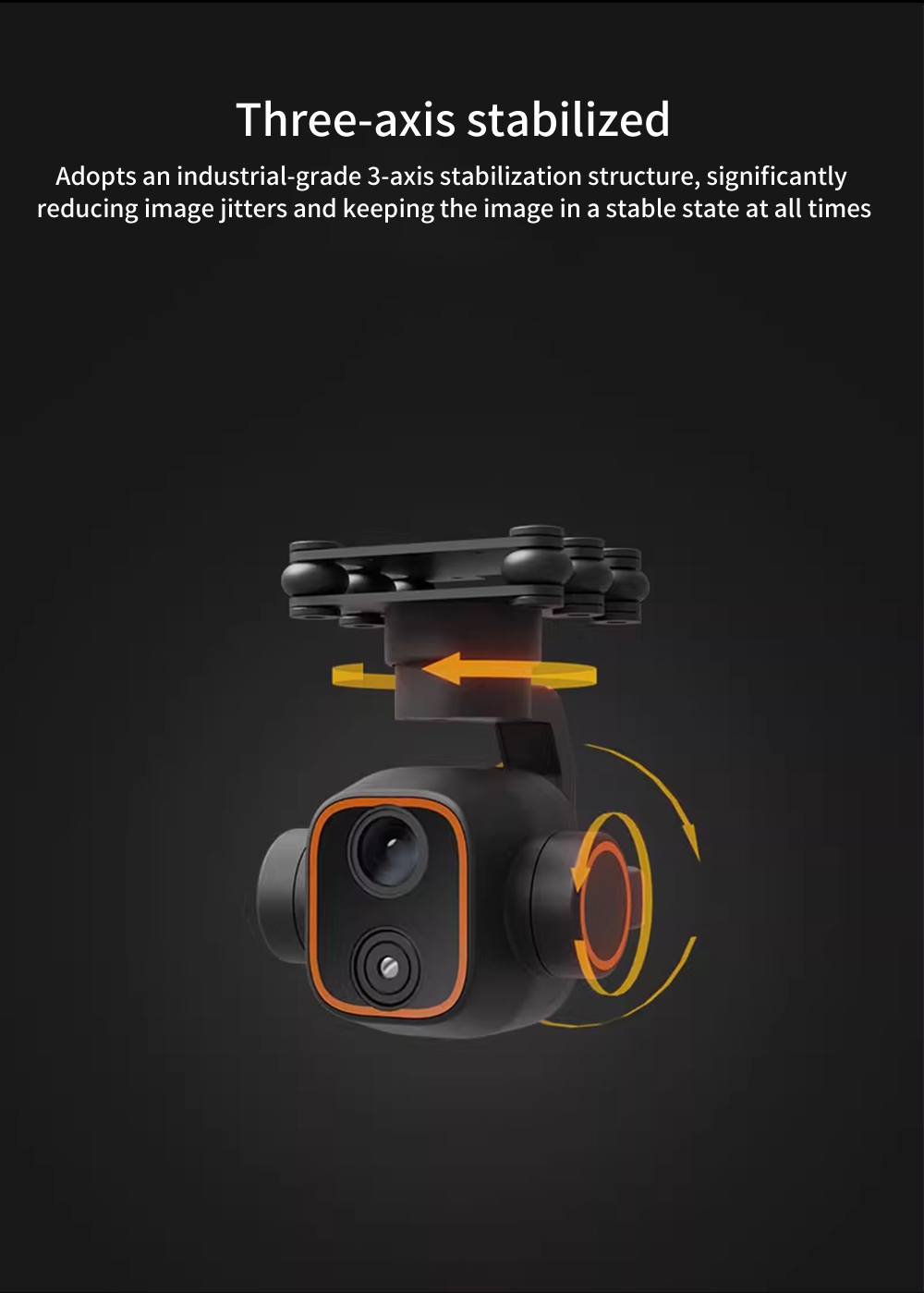

3-Axis Stabilized Gimbal
Industrial-grade three-axis stabilization significantly reduces vibration and ensures smooth, stable footage during flight operations.
2K HD Visible Light Camera
Supports 2560×1440 video recording and photography, delivering sharp and detailed visual imaging for inspection and monitoring tasks.

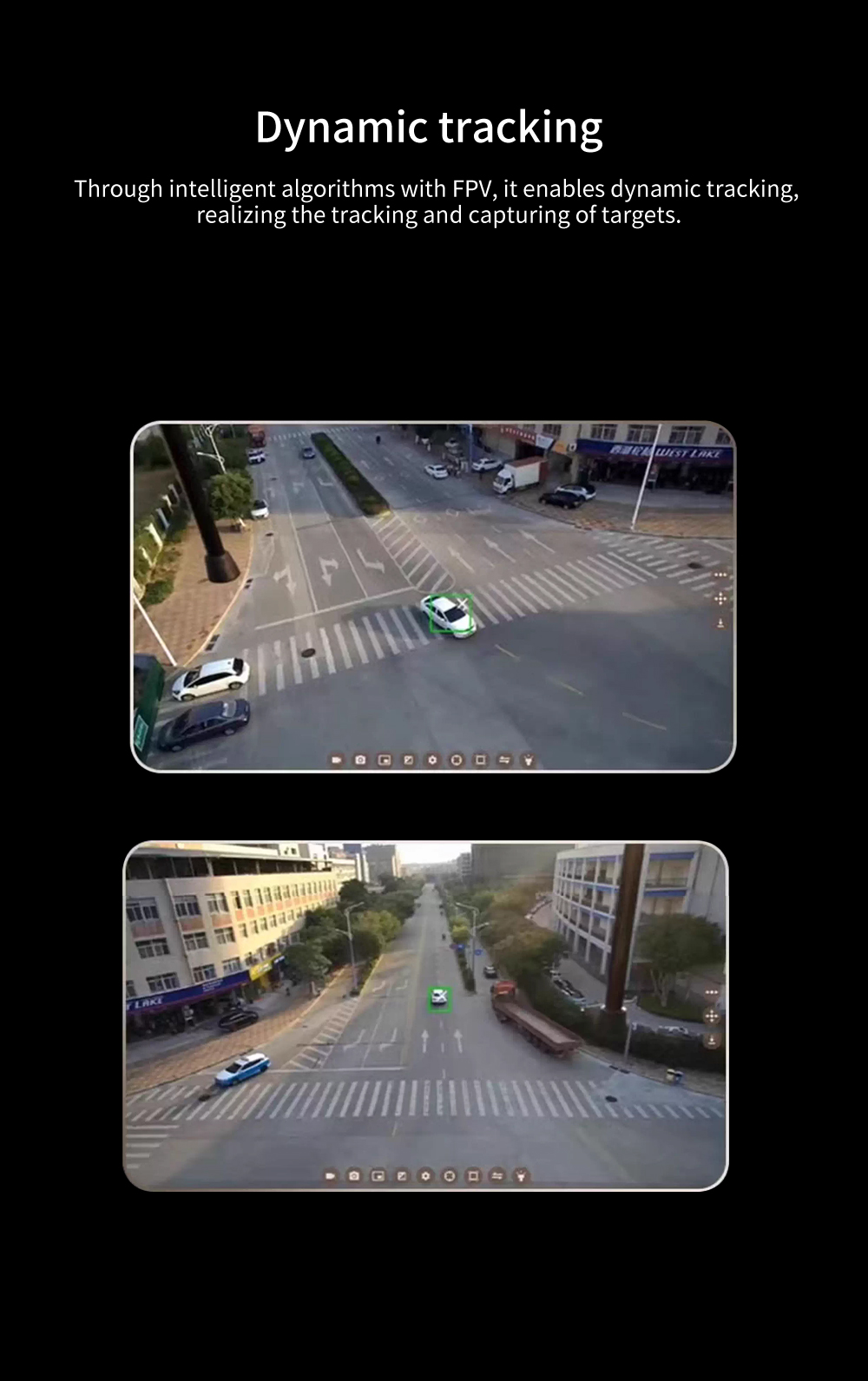

Intelligent Tracking Capability
Supports dynamic target tracking through integrated FPV systems, improving operational efficiency in surveillance missions.

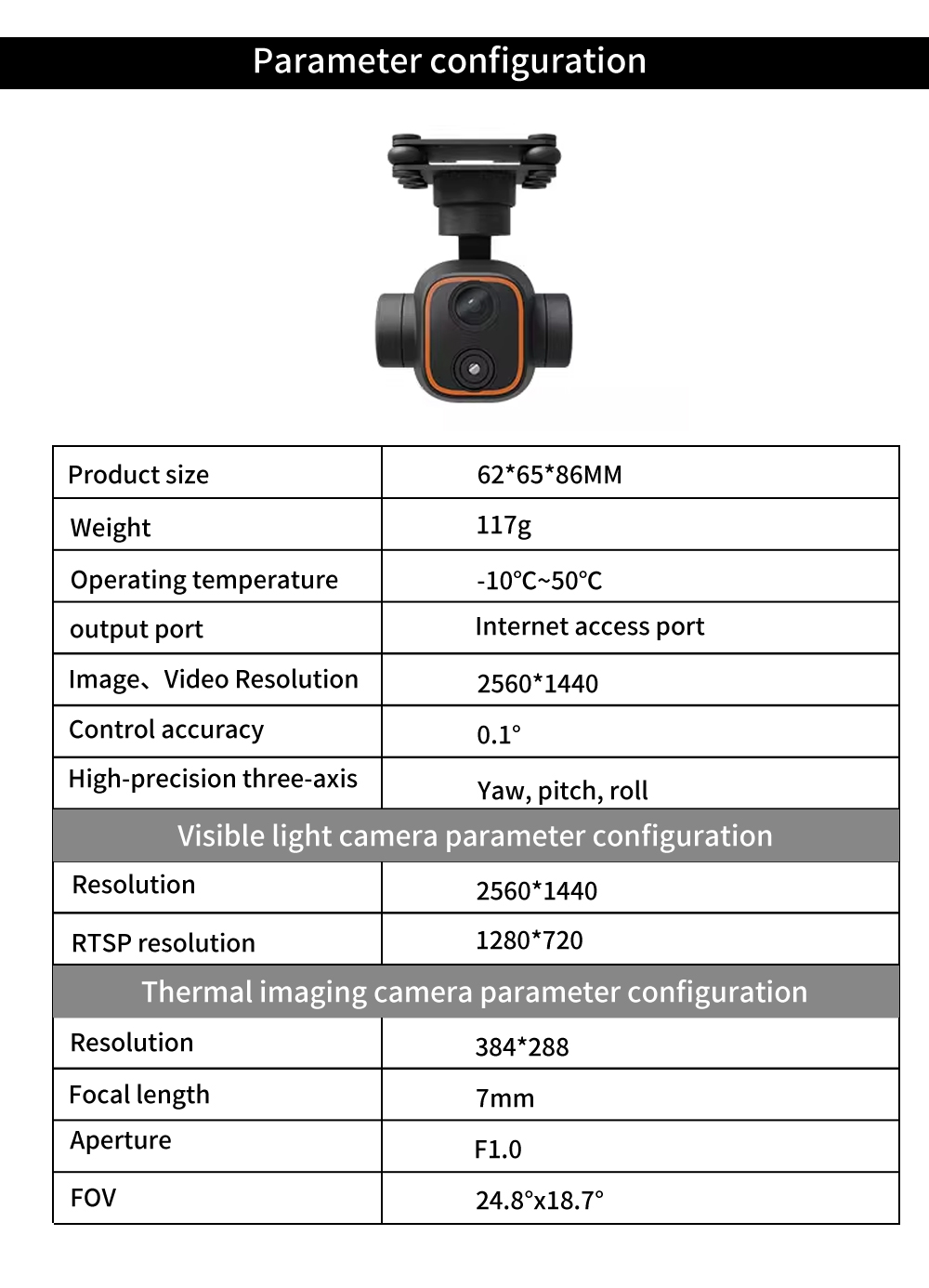

Specifications (Parameter Table)
Gimbal & System
| Category | Specification |
| Product Name | C12 Dual Lens Gimbal Camera |
| Type | Thermal Camera for Drones |
| Stabilization | 3-Axis Gimbal (Pitch / Roll / Yaw) |
| Control Interface | LAN Port |
| Video Output | LAN / RTSP Stream |
| Working Voltage | 7.2V – 72V |
| Working Current | 210 mA |
| Working Temperature | -10°C to +50°C |
| Weight | 117 g |
| Dimensions | 62 × 65 × 86 mm |
| Control Angle Range | Pitch: -90°~+10° / Yaw: -90°~+90° / Roll: -45°~+45° |

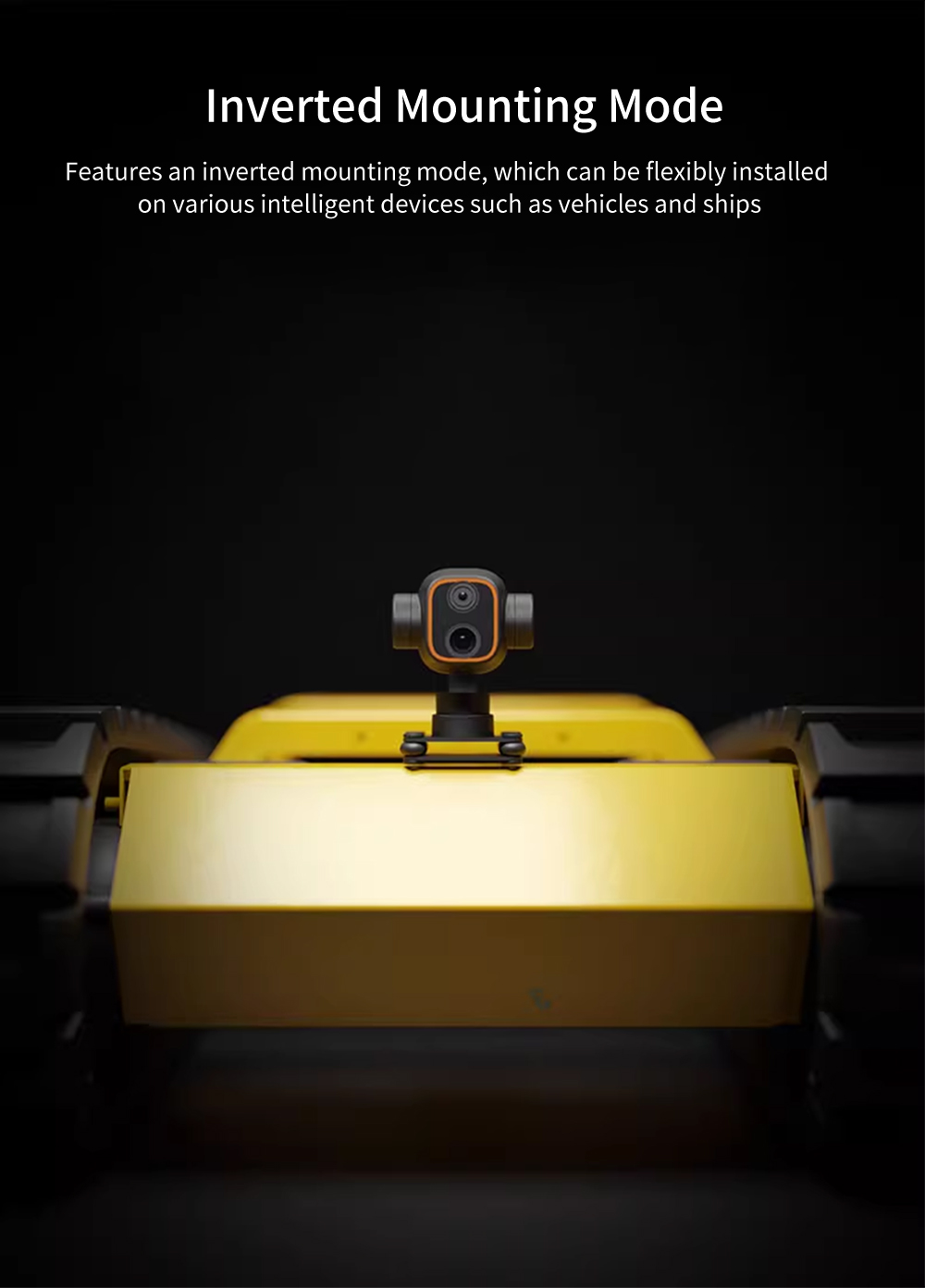

| Installation Mode | Upright / Inverted Supported |
Visible Light Camera
| Category | Specification |
| Resolution | 2560 × 1440 (2K) |
| Image Transmission | 1280 × 720 |
| Lens Focal Length | 3.5 – 4.75 mm |
| Aperture | F2.0 |
| Field of View | 100° (H) / 52° (V) / 122° (D) |
| Zoom | 4× Digital Zoom |
| Image Format | JPEG |
| Video Format | MP4 |
| Storage | Micro SD (Up to 256GB) |
Thermal Imaging Camera
| Category | Specification |
| Resolution | 384 × 288 |
| Frame Rate | ≤25 Hz |
| Thermal Time Constant | <10 ms |
| Lens Focal Length | 7 mm |
| Aperture | F1.0 |
| Field of View | 24.8° × 18.7° |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 – 14 μm |
Application Scenarios
- Firefighting and search & rescue operations
- Industrial inspection (power lines, pipelines)
- Security surveillance and night monitoring
- Wildlife observation and environmental research
- Infrastructure inspection and maintenance
Why Choose This Thermal Camera for Drones
The Thermal Camera for Drones C12 provides a balanced combination of thermal detection and high-definition visual imaging in a compact and lightweight form factor.
Its dual-sensor system enables operators to quickly identify targets, detect temperature differences, and capture clear visual data simultaneously.
Compared to single-sensor payloads, this solution significantly improves mission efficiency and decision-making capability in real-world operations.
Package and Customization
- Standard package includes camera, cable, mounting accessories, and storage card
- Compatible with multiple drone platforms and control systems
- Supports custom integration and software adaptation
- Optional configurations available for industrial deployment
