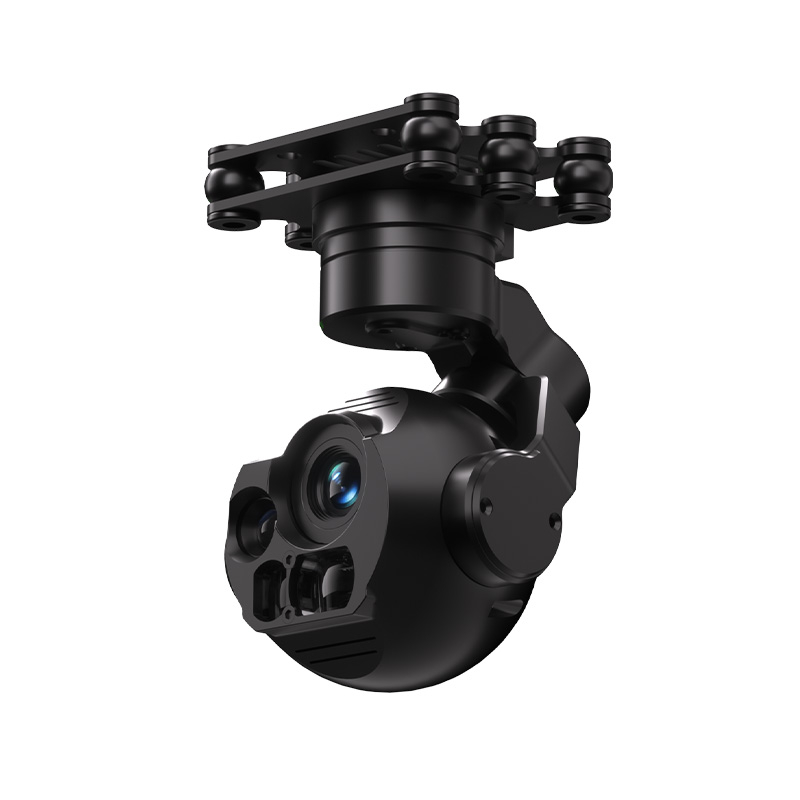

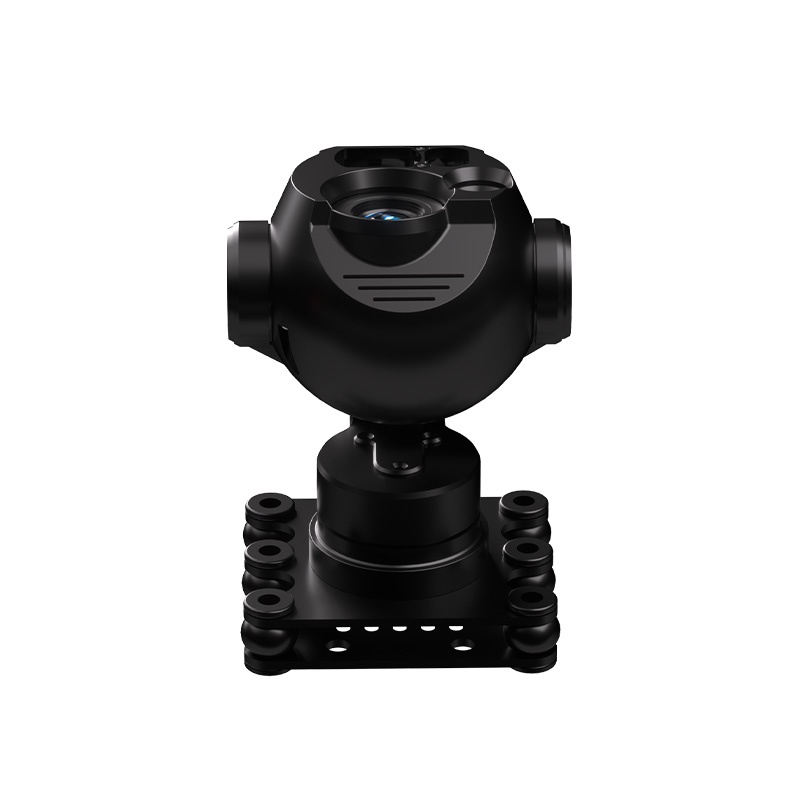

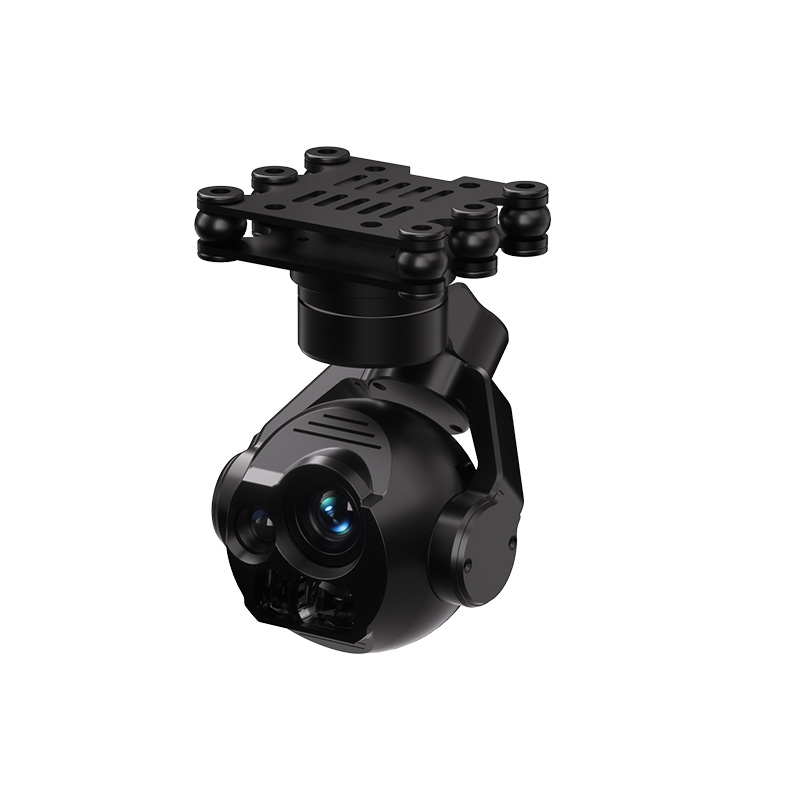

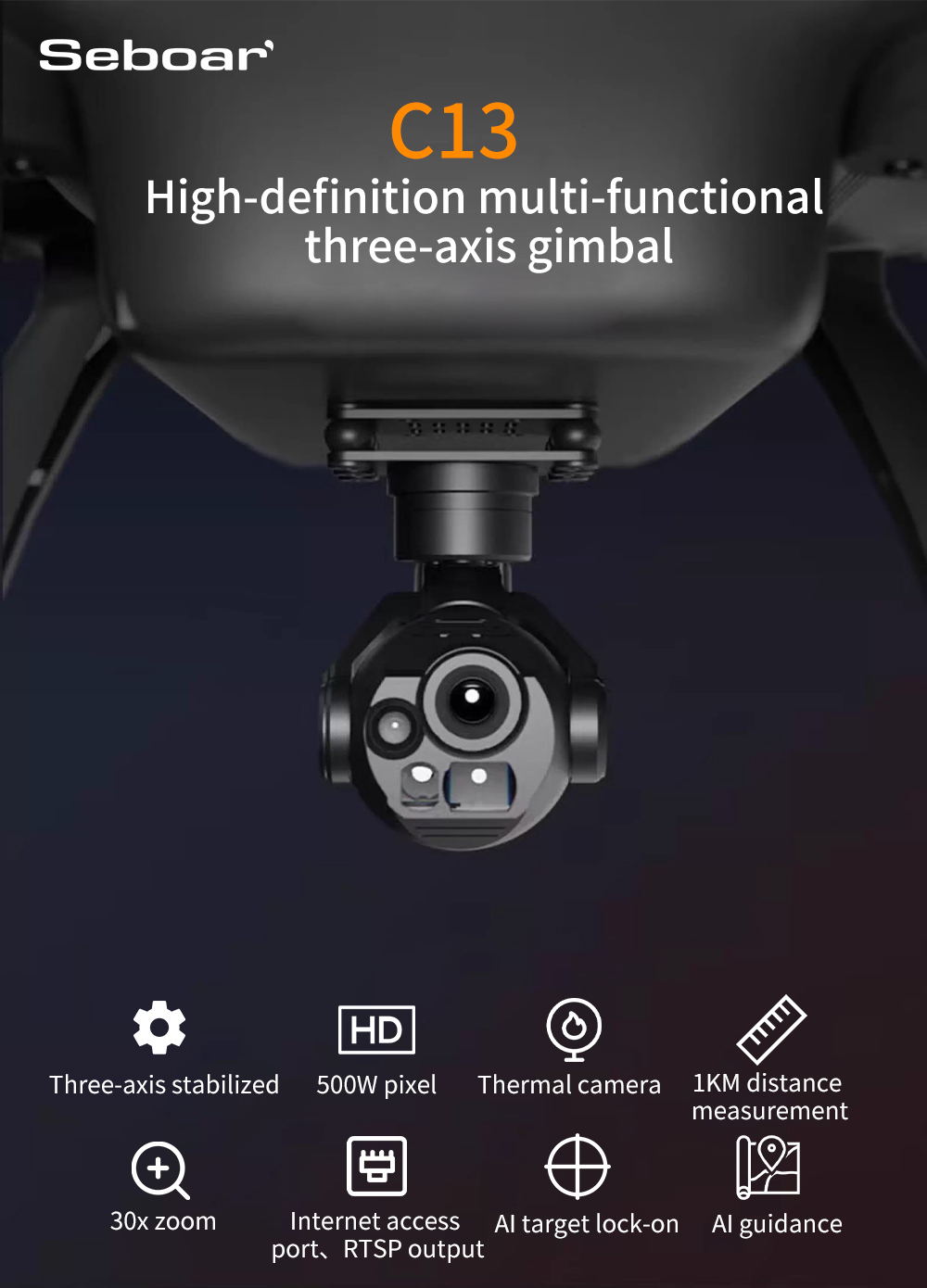

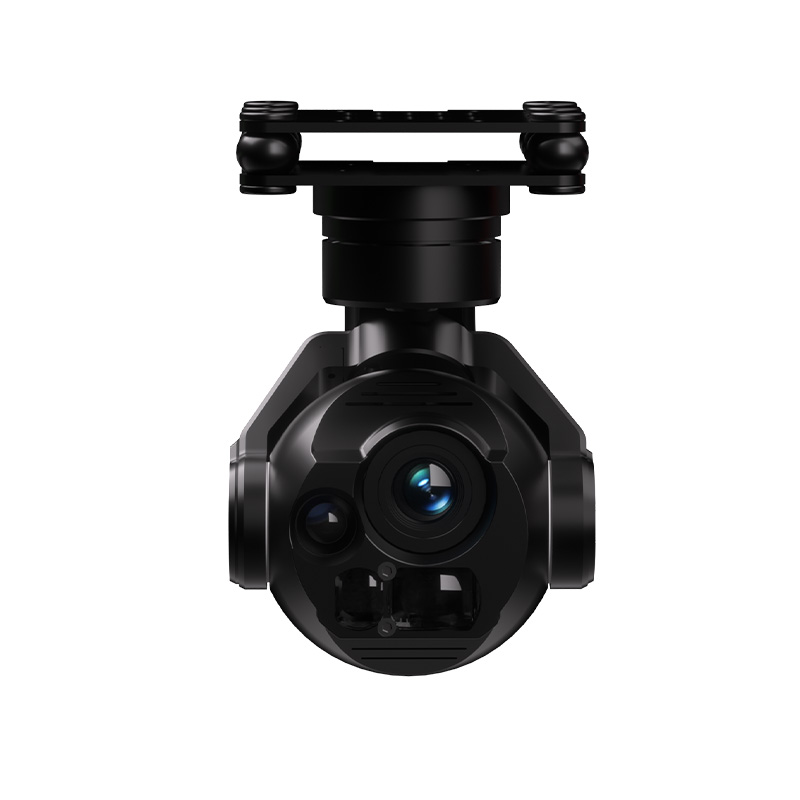

Thermal Camera for Drones – C13 Tri-Sensor AI Thermal Gimbal Camera
The Thermal Camera for Drones C13 Tri-Sensor AI Thermal Gimbal Camera is an advanced multi-sensor payload designed for professional aerial inspection, surveillance, and emergency response operations.
Integrating a visible light camera, thermal imaging sensor, and laser rangefinder into a single stabilized system, the C13 provides comprehensive situational awareness in both day and night environments.
With AI-powered tracking and precision measurement capabilities, this system enables efficient and intelligent mission execution for demanding industrial applications.
Key Features

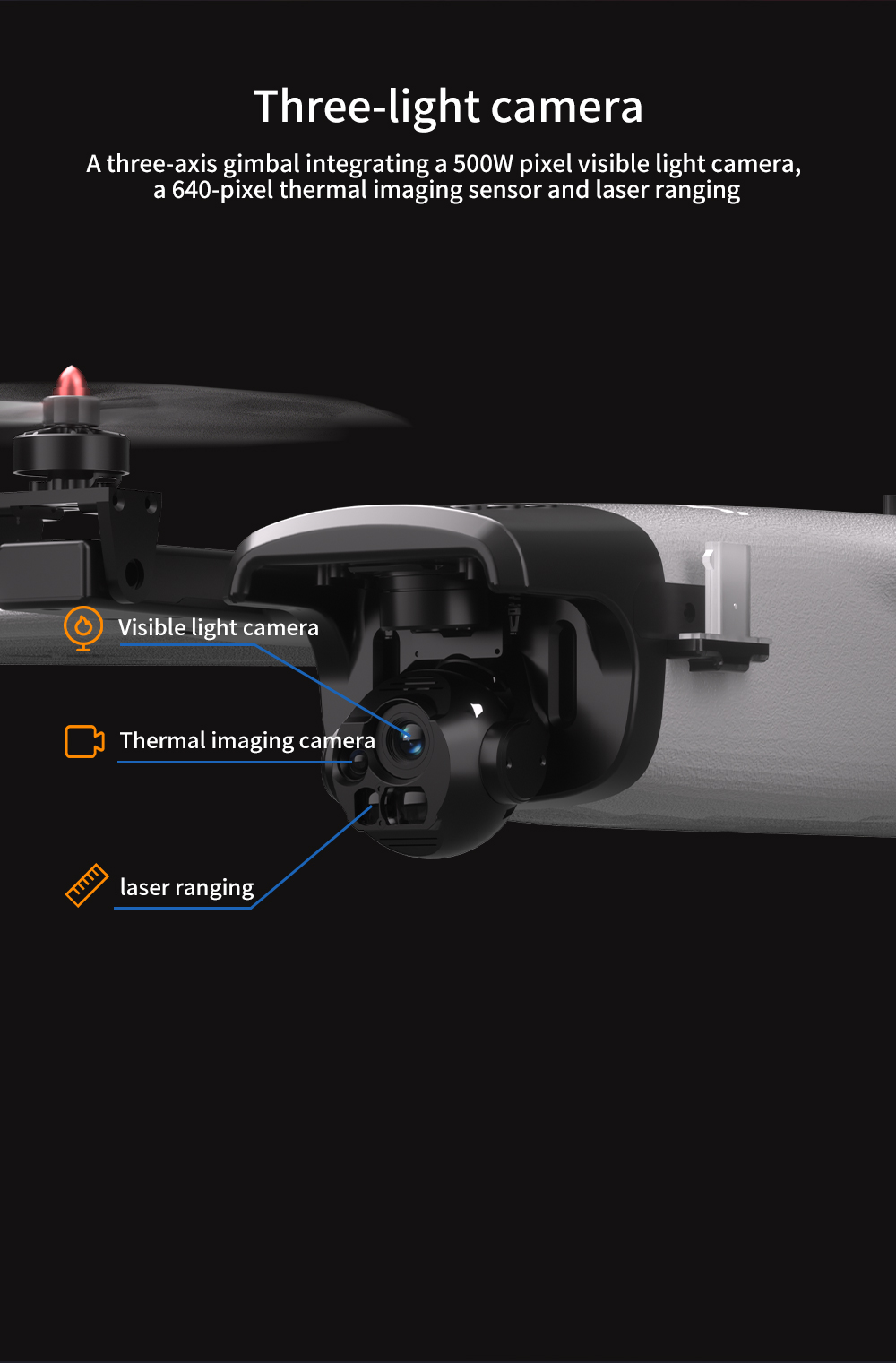

Triple-Sensor Integrated System
Combines a 5MP visible camera, a 640×512 thermal imaging sensor, and a laser rangefinder into one compact payload for multi-dimensional data acquisition.

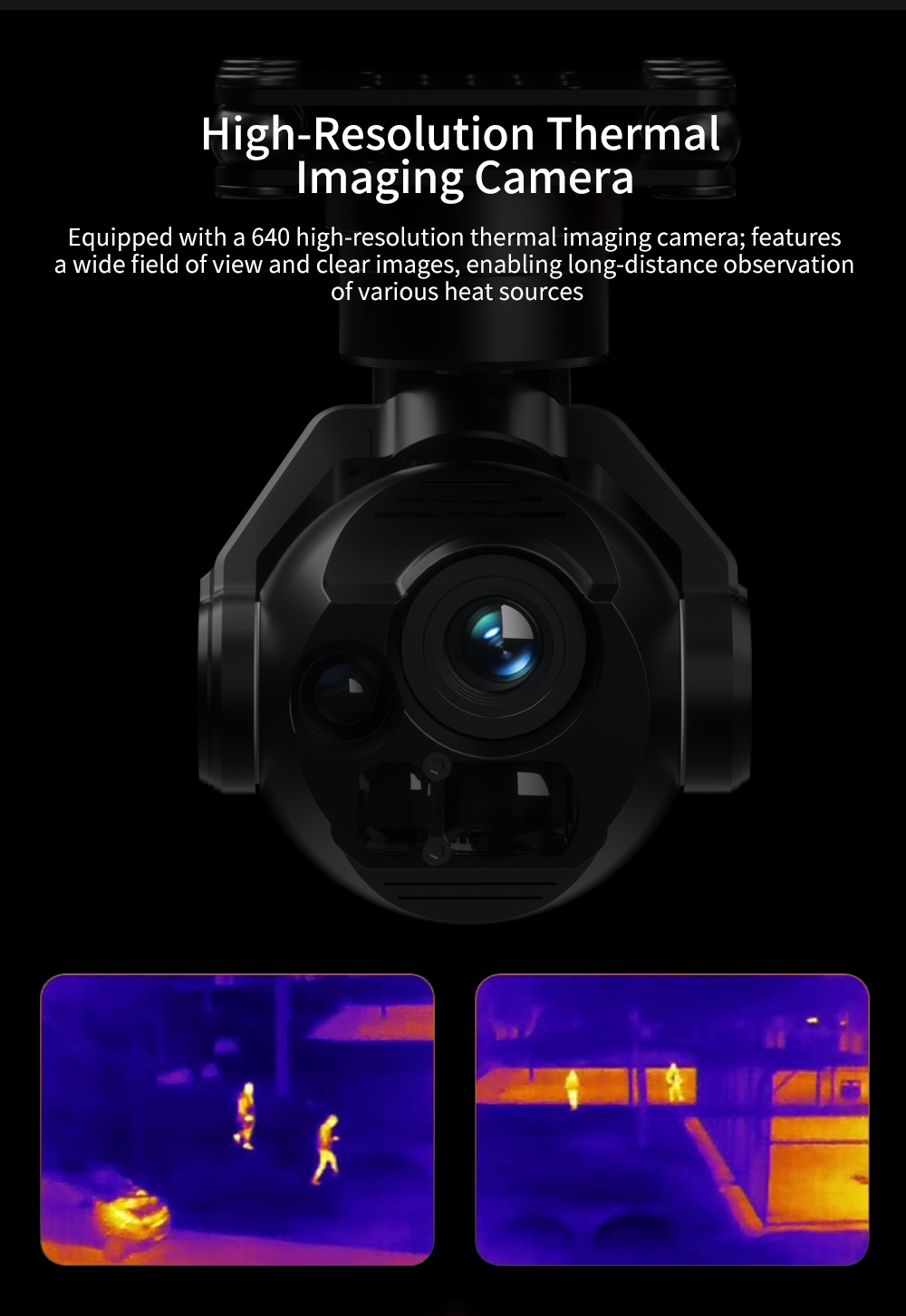

High-Resolution Thermal Imaging
Equipped with a 640×512 thermal sensor, capable of detecting heat signatures at distances up to approximately 1.1 km with clear imaging performance.

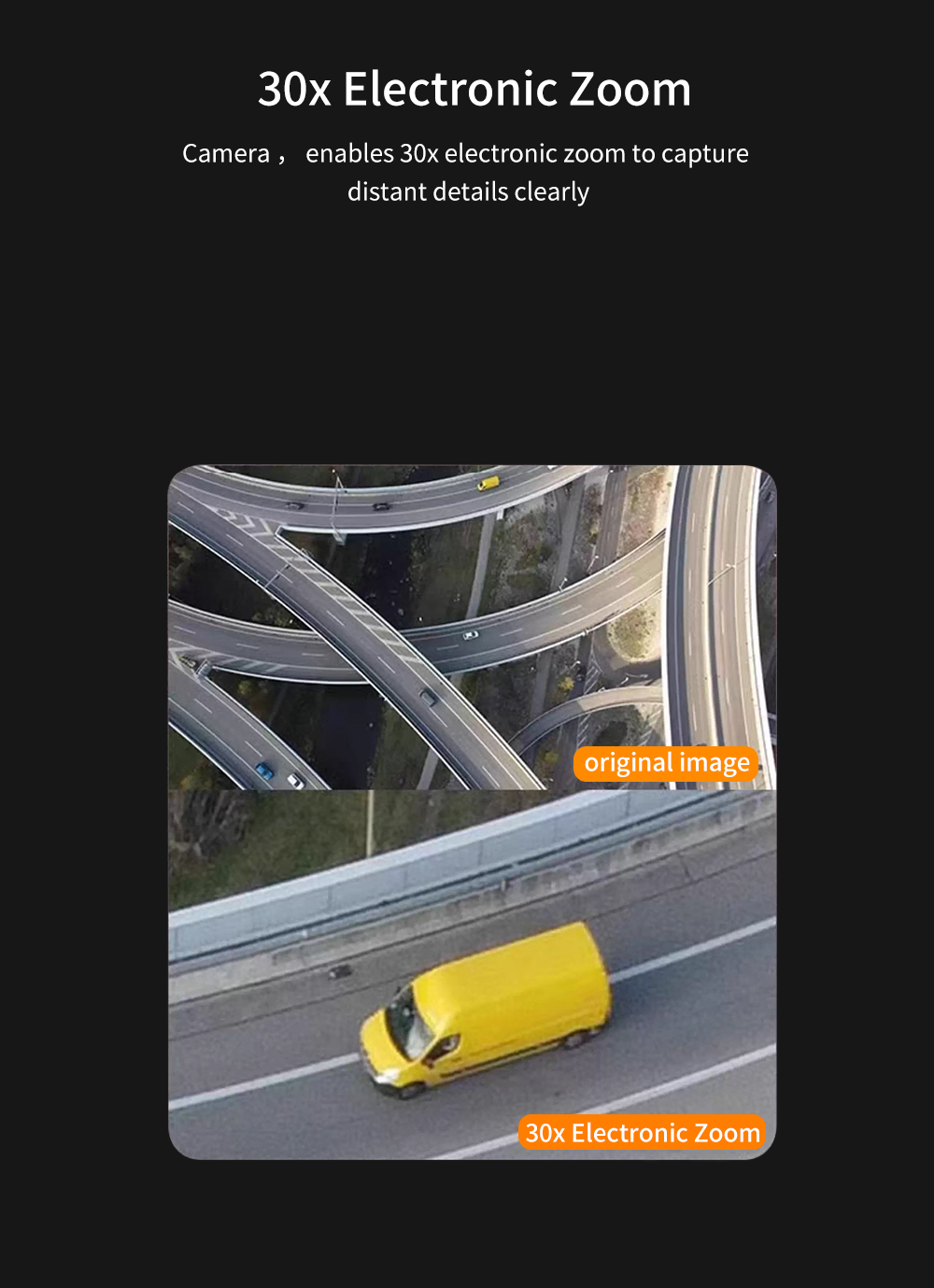

Long-Range Zoom Capability
Supports up to 30× electronic zoom, allowing operators to capture detailed imagery from long distances without compromising clarity.

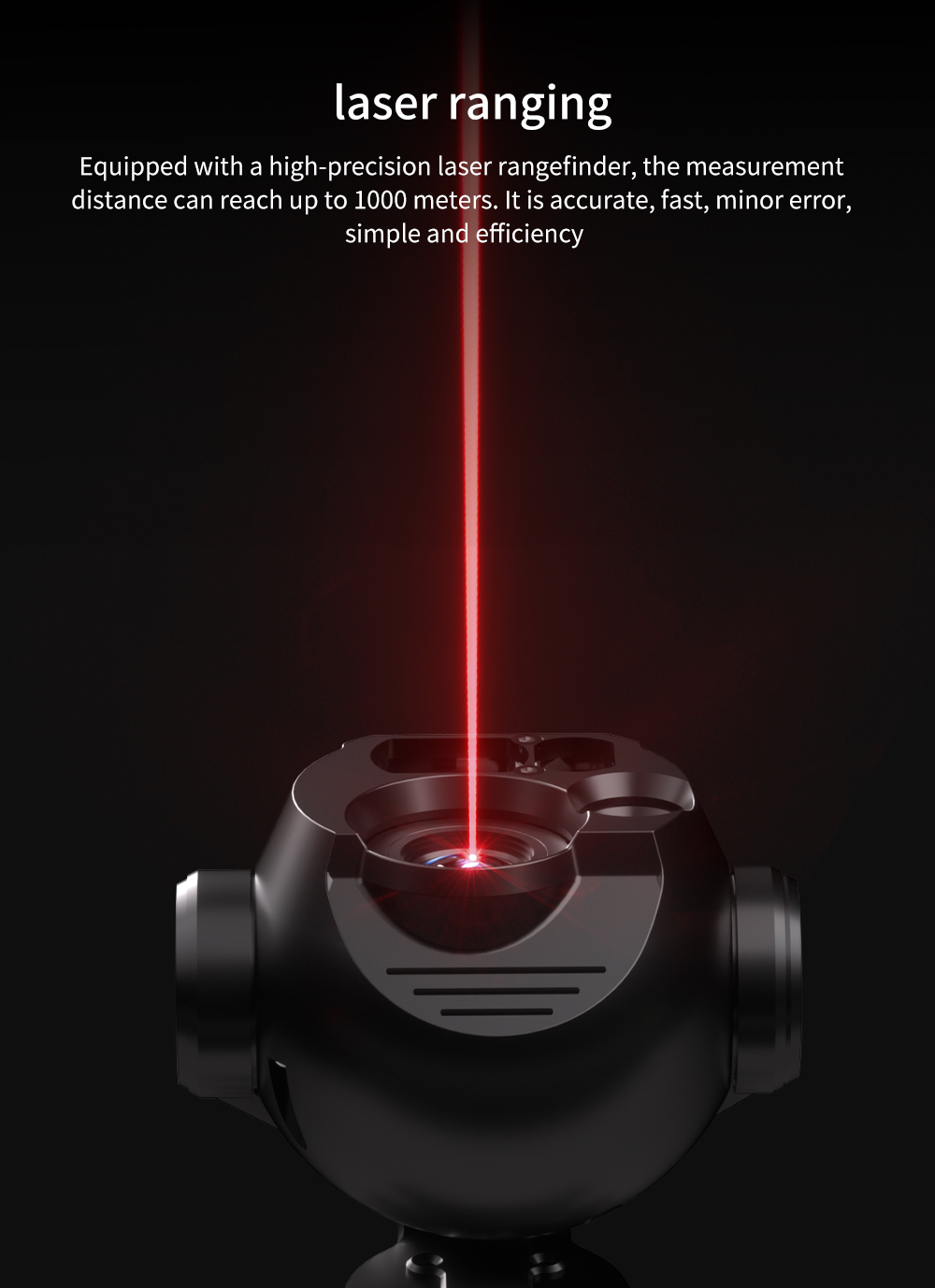

Laser Distance Measurement
Integrated 905nm laser rangefinder provides accurate distance measurement from 5 m up to 1000 m with ±1 m precision.

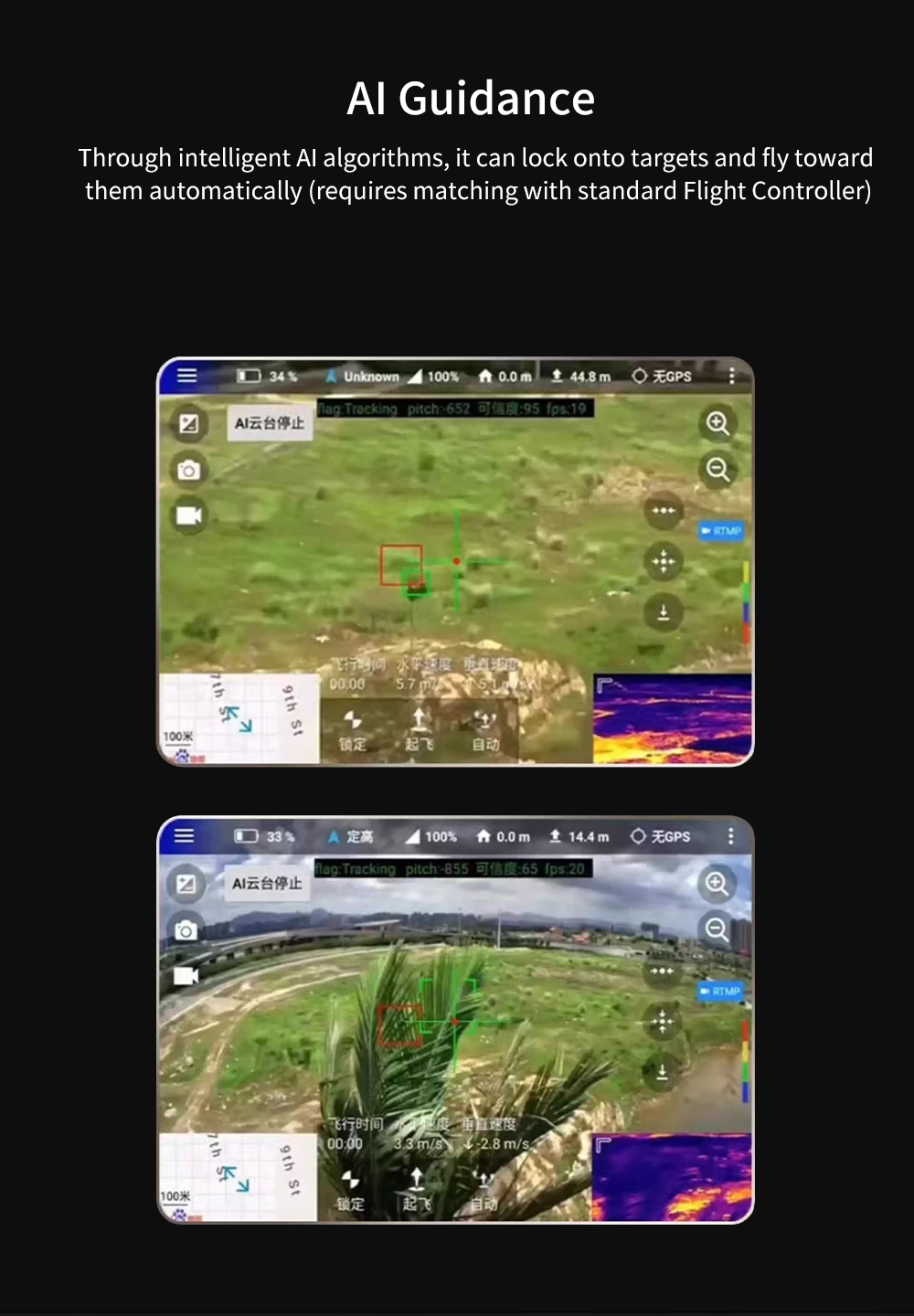

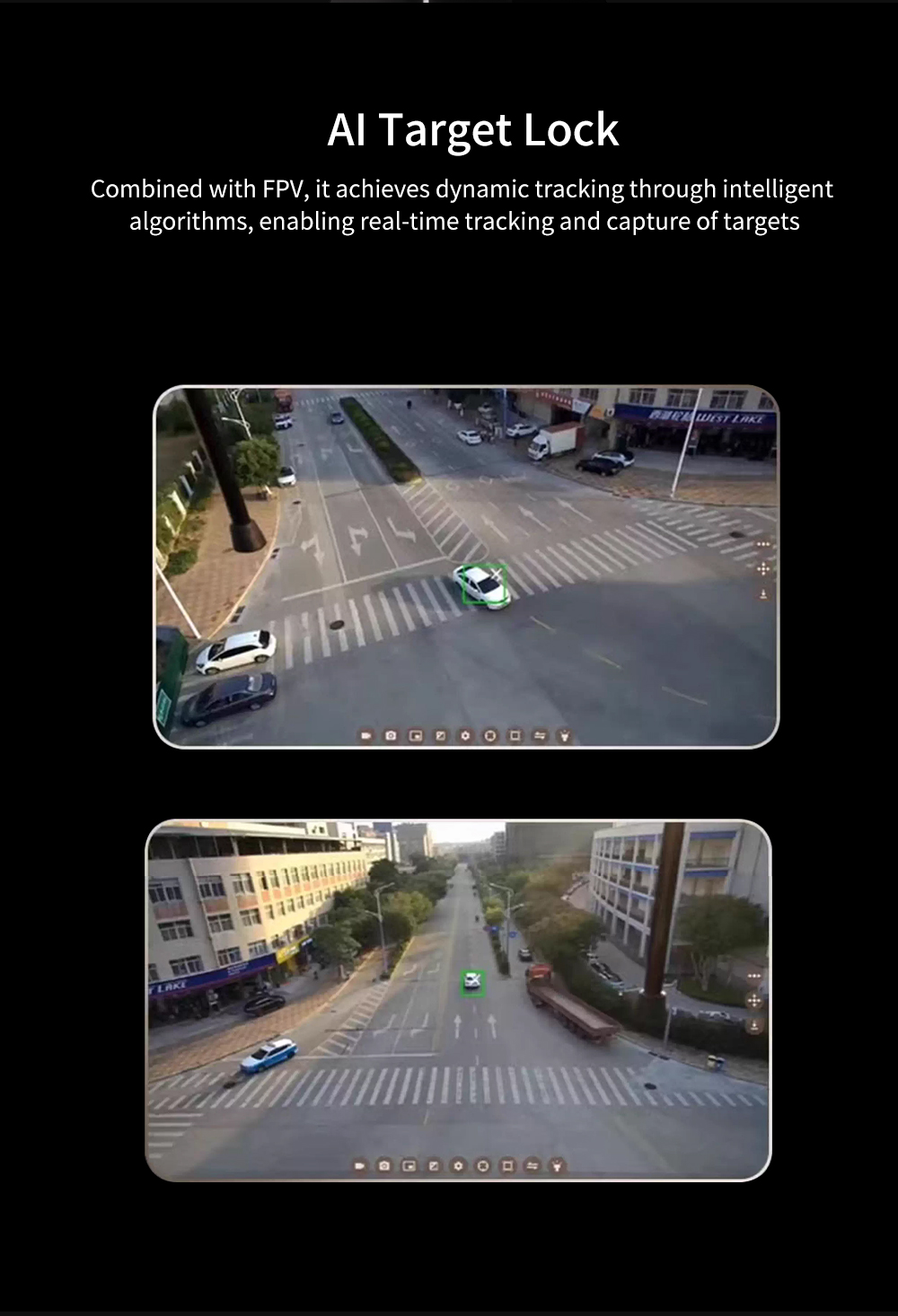

AI Target Tracking and Guidance
AI-powered algorithms enable real-time target locking and tracking, with optional autonomous guidance when paired with compatible flight control systems.

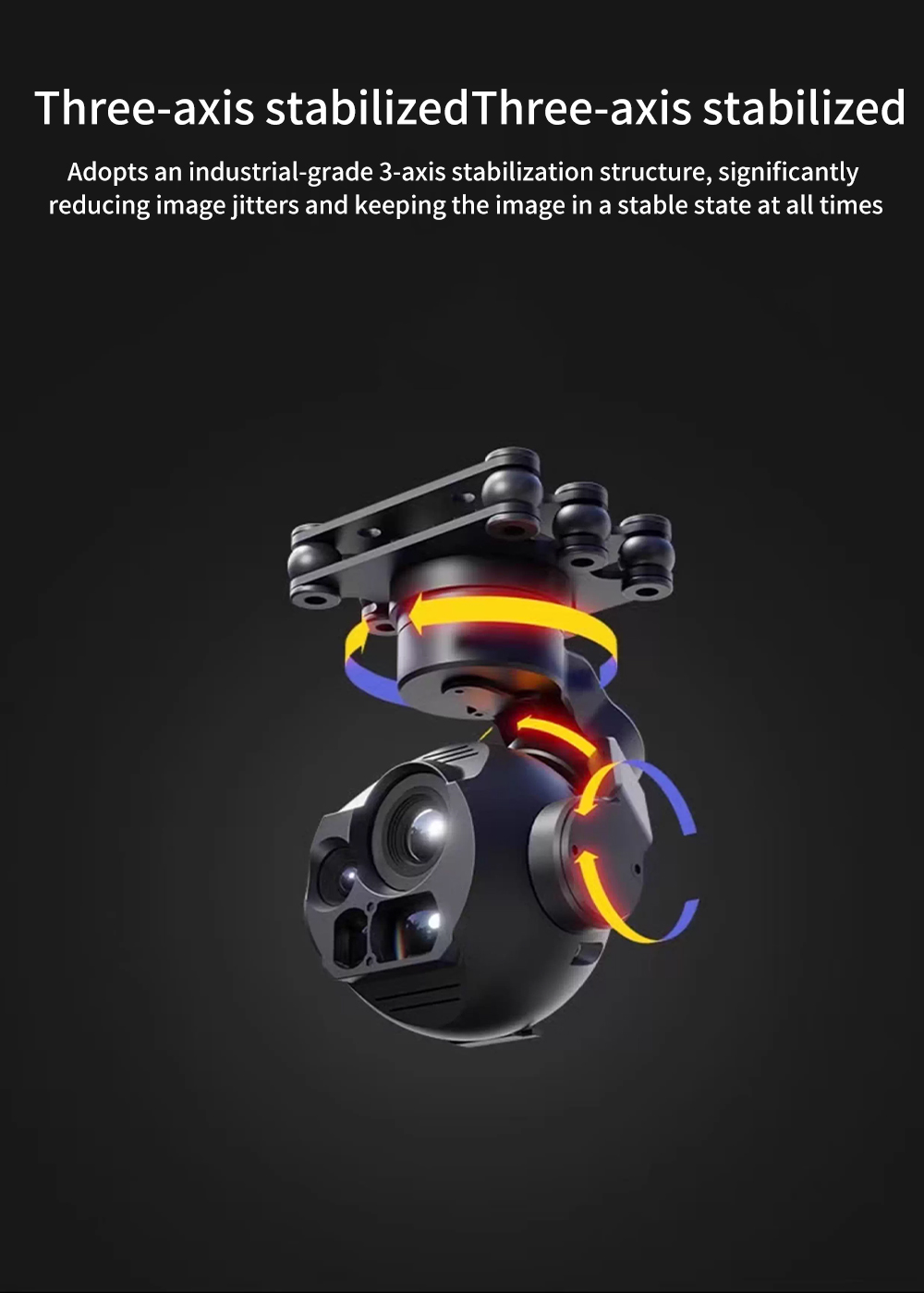

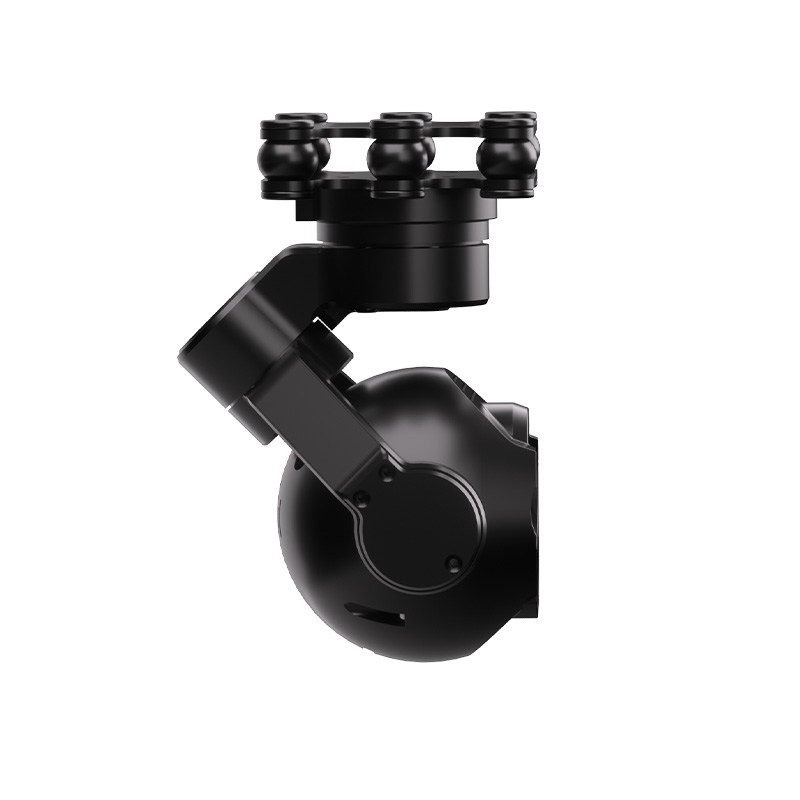

3-Axis Stabilized Gimbal
Industrial-grade three-axis stabilization ensures smooth, vibration-free imaging even during dynamic flight operations.

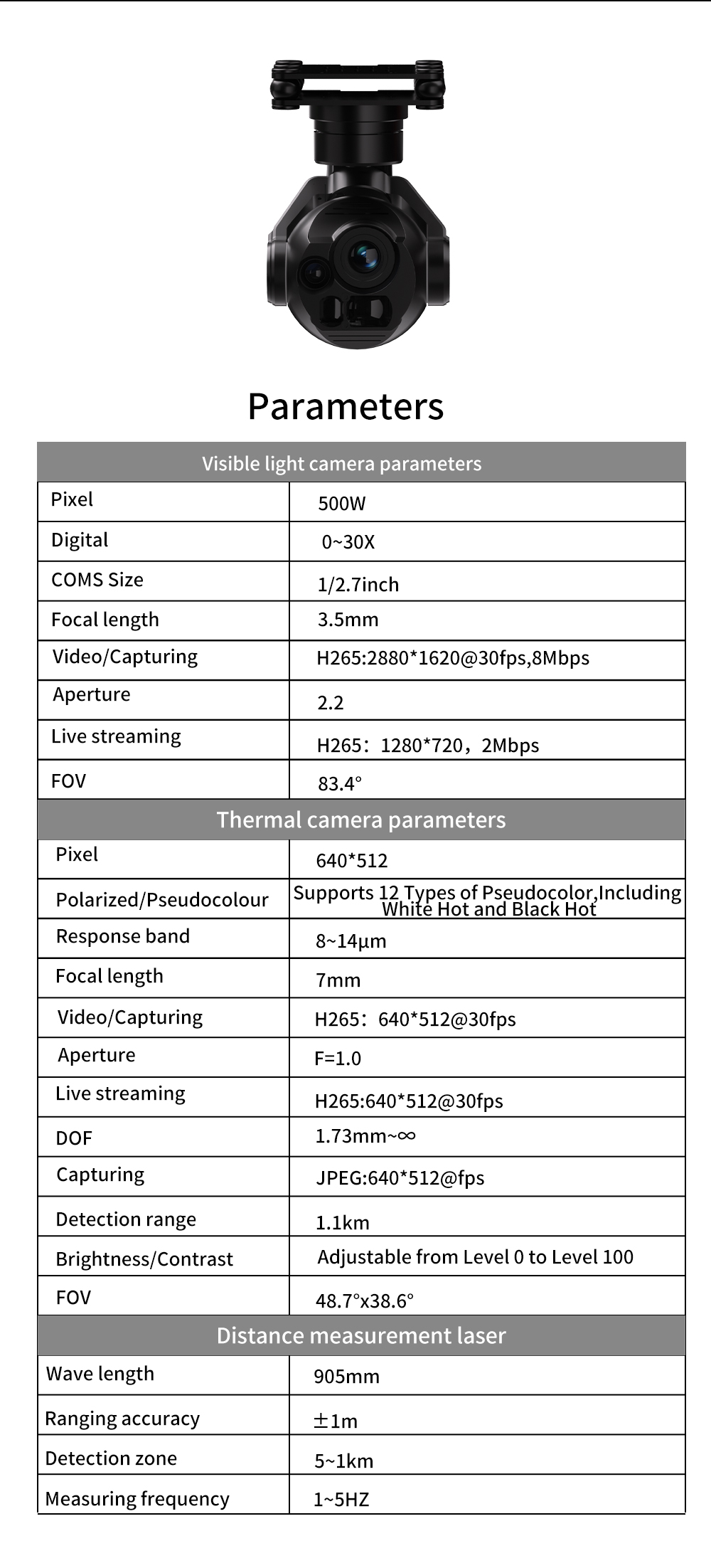

Specifications (Parameter Table)
Gimbal & System
| Category | Specification |
| Product Name | C13 Tri-Sensor Gimbal Camera |
| Type | Thermal Camera for Drones |
| Stabilization | 3-Axis Gimbal (Pitch / Roll / Yaw) |
| Sensor System | Visible + Thermal + Laser Rangefinder |
| Control Interface | LAN Port |
| Video Output | RTSP / Network Stream |
| AI Functions | Target Locking / AI Tracking / AI Guidance |
| Zoom Capability | Up to 30× Digital Zoom |
| Installation | Multi-directional mounting supported |

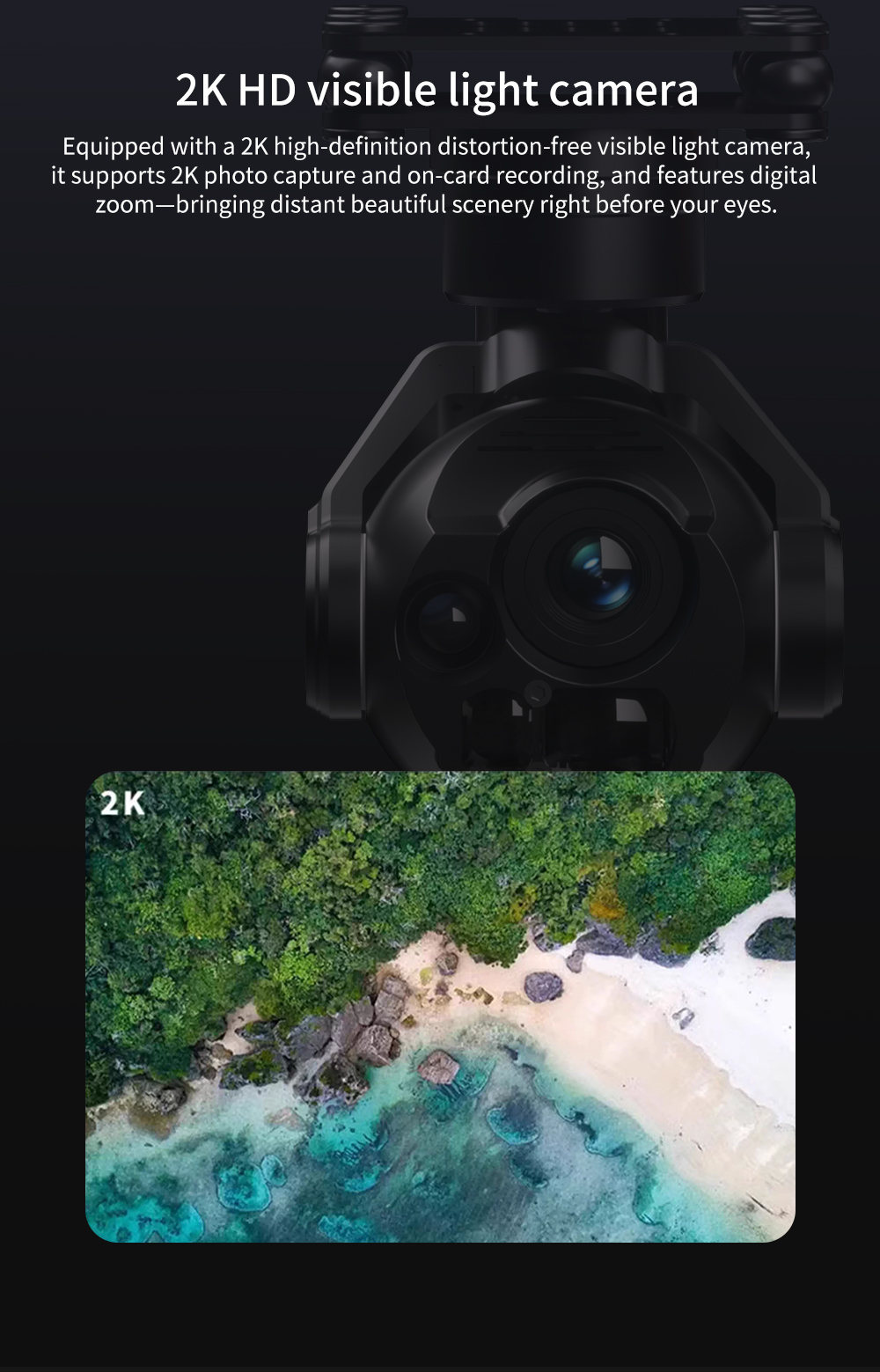

Visible Light Camera
| Category | Specification |
| Resolution | 5MP (Up to 2880×1620) |
| Video Encoding | H.265 |
| Frame Rate | 30 fps |
| Digital Zoom | 0–30× |
| Sensor Size | 1/2.7″ CMOS |
| Focal Length | 3.5 mm |
| Aperture | F2.2 |
| Field of View | 83.4° |
Thermal Imaging Camera
| Category | Specification |
| Resolution | 640 × 512 |
| Frame Rate | 30 fps |
| Spectral Range | 8 – 14 μm |
| Lens Focal Length | 9.1 mm |
| Aperture | F1.0 |
| Detection Distance | Up to 1.1 km |
| Field of View | 48.7° × 38.6° |
| Thermal Modes | White-hot / Black-hot / Multiple palettes |
| Image Adjustment | Brightness & contrast adjustable |
Laser Rangefinder
| Category | Specification |
| Wavelength | 905 nm |
| Measurement Range | 5 m – 1000 m |
| Accuracy | ±1 m |
| Measurement Frequency | 1–5 Hz |
Application Scenarios
- Firefighting and emergency rescue operations
- Long-range surveillance and border security
- Power line and infrastructure inspection
- Search and rescue missions with thermal detection
- Environmental monitoring and wildlife tracking
Why Choose This Thermal Camera for Drones
The Thermal Camera for Drones C13 provides a fully integrated multi-sensor solution, combining imaging, thermal detection, and distance measurement into one system.
Compared to traditional dual-sensor payloads, it delivers significantly enhanced operational capability, enabling users to detect, measure, and track targets simultaneously.
With AI-assisted tracking and long-range sensing, it is a powerful tool for professionals requiring high efficiency and precision in aerial missions.
Package and Customization
- Includes gimbal camera, cables, and mounting accessories
- Compatible with multiple UAV platforms
- Supports custom integration with flight control systems
- Optional configurations available for industrial applications
