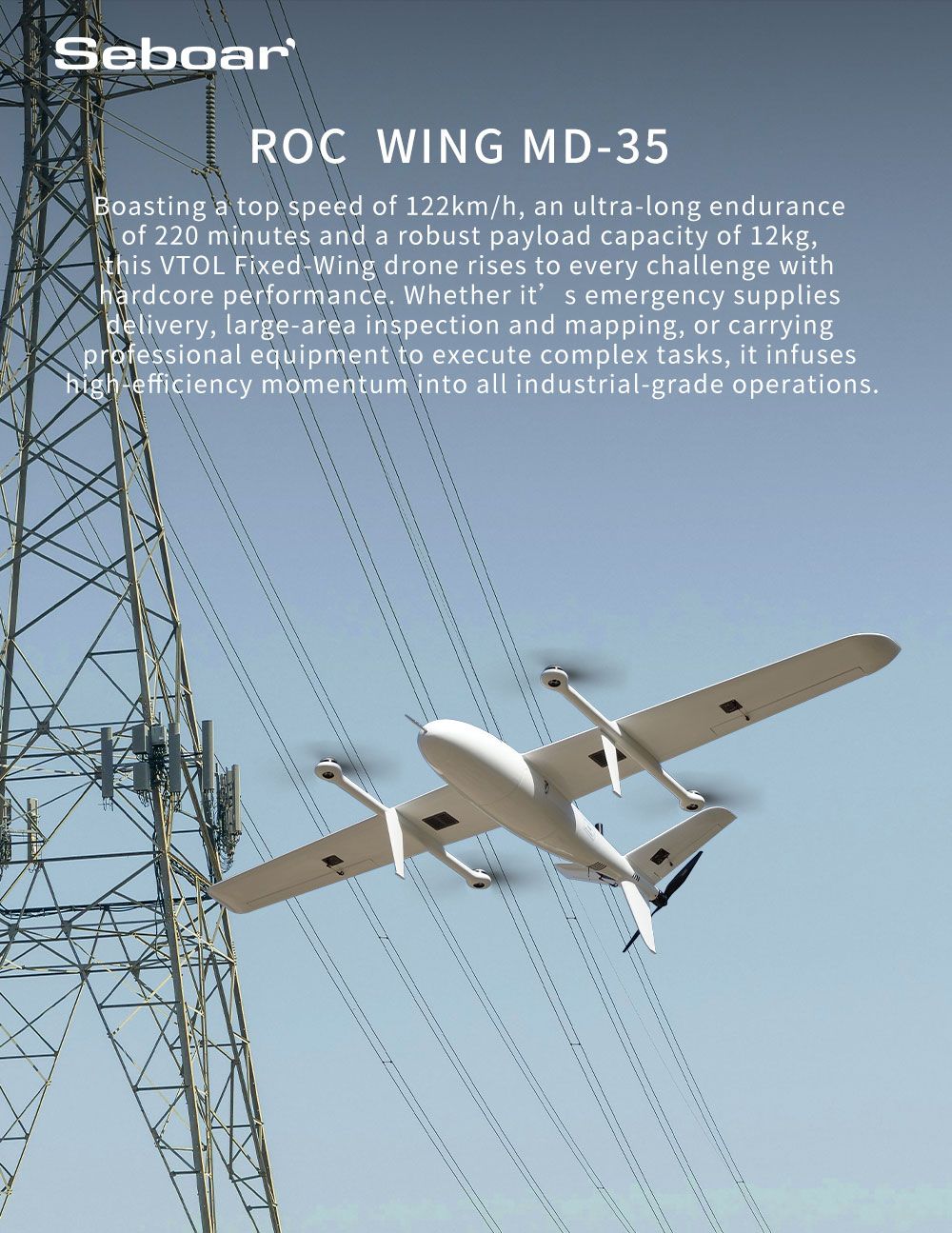

VTOL Fixed Wing UAV – ROC WING MD-35
The VTOL Fixed Wing UAV ROC WING MD-35 is a heavy-duty long-endurance platform engineered for professional aerial missions requiring higher payload capacity, extended flight time, and superior stability.
With a larger airframe than standard models, this UAV is optimized for demanding applications such as mapping, surveillance, and industrial inspection.
By integrating vertical takeoff and landing with efficient fixed-wing cruise, the system eliminates runway dependency while maximizing operational range and endurance.
Key Features
Enlarged Airframe for Heavy Payloads

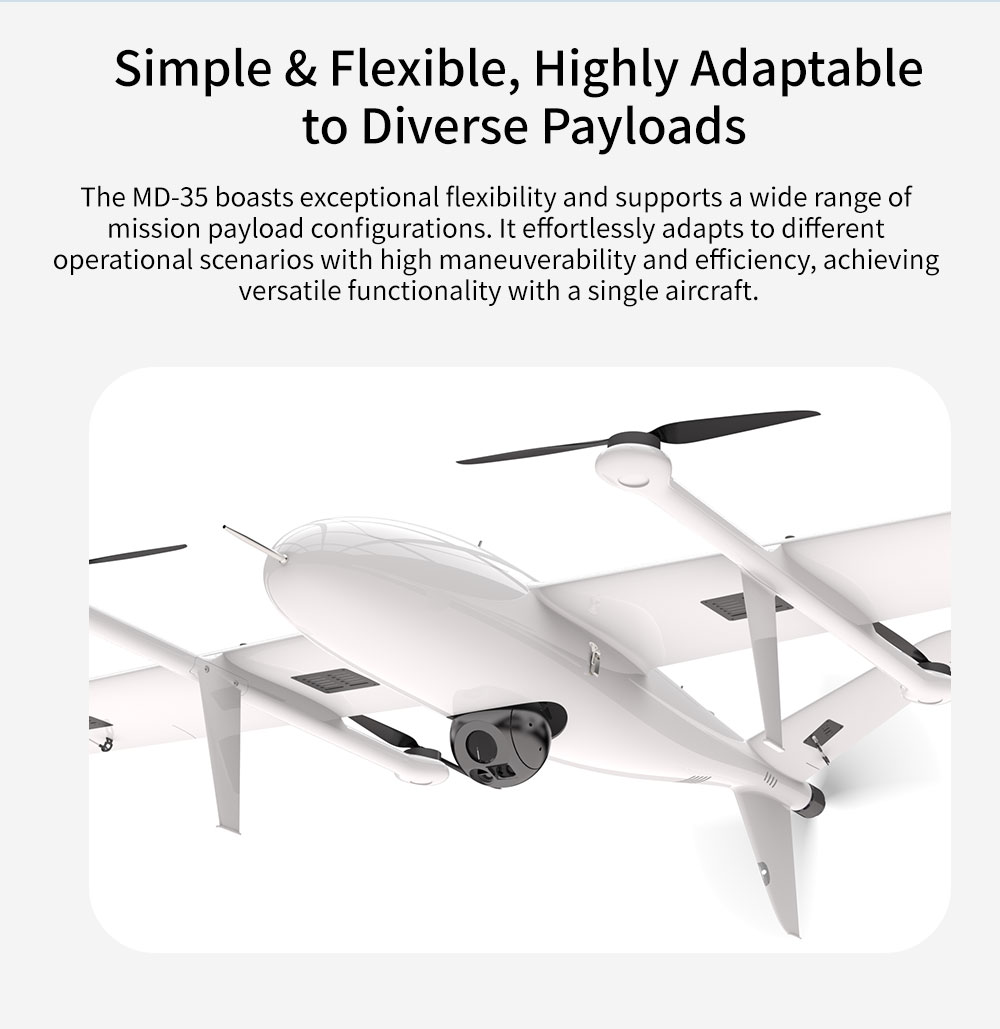

The MD-35 features a larger wingspan and reinforced structure, enabling it to carry heavier payloads such as gimbal cameras, mapping sensors, and inspection equipment.
Extended Flight Endurance
Designed for long-duration operations, the UAV supports up to 90 minutes of flight time depending on payload and battery configuration, making it suitable for wide-area coverage missions.
VTOL Flexibility with Fixed Wing Efficiency
Vertical takeoff and landing capability allows deployment in confined environments, while fixed-wing flight ensures high efficiency during long-distance operations.
Long-Range HD Transmission System
Equipped with a digital HD video link system, supporting up to 30 km transmission distance under optimal conditions, ensuring stable real-time communication.
Reliable Autopilot System
Integrated with Ardupilot-based flight control, providing precise navigation, stable flight performance, and customizable mission planning.

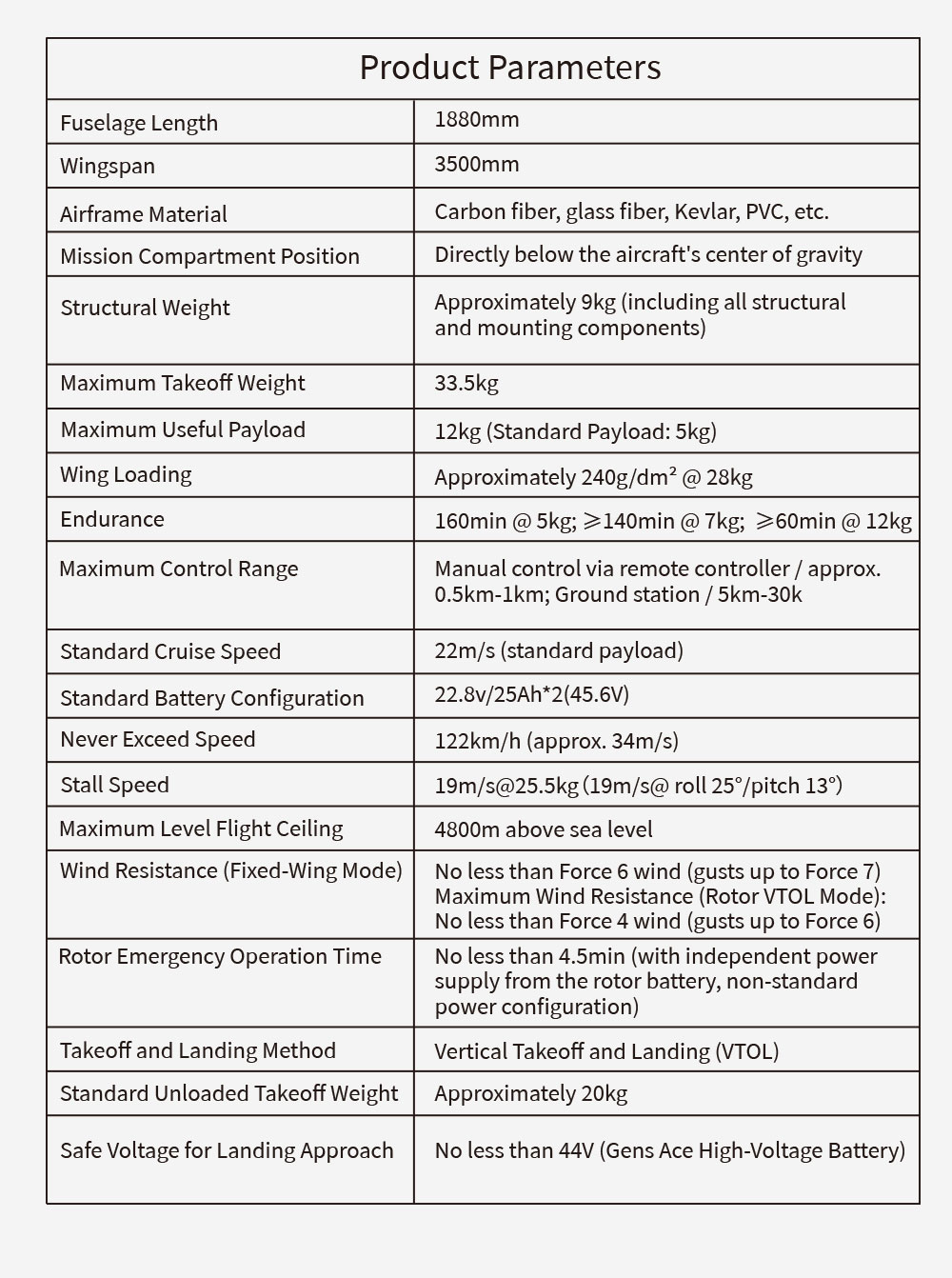

Specifications (Parameter Table)
| Category | Specification |
| Product Name | ROC WING MD-35 |
| Type | VTOL Fixed Wing UAV |
| Airframe Size | Large-scale fixed wing platform |
| Material | Reinforced EPP Composite Structure |
| Flight Mode | VTOL + Fixed Wing Hybrid |
| Flight Control System | Ardupilot Open-source System |
| Navigation | GPS Positioning (±1 m accuracy) |
| Max Flight Time | Up to 90 minutes (depending on payload) |
| Hover Time | Approx. 20–25 minutes |
| Control Range | Up to 30 km |
| Video Transmission | 1080P HD Digital Transmission |
| Transmission Distance | Up to 30 km (FCC standard) |
| Payload Capacity | Increased payload capability (multi-sensor support) |
| Battery Options | High-capacity lithium battery packs (optional) |
| Communication Protocol | SBUS / CRSF Supported |
| Assembly | Pre-assembled and tested |
| Deployment | Vertical takeoff & landing, no runway required |
Note: Specifications may vary based on payload, configuration, and environmental conditions.
Application Scenarios
- Large-area mapping and surveying
- Long-range inspection (power lines, pipelines)
- Border patrol and security surveillance
- Emergency response and disaster monitoring
- Environmental and resource management
Why Choose This VTOL Fixed Wing UAV
Compared to smaller UAV platforms, the VTOL Fixed Wing UAV MD-35 provides significantly improved endurance, payload capacity, and flight stability.
Its hybrid design allows users to deploy quickly in restricted areas while still achieving long-distance coverage and high operational efficiency.
The ROC WING MD-35 is a reliable solution for professionals who need a scalable and high-performance aerial platform.
Package and Customization
- Available configurations: PNP / BNF / RTF
- Optional HD transmission systems and payload modules
- Extended battery solutions available
- Custom integration for industrial applications
