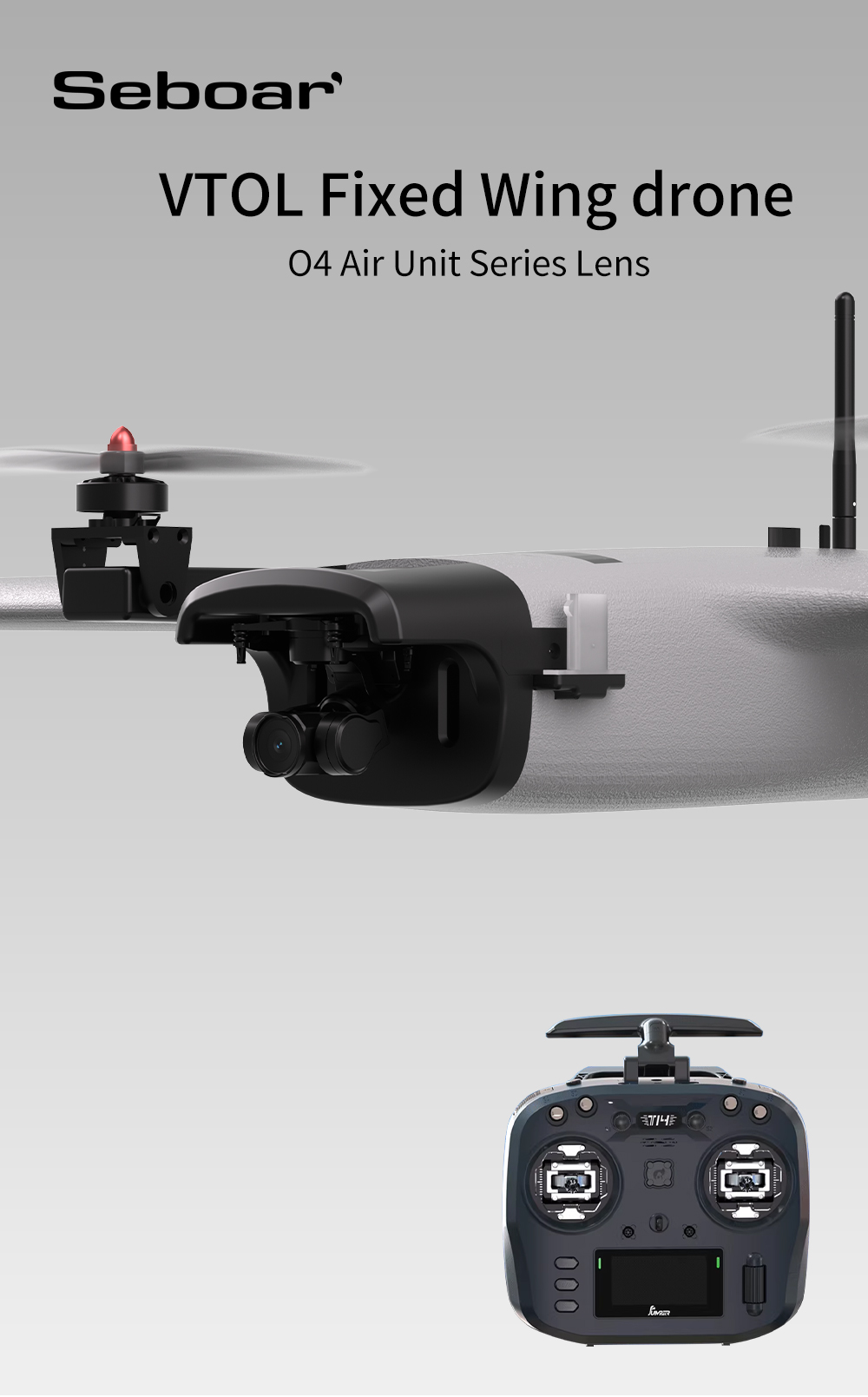

Seboar VTOL Fixed Wing Drone
O4 Air Unit Series
A professional VTOL fixed wing drone platform equipped with advanced digital image transmission, long endurance capability, and high-definition aerial imaging.
Designed for aerial surveillance, inspection, mapping, and long-range monitoring missions.

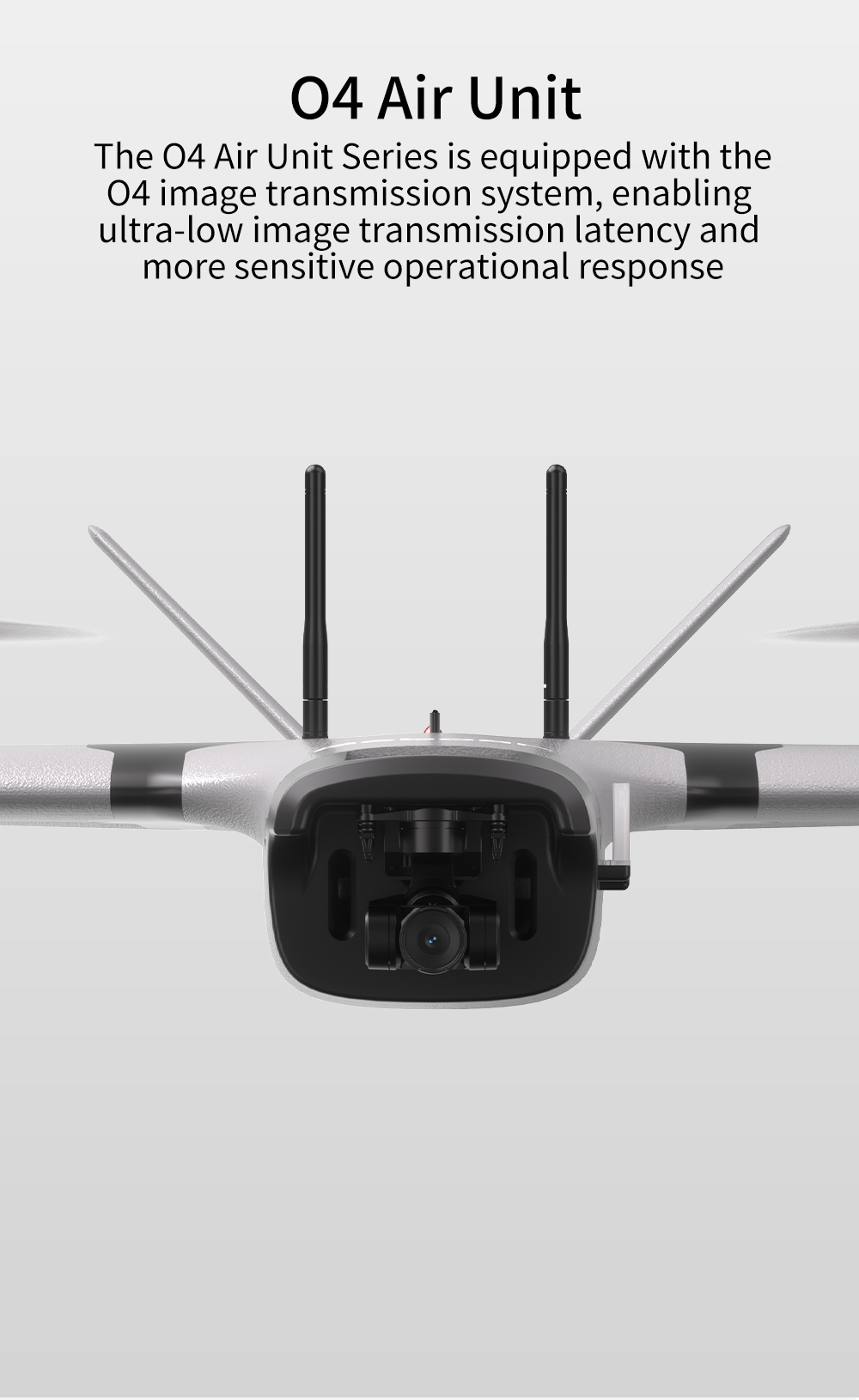

O4 Air Unit Digital Transmission System
The O4 Air Unit Series is equipped with the O4 digital image transmission system.
It provides ultra-low image transmission latency and highly responsive flight control, enabling stable real-time aerial monitoring and immersive FPV flight experience.

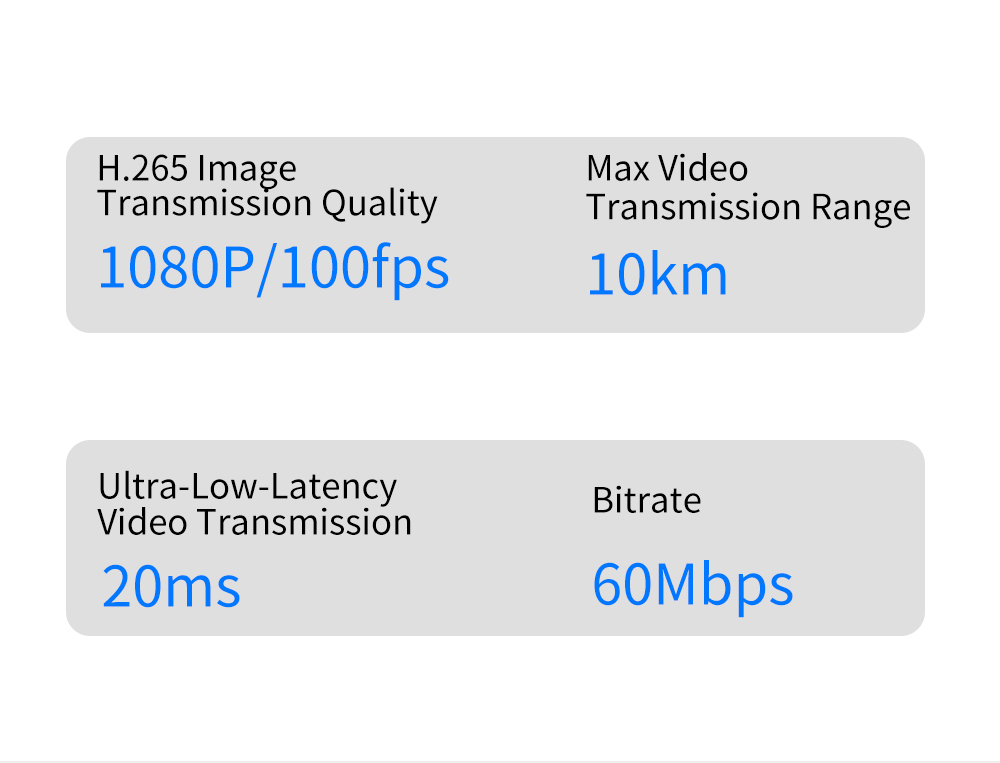

Image Transmission Performance
| Feature | Specification |
| Image Transmission Quality | 1080P / 100fps |
| Maximum Video Transmission Range | 10 km |
| Ultra-Low Latency | 20 ms |
| Video Bitrate | 60 Mbps |
| Video Encoding | H.265 |
High-Definition Video System
The O4 Air Unit Series supports 4K / 60fps high-definition video recording.
With advanced H.265 video encoding technology, the system enables:
1080p high-frame-rate real-time transmission
smooth and clear live video
efficient bandwidth utilization
This ensures stable high-quality aerial footage even during long-distance flight missions.
Ultra-Wide Field of View
117.6° Ultra-Wide FOV
Allows the drone to easily capture wider scenes and navigate complex terrain environments while recording immersive aerial footage.
4K High Frame Rate Video
4K / 60fps recording capability
Delivers cinematic-quality aerial visuals with smooth motion and sharp details.
10-bit D-Log M Color Profile
Professional 10-bit D-Log M color profile preserves more highlight and shadow details.
Ideal for post-production color grading and professional aerial cinematography.
Multiple Stabilization Modes
Advanced stabilization technology ensures smooth video capture even during high-speed flight.
Compatible with Gyroflow software for post-production offline stabilization.

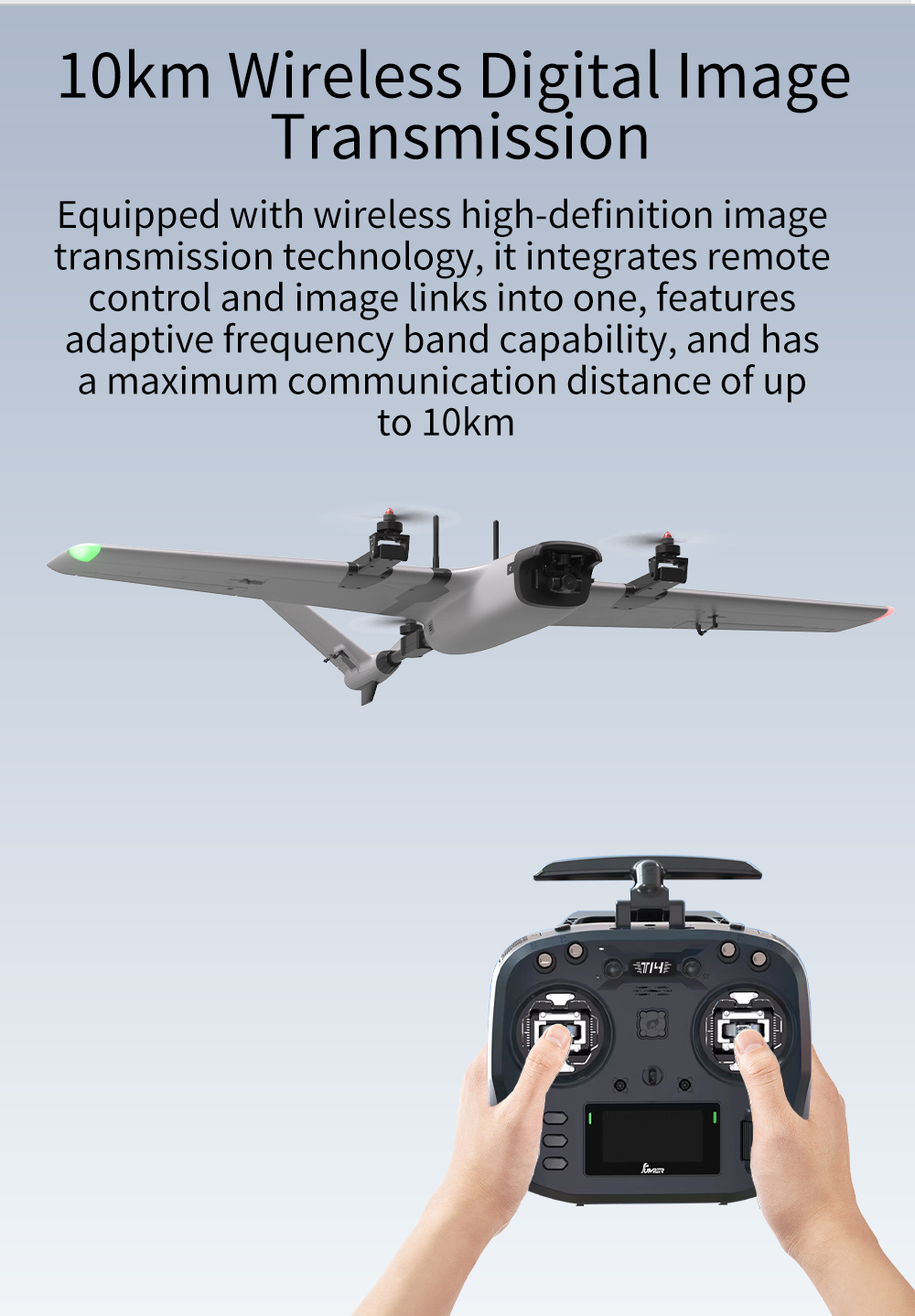

Long-Range Digital Image Transmission
10km Wireless Digital Image Transmission
Features:
Integrated remote control and video link
Adaptive frequency band technology
Stable high-definition video transmission
Maximum communication distance up to 10km
Immersive FPV Flight Experience
Supports first-person view aerial flight with motion control capability.
Provides immersive flying experience and intuitive aircraft control.

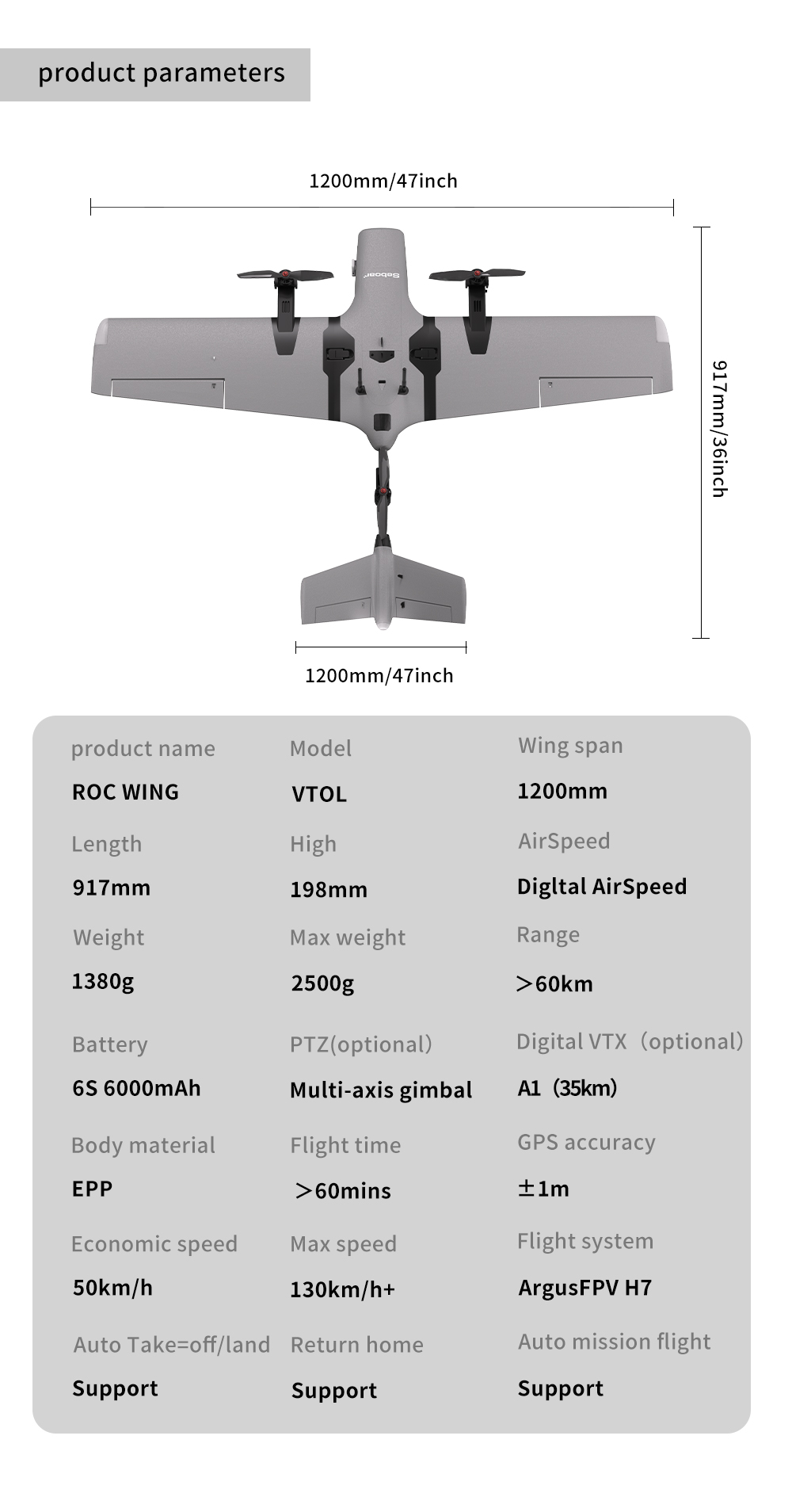

Aircraft Dimensions
| Parameter | Specification |
| Wingspan | 1200 mm / 47 inch |
| Length | 917 mm / 36 inch |
| Height | 198 mm |
Aircraft Specifications
| Parameter | Specification |
| Product Name | ROC WING |
| Model | VTOL |
| Wingspan | 1200 mm |
| Length | 917 mm |
| Height | 198 mm |
| Weight | 1380 g |
| Maximum Takeoff Weight | 2500 g |
| Range | > 60 km |
| Battery | 6S 6000 mAh |
| Body Material | EPP |
| Flight Time | > 60 mins |
| GPS Accuracy | ± 1 m |
| Economic Speed | 50 km/h |
| Maximum Speed | 130 km/h + |
| Flight System | ArgusFPV H7 |
| Airspeed Sensor | Digital AirSpeed |
| PTZ (Optional) | Multi-axis gimbal |
| Digital VTX (Optional) | A1 (35 km) |
| Auto Takeoff / Landing | Support |
| Return to Home | Support |
| Auto Mission Flight | Support |

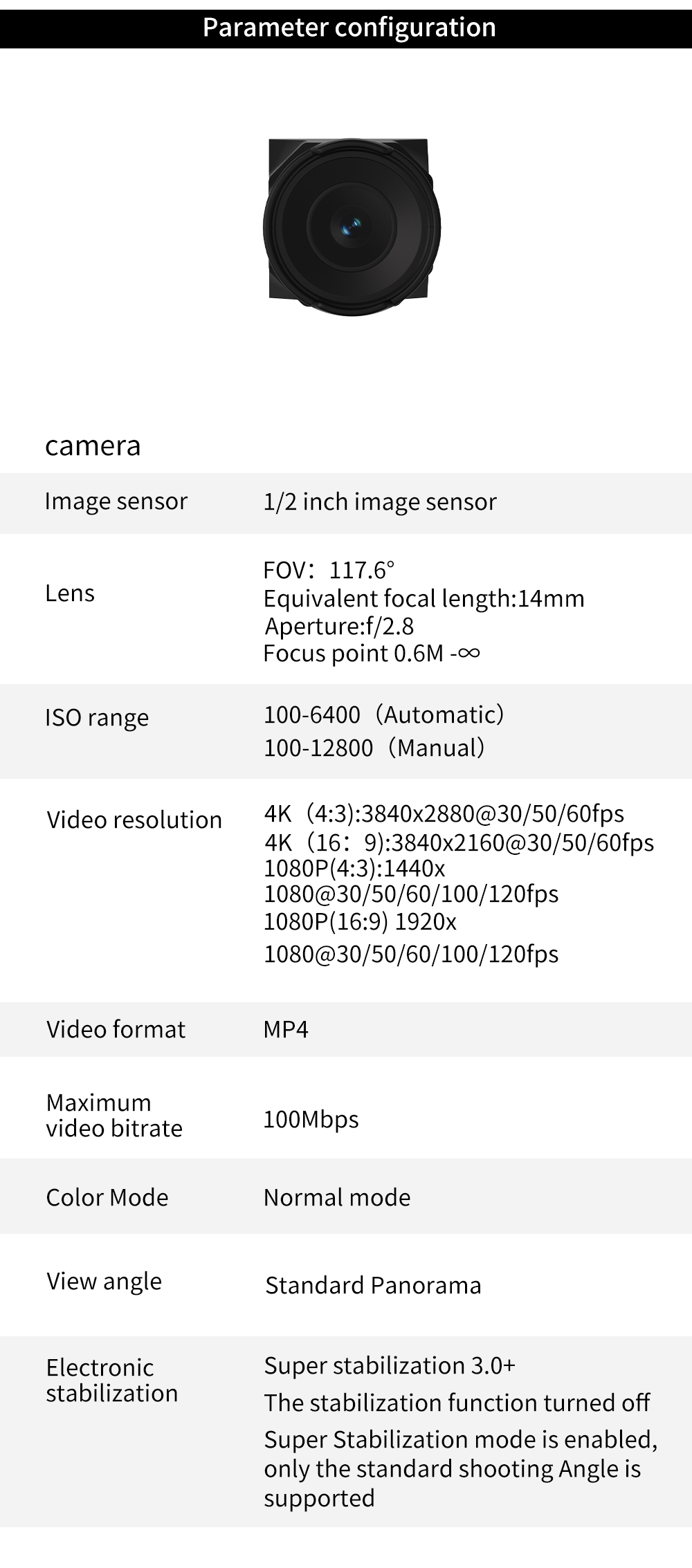

Camera Specifications
Image Sensor
| Parameter | Specification |
| Sensor Type | 1/2 inch image sensor |
Lens
| Parameter | Specification |
| Field of View | 117.6° |
| Equivalent Focal Length | 14 mm |
| Aperture | f / 2.8 |
| Focus Range | 0.6 m – ∞ |
ISO
| Parameter | Specification |
| ISO (Auto) | 100 – 6400 |
| ISO (Manual) | 100 – 12800 |
Video Resolution
| Resolution | Frame Rate |
| 4K (4:3) 3840×2880 | 30 / 50 / 60 fps |
| 4K (16:9) 3840×2160 | 30 / 50 / 60 fps |
| 1080P (4:3) | 30 / 50 / 60 / 100 / 120 fps |
| 1080P (16:9) 1920×1080 | 30 / 50 / 60 / 100 / 120 fps |
Video Output
| Parameter | Specification |
| Video Format | MP4 |
| Maximum Video Bitrate | 100 Mbps |
| Color Mode | Normal Mode |
| View Mode | Standard Panorama |
Electronic Stabilization
| Feature | Description |
| Stabilization System | Super Stabilization 3.0+ |
| Stabilization Mode | Enabled when electronic stabilization is turned on |
| Shooting Mode | Standard shooting angle supported |
