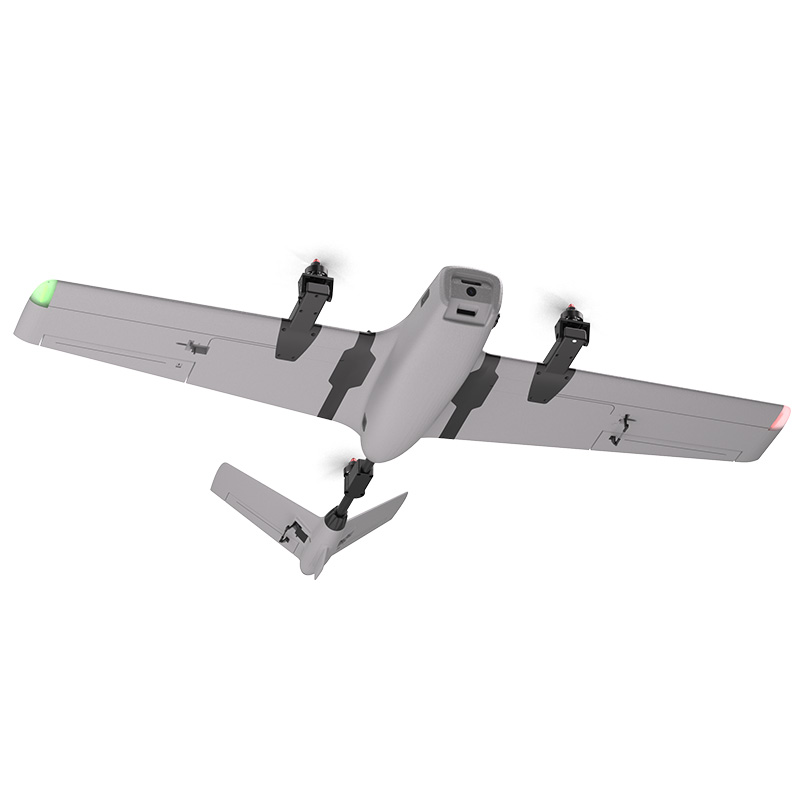

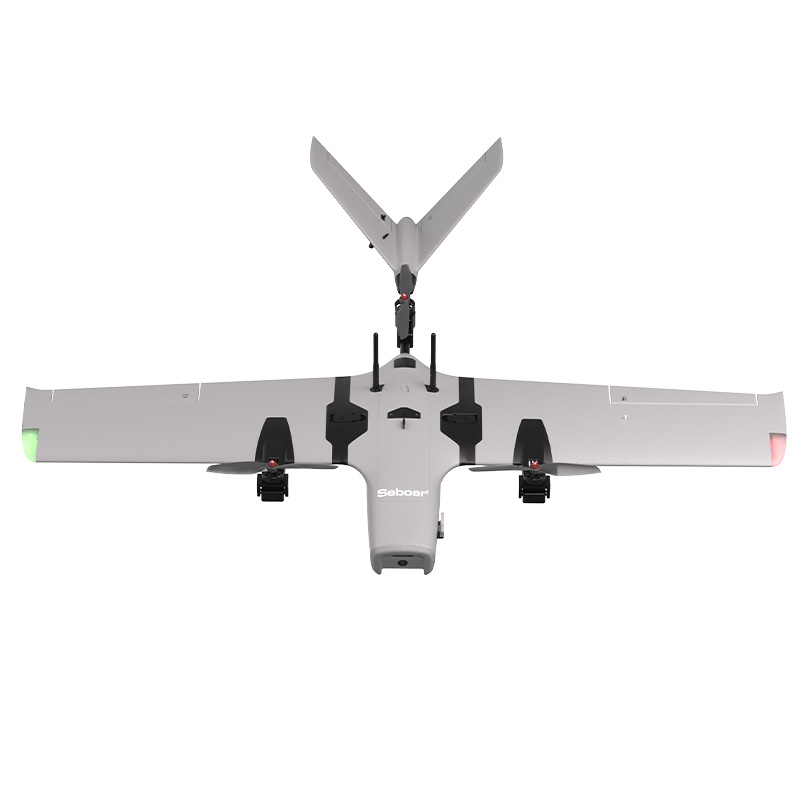

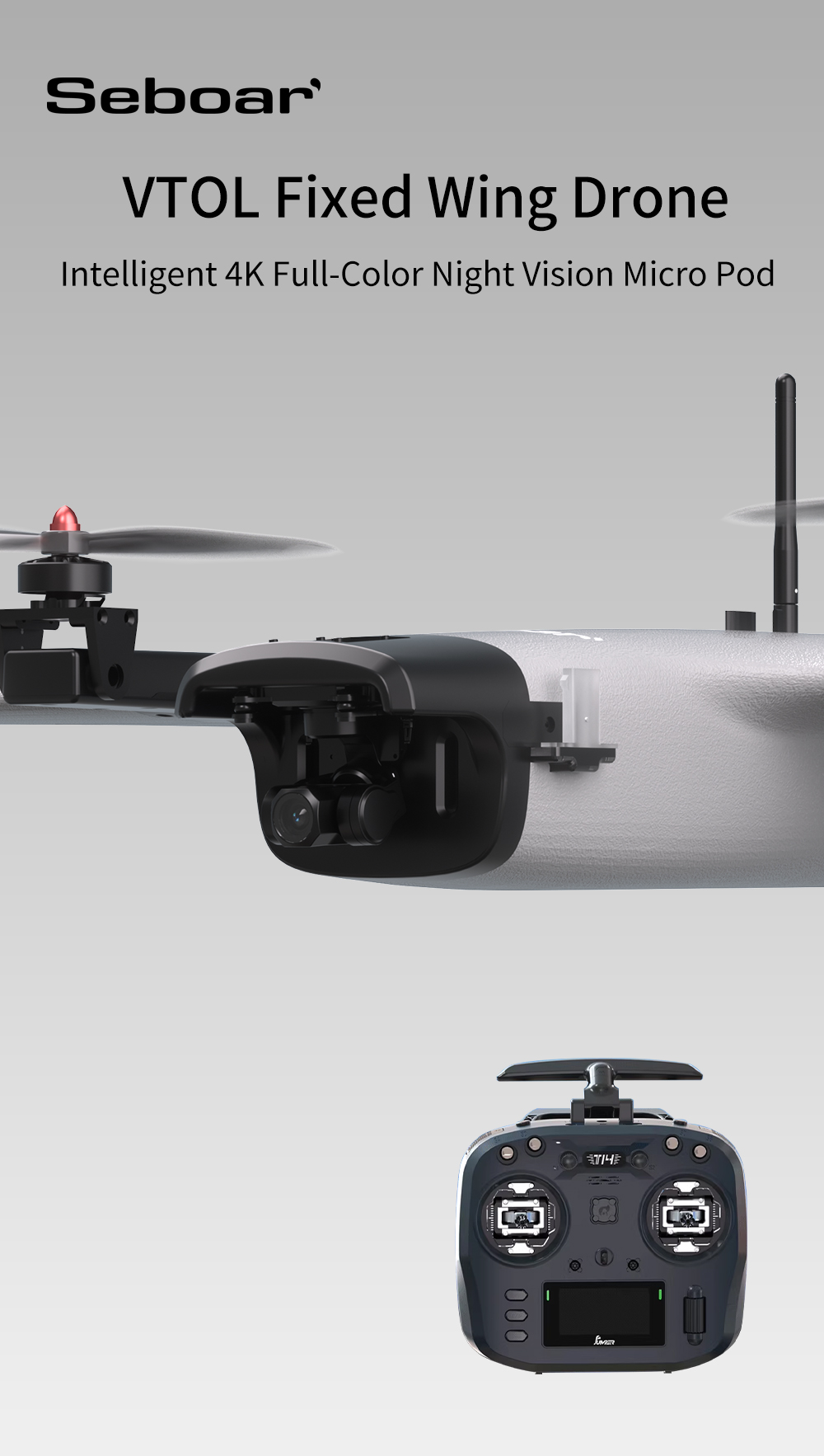

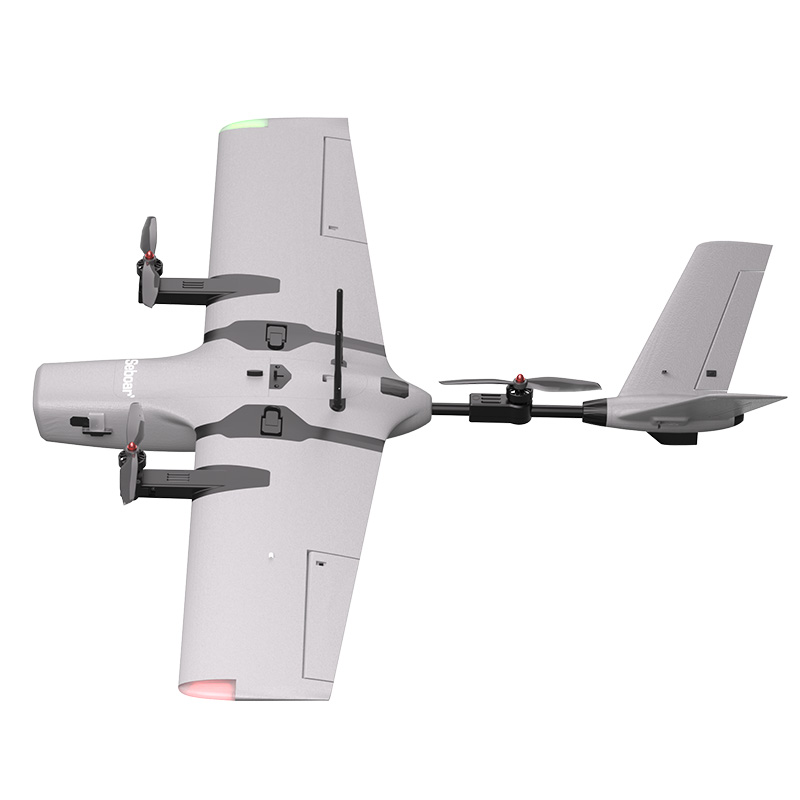

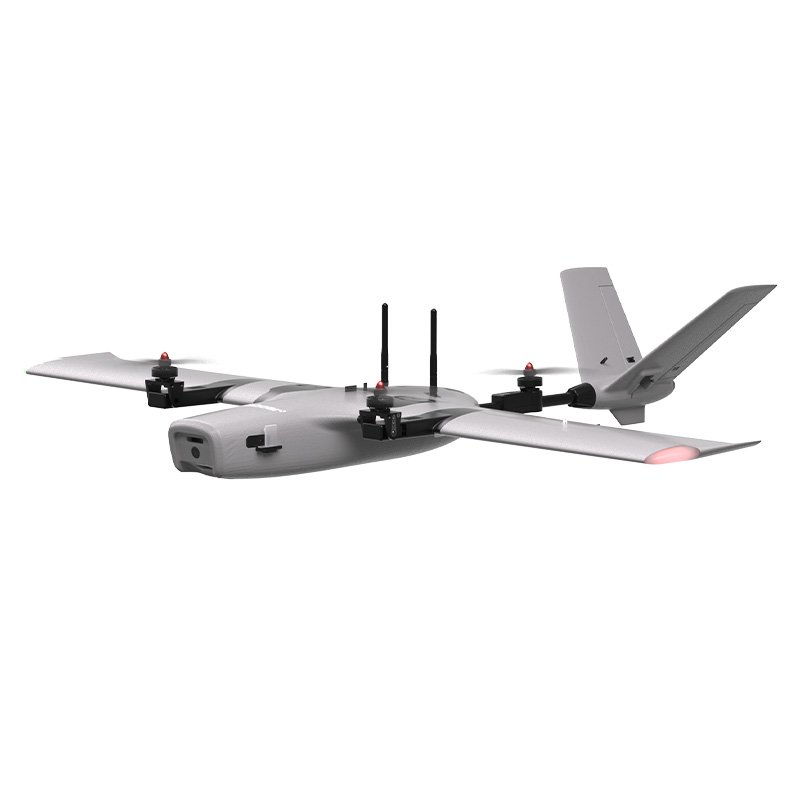

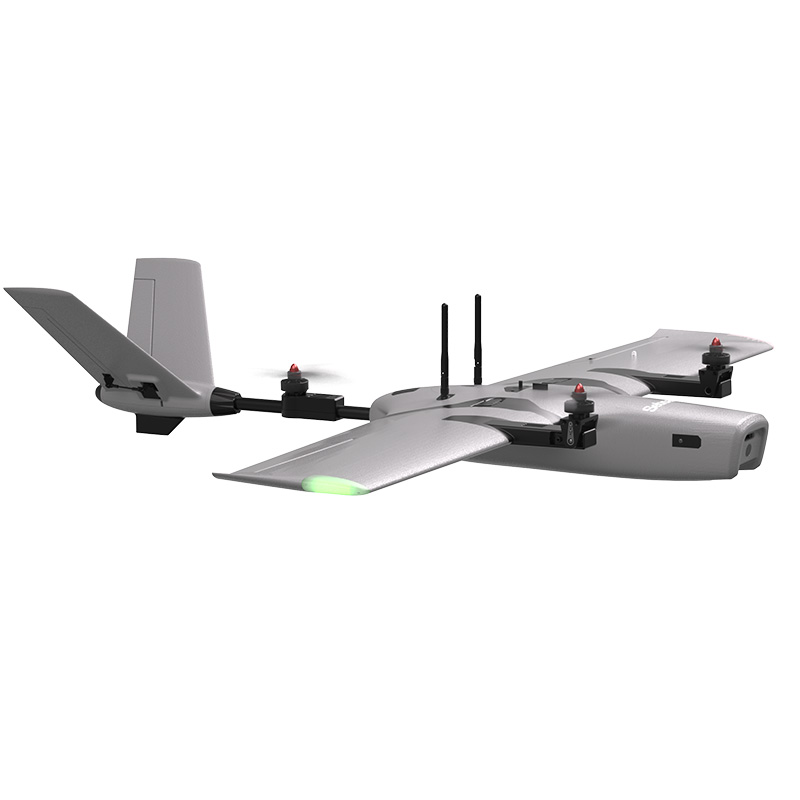

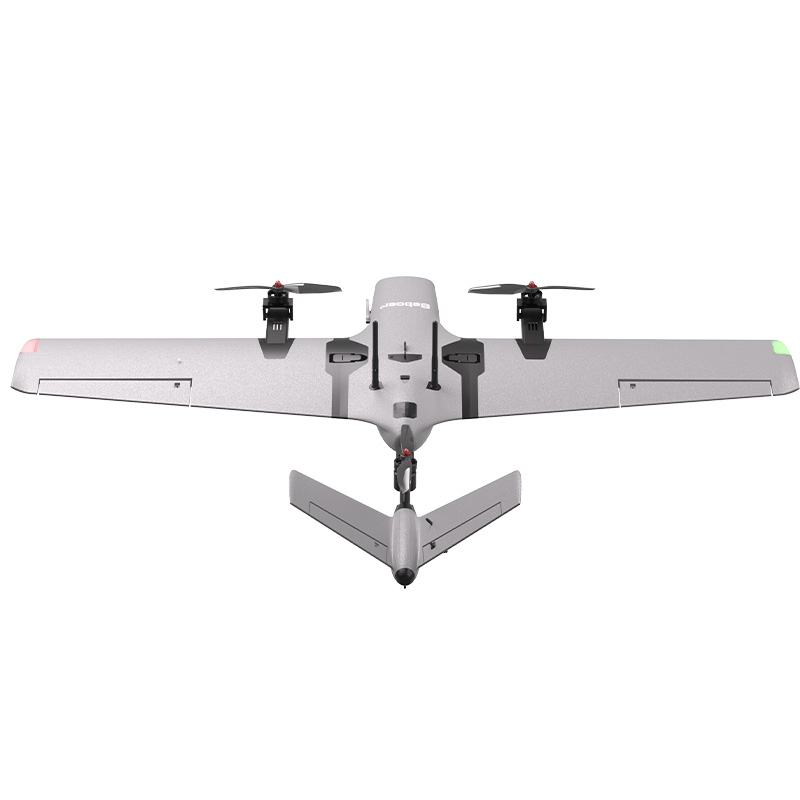

Seboar VTOL Fixed Wing Drone
Intelligent 4K Full-Color Night Vision Micro Pod
Designed for long-range aerial surveillance, inspection, and monitoring missions.
Key Features
Full-Color Night Vision
Still outputs clear color images in extremely low-light conditions, unlike traditional infrared night vision that only produces black-and-white or green images.
4K Resolution Camera
Ultra-clear 4K imagery provides detailed monitoring and precise aerial observation.
Real-Time Monitoring
High-definition live video transmission supports real-time situational awareness.
Three-Axis Non-Orthogonal Mechanical Stabilization
Three-axis stabilized gimbal ensures smooth and stable video capture even during flight.

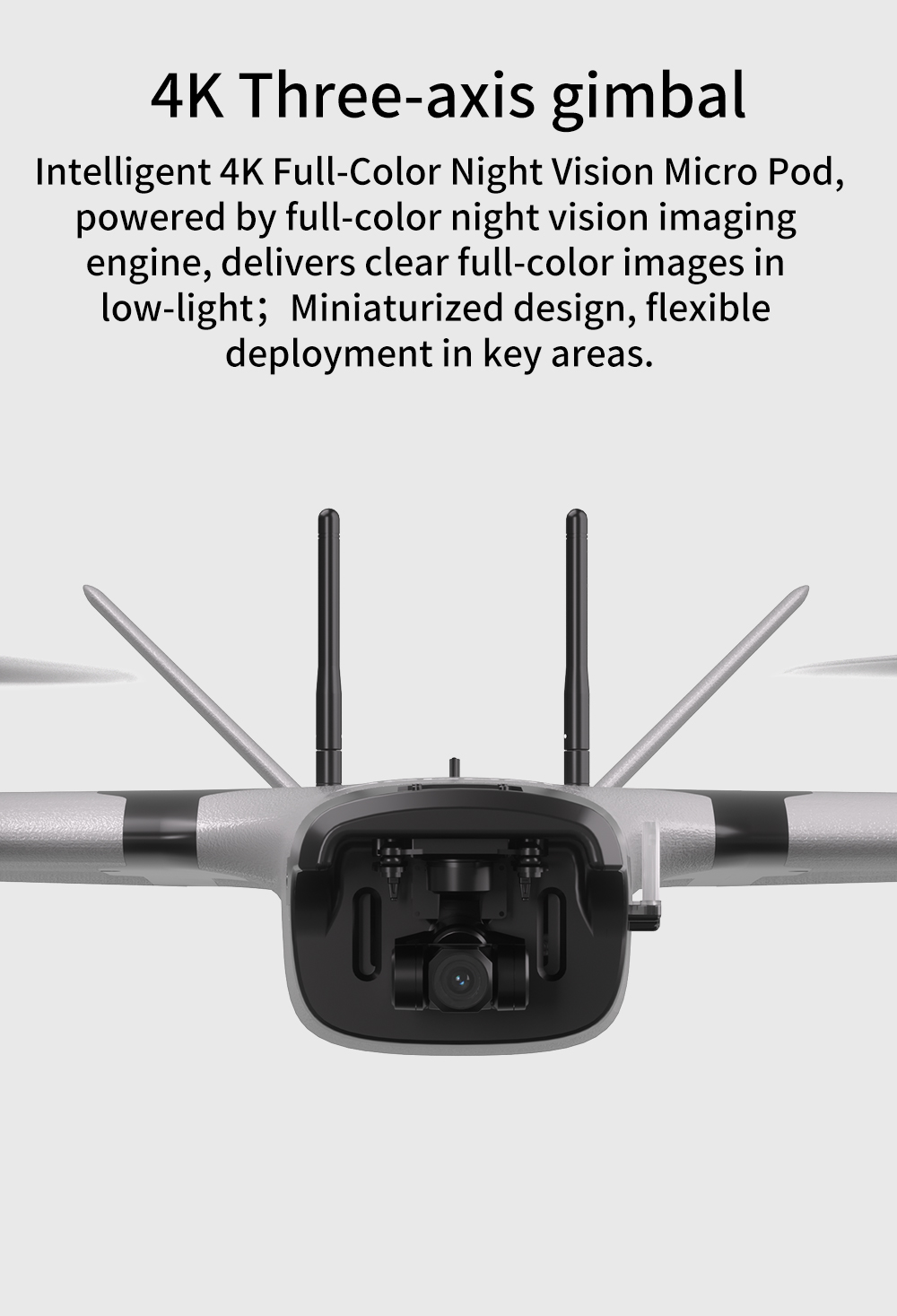

4K Three-Axis Gimbal
The intelligent 4K full-color night vision micro pod delivers clear color images in low-light environments.
Miniaturized design enables flexible deployment in critical surveillance scenarios.
Full-Color Night Vision Technology
Full-color night vision technology enables the camera to output color images even in extremely low-light conditions, offering better visual recognition compared with traditional infrared systems.
4K High-Definition Camera
More than just seeing — it is experiencing.
The 4K high-definition imaging system captures rich visual details for surveillance and monitoring.
Multi-Target Detection
The system automatically patrols wide areas and identifies dynamic targets and potential risk points, enabling intelligent early warning and eliminating monitoring blind spots.

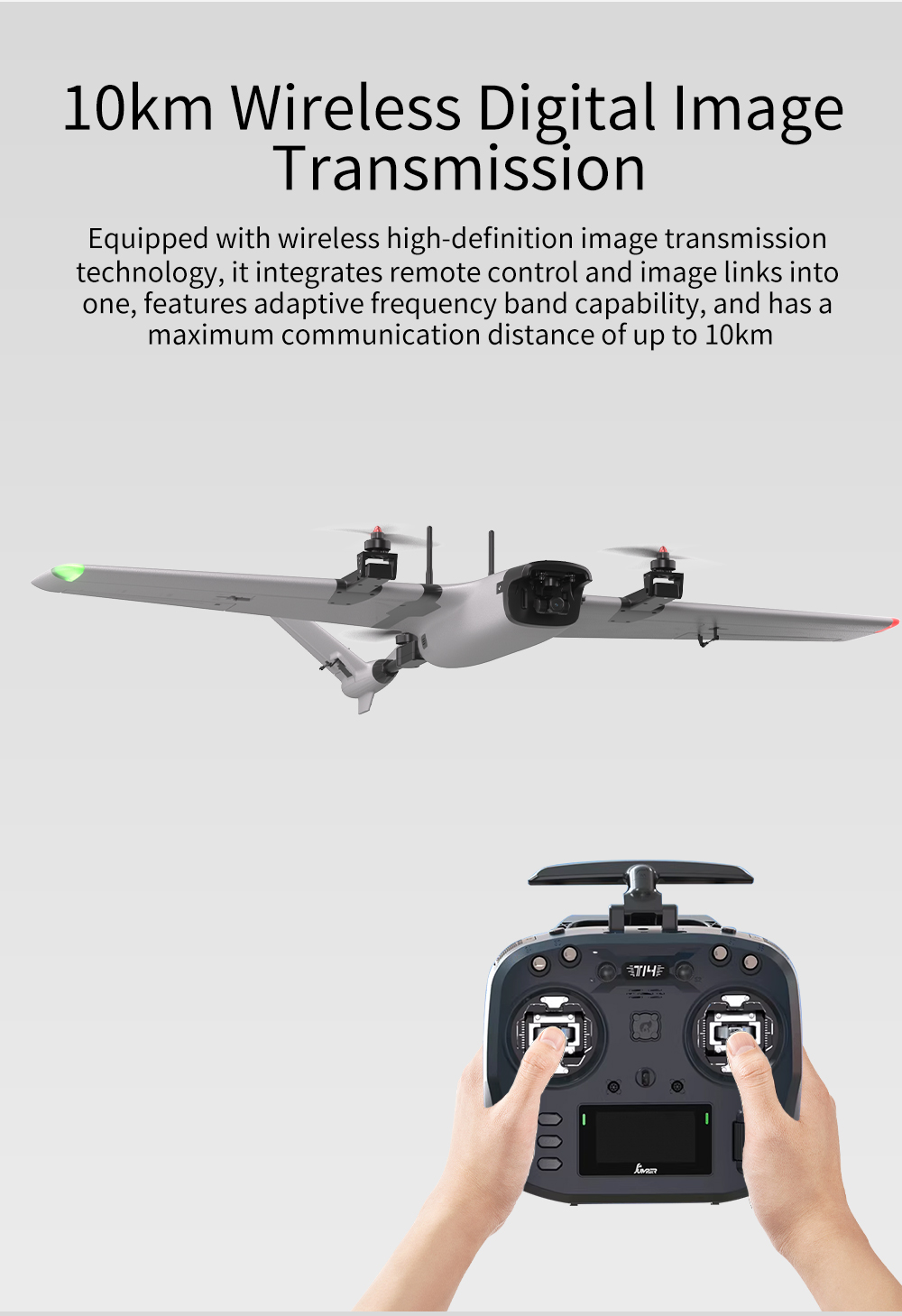

10km Wireless Digital Image Transmission
Equipped with high-definition wireless image transmission technology.
Features:
Adaptive frequency band capability
Integrated remote control and video link
Maximum communication distance up to 10 km

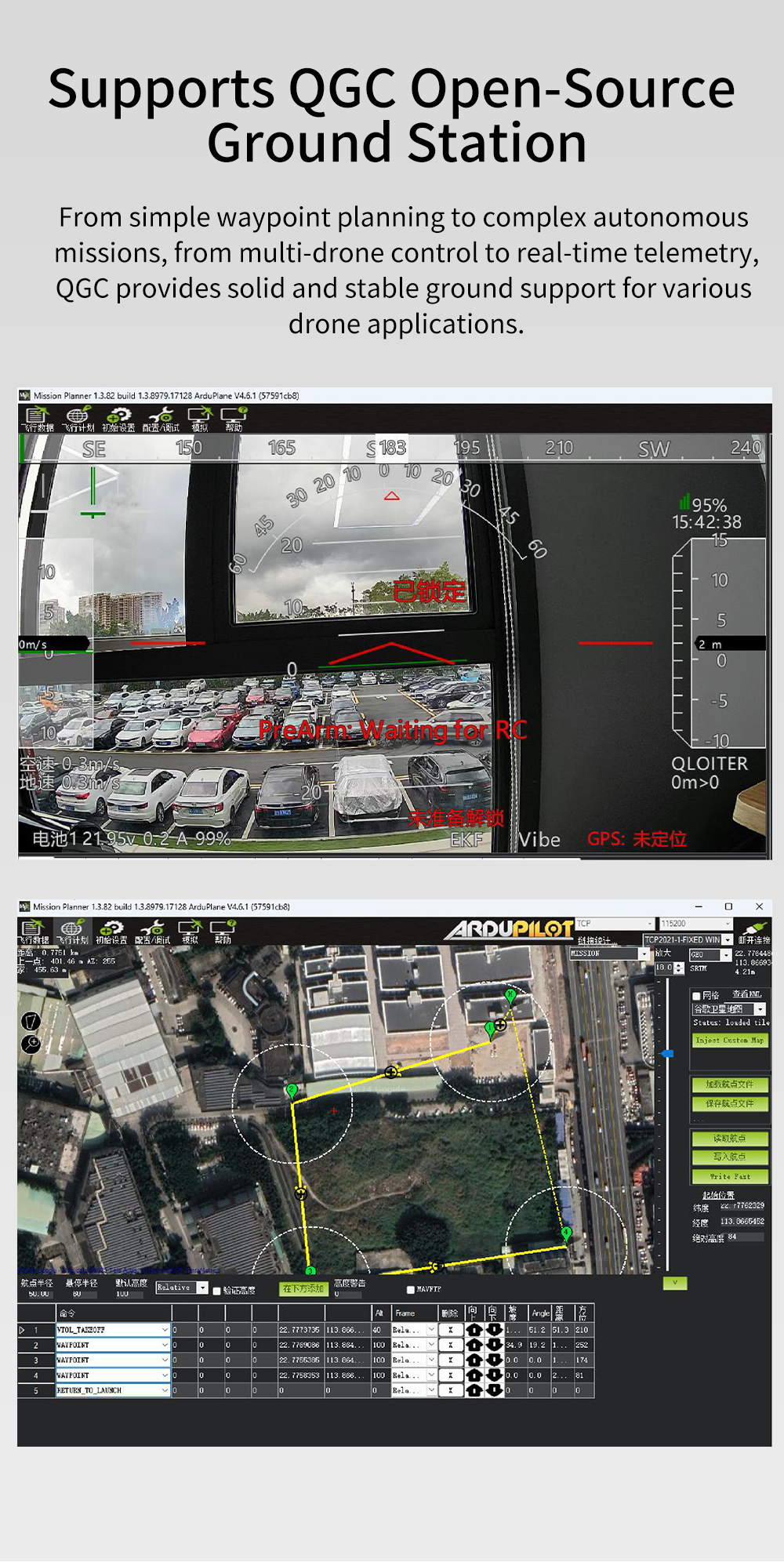

Supports QGC Open-Source Ground Station
Supports QGroundControl (QGC) for advanced drone mission management.
Capabilities include:
Waypoint planning
Autonomous flight missions
Multi-drone coordination
Real-time telemetry monitoring
Provides stable ground support for various UAV operations.

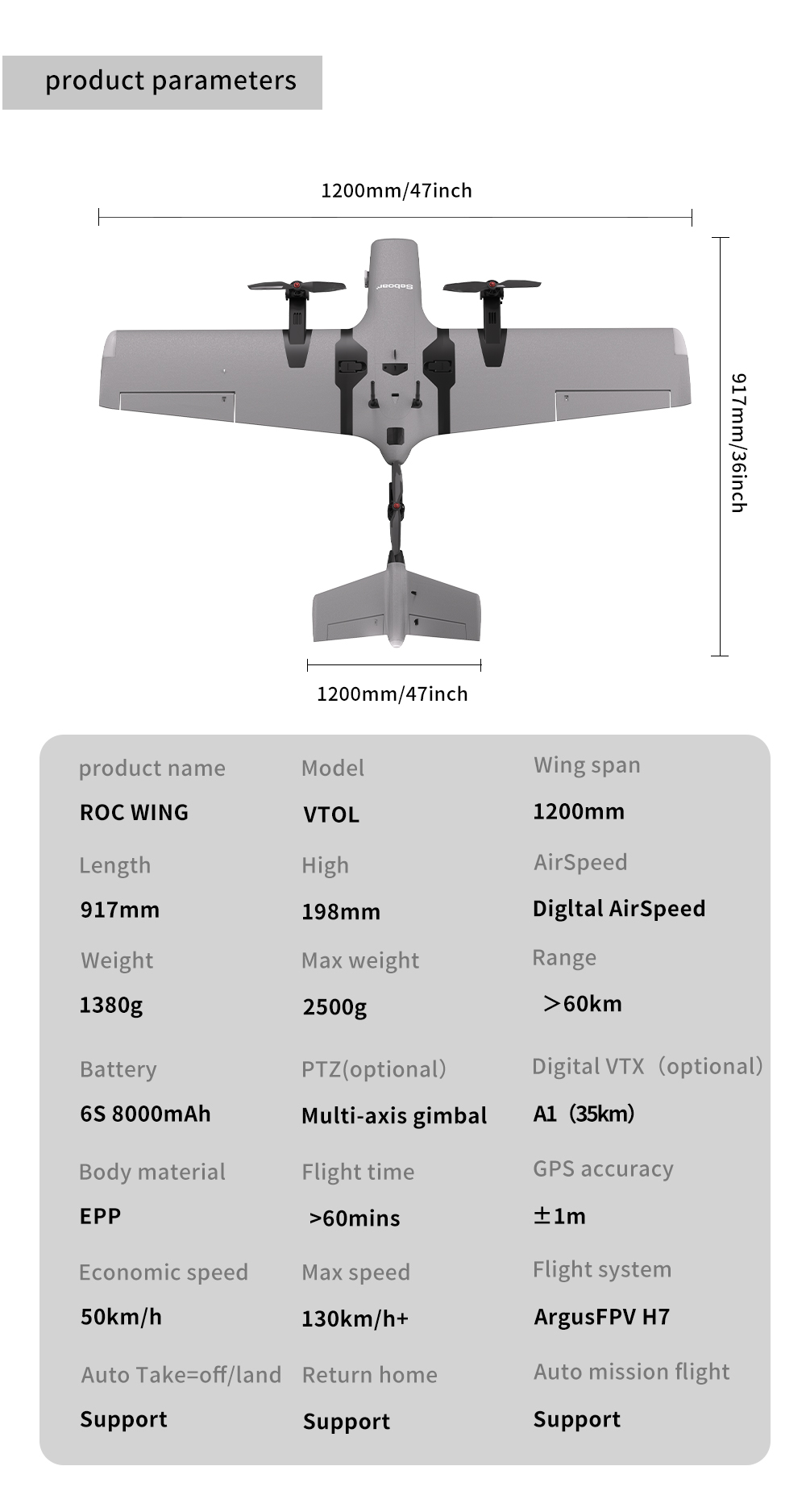

Product Parameters
Aircraft Parameters
| Parameter | Specification |
| Product Name | ROC WING |
| Model | VTOL |
| Wingspan | 1200 mm |
| Length | 917 mm |
| Height | 198 mm |
| Weight | 1380 g |
| Maximum Takeoff Weight | 2500 g |
| Range | >60 km |
| Battery | 6S 8000 mAh |
| Body Material | EPP |
| Flight Time | >60 min |
| GPS Accuracy | ±1 m |
| Economic Speed | 50 km/h |
| Maximum Speed | 130 km/h+ |
| Flight System | ArgusFPV H7 |
| PTZ (Optional) | Multi-axis gimbal |
| Digital VTX (Optional) | A1 (35 km) |
| Airspeed Sensor | Digital AirSpeed |
| Auto Takeoff / Landing | Support |
| Return-to-Home | Support |
| Auto Mission Flight | Support |

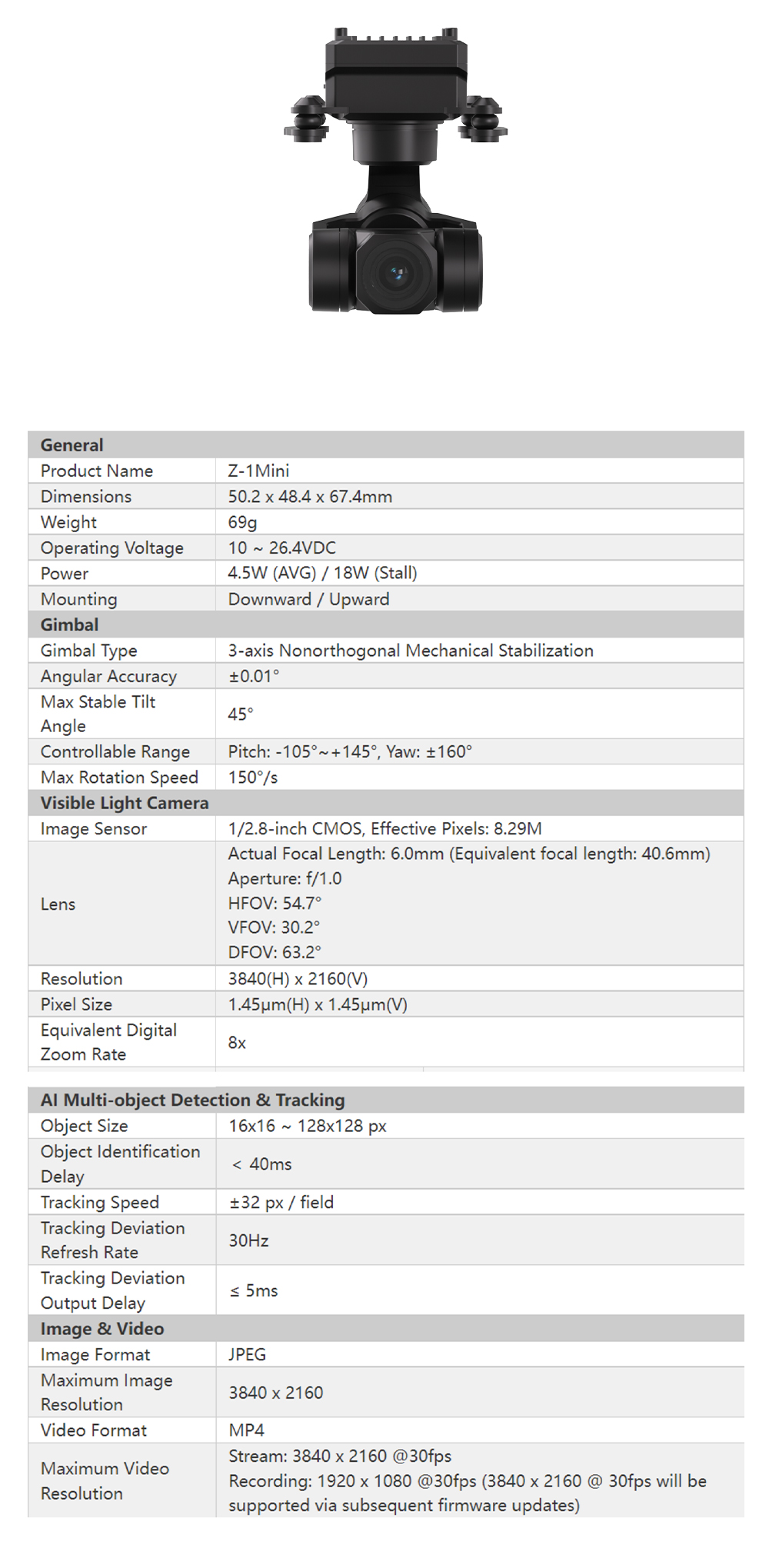

4K Night Vision Gimbal Specifications
General
| Parameter | Specification |
| Product Name | Z-1 Mini |
| Dimensions | 50.2 × 48.4 × 67.4 mm |
| Weight | 69 g |
| Operating Voltage | 10 – 26.4 VDC |
| Power Consumption | 4.5W (AVG) / 18W (Stall) |
| Mounting Method | Downward / Upward |
Gimbal
| Parameter | Specification |
| Gimbal Type | 3-axis Non-orthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Max Stable Tilt Angle | 45° |
| Controllable Range | Pitch: −105° ~ +145° |
| Yaw: ±160° | |
| Max Rotation Speed | 150°/s |
Visible Light Camera
| Parameter | Specification |
| Image Sensor | 1/2.8-inch CMOS |
| Effective Pixels | 8.29 MP |
| Focal Length | 6.0 mm (Equivalent 40.6 mm) |
| Aperture | f/1.0 |
| HFOV | 54.7° |
| VFOV | 30.2° |
| DFOV | 63.2° |
| Resolution | 3840 × 2160 |
| Pixel Size | 1.45 μm |
Digital Zoom
| Parameter | Specification |
| Equivalent Digital Zoom | 8× |
AI Multi-Object Detection & Tracking
| Parameter | Specification |
| Object Size | 16 × 16 – 128 × 128 px |
| Object Identification Delay | < 40 ms |
| Tracking Speed | ±32 px / field |
| Tracking Refresh Rate | 30 Hz |
| Tracking Output Delay | ≤ 5 ms |
Image & Video
| Parameter | Specification |
| Image Format | JPEG |
| Maximum Image Resolution | 3840 × 2160 |
| Video Format | MP4 |
| Maximum Video Resolution | 3840 × 2160 @30fps |
| Recording Resolution | 1920 × 1080 @30fps |
| Future Firmware Support | 3840 × 2160 @30fps |
