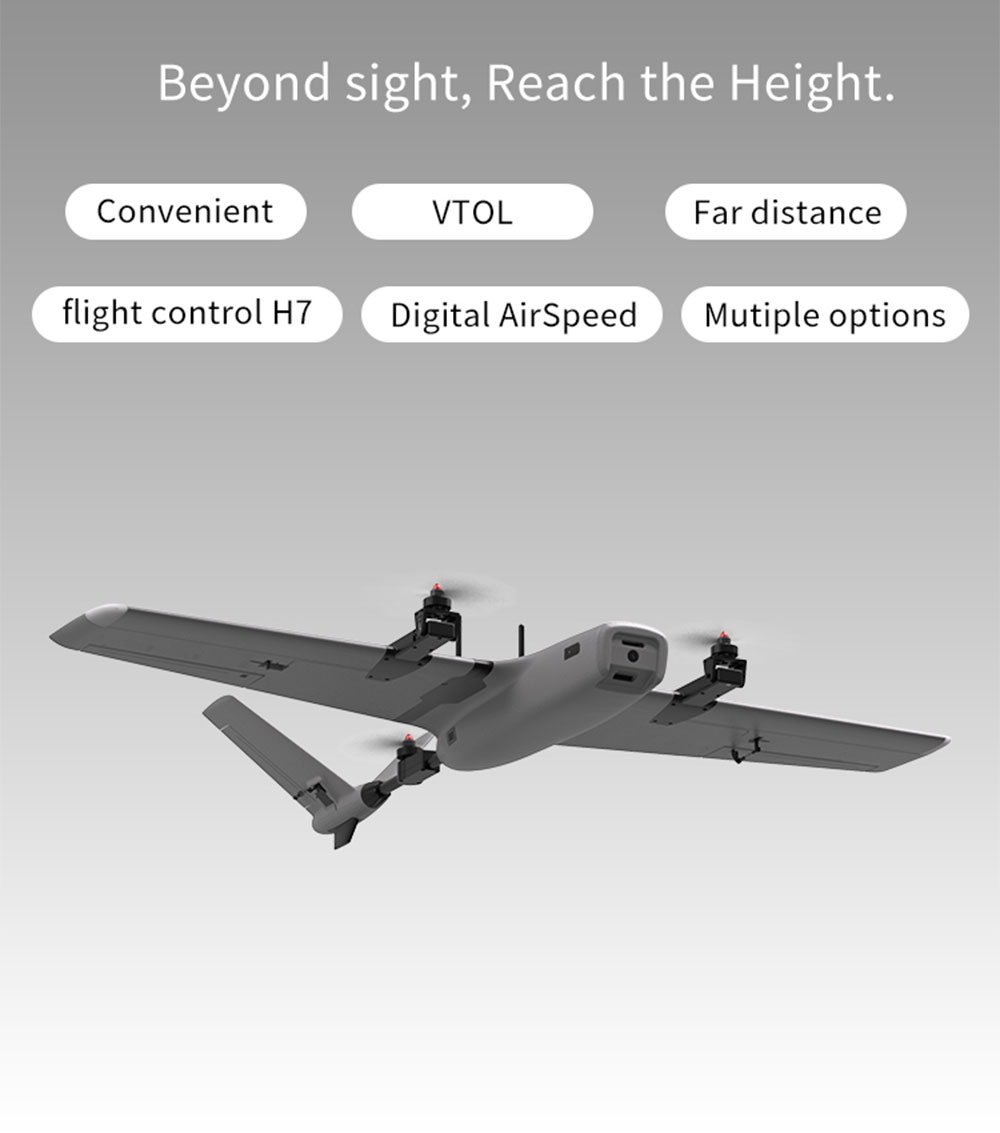

ROC WING VTOL Fixed Wing Drone
Beyond sight, Reach the Height
Convenient | VTOL | Far distance
Flight control H7 | Digital AirSpeed | Multiple options

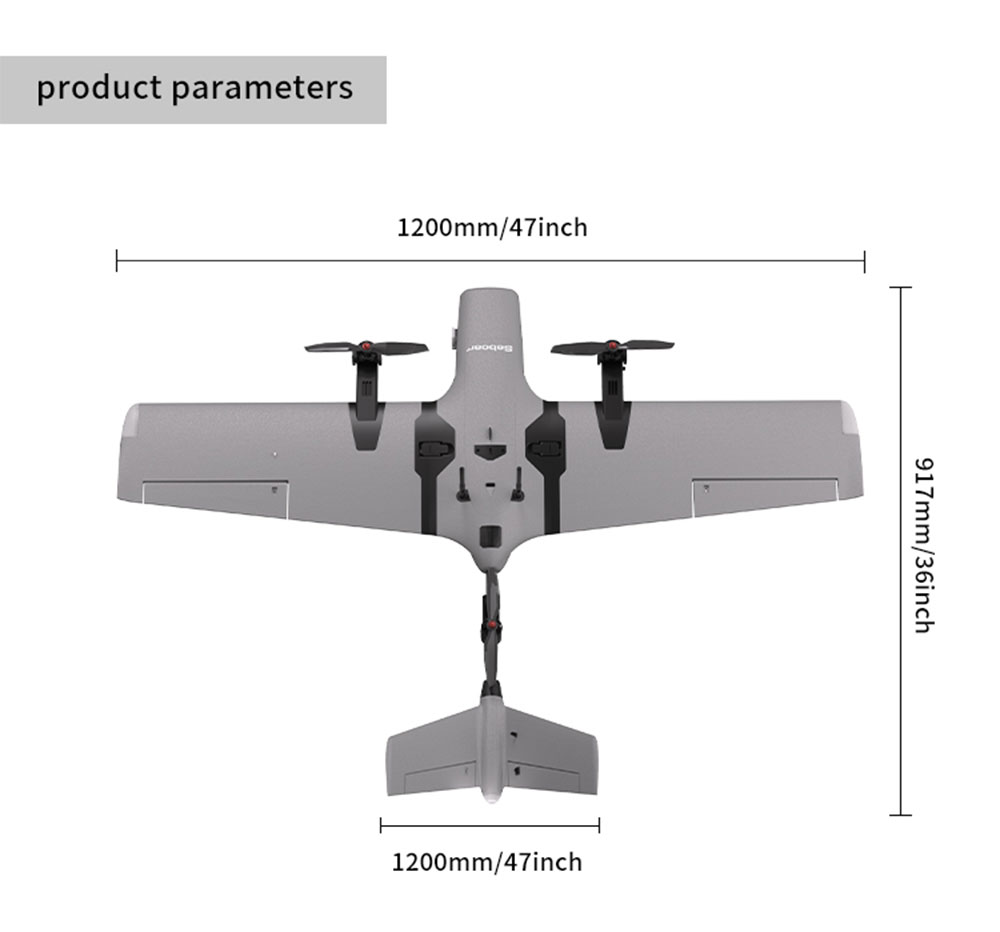

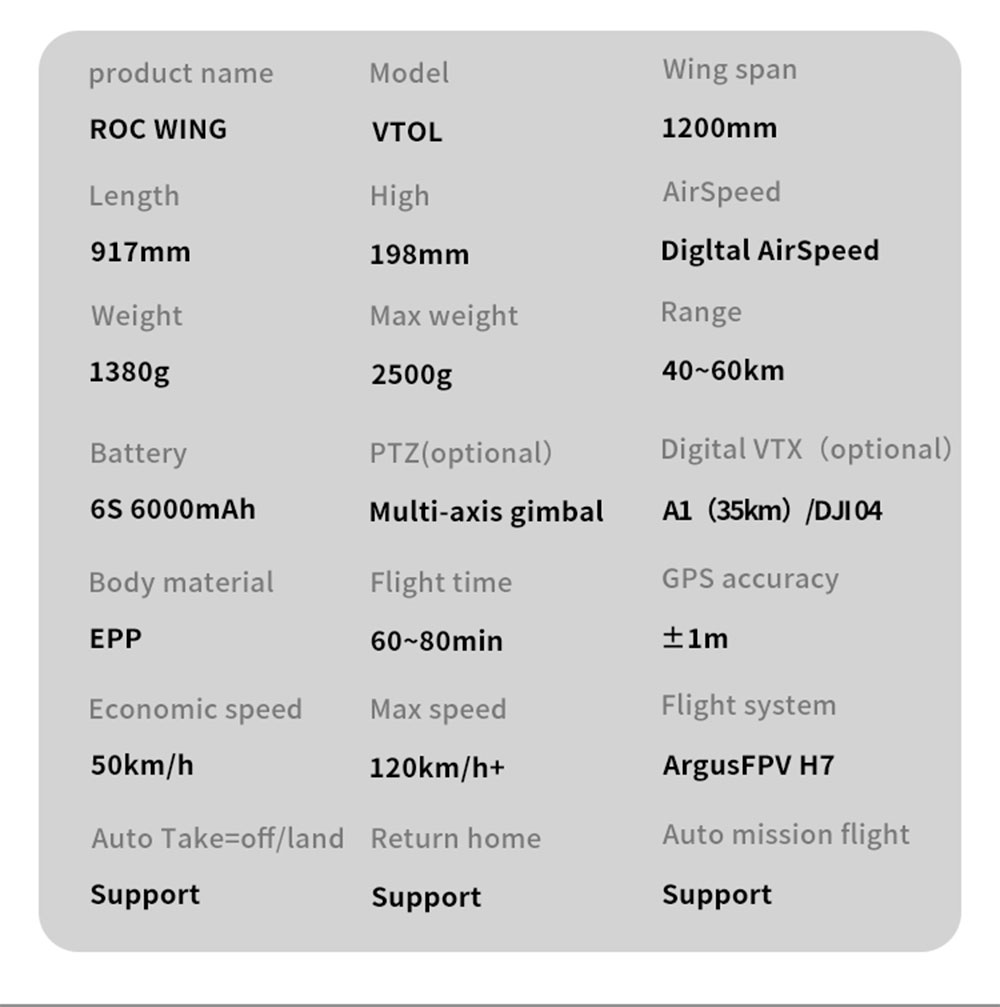

Product Specifications
| Parameter | Specification |
| Product Name | ROC WING |
| Model | VTOL |
| Wingspan | 1200 mm |
| Length | 917 mm |
| Height | 198 mm |
| Weight | 1380 g |
| Max Weight | 2500 g |
| Range | 40–60 km |
| Battery | 6S 6000 mAh |
| PTZ (optional) | Multi-axis gimbal |
| Digital VTX (optional) | A1 (35 km) / DJI O4 |
| Body Material | EPP |
| Flight Time | 60–80 min |
| GPS Accuracy | ±1 m |
| Economic Speed | 50 km/h |
| Max Speed | 120 km/h+ |
| Flight System | ArgusFPV H7 |
| Auto Take-off / Land | Support |
| Return Home | Support |
| Auto Mission Flight | Support |

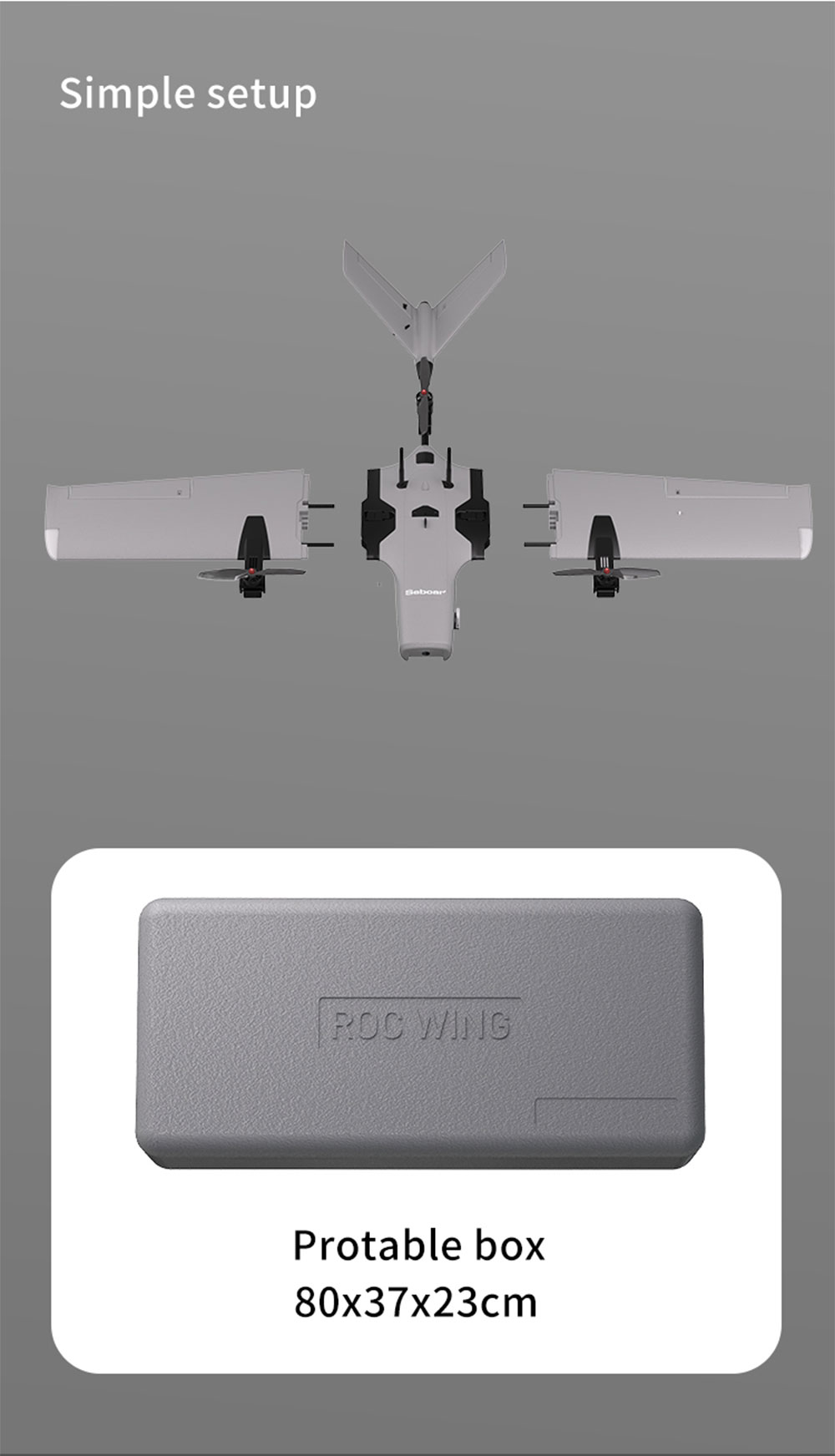

Portable Transport System
Portable Box Size
80 × 37 × 23 cm
Compact transport case allows fast deployment and safe storage.

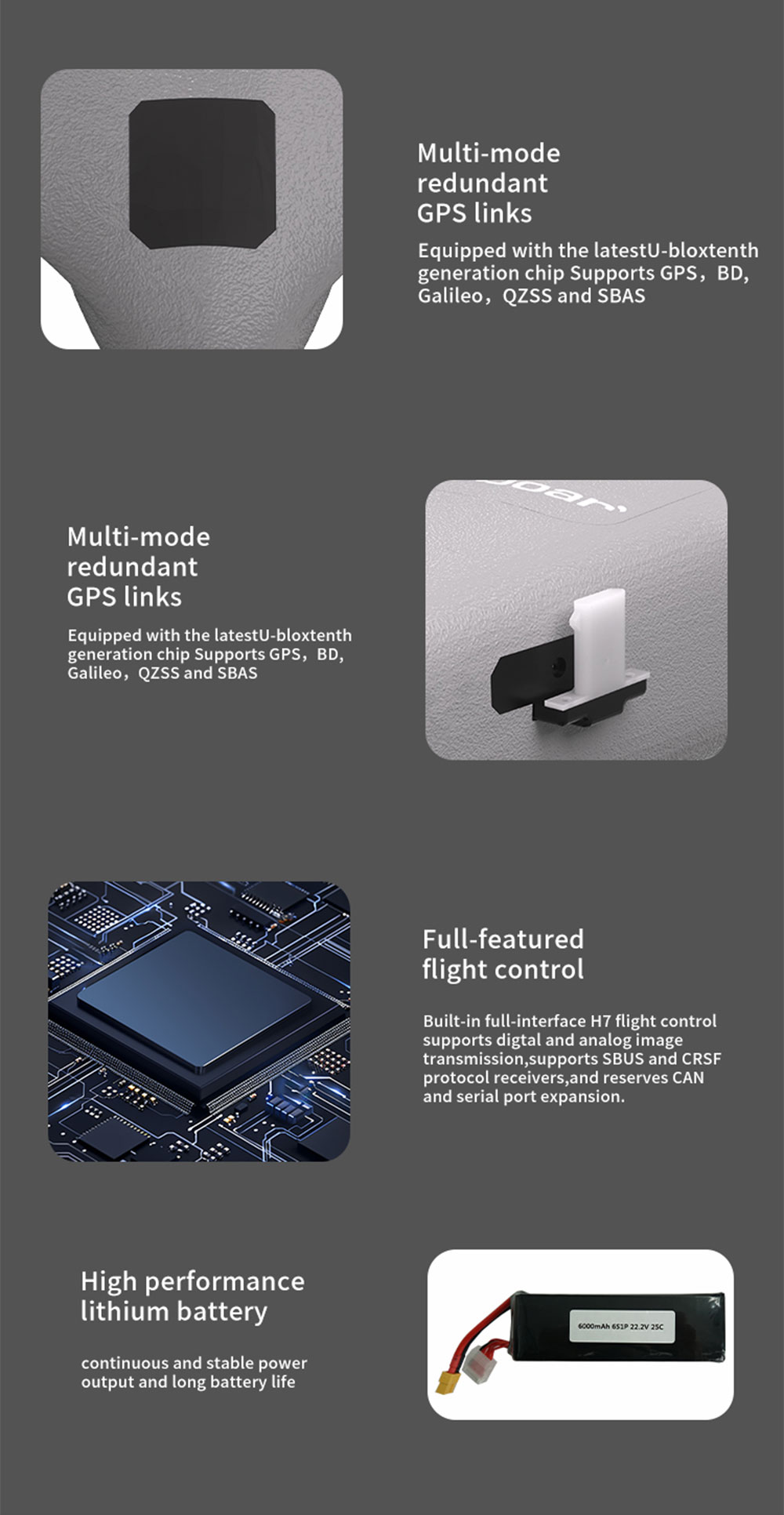

Multi-Mode Redundant GPS Links
Equipped with the latest U-blox 10th generation positioning chip.
Supports multiple satellite navigation systems:
GPS
BD (BeiDou)
Galileo
QZSS
SBAS
Multi-mode redundant positioning improves navigation accuracy and flight stability.
Full-Featured Flight Control System
Built-in H7 full-interface flight controller.
Supports:
Digital and analog image transmission
SBUS and CRSF protocol receivers
CAN and serial port expansion
Provides stable and reliable flight control for long-range VTOL missions.
High Performance Lithium Battery
6S 6000 mAh lithium battery provides:
Continuous and stable power output
Extended flight endurance
Reliable long-range flight capability

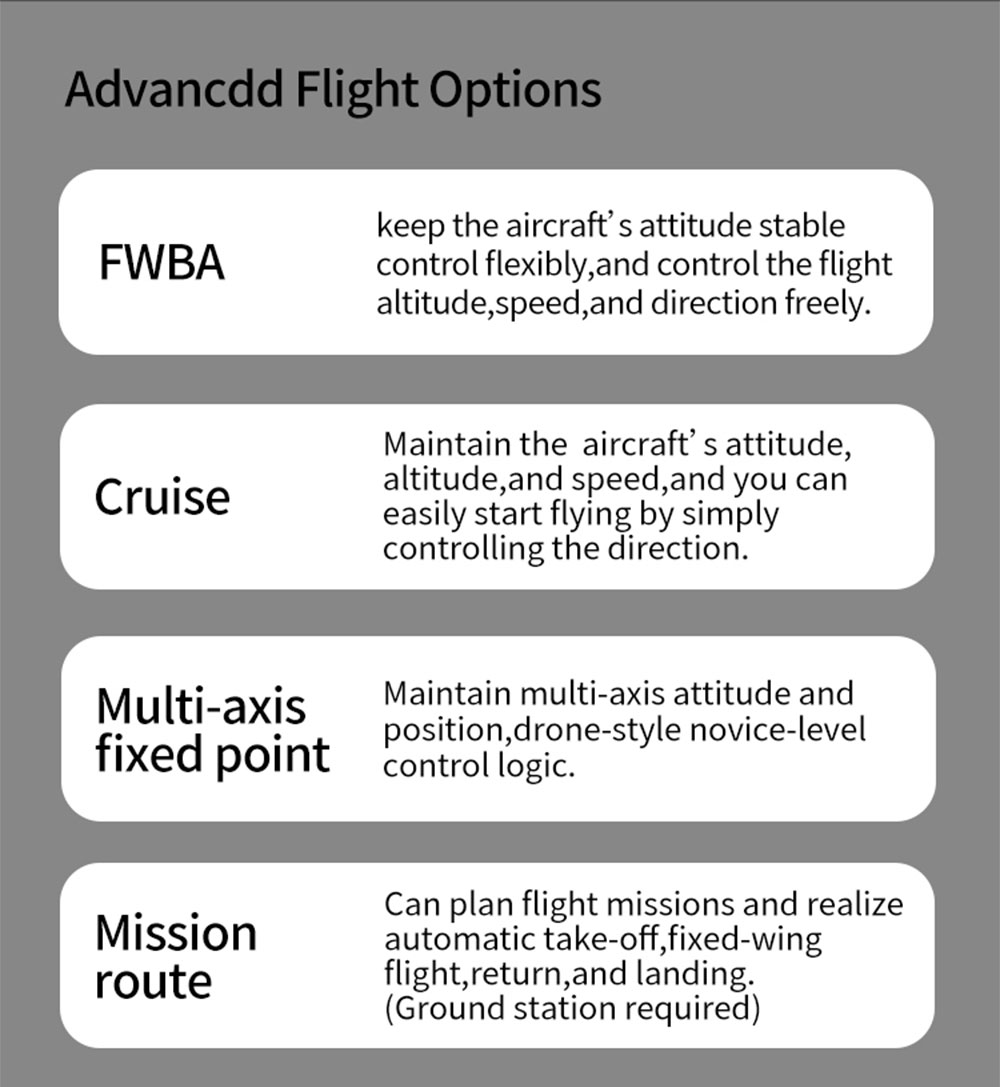

Advanced Flight Options
FWBA Mode
Keeps the aircraft attitude stable while allowing flexible control of altitude, speed, and direction.
Cruise Mode
Maintains aircraft attitude, altitude, and speed automatically for easier flight operation.
Multi-Axis Fixed Point Mode
Maintains aircraft position and attitude with beginner-friendly control logic.
Mission Route Mode
Supports automated mission planning including:
Automatic takeoff
Fixed-wing cruise flight
Return-to-home
Automatic landing
(Ground station required)

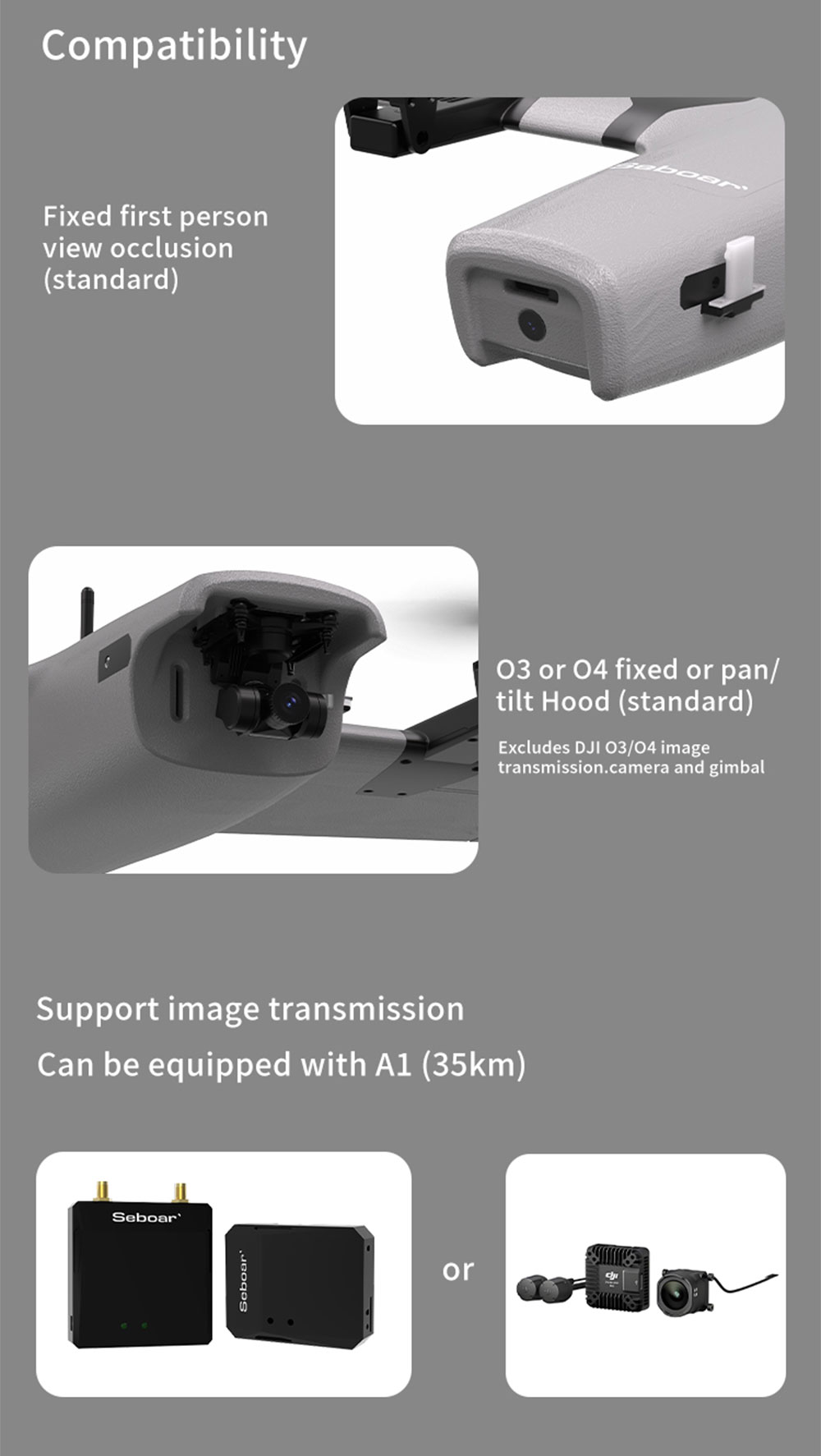

Compatibility
Supports multiple FPV and digital transmission systems.
Standard Configuration
Fixed first-person view occlusion.
Camera Options
O3 or O4 fixed or pan/tilt hood (standard).
Excludes DJI O3/O4 image transmission camera and gimbal.
Image Transmission Options
Supports digital image transmission systems.
Compatible with:
A1 Digital Transmission (35 km)
or
DJI O3 / O4 Digital FPV System

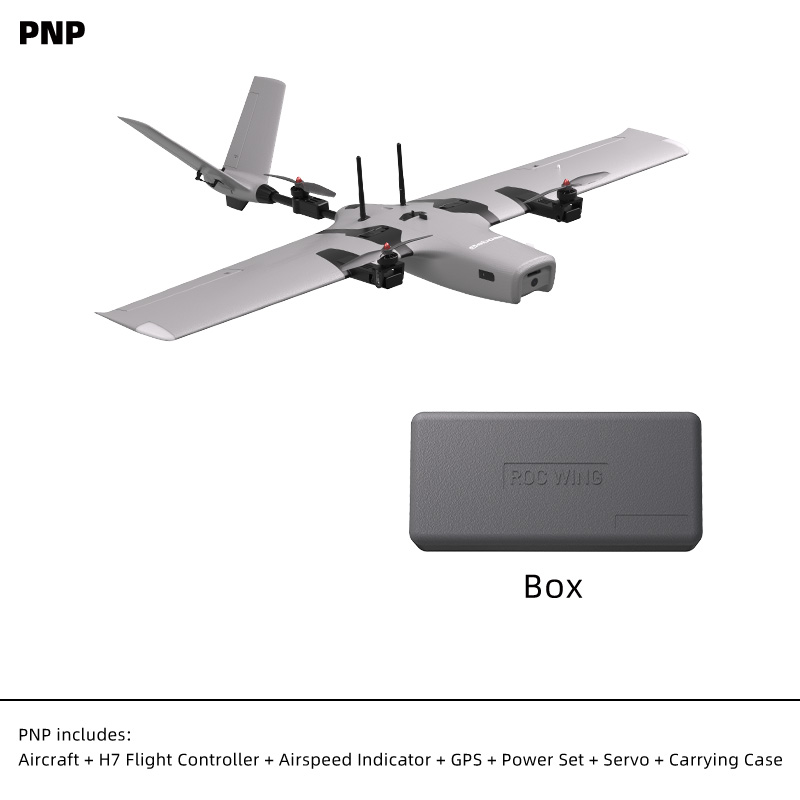

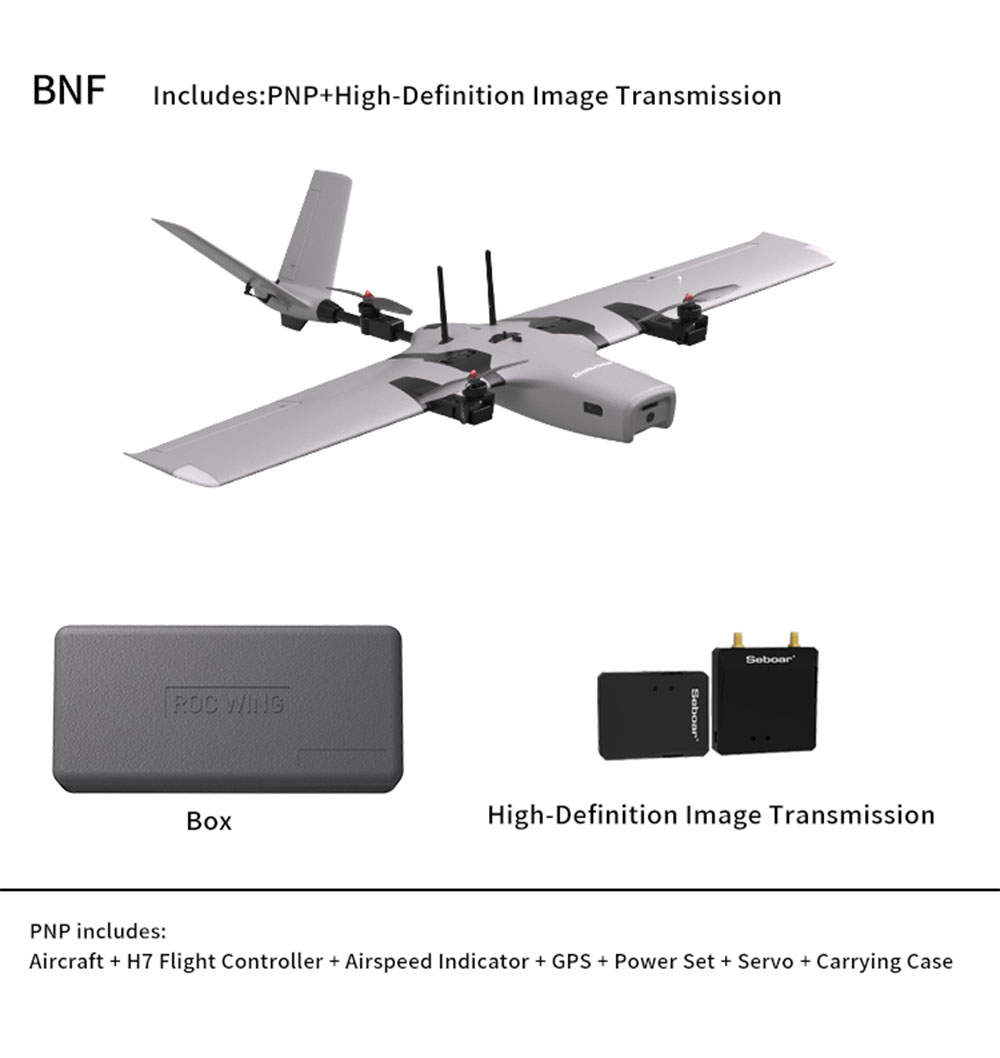

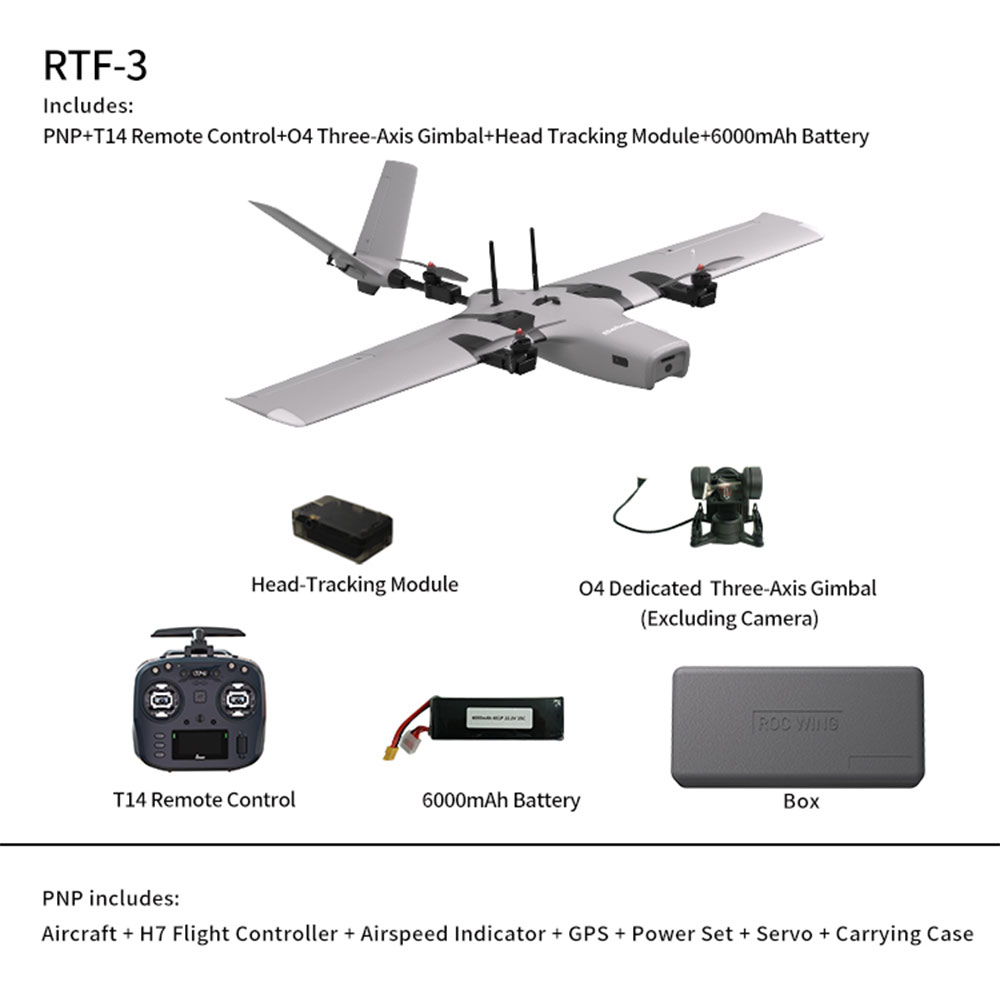

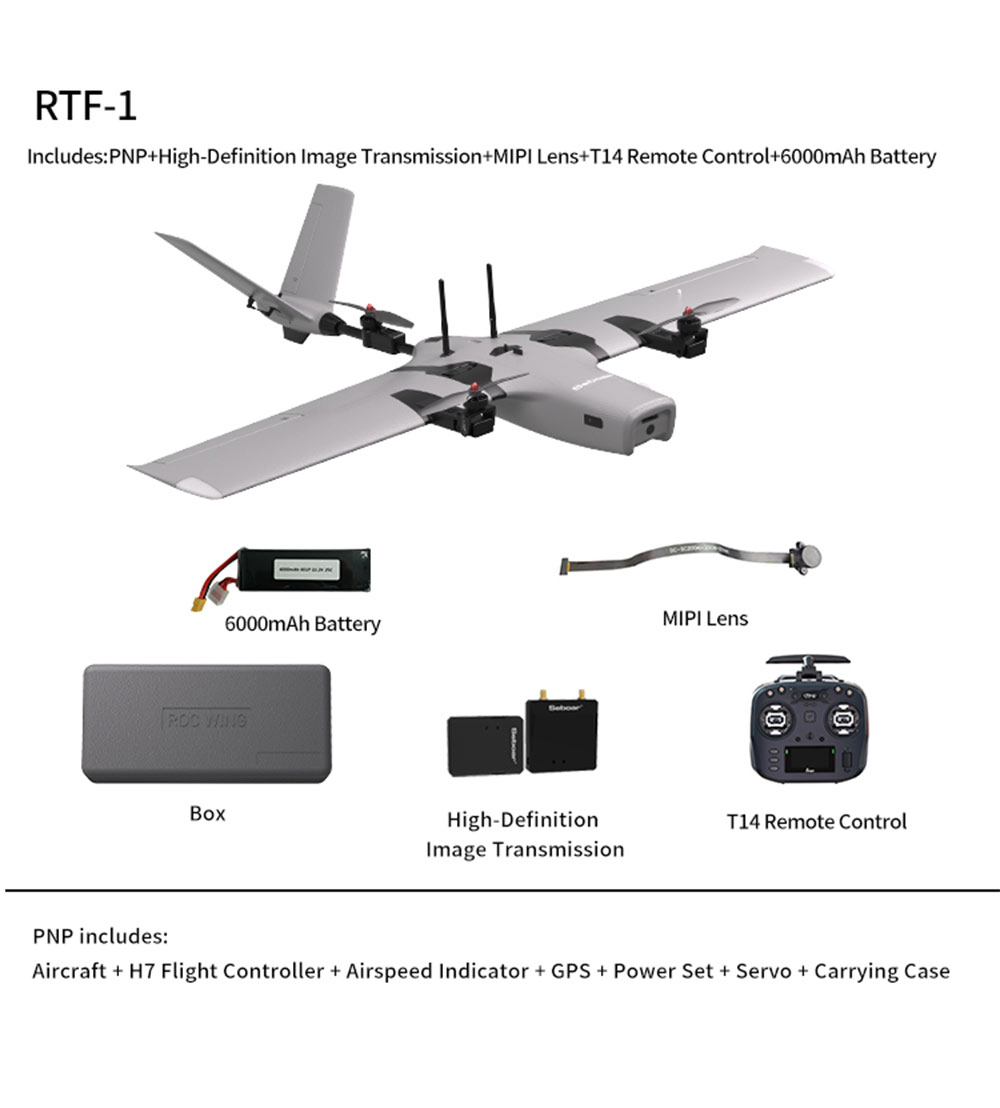

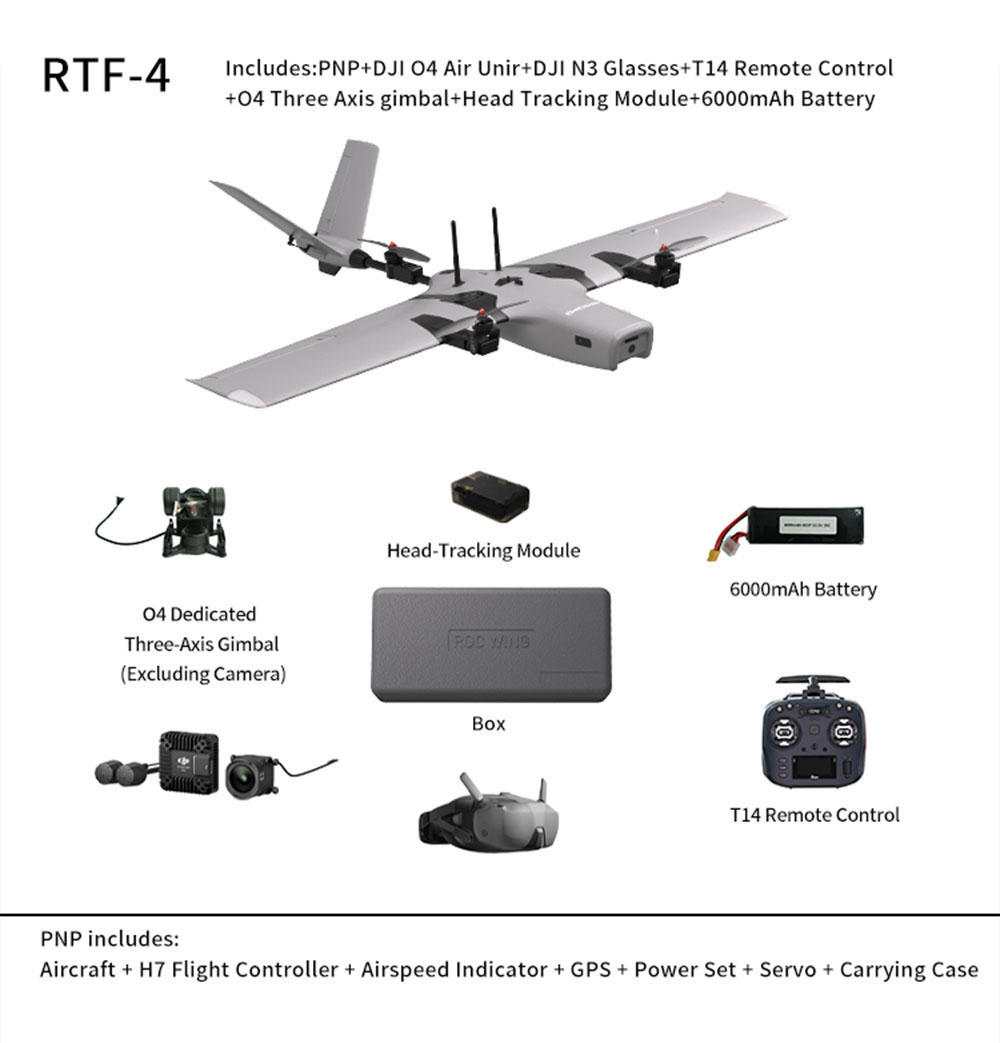

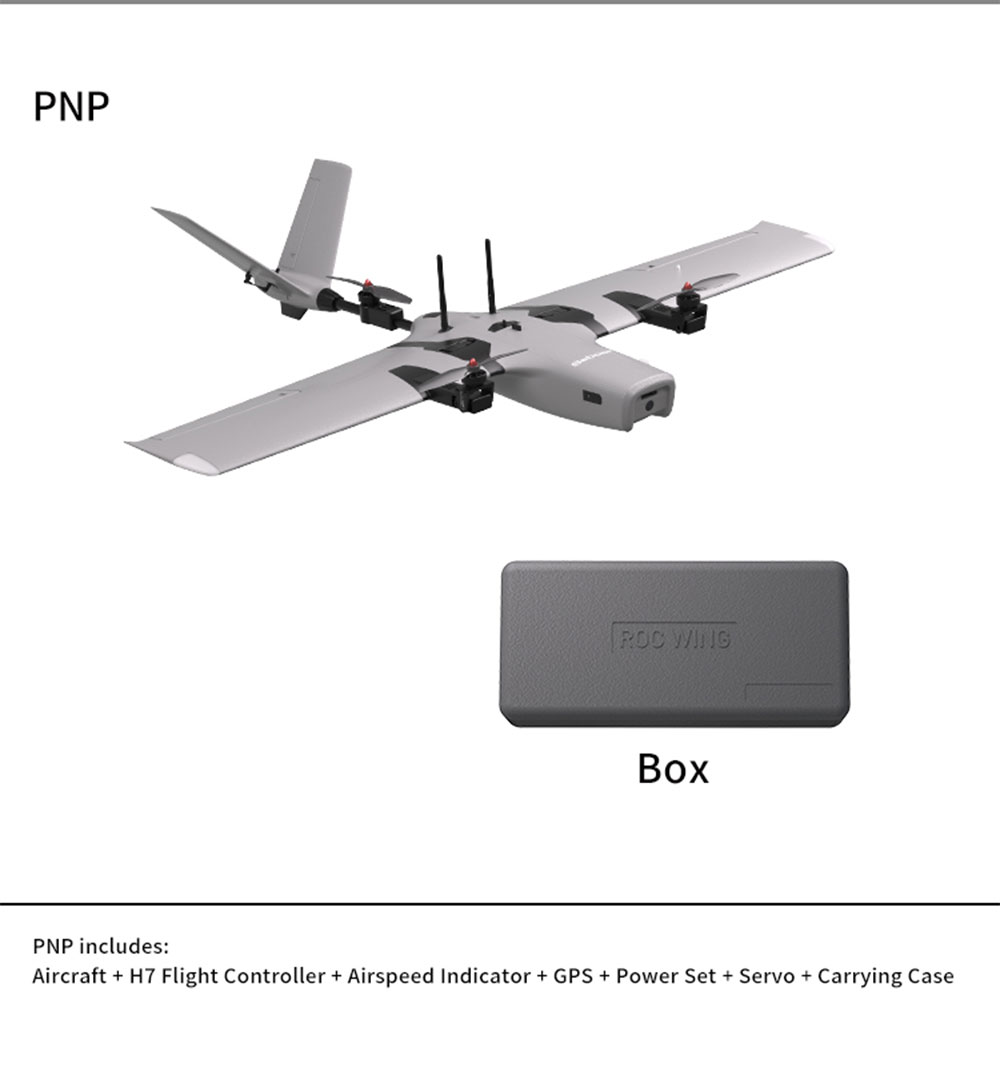

PNP Version
Includes:
Aircraft
H7 Flight Controller
Airspeed Indicator
GPS Module
Power Set
Servo
Carrying Case
