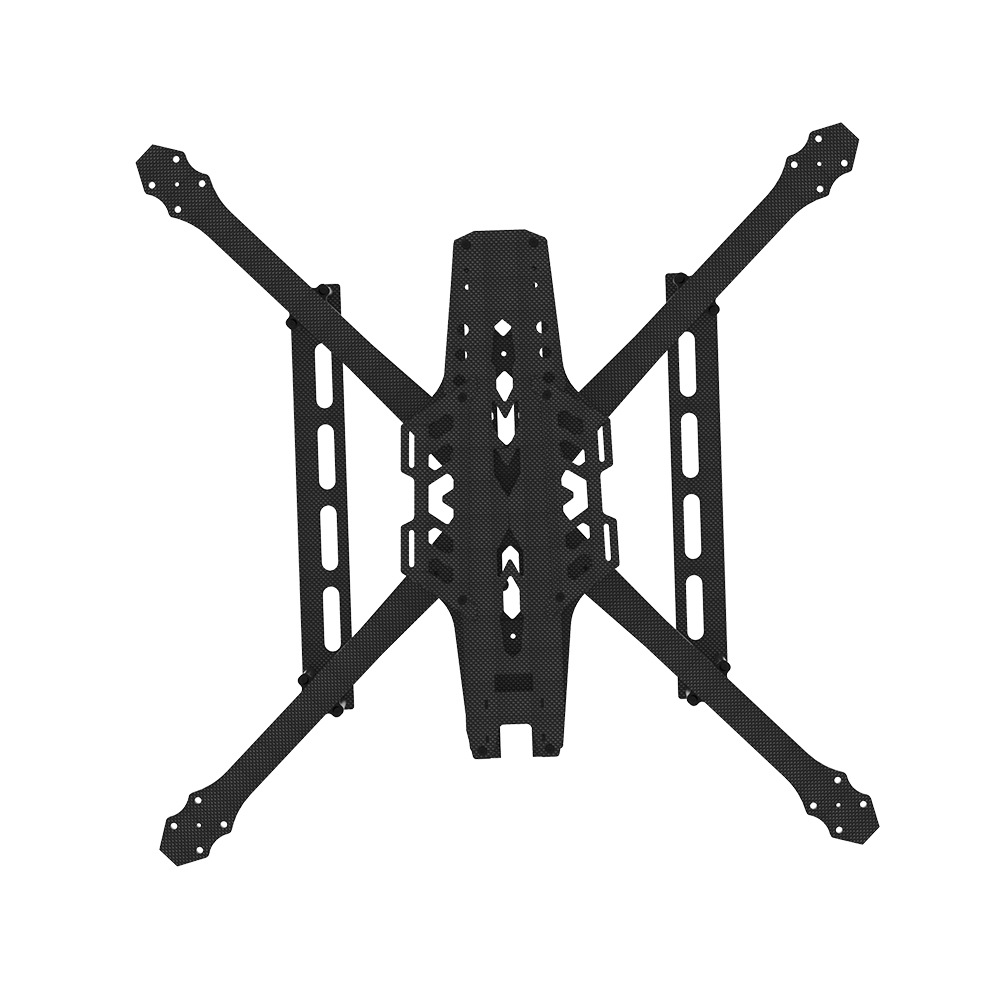

13-15 inch FPVLong-Range Drone Frame

Supports 13–15 inch propellers for heavy-lift and long endurance

500–700 mm wheelbase for maximum stability and payload capacity

8 mm thick carbon arms for extreme durability and rigidity

High-capacity battery and GPS mounting for long-range missions

Industrial-grade carbon fiber structure for heavy-duty UAV builds

This price does not include shipping or taxes. Please confirm with our customer service team before placing your order.

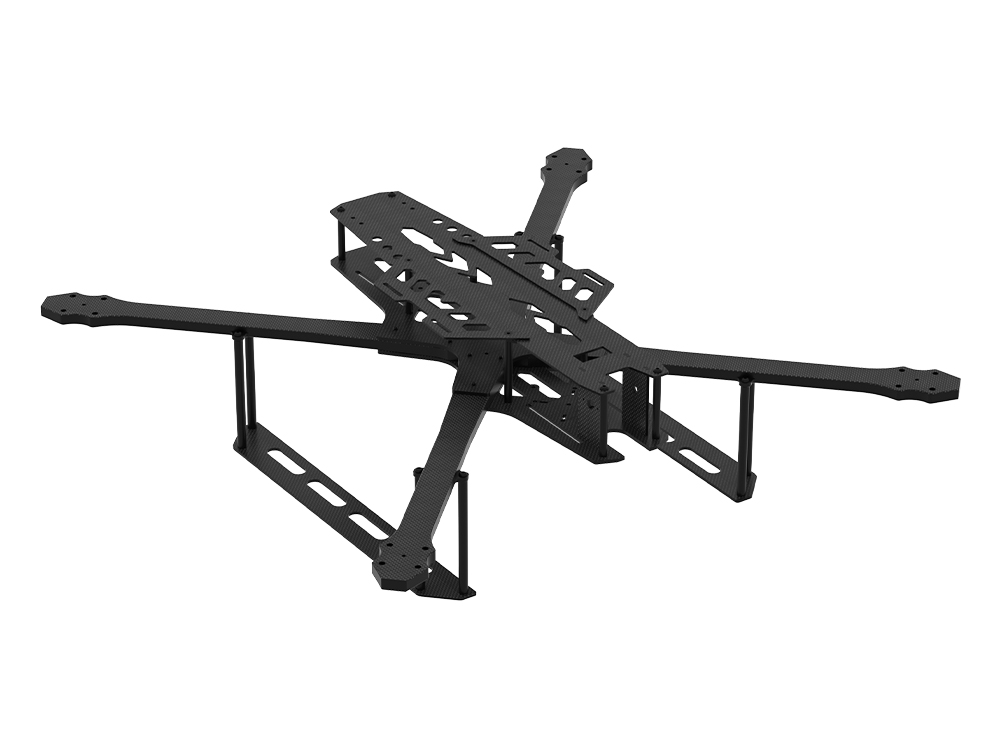

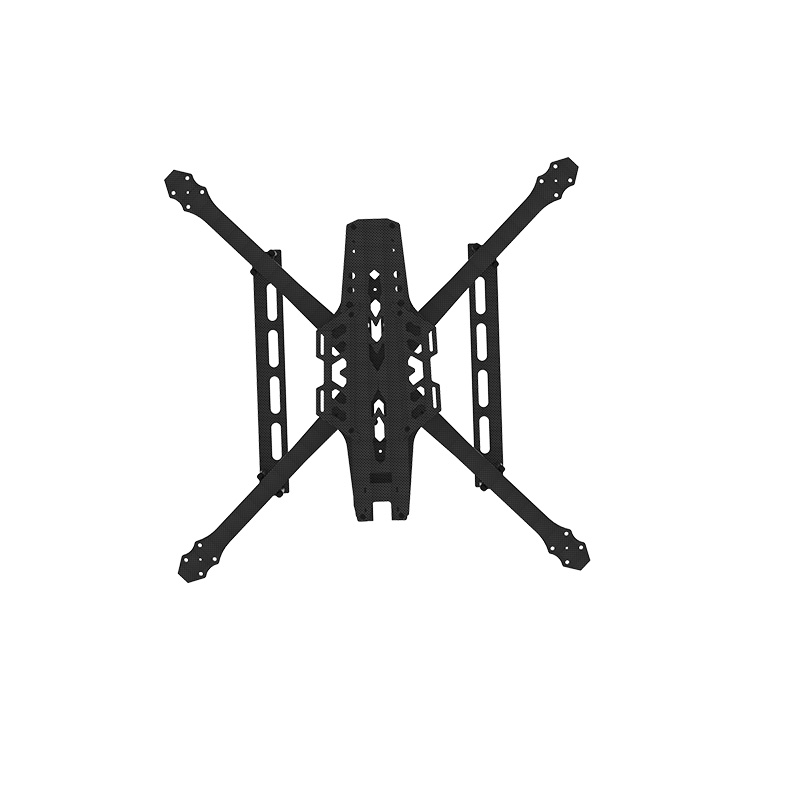

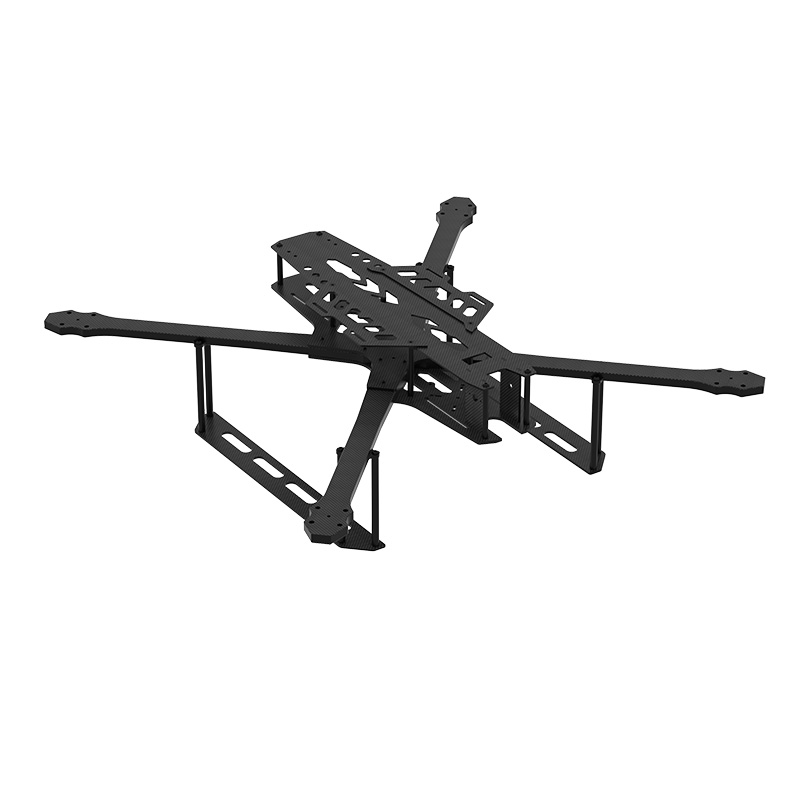

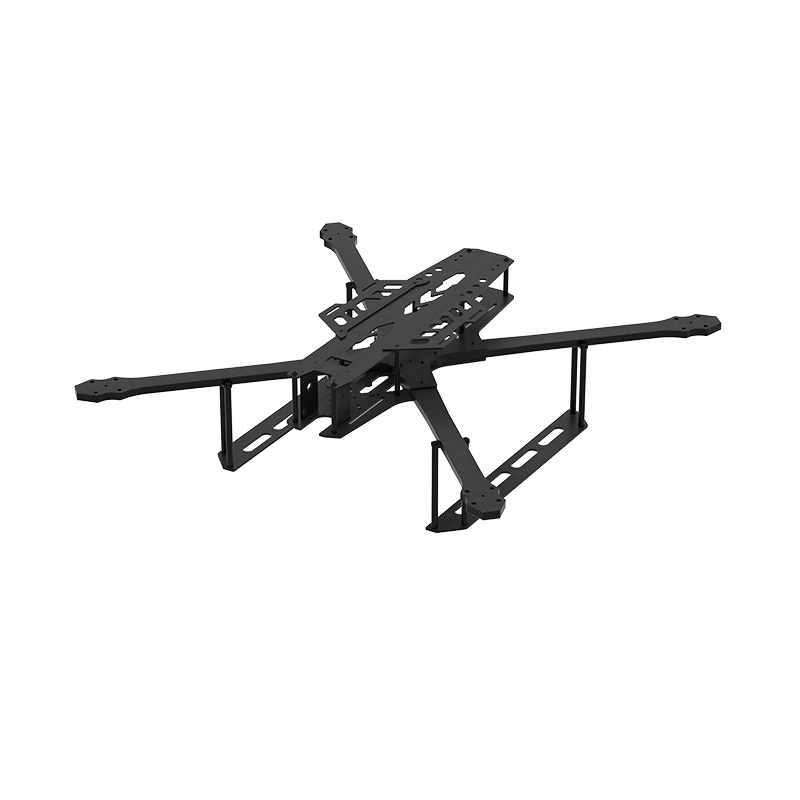

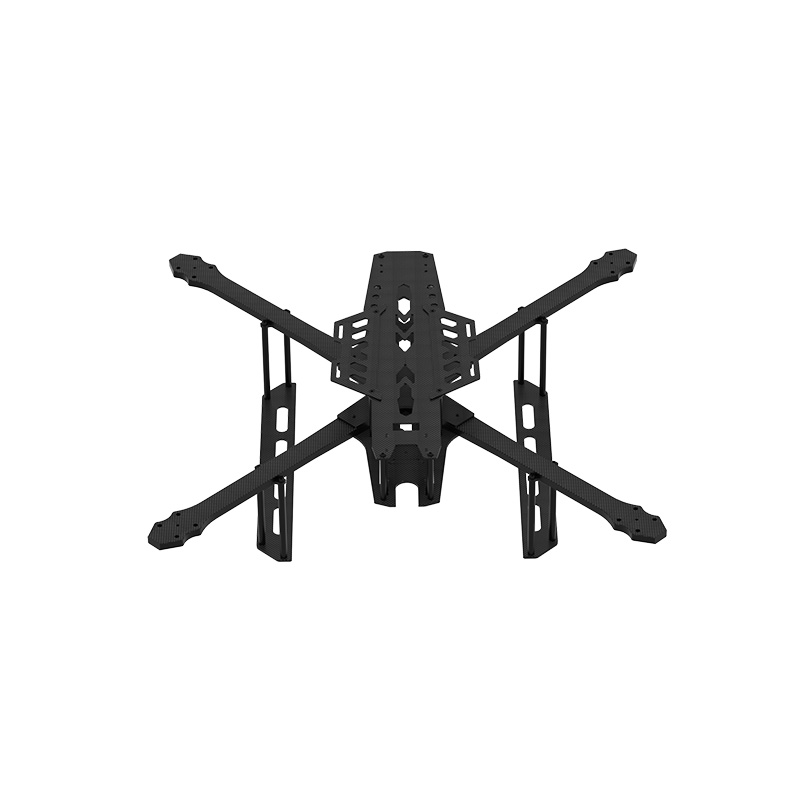

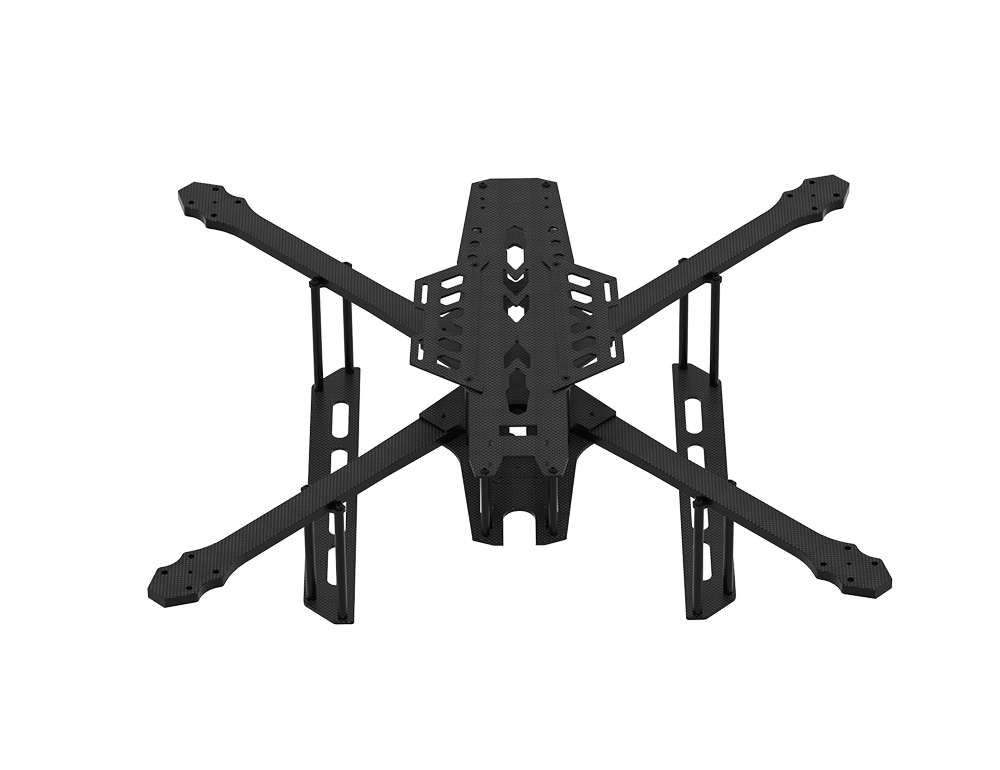

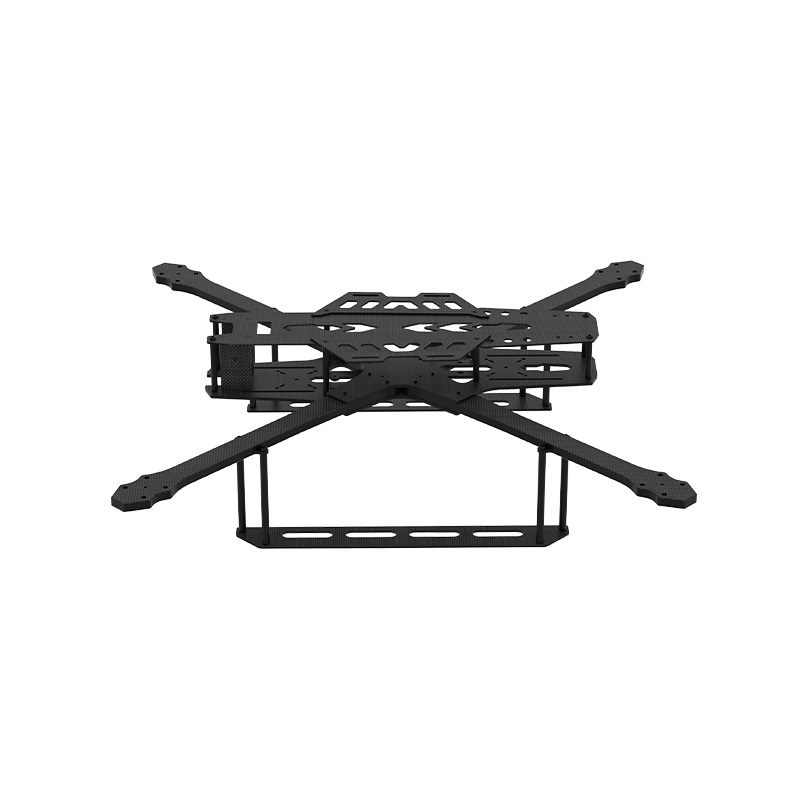

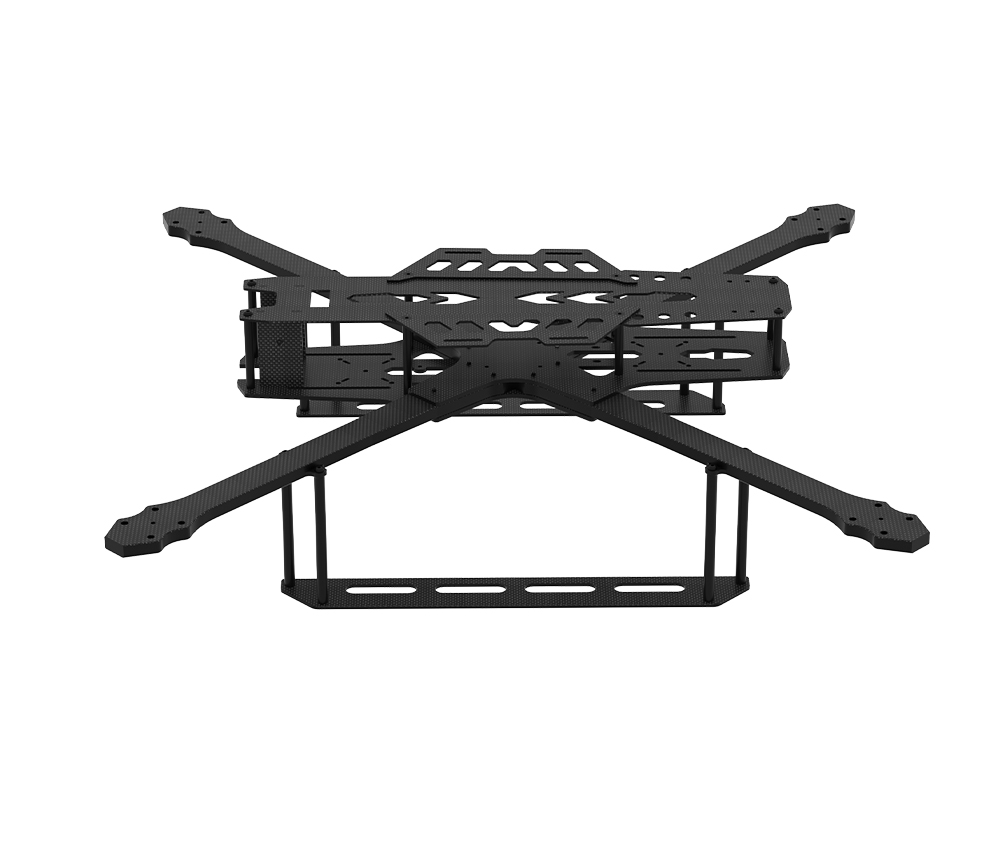

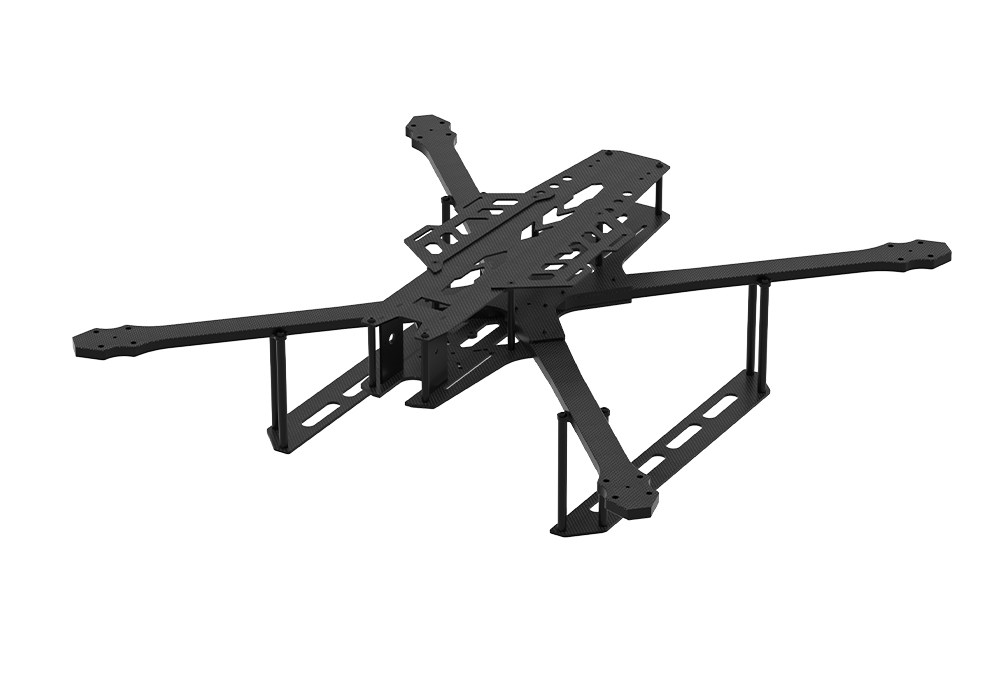

Carbon Fiber FPV Drone Frame – 13–15 Inch Long Range Frame

The Carbon Fiber FPV Drone Frame – 13–15 Inch Long Range Frame is a heavy-duty platform designed for long-endurance flight, high payload capacity, and industrial UAV applications.

Engineered to support large propeller systems and high-capacity batteries, this frame delivers superior flight stability, efficiency, and structural strength for demanding missions.

With a reinforced carbon fiber construction and spacious layout, it is ideal for professional drone builds requiring extended range, reliable performance, and flexible payload integration.

Key Features

Designed for Heavy-Lift and Long Endurance

Supports 13–15 inch propellers, enabling increased thrust, improved efficiency, and longer flight times compared to smaller FPV frames. Larger propellers generate more lift and stability for heavy payload missions.

Reinforced Carbon Fiber Construction

Built with high-strength carbon fiber plates and thick arms (typically up to 8 mm), ensuring minimal flex and improved vibration control during flight.

Large-Scale Frame Geometry

Wheelbase typically ranges from 500 mm to 700 mm, providing a stable flight platform and sufficient space for large components and payload systems.

Optimized for Long-Range Systems

The frame offers ample mounting space for GPS modules, long-range antennas, high-capacity LiPo batteries, and advanced payload systems required for extended missions.

Modular and Maintainable Design

Supports replaceable arms and modular assembly, allowing easier maintenance and quick repairs during field operations.

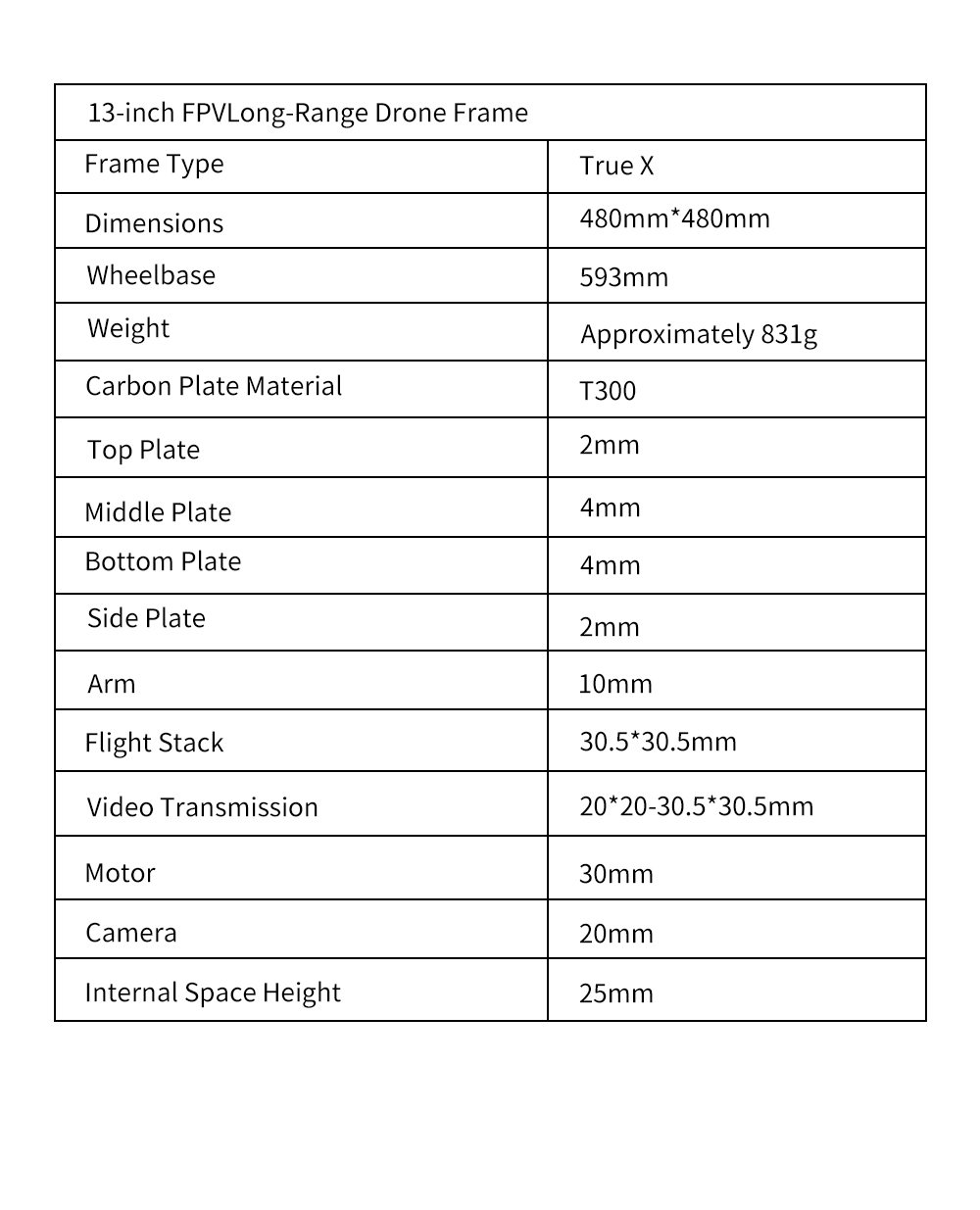

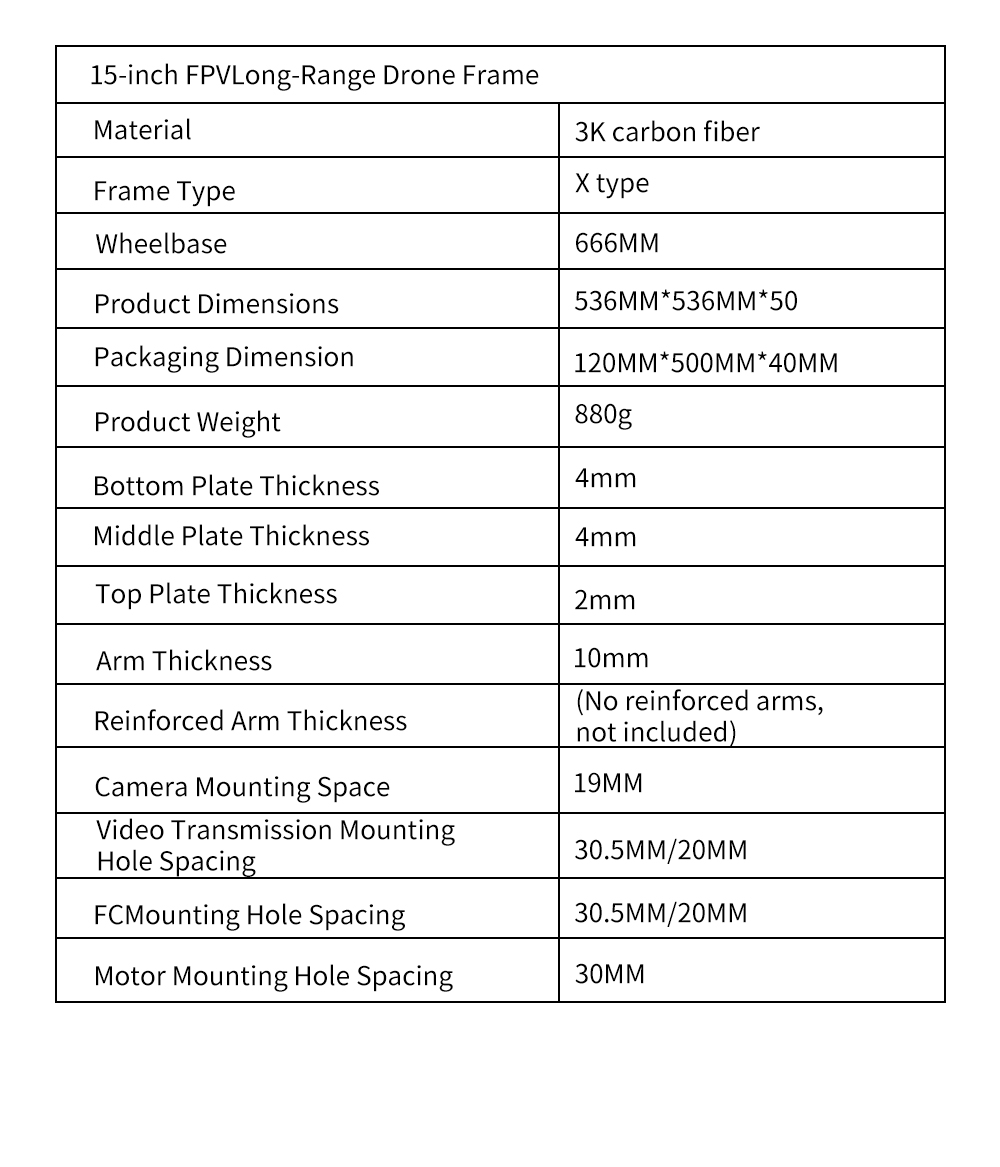

Specifications (Parameter Table)

Frame Structure

Category	Specification
Product Name	13–15 Inch FPV Long Range Frame
Type	Carbon Fiber FPV Drone Frame
Material	100% Carbon Fiber
Frame Type	X / Deadcat Configuration
Wheelbase	Approx. 500 – 700 mm
Arm Thickness	Approx. 7 – 8 mm
Top Plate Thickness	2.5 – 3 mm
Bottom Plate Thickness	3 – 4 mm
Weight (Frame Only)	Approx. 400 – 800 g

Compatibility

Category	Specification
Propeller Size	13 – 15 inch
Motor Compatibility	4214 / 4215 / 5010 Series
ESC / FC Mounting	30.5×30.5 mm / 40×40 mm
Camera Mount	19 mm / 22 mm
VTX Compatibility	Analog / Digital FPV Systems
Battery Support	6S – 12S LiPo / Li-ion
GPS Module	Supported (Dedicated mount)

Structural Design

Category	Specification
Frame Layout	Modular / Replaceable Arms
Assembly Type	DIY Kit
Battery Mount	Top / Bottom / Dual battery support
Payload Mount	Multi-position mounting support
Landing Support	Optional landing gear compatibility
Cable Management	Integrated routing system

Application Scenarios

Heavy-lift FPV drone builds
Industrial inspection and surveying
Long-range aerial exploration (10–30 km missions)
Cinematic filming with professional cameras
Payload delivery and logistics

Why Choose This Carbon Fiber FPV Drone Frame

The Carbon Fiber FPV Drone Frame in the 13–15 inch class is built for maximum payload, endurance, and stability, making it suitable for professional and industrial UAV applications.

Compared to smaller frames, it offers significantly improved lift capacity and flight efficiency, especially when paired with large propellers and high-capacity batteries.

Its robust structure and spacious design allow users to integrate advanced systems such as GPS, long-range communication modules, and heavy payloads without compromising flight performance.
