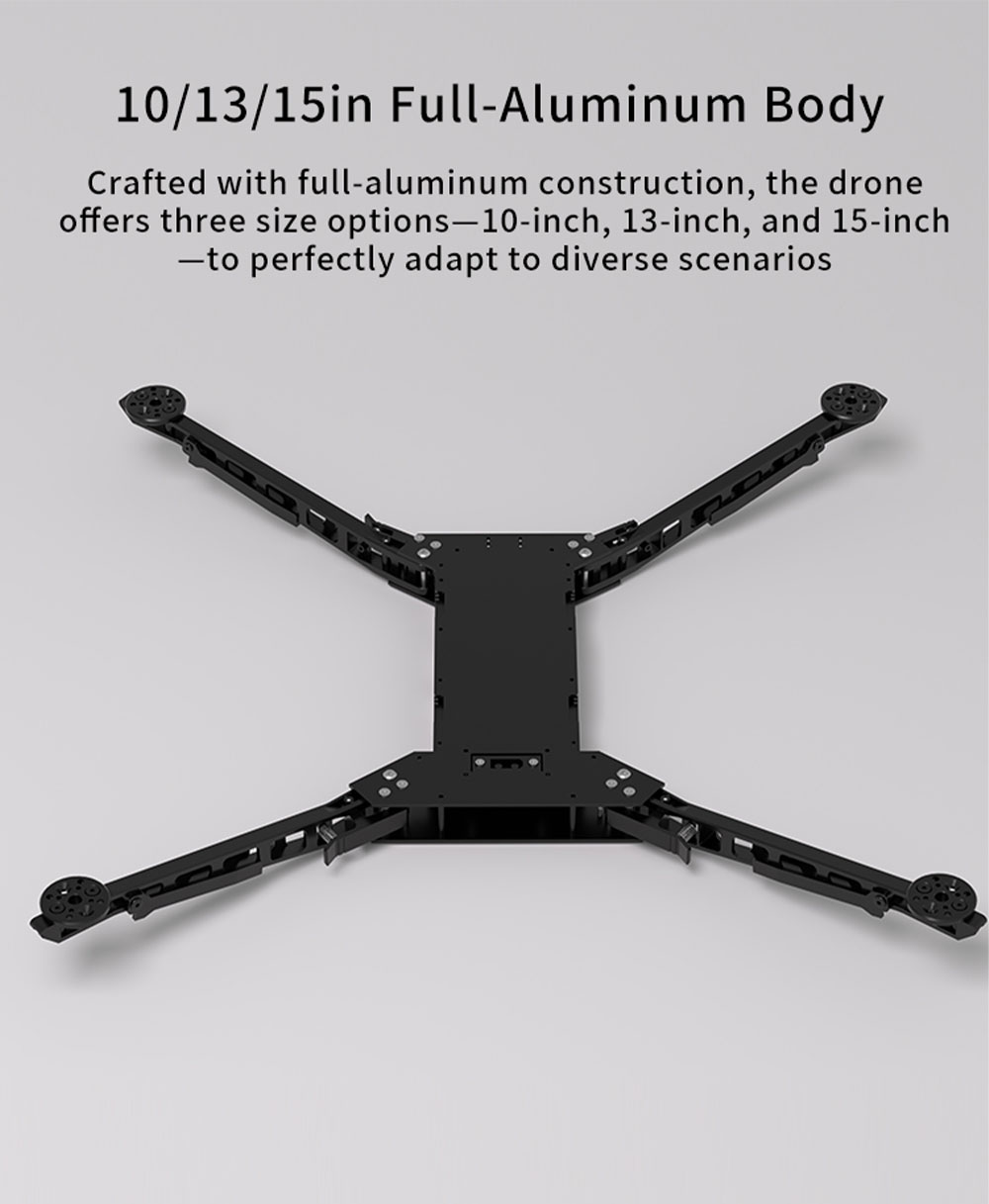

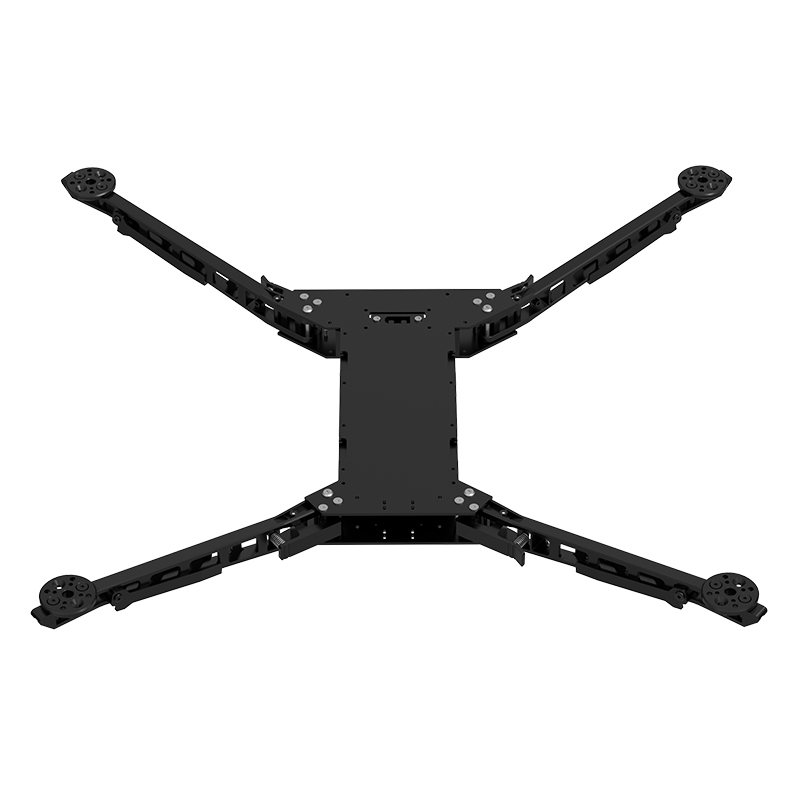

Full-Aluminum Foldable Drone Frame
Crafted with a full-aluminum body structure, this drone frame is available in three configurations:
10-inch
13-inch
15-inch
The modular design allows users to choose the ideal frame size for different applications such as long-range flight, aerial photography, industrial inspection, or professional drone builds.

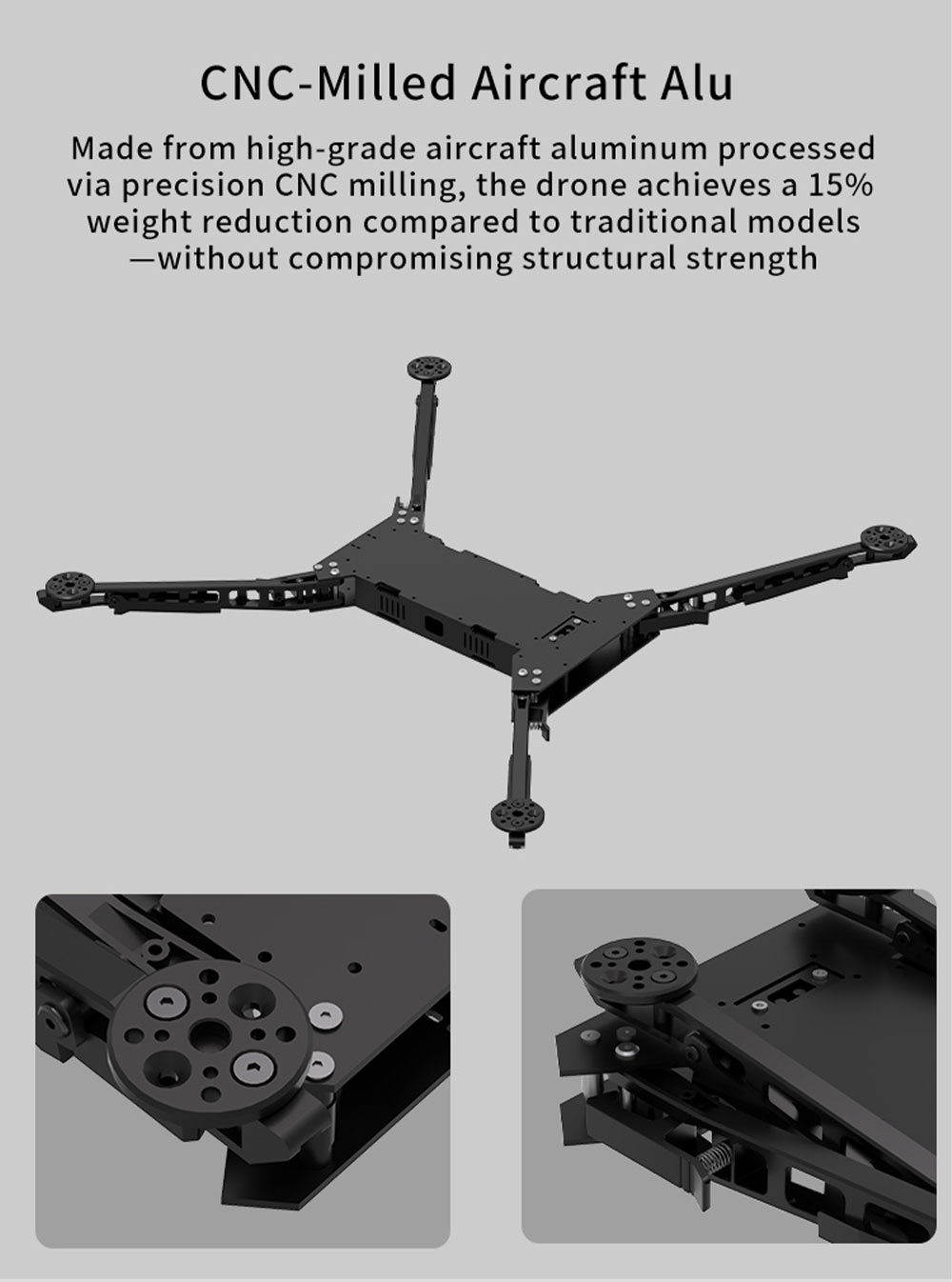

CNC-Milled Aircraft Aluminum Structure
The frame is constructed from 6063 aerospace-grade aluminum, processed through precision CNC milling.
Compared with traditional carbon-fiber or mixed-material designs, this structure provides:
higher structural strength
improved durability
approximately 15% weight reduction
This ensures reliable performance even under demanding flight conditions.

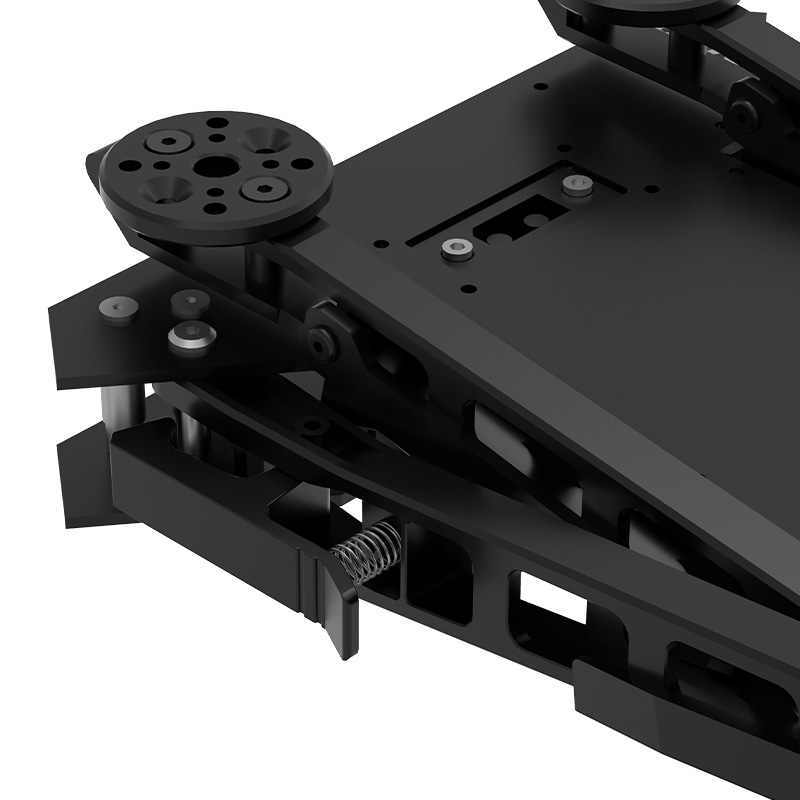

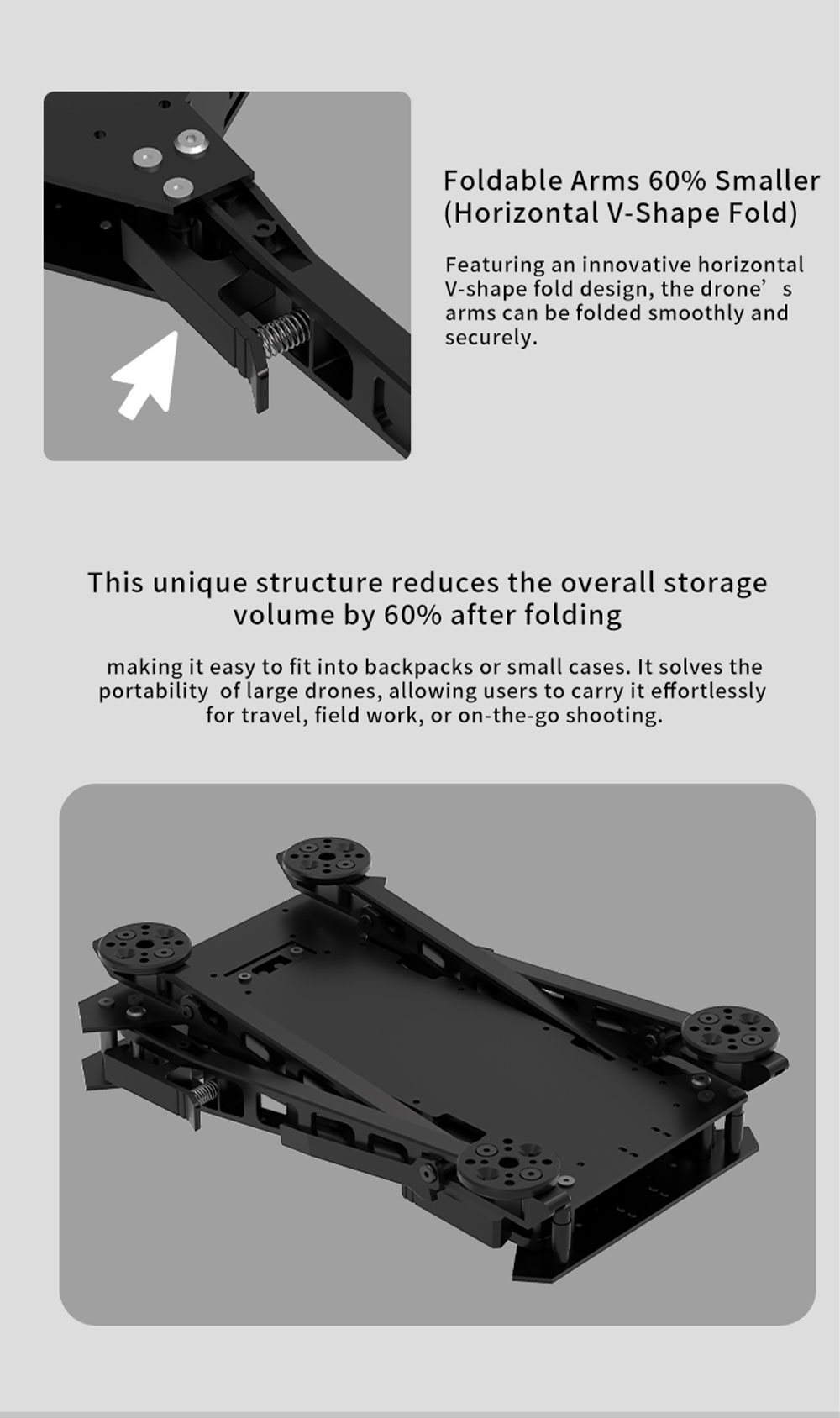

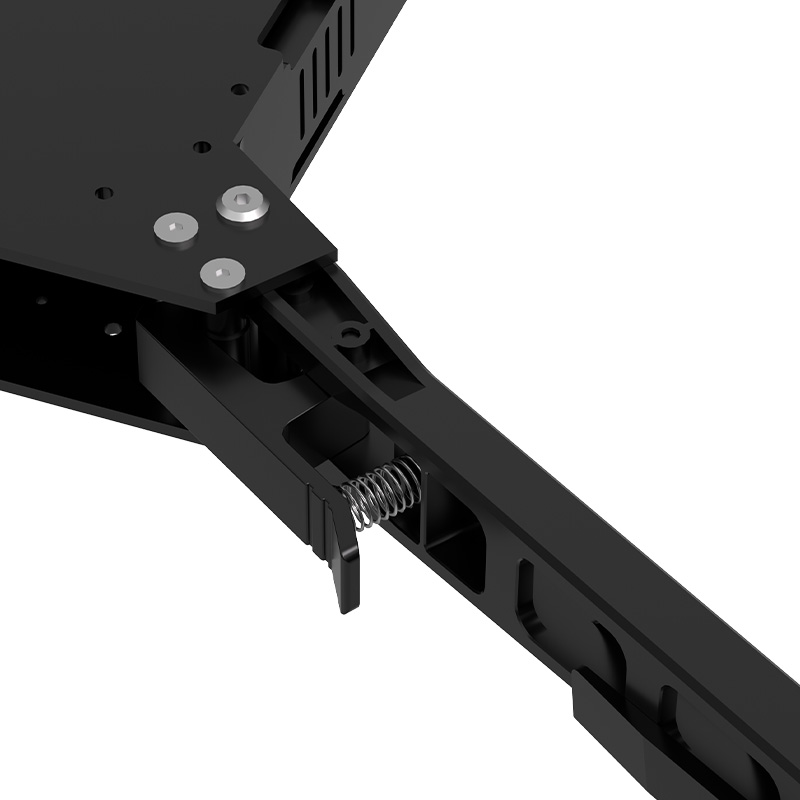

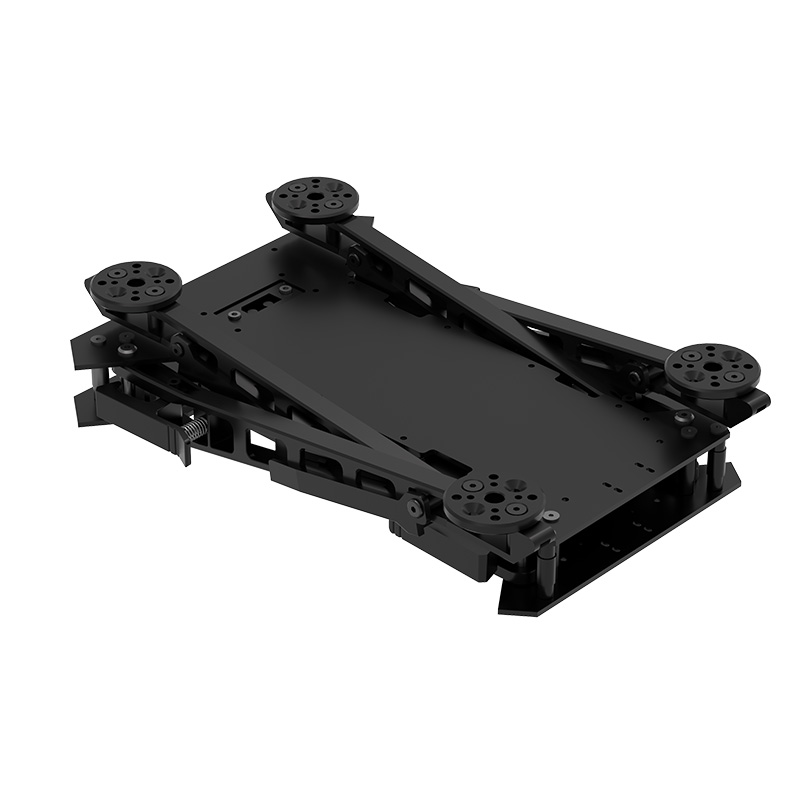

Foldable Arms – 60% Smaller Storage Volume
The frame features an innovative horizontal V-shape folding arm design.
Key advantages:
smooth and secure folding mechanism
compact storage size
up to 60% reduction in storage volume
The foldable structure makes large drones easier to transport, allowing them to fit into backpacks, travel cases, or compact equipment bags.
This significantly improves portability for field work, travel shooting, and outdoor operations.

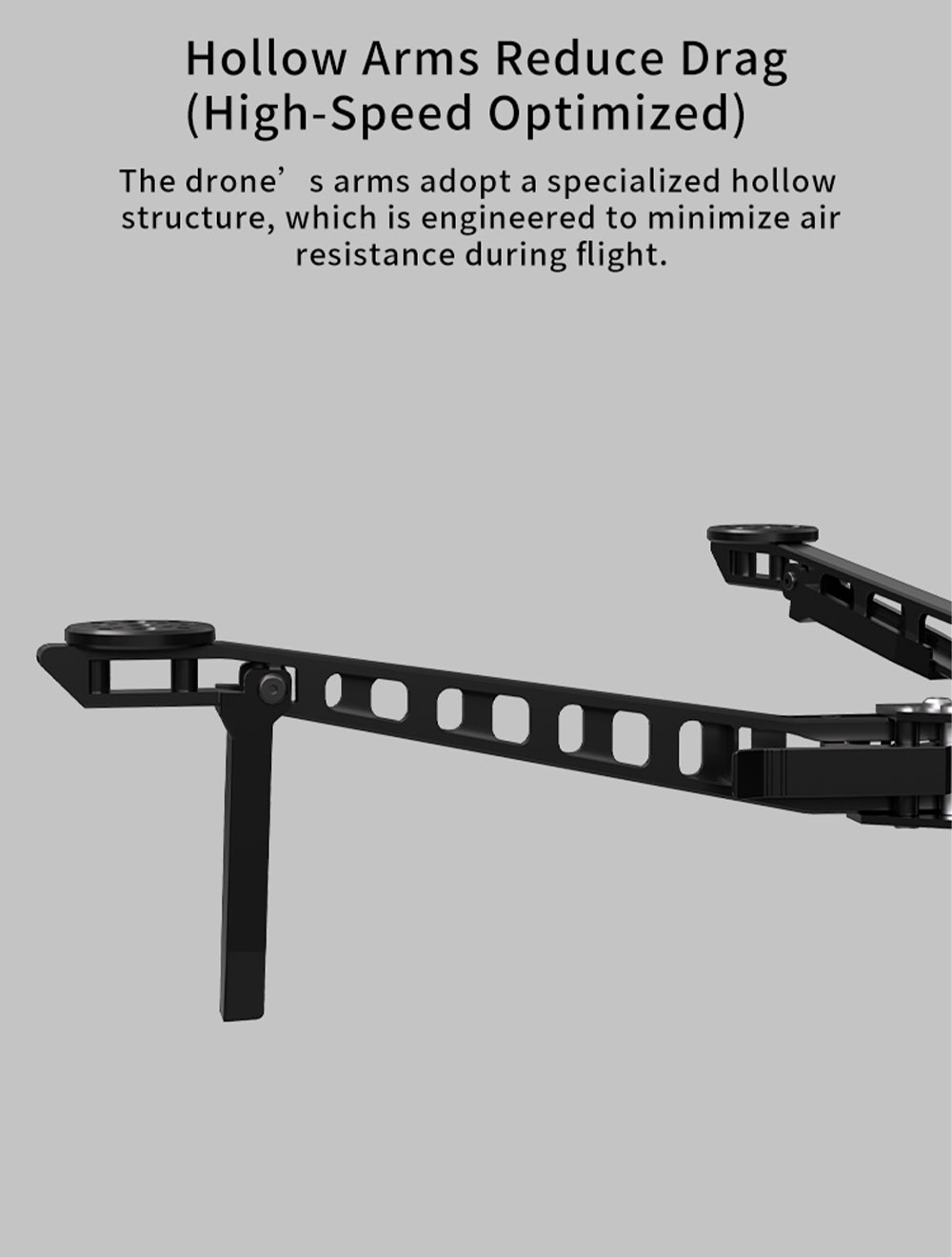

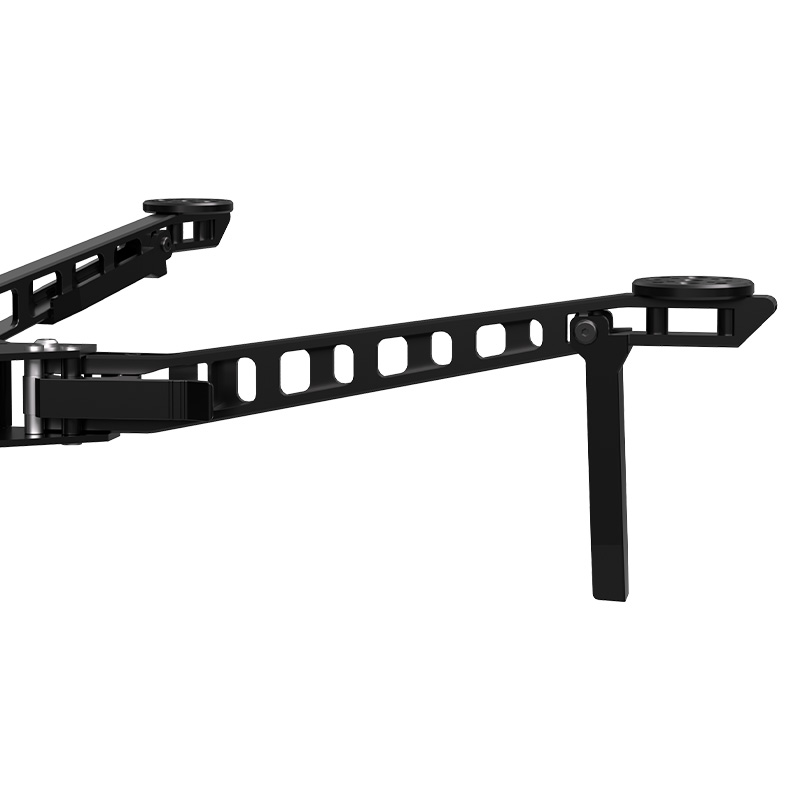

Hollow Arm Design – Reduced Air Resistance
Each arm incorporates a specialized hollow aerodynamic structure.
Benefits include:
reduced air resistance during flight
improved aerodynamic efficiency
enhanced performance during high-speed operation
This design is optimized for long-range and high-speed drone applications.

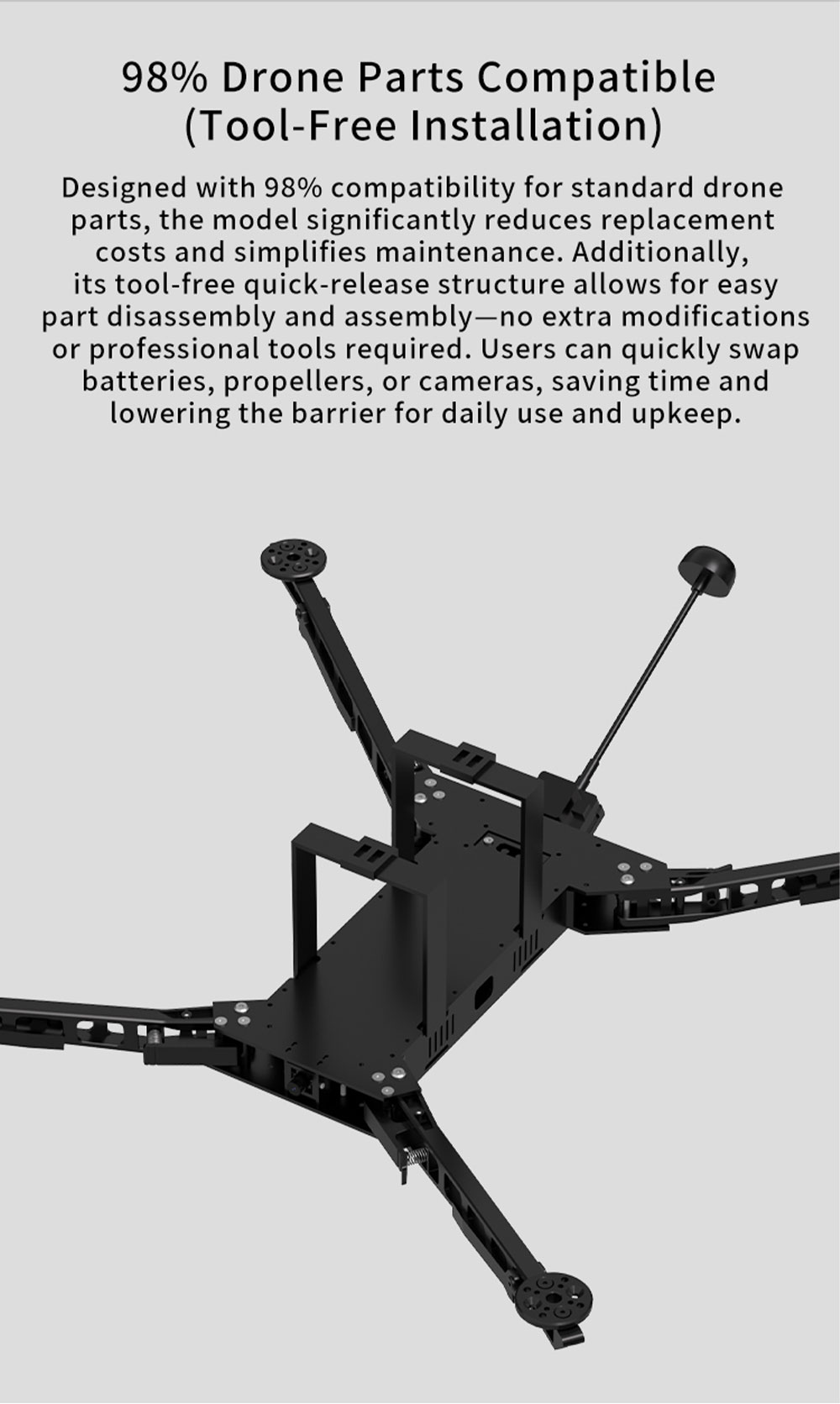

98% Drone Parts Compatibility
The frame is designed with 98% compatibility with standard drone components, helping reduce maintenance costs.
The tool-free quick-release structure allows users to:
easily assemble or disassemble parts
quickly replace batteries, propellers, or cameras
perform upgrades or maintenance without professional tools
This greatly simplifies daily operation and reduces the technical barrier for drone users.
Size & Specifications

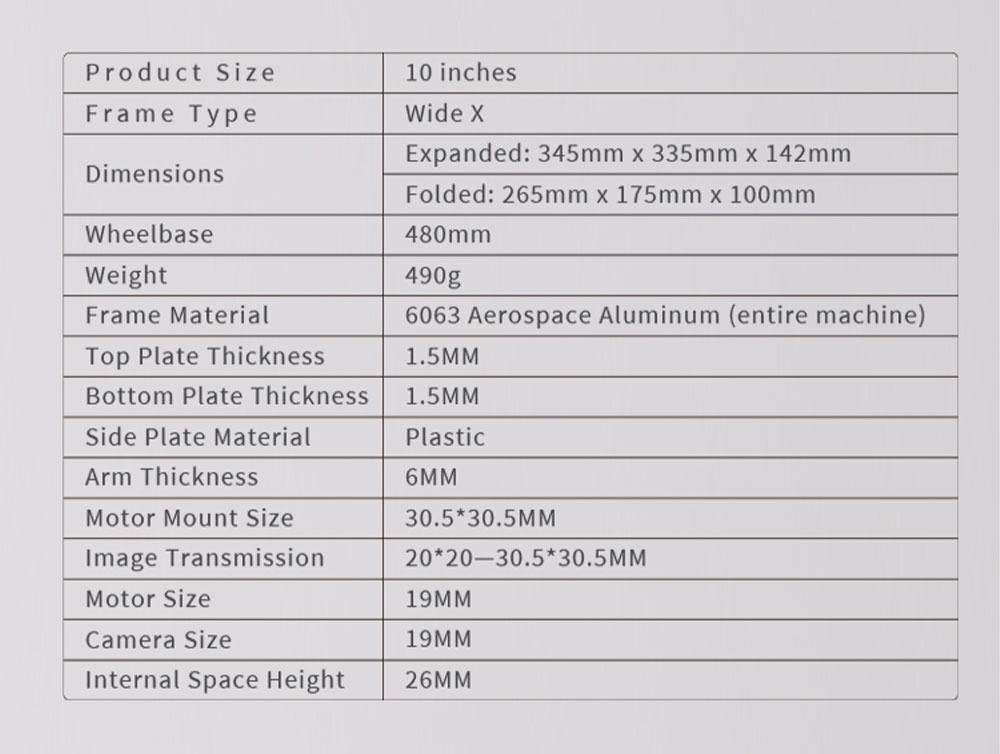

10-inch Version (Wide X)
| Parameter | Specification |
| Expanded Dimensions | 345 × 335 × 142 mm |
| Folded Dimensions | 265 × 175 × 100 mm |
| Wheelbase | 480 mm |
| Weight | 490 g |
| Frame Material | 6063 Aerospace Aluminum |
| Top Plate Thickness | 1.5 mm |
| Bottom Plate Thickness | 1.5 mm |
| Side Plate Material | Plastic |
| Arm Thickness | 6 mm |
| Motor Mount Pattern | 30.5 × 30.5 mm |
| VTX / Stack Mount | 20 × 20 mm / 30.5 × 30.5 mm |
| Motor Size | 19 mm |
| Camera Size | 19 mm |
| Internal Space Height | 26 mm |

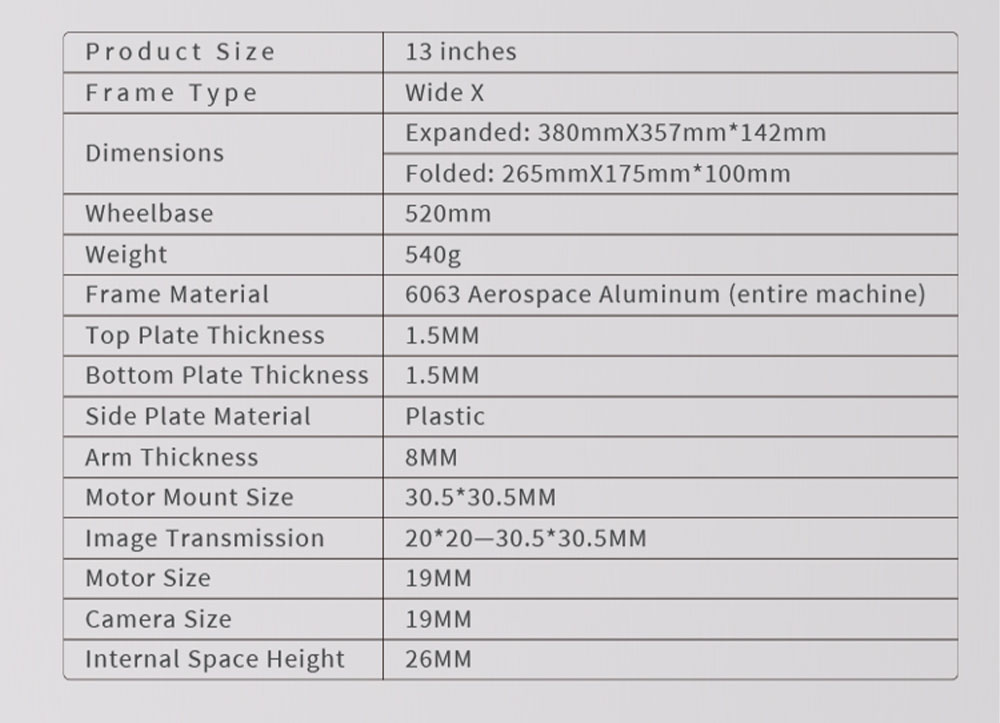

13-inch Version (Wide X)
| Parameter | Specification |
| Expanded Dimensions | 380 × 357 × 142 mm |
| Folded Dimensions | 265 × 175 × 100 mm |
| Wheelbase | 520 mm |
| Weight | 540 g |
| Frame Material | 6063 Aerospace Aluminum |
| Top Plate Thickness | 1.5 mm |
| Bottom Plate Thickness | 1.5 mm |
| Side Plate Material | Plastic |
| Arm Thickness | 8 mm |
| Motor Mount Pattern | 30.5 × 30.5 mm |
| VTX / Stack Mount | 20 × 20 mm / 30.5 × 30.5 mm |
| Motor Size | 19 mm |
| Camera Size | 19 mm |
| Internal Space Height | 26 mm |

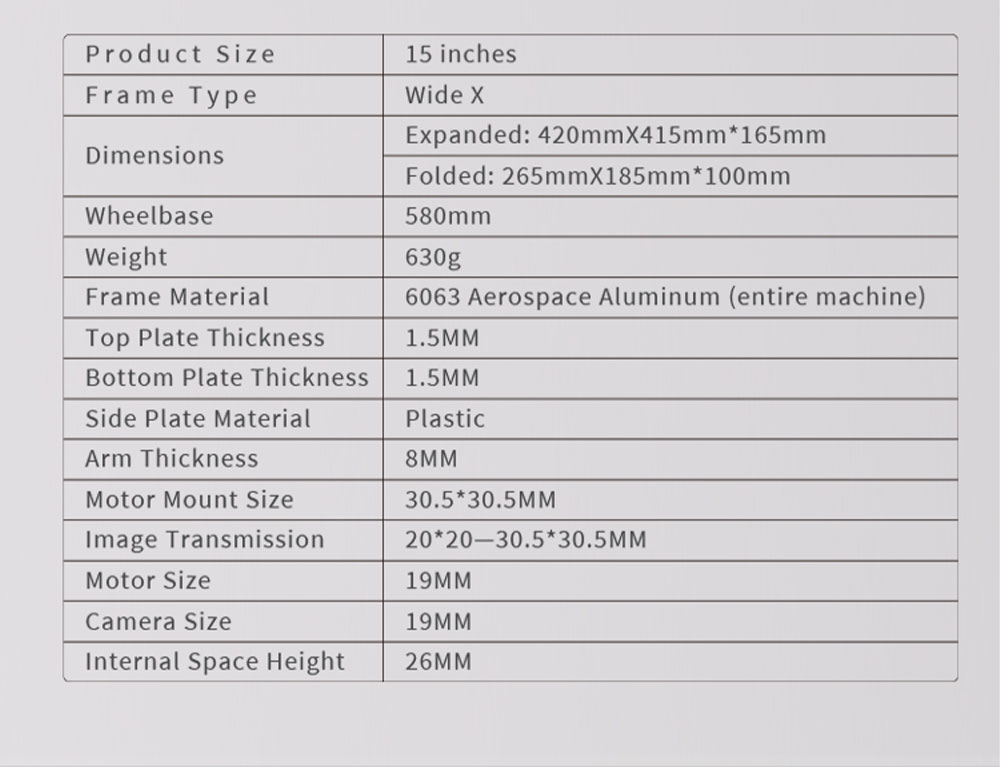

15-inch Version (Wide X)
| Parameter | Specification |
| Expanded Dimensions | 420 × 415 × 165 mm |
| Folded Dimensions | 265 × 185 × 100 mm |
| Wheelbase | 580 mm |
| Weight | 630 g |
| Frame Material | 6063 Aerospace Aluminum |
| Top Plate Thickness | 1.5 mm |
| Bottom Plate Thickness | 1.5 mm |
| Side Plate Material | Plastic |
| Arm Thickness | 8 mm |
| Motor Mount Pattern | 30.5 × 30.5 mm |
| VTX / Stack Mount | 20 × 20 mm / 30.5 × 30.5 mm |
| Motor Size | 19 mm |
| Camera Size | 19 mm |
| Internal Space Height | 26 mm |
