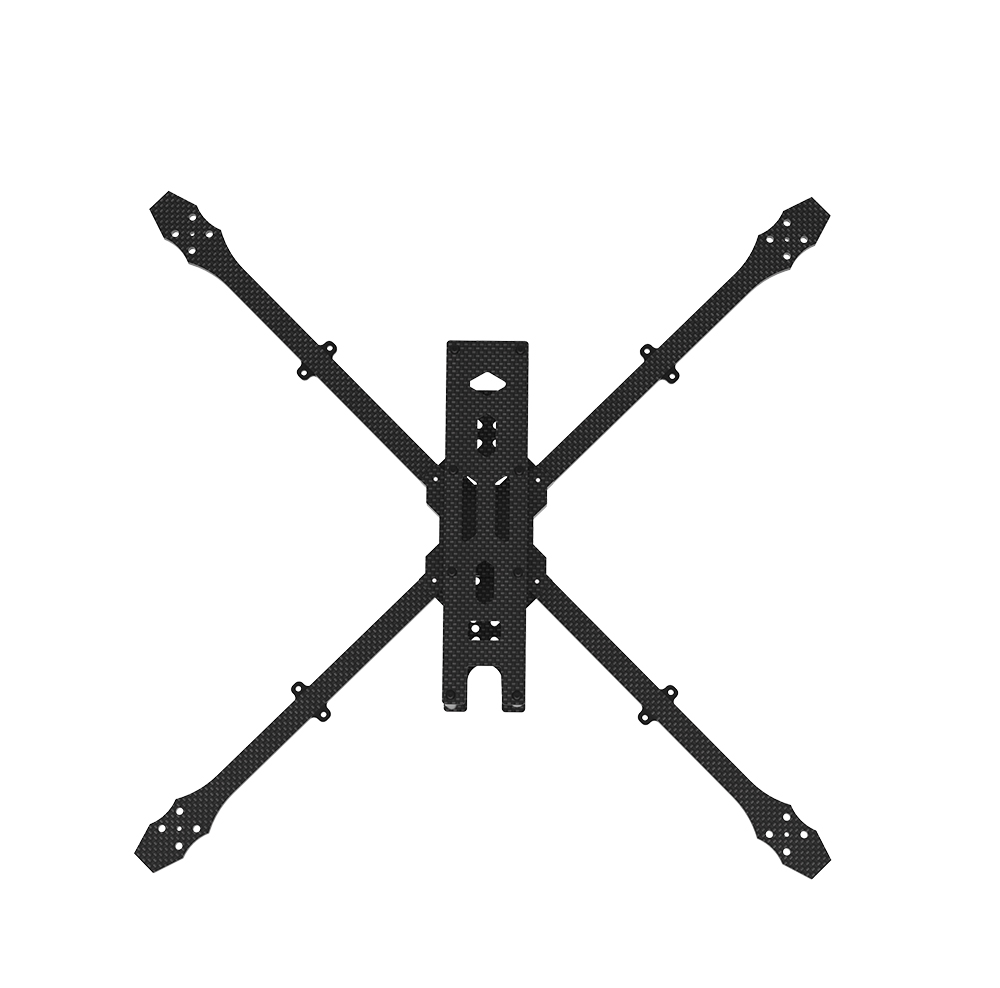

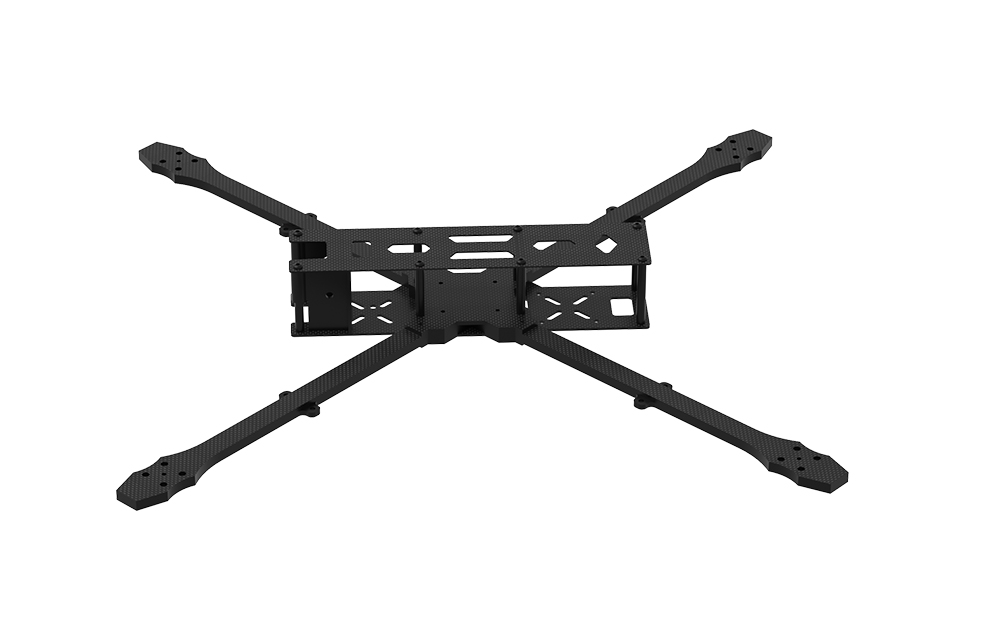

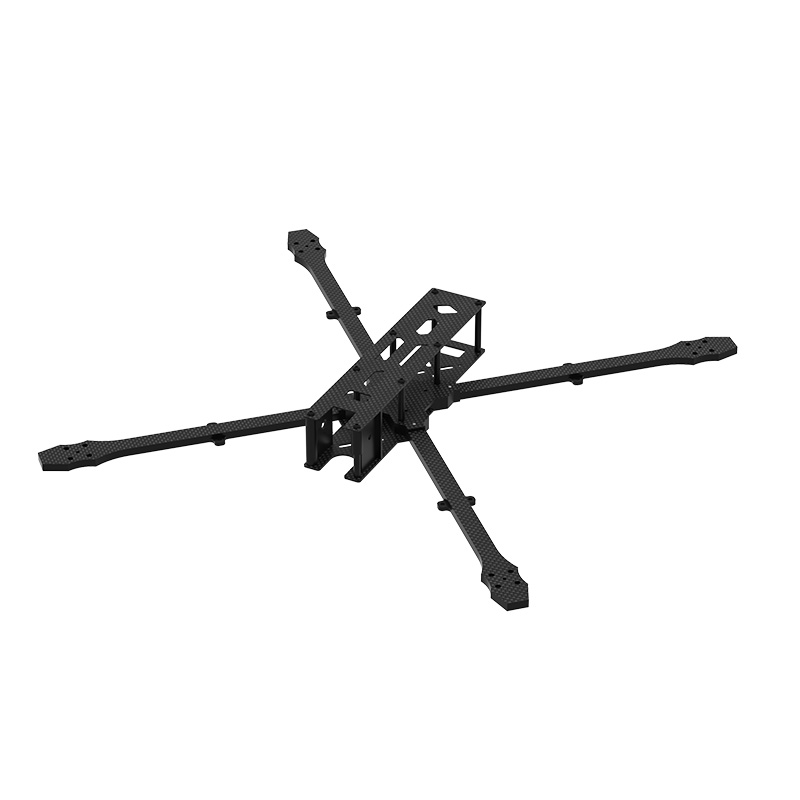

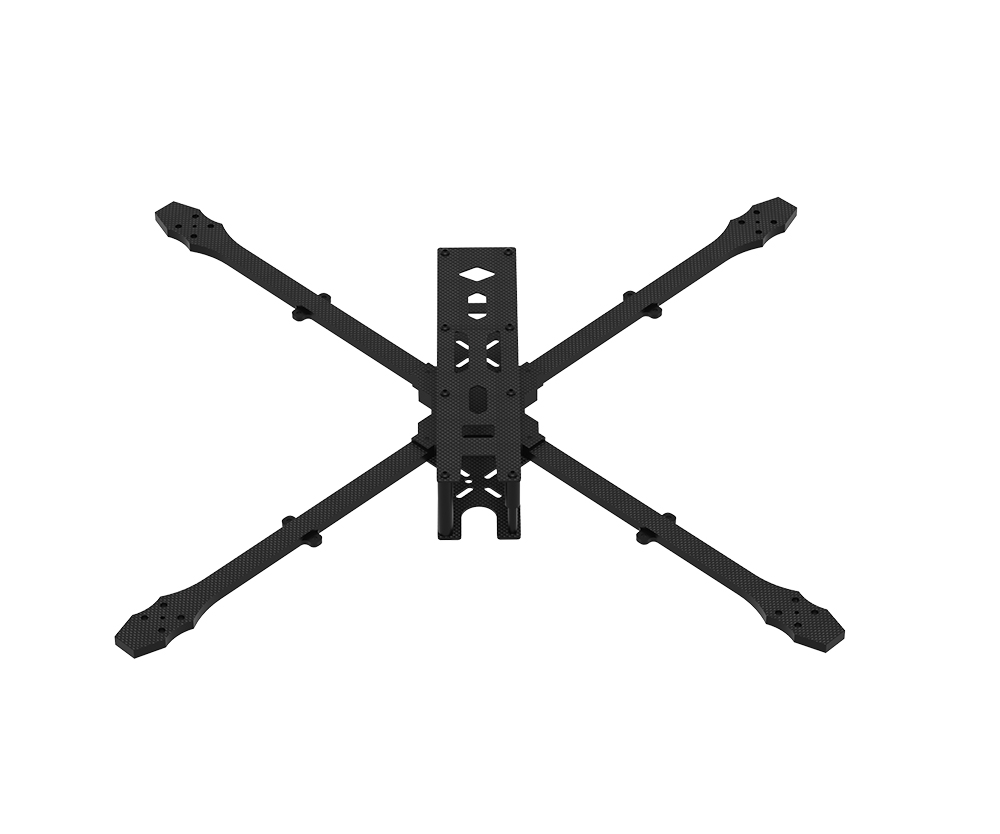

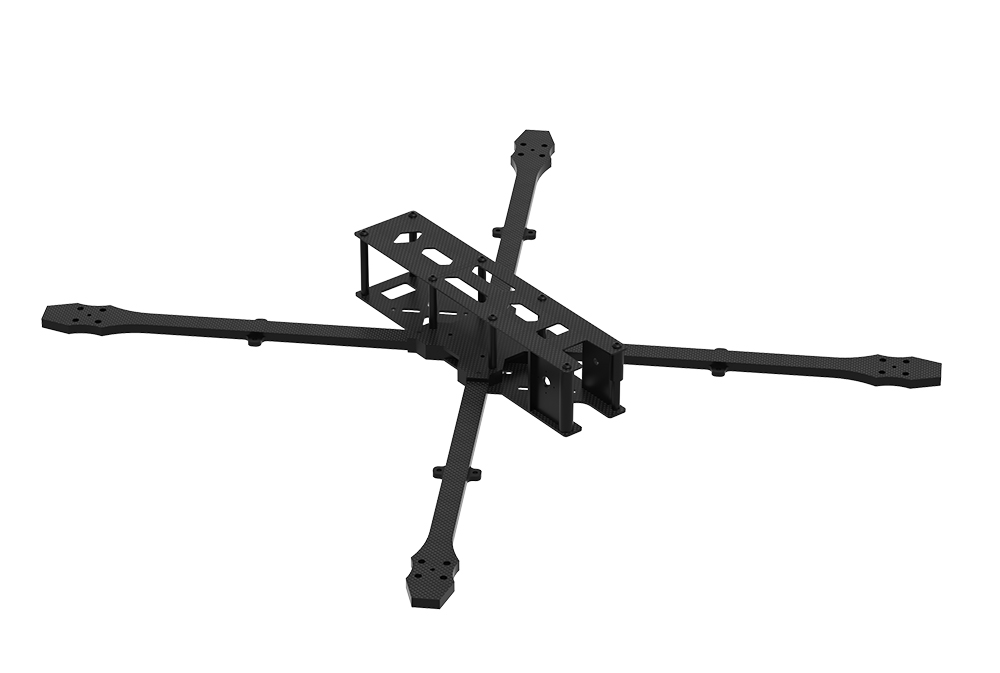

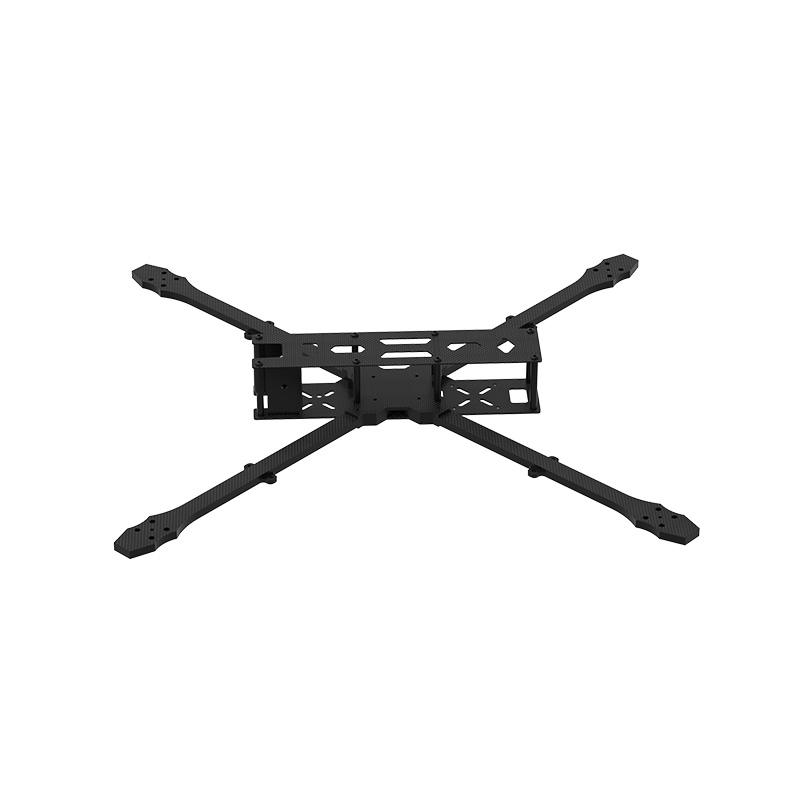

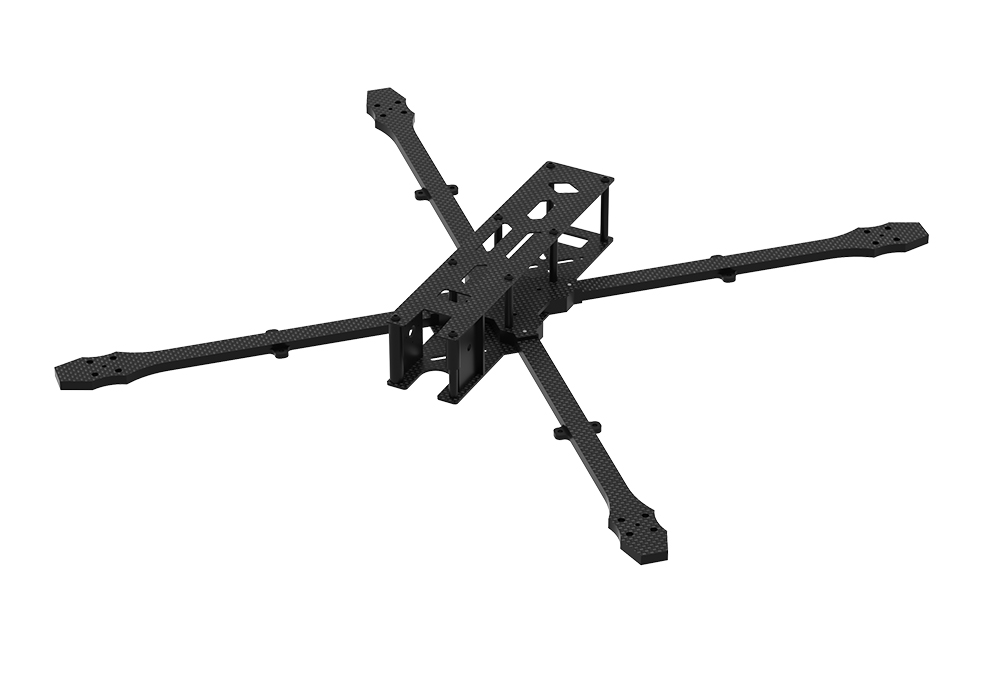

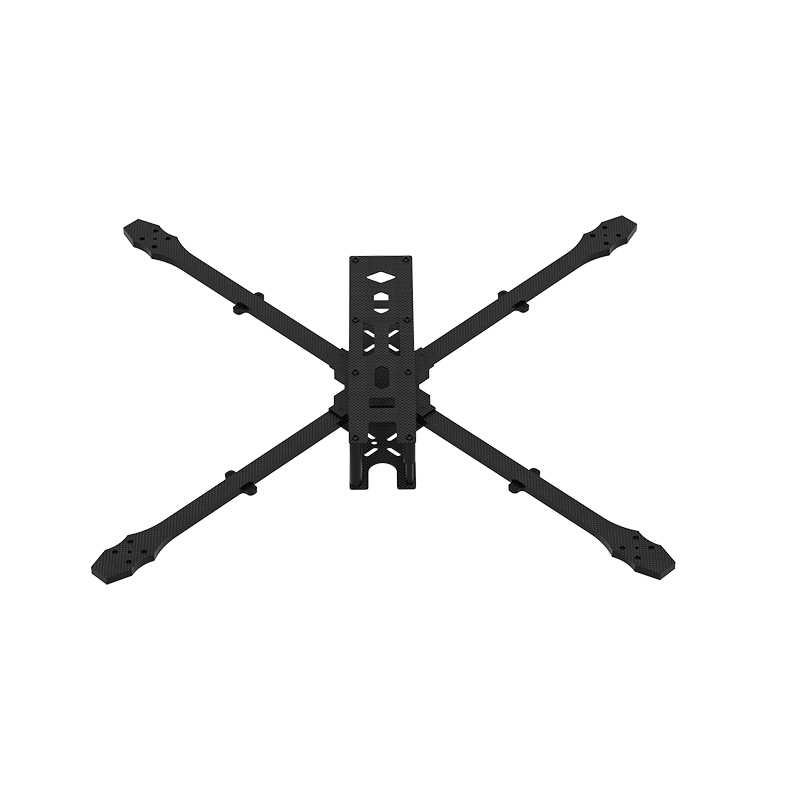

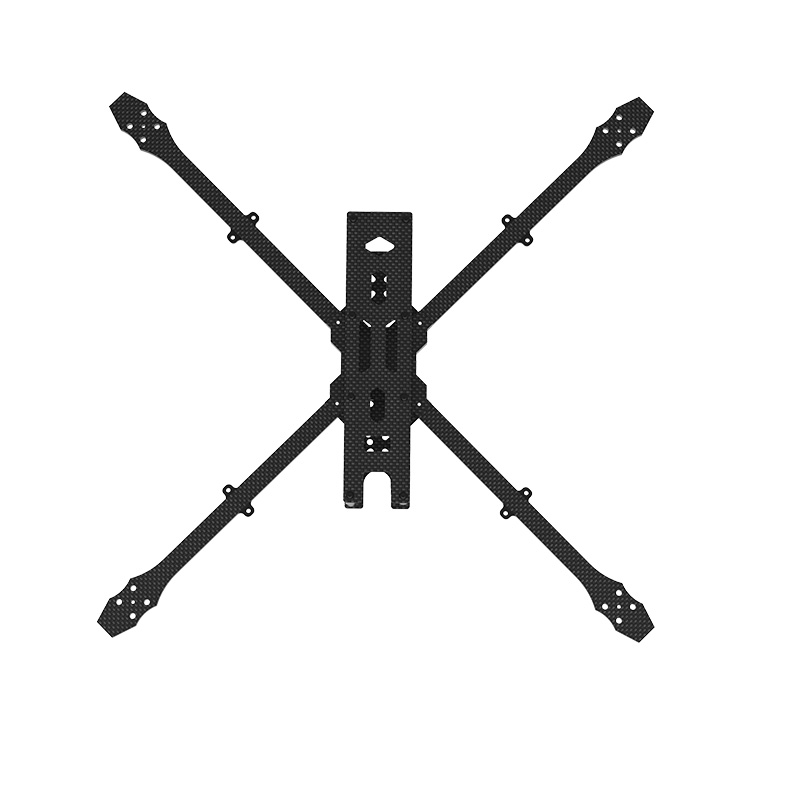

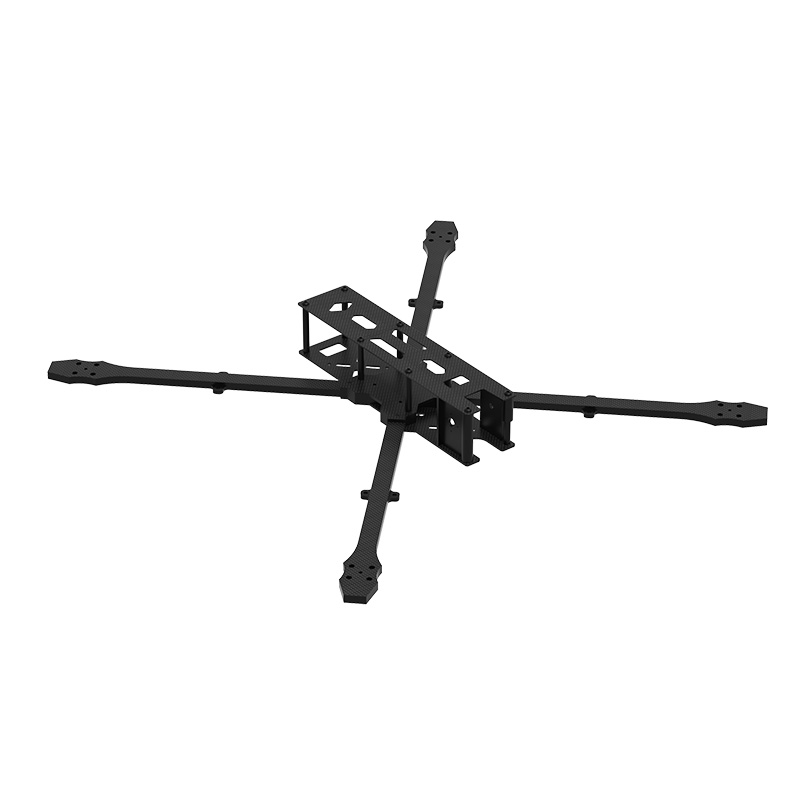

Carbon Fiber FPV Drone Frame – 7–10 Inch Long Range Frame
The Carbon Fiber FPV Drone Frame – 7–10 Inch Long Range Frame is engineered for pilots who demand extended flight time, higher payload capacity, and stable long-range performance.
Designed to support larger propellers and high-capacity battery systems, this frame provides the structural strength and efficiency required for long-distance FPV missions.
With a reinforced carbon fiber structure and optimized geometry, it delivers excellent vibration control, improved flight stability, and flexible component integration.
Key Features
Designed for Long-Range Efficiency
Supports 7 to 10 inch propellers, allowing lower RPM operation and improved aerodynamic efficiency for extended flight missions. Larger props move more air per rotation, reducing power consumption during cruise.
Reinforced Carbon Fiber Structure
Built with high-strength carbon fiber plates and thick arms (typically 6–7.5 mm), minimizing flex and vibration for smoother flight and better video stability.
Optimized Frame Geometry
Wheelbase typically ranges from 300 mm to 430 mm depending on configuration, providing stable flight characteristics and sufficient spacing for large components.
Spacious Layout for Long-Range Builds
The frame offers ample internal space for GPS modules, long-range communication systems, and high-capacity Li-ion or LiPo batteries, essential for endurance-focused setups.
Modular and Serviceable Design
Supports replaceable arms and flexible mounting options, making maintenance easier during field operations and reducing downtime after crashes.

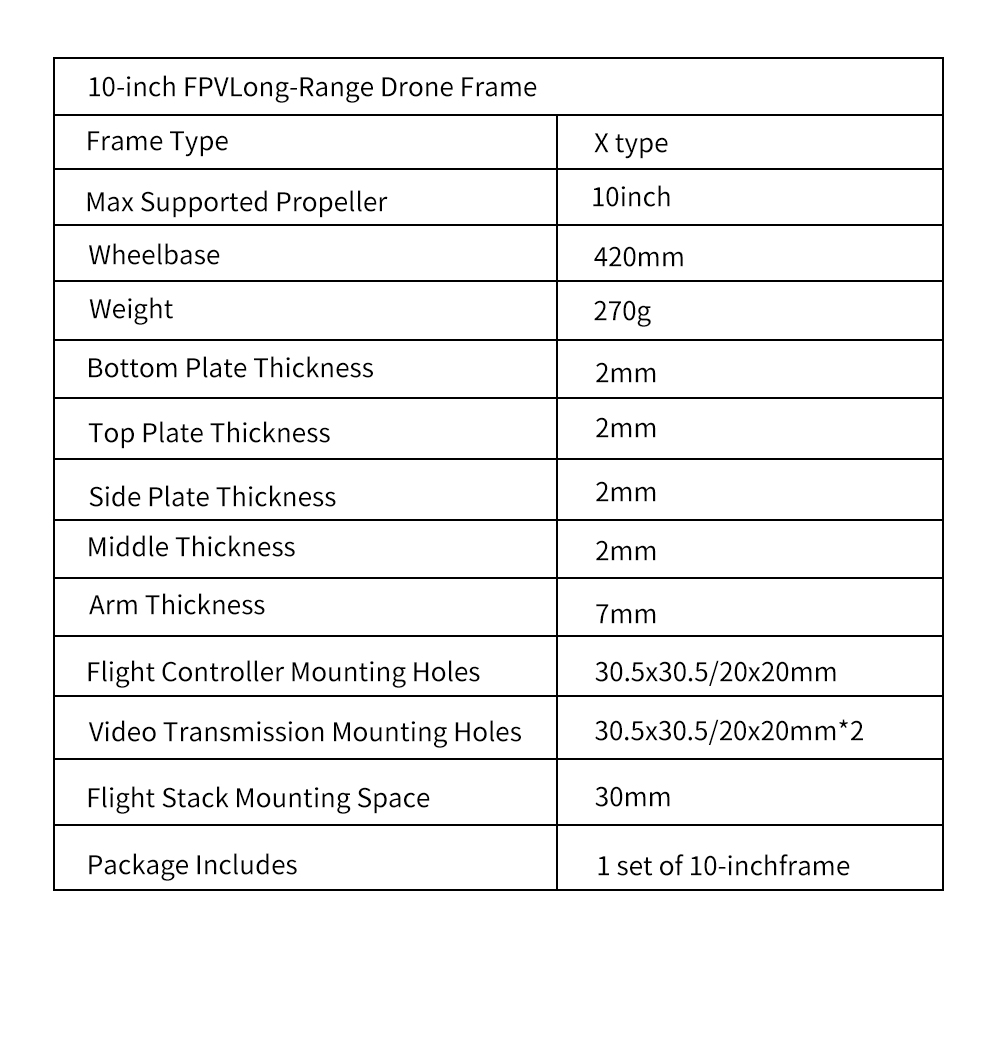

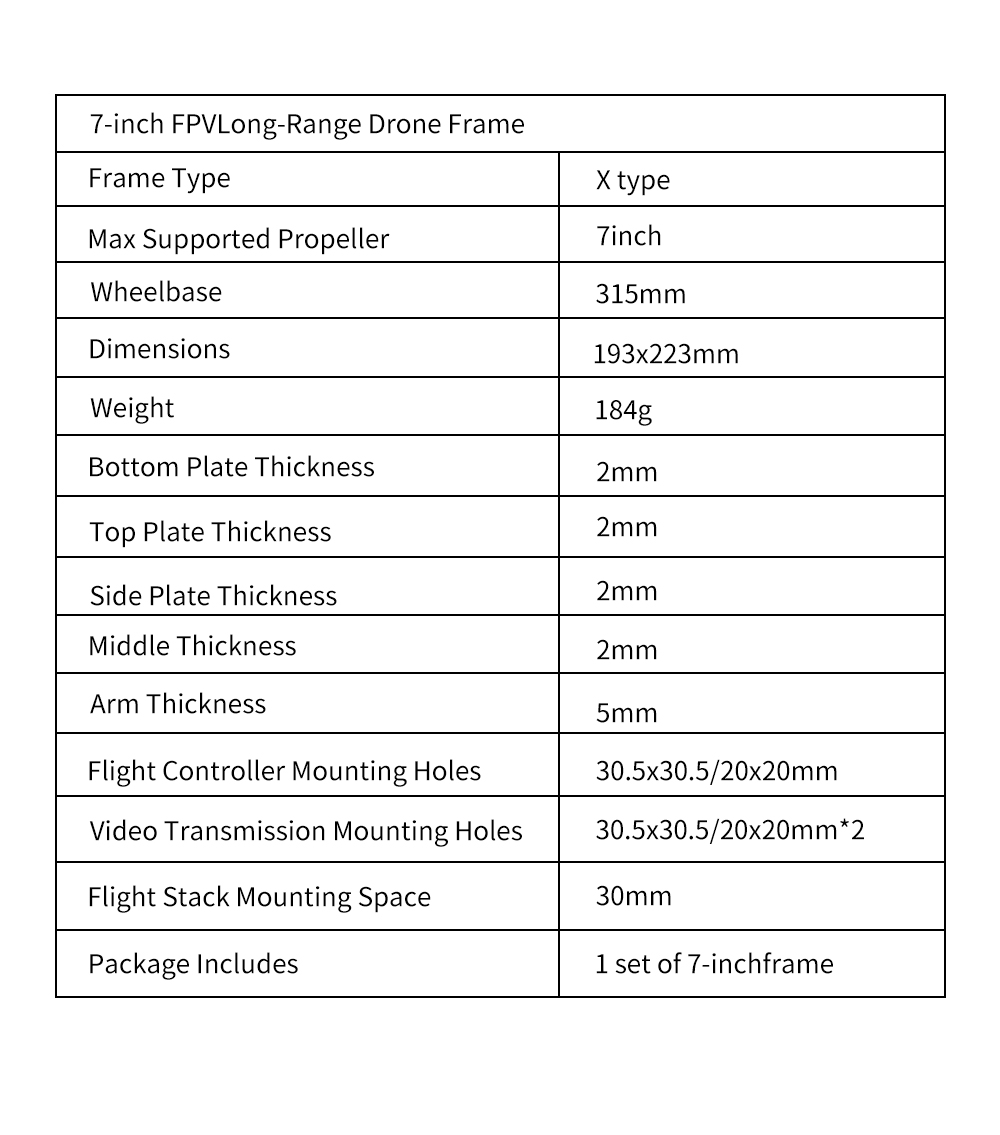

Specifications (Parameter Table)
Frame Structure
| Category | Specification |
| Product Name | 7–10 Inch FPV Long Range Frame |
| Type | Carbon Fiber FPV Drone Frame |
| Material | 100% Carbon Fiber |
| Frame Type | X / Deadcat Configuration |
| Wheelbase | Approx. 300 – 430 mm |
| Arm Thickness | Approx. 6 – 7.5 mm |
| Top Plate Thickness | 2 – 3 mm |
| Bottom Plate Thickness | 2.5 – 3 mm |
| Weight (Frame Only) | Approx. 250 – 450 g |
Compatibility
| Category | Specification |
| Propeller Size | 7 – 10 inch |
| Motor Compatibility | 2806.5 / 2807 / 2810 Series |
| ESC / FC Mounting | 20×20 mm / 30.5×30.5 mm |
| Camera Mount | 19 mm / 22 mm |
| VTX Compatibility | Analog / Digital FPV Systems |
| Battery Support | 4S – 6S LiPo / Li-ion |
Structural Design
| Category | Specification |
| Frame Layout | Modular / Replaceable Arms |
| Assembly Type | DIY Kit |
| Battery Mount | Top / Bottom Mount Supported |
| GPS Mount | Dedicated Mounting Position |
| Antenna Mount | Long-range optimized placement |
| Cable Management | Integrated routing design |
Application Scenarios
- Long-range FPV exploration (5–20 km missions)
- Cinematic aerial filming with action cameras
- Industrial inspection and mapping
- Lightweight payload delivery
- DIY professional drone builds
Why Choose This Carbon Fiber FPV Drone Frame
The Carbon Fiber FPV Drone Frame in the 7–10 inch class is specifically designed for efficiency, endurance, and stability rather than pure speed.
Compared to 5-inch frames, it offers significantly longer flight times and better payload capability due to larger propellers and improved aerodynamic efficiency.
It is widely considered the ideal platform for long-range FPV pilots who need reliable performance over extended distances while maintaining stable flight characteristics.
Package and Customization
- Includes carbon fiber frame kit with hardware
- Compatible with mainstream FPV electronics and long-range systems
- Supports custom builds and extended battery configurations
- OEM and bulk customization available
