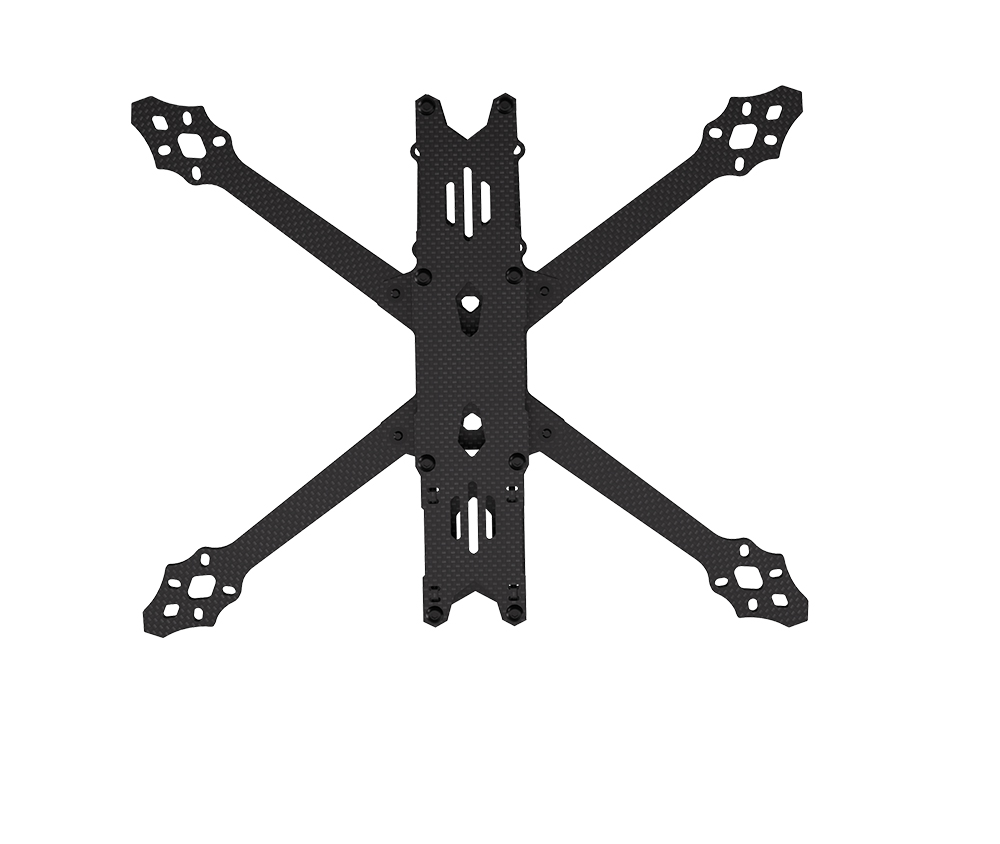

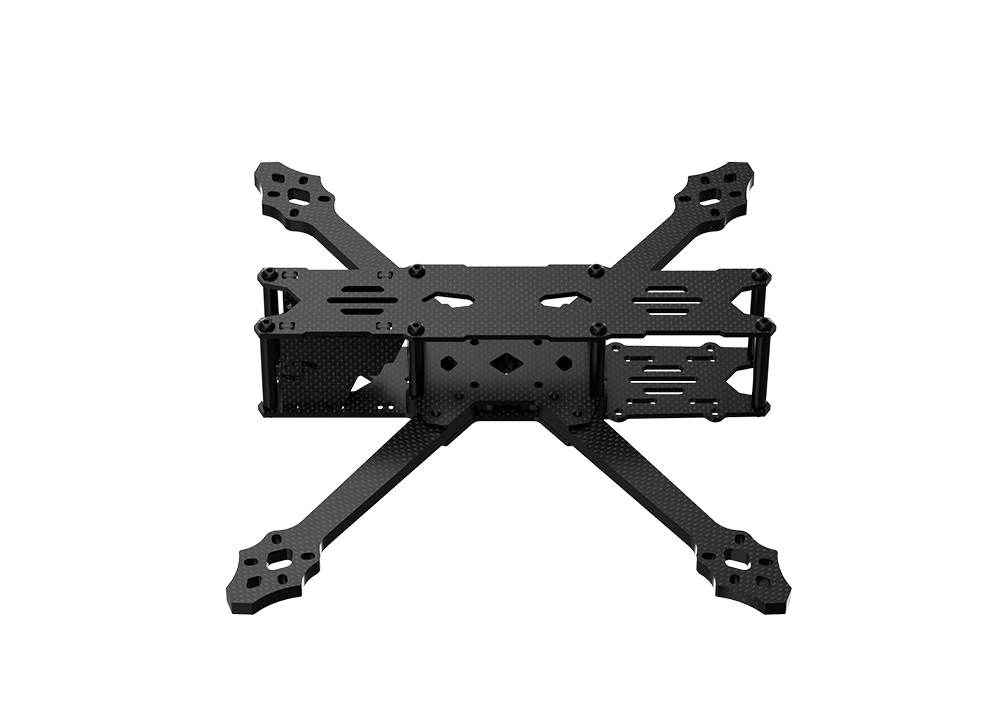

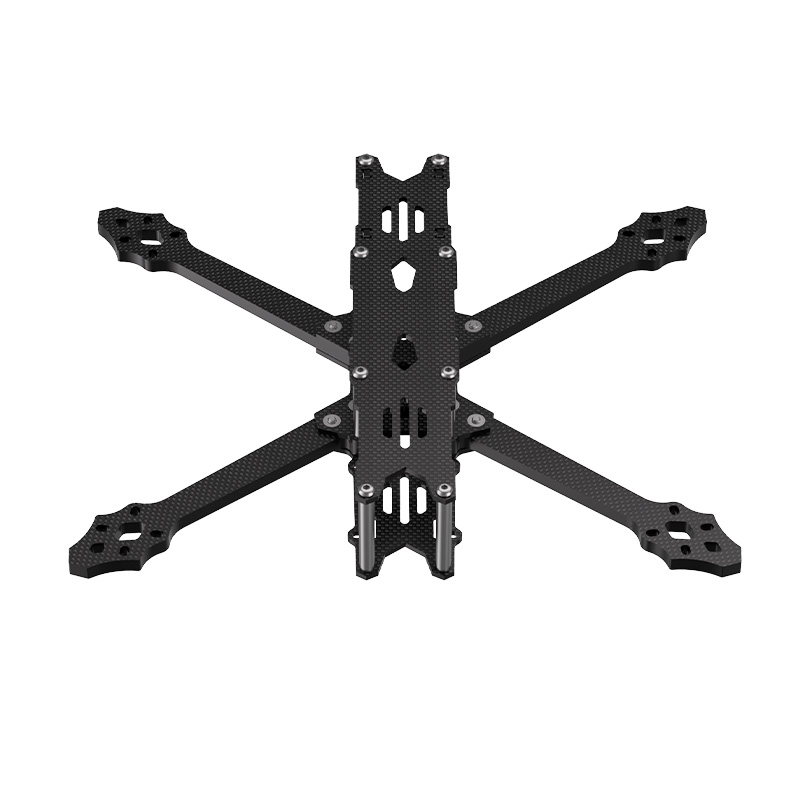

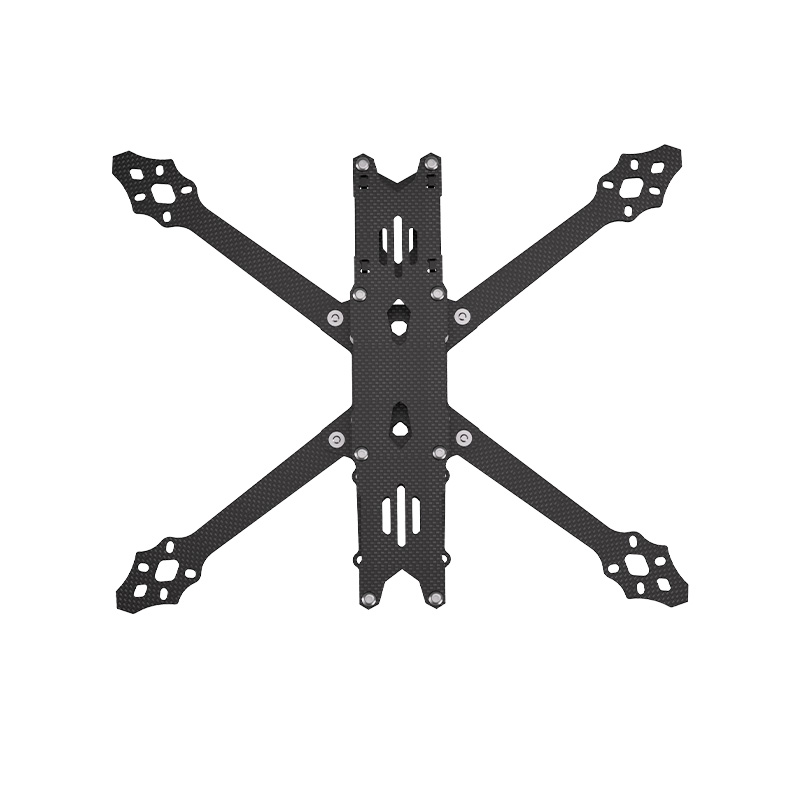

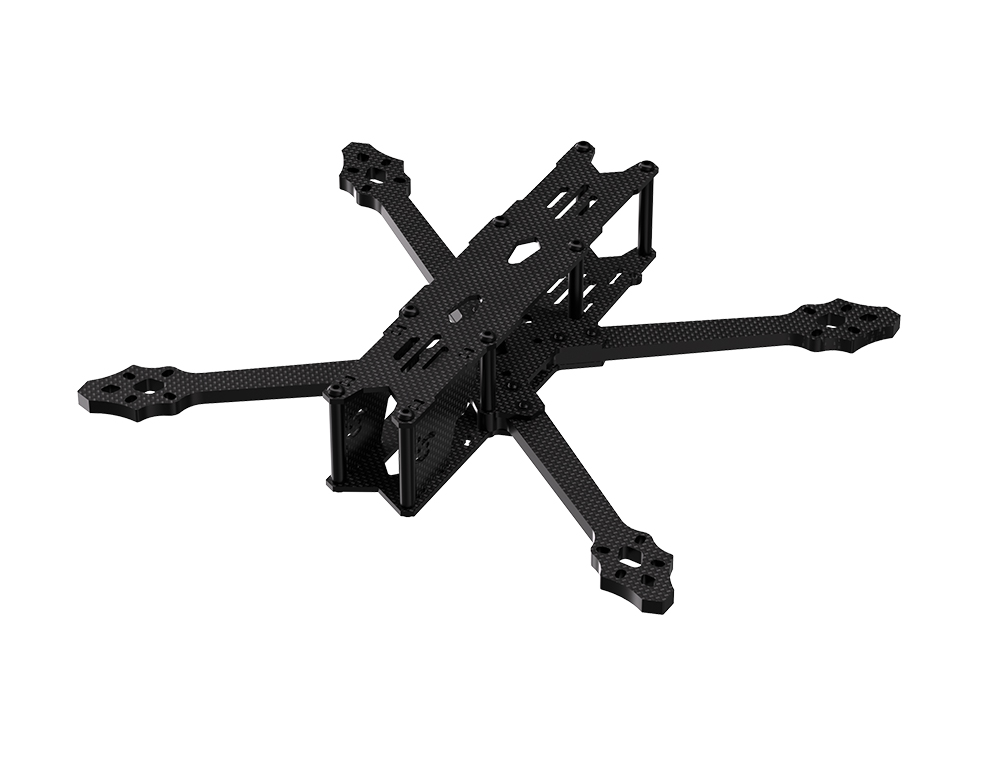

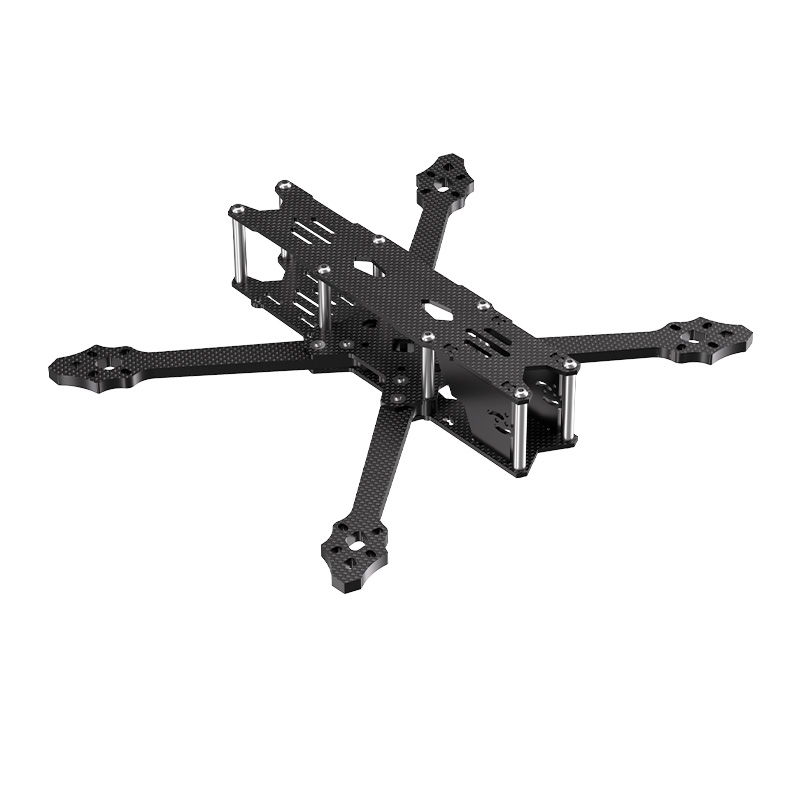

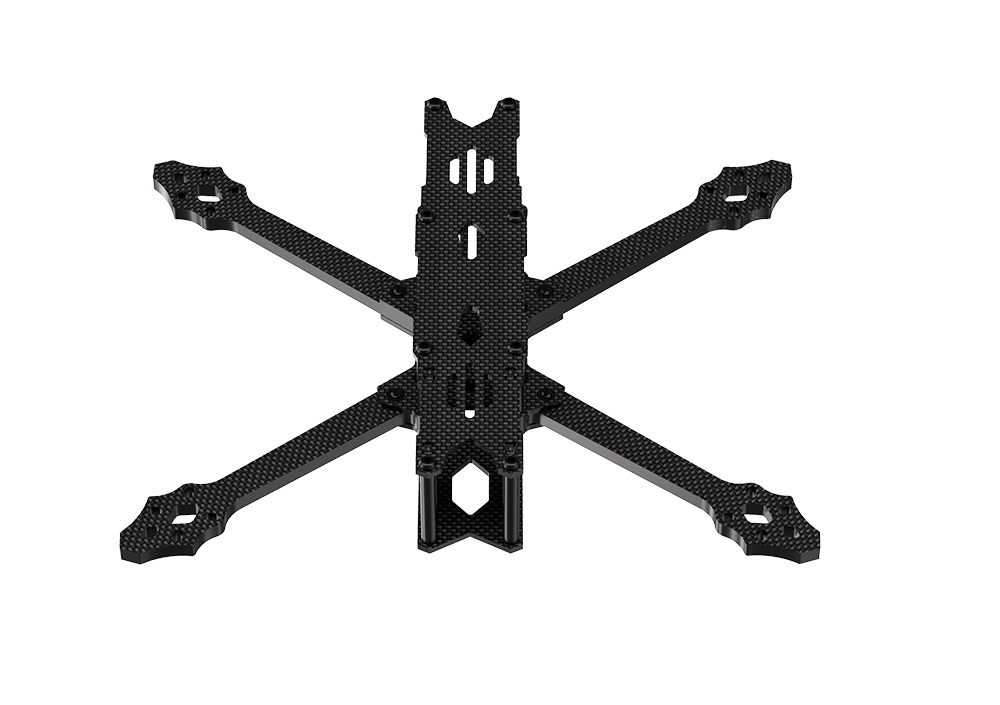

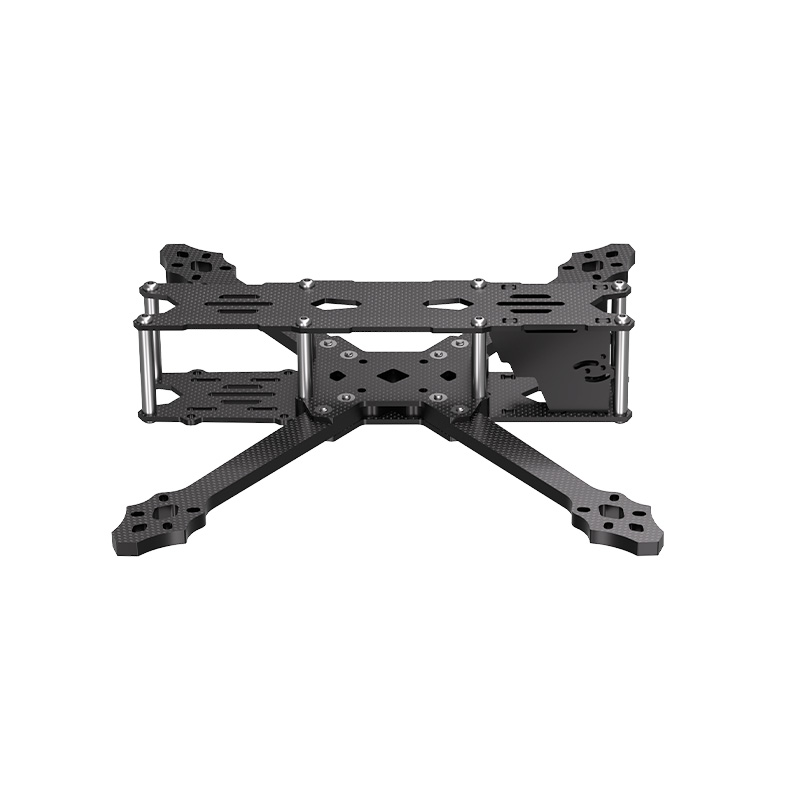

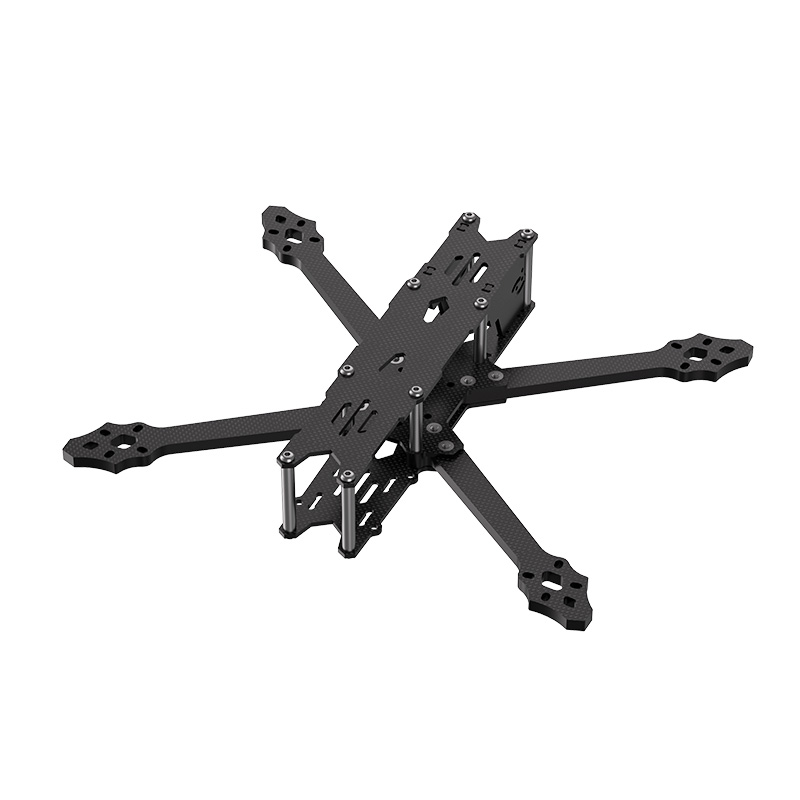

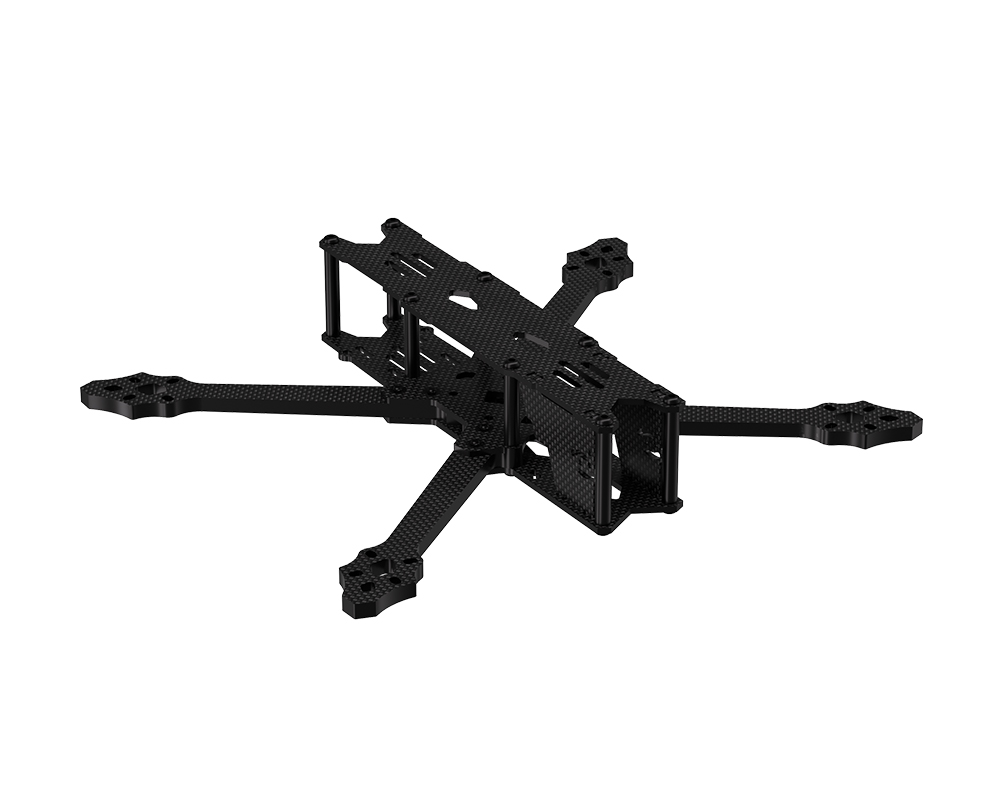

Carbon Fiber FPV Drone Frame – 5 Inch Long Range Frame
The Carbon Fiber FPV Drone Frame – 5 Inch Long Range Frame is designed for pilots seeking a balance between agility, durability, and efficient long-range flight performance.
Built with high-strength carbon fiber, this frame provides excellent rigidity and vibration control, ensuring stable flight characteristics and precise handling.
Optimized for 5-inch propellers, it offers a versatile platform suitable for freestyle, racing, and lightweight long-range FPV builds.
Key Features
High-Strength Carbon Fiber Construction
Constructed from premium carbon fiber material, offering exceptional strength-to-weight ratio, high rigidity, and impact resistance for demanding FPV use.
Optimized 5-Inch Frame Geometry
Designed for 5-inch propellers, providing an ideal balance of speed, agility, and stability, making it the most widely used FPV configuration.
Durable Arm Structure
Equipped with approximately 5 mm thick arms, enhancing crash resistance while maintaining efficient weight distribution.
Flexible Electronics Mounting
Supports multiple stack sizes (20×20 mm and 30.5×30.5 mm), allowing compatibility with various flight controllers, ESCs, and FPV systems.
Lightweight and Efficient Design
Typical frame weight optimized within 180–280 g range, improving thrust-to-weight ratio and overall flight efficiency.

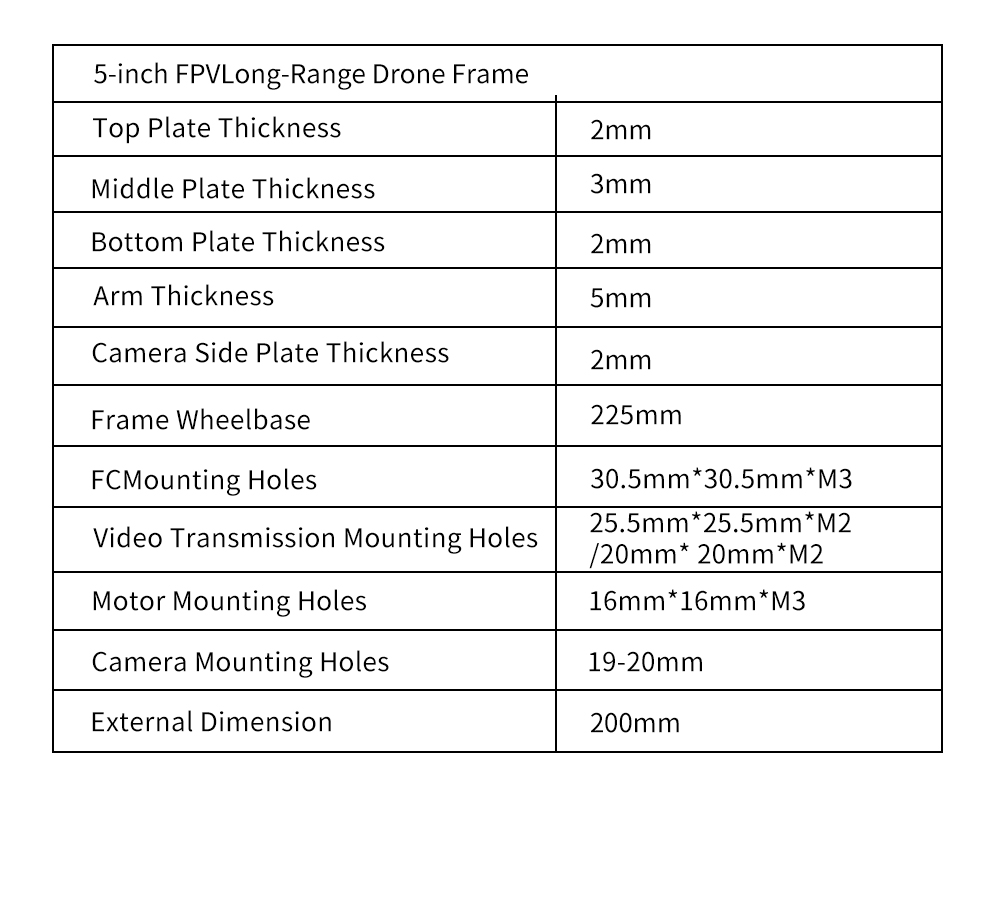

Specifications (Parameter Table)
Frame Structure
| Category | Specification |
| Product Name | 5 Inch FPV Long Range Frame |
| Type | Carbon Fiber FPV Drone Frame |
| Material | 100% Carbon Fiber |
| Frame Type | X / True-X Configuration |
| Wheelbase | Approx. 210 – 250 mm |
| Arm Thickness | Approx. 5 mm |
| Top Plate Thickness | 1.5 – 2 mm |
| Bottom Plate Thickness | 2 – 3 mm |
| Weight (Frame Only) | Approx. 180 – 280 g |
Compatibility
| Category | Specification |
| Propeller Size | 5-inch |
| Motor Compatibility | 2206 / 2207 / 2306 Series |
| ESC / FC Mounting | 20×20 mm / 30.5×30.5 mm |
| Camera Mount | 19 mm / 22 mm |
| VTX Compatibility | Standard Analog / Digital Systems |
| Battery Support | 4S – 6S LiPo |
Structural Design
| Category | Specification |
| Frame Layout | Modular / Replaceable Arms |
| Assembly Type | DIY Kit |
| Mounting System | Top or Bottom Battery Mount |
| Cable Management | Integrated routing slots |
| Shock Absorption | TPU / Dampening compatible |
Application Scenarios
- FPV freestyle flying
- FPV racing
- Lightweight long-range builds
- DIY drone projects
- Aerial photography (light payload)
Why Choose This Carbon Fiber FPV Drone Frame
The Carbon Fiber FPV Drone Frame offers a proven balance between durability, weight, and flight performance, making it a standard choice among FPV pilots.
Compared to heavier or less rigid materials, carbon fiber provides superior structural stability and reduced vibration, resulting in smoother flight and better video quality.
This 5-inch configuration is widely regarded as the “sweet spot” in FPV drones, delivering versatility across racing, freestyle, and long-range applications.
Package and Customization
- Includes frame kit with carbon plates and hardware
- Compatible with a wide range of FPV components
- Supports custom builds and upgrades
- OEM and bulk order customization available
